maserati 222 / 222e biturbo air conditioning system rh steering (after modif.) parts diagram

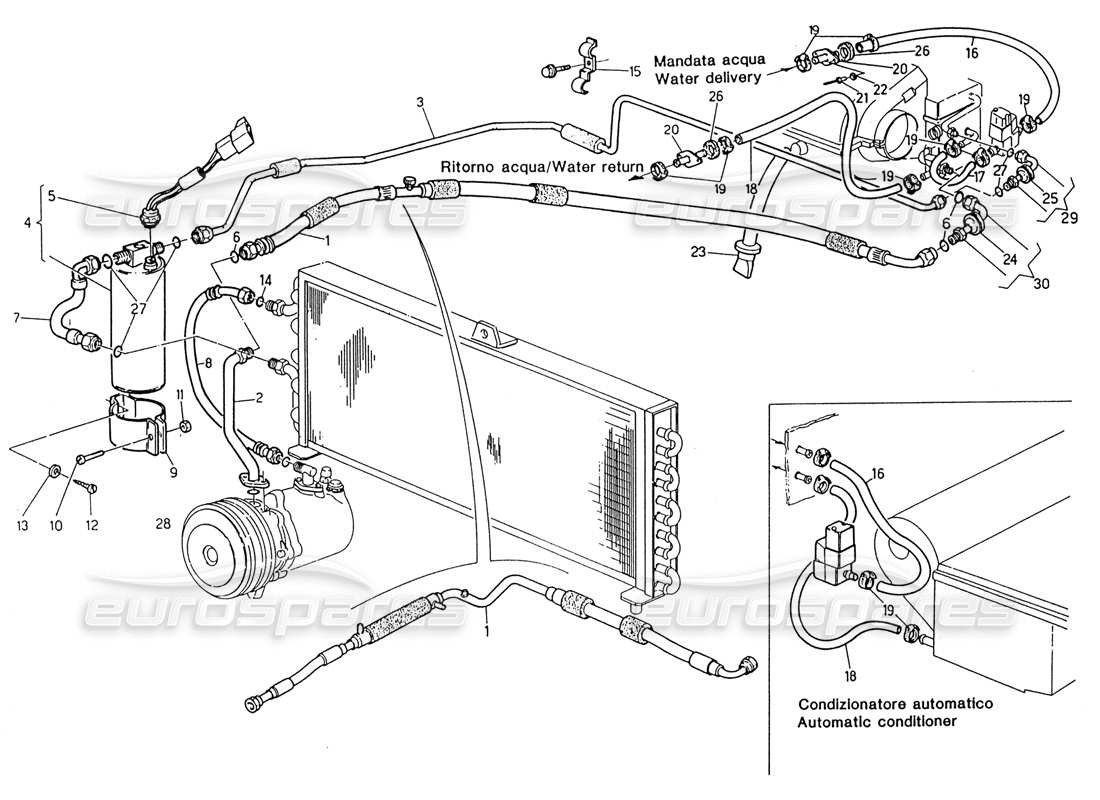

018.3 - Air Conditioning System RH Steering (After Modif.)

Maserati 222 / 222E Biturbo Air Conditioning System R.H. Steering (After Modif.) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 315547106
    RETURN PIPE PRE MOD.
    Valid for 70, 71, 74, 75
    Supersession
    Supersession
    # 001
    MPN: 315570111
    RETURN PIPE WITH FUEL COOLING AFTER MOD.
    Valid for 70, 71, 74, 75
    from £71.16
    from £71.16
    This part replaces part number 315527106 - and 1 more. Click to view details
    # 002
    MPN: 325570250
    RETURN PIPE
    Valid for 70, 71, 74, 75
    from £57.86
    from £57.86
    This part replaces part number 345500185
    # 003
    MPN: 315547105
    DELIVERY PIPE
    Valid for 70, 71, 74, 75
    from £100.54
    from £100.54
    # 004
    MPN: 365502174
    FREON FILTER
    from £103.99
    from £103.99
    This part replaces part number 315520174
    # 005
    MPN: 315520175
    SWITCH
    Valid for 70, 71, 74, 75
    Supersession
    Supersession
    # 006
    MPN: 315520445
    OR
    Valid for 70, 71, 74, 75
    from £0.69
    from £0.69
    # 007
    MPN: 315521181
    DELIVERY PIPE
    Valid for 70, 71, 74, 75
    Supersession
    Supersession
    # 008
    MPN: 315553179
    DELIVERY PIPE
    Valid for 70, 71, 74, 75
    from £28.28
    from £28.28
    # 009
    MPN: 315520301
    CLAMP
    Valid for 70, 71, 74, 75
    from £17.16
    from £17.16
    # 010
    MPN: 101206025
    SCREW
    Valid for 70, 71, 74, 75
    # 011
    MPN: 128300060
    NUT
    Valid for 70, 71, 74, 75
    Supersession
    Supersession
    # 012
    MPN: 119148160
    SCREW
    Valid for 70, 71, 74, 75
    # 013
    MPN: 169020005
    SCREW
    Valid for 70, 71, 74, 75
    from £1.08
    from £1.08
    # 014
    MPN: 315520444
    OR 5/8 FREON LINE
    Valid for 70, 71, 74, 75
    from £0.69
    from £0.69
    # 015
    MPN: 315527302
    BRACKET
    Valid for 70, 71, 74, 75
    # 016
    MPN: 315527367
    DELIVERY WATER LINE PRE MOD.
    Valid for 70, 71, 74, 75
    # 016
    MPN: 315570359
    DELIVERY WATER LINE AFTER MOD.
    Valid for 70, 71, 74, 75
    from £5.08
    from £5.08
    # 017
    MPN: 315520480
    Water line pre mod.
    Valid for 70, 71, 74, 75
    from £2.05
    from £2.05
    # 018
    MPN: 315527363
    WATER LINE AFTER MOD.
    Valid for 70, 71, 74, 75
    # 018
    MPN: 315570358
    RETURN WATER LINE
    Valid for 70, 71, 74, 75
    from £3.94
    from £3.94
    # 019
    MPN: 186402028
    CLAMP
    Valid for 70, 71, 74, 75
    from £1.55
    from £1.55
    # 020
    MPN: 315520370
    UNION
    Valid for 70, 71, 74, 75
    from £0.70
    from £0.70
    # 021
    MPN: 164323413
    POP RIVET
    Valid for 70, 71, 74, 75
    # 022
    MPN: 169020005
    WASHER
    Valid for 70, 71, 74, 75
    from £1.08
    from £1.08
    # 023
    MPN: 315520017
    PIPE
    Valid for 70, 71, 74, 75
    from £1.76
    from £1.76
    # 024
    MPN: 31331303
    CHOCK
    Valid for 70, 71, 74, 75
    from £1.06
    from £1.06
    # 025
    MPN: 315520371
    CHOCK
    Valid for 70, 71, 74, 75
    from £0.63
    from £0.63
    # 026
    MPN: 315520372
    GASKET
    Valid for 70, 71, 74, 75
    from £0.69
    from £0.69
    # 027
    MPN: 315520443
    OR 3/8
    Valid for 70, 71, 74, 75
    from £0.69
    from £0.69
    # 029
    MPN: 315527112
    DELIVERY CONNECTOR ASSY
    Valid for 70, 71, 74, 75
    from £15.64
    from £15.64
    # 030
    MPN: 315527111
    RETURN CONNECTOR ASSY
    Valid for 70, 71, 74, 75
    from £12.40
    from £12.40
