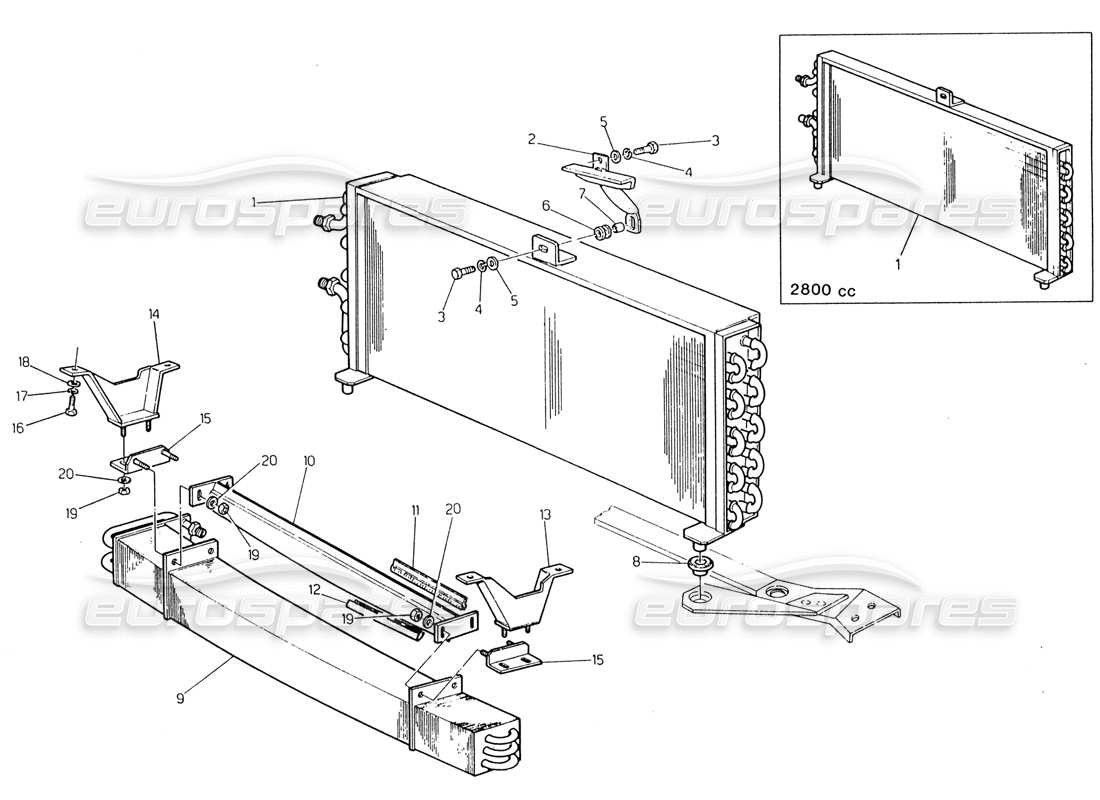

018.4 - Upper and Lower Condenser (Pre Modif.)
Maserati 222 / 222E Biturbo Upper and Lower Condenser (Pre Modif.) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 315521177
UPPER CONDENSER
Valid for 51
from £142.11
from £142.11
# 001
MPN: 315537177
UPPER CONDENSER
Valid for 54, 55, 60, 61, 70, 71, 74, 75
Supersession
Supersession
# 002
MPN: 315521188
SUPPORT
from £5.47
from £5.47
# 003
MPN: 101206025
SCREW
# 004
MPN: 135300064
SPRING WASHER
# 005
MPN: 135900064
WASHER
from £0.47
from £0.47
# 006
MPN: 315520375
RING
Supersession
Supersession
# 007
MPN: 315520376
SPACER
from £3.67
from £3.67
# 008
MPN: 189453
BUSH
from £1.09
from £1.09
This part replaces part number 374030312
# 009
MPN: 315521178
LOWER CONDENSER
from £173.09
from £173.09
# 010
MPN: 315521194
AIR CONVEYOR
from £10.73
from £10.73
# 011
MPN: 315521460
UPPER GASKET
from £5.14
from £5.14
# 012
MPN: 315521461
LOWER GASKET
from £1.56
from £1.56
# 013
MPN: 315521191
LH SUPPORT
from £1.78
from £1.78
# 014
MPN: 315521192
RH SUPPORT
from £2.20
from £2.20
# 015
MPN: 315521193
BRACKET
from £0.70
from £0.70
# 016
MPN: 101206014
SCREW
# 017
MPN: 135300064
SPRING WASHER
# 018
MPN: 136110066
WASHER
# 019
MPN: 122600060
NUT
# 020
MPN: 135100064
WASHER
from £1.09
from £1.09
