maserati 222 / 222e biturbo condenser (after modif.) parts diagram

018.5 - Condenser (After Modif.)

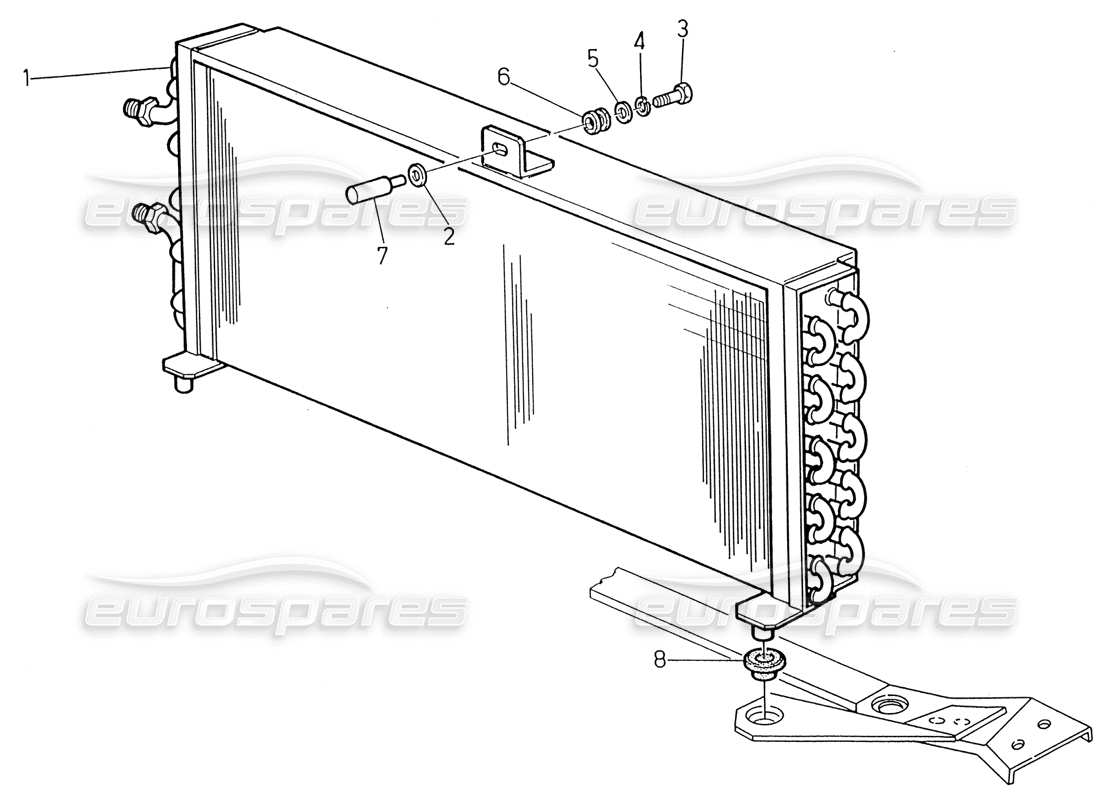

Maserati 222 / 222E Biturbo Condenser (After Modif.) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 315537177
              MONOSIZE CONDENSER PRE MODIF.
              Valid for 55, 61, 71, 75
              Supersession
              Supersession
              # 001
              MPN: 315553177
              OVERSIZE CONDENSER
              Valid for 51, 54, 60, 70, 74
              Supersession
              Supersession
              This part replaces part number 315537177
              # 001
              MPN: 325556177
              CONDENSER AFTER MODIF.
              Valid for 55, 61, 71, 75
              # 002
              MPN: 14496601
              WASHER
              Supersession
              Supersession
              # 005
              MPN: 135900064
              WASHER
              from £0.47
              from £0.47
              # 006
              MPN: 315520375
              RING
              Supersession
              Supersession
              # 007
              MPN: 315520376
              SPACER PRE MODIF.
              Valid for 55, 61, 71, 75
              from £3.63
              from £3.63
              # 007
              MPN: 315553376
              SPACER AFTER MODIF.
              Valid for 51, 54, 60, 70, 74
              from £4.17
              from £4.17
              # 008
              MPN: 189453
              BUSH
              from £1.08
              from £1.08
              This part replaces part number 374030312
