023 - FUEL TANK

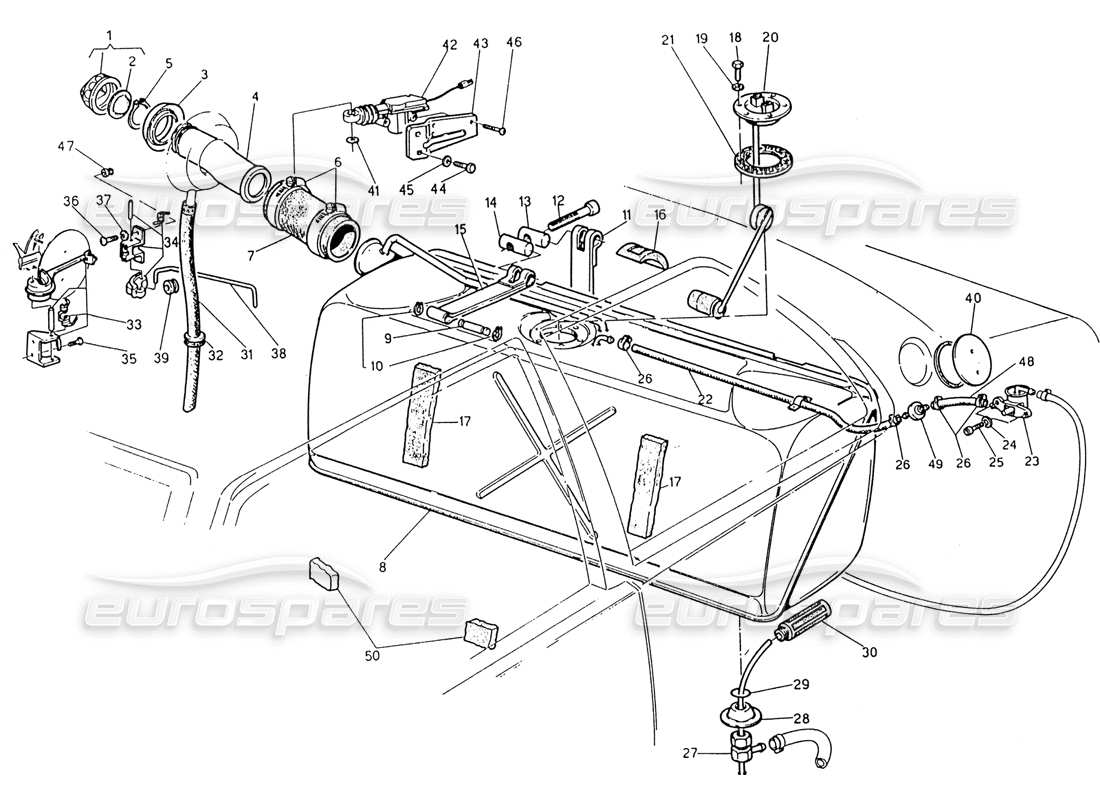

Maserati 222 / 222E Biturbo Fuel Tank Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                            #
                                                                                            Part number
                                                                                            Description
                                                                                            Price
                                                                                            # 001
                                                                                            MPN: 319220354
                                                                                            TANK PLUG
                                                                                            from £9.57
                                                                                            from £9.57
                                                                                            This part replaces part number 319220007
                                                                                            # 002
                                                                                            MPN: 329232355
                                                                                            GASKET
                                                                                            from £10.16
                                                                                            from £10.16
                                                                                            # 003
                                                                                            MPN: 319250411
                                                                                            SEAL RING
                                                                                            from £3.93
                                                                                            from £3.93
                                                                                            This part replaces part number 329232410 - and 1 more. Click to view details
                                                                                            # 004
                                                                                            MPN: 319232117
                                                                                            UNION PIPE
                                                                                            Valid for 54, 55, 60, 61, 74, 75
                                                                                            from £48.95
                                                                                            from £48.95
                                                                                            # 004
                                                                                            MPN: 329232118
                                                                                            UNION PIPE
                                                                                            Valid for 51, 70, 71
                                                                                            from £16.22
                                                                                            from £16.22
                                                                                            This part replaces part number 319220115
                                                                                            # 005
                                                                                            MPN: 151700500
                                                                                            SNAP RING
                                                                                            Valid for 54, 55, 60, 61, 74, 75
                                                                                            # 006
                                                                                            MPN: 186404087
                                                                                            CLAMP
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 007
                                                                                            MPN: 319220383
                                                                                            SLEEVE FOR FUEL INLET
                                                                                            Valid for 51, 70, 71
                                                                                            from £4.14
                                                                                            from £4.14
                                                                                            This part replaces part number 319220382
                                                                                            # 007
                                                                                            MPN: 329232383
                                                                                            SLEEVE FOR FUEL INLET
                                                                                            Valid for 54, 55, 60, 61, 74, 75
                                                                                            from £43.91
                                                                                            from £43.91
                                                                                            # 008
                                                                                            MPN: 319220005
                                                                                            FUEL TANK
                                                                                            from £204.72
                                                                                            from £204.72
                                                                                            This part replaces part number 319220103
                                                                                            # 009
                                                                                            MPN: 30921336
                                                                                            PIN
                                                                                            from £3.61
                                                                                            from £3.61
                                                                                            # 010
                                                                                            MPN: 150800050
                                                                                            SEEGER RING
                                                                                            # 011
                                                                                            MPN: 319220106
                                                                                            LOWER STRIP TO FIX. TANK
                                                                                            from £7.70
                                                                                            from £7.70
                                                                                            # 012
                                                                                            MPN: 53921333
                                                                                            SCREW
                                                                                            from £1.85
                                                                                            from £1.85
                                                                                            # 013
                                                                                            MPN: 53921331
                                                                                            PIN FOR STRIP
                                                                                            from £1.54
                                                                                            from £1.54
                                                                                            # 014
                                                                                            MPN: 53921332
                                                                                            PIN FOR STRIP
                                                                                            from £2.31
                                                                                            from £2.31
                                                                                            # 015
                                                                                            MPN: 319220385
                                                                                            UPPER STRIP TO FIX. TANK
                                                                                            from £6.77
                                                                                            from £6.77
                                                                                            # 016
                                                                                            MPN: 319220337
                                                                                            BLOCK
                                                                                            from £1.93
                                                                                            from £1.93
                                                                                            # 017
                                                                                            MPN: 319220398
                                                                                            GASKET
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 018
                                                                                            MPN: 53361308
                                                                                            SCREW
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 019
                                                                                            MPN: 136220043
                                                                                            WASHER
                                                                                            # 020
                                                                                            MPN: 313620111
                                                                                            FUEL FLOAT GAGE
                                                                                            from £52.98
                                                                                            from £52.98
                                                                                            # 021
                                                                                            MPN: 33331300
                                                                                            GASKET
                                                                                            from £1.93
                                                                                            from £1.93
                                                                                            # 022
                                                                                            MPN: 319220389
                                                                                            PIPE TO CONN. TANK TO RELIEF VALVE
                                                                                            from £5.40
                                                                                            from £5.40
                                                                                            # 023
                                                                                            MPN: 319220102
                                                                                            TIP CONTROL VALVE
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 025
                                                                                            MPN: 119142160
                                                                                            SCREW
                                                                                            from £0.84
                                                                                            from £0.84
                                                                                            # 026
                                                                                            MPN: 30921110
                                                                                            CLAMP
                                                                                            # 027
                                                                                            MPN: 319220017
                                                                                            EXHAUST FUEL CONNECTOR
                                                                                            from £7.85
                                                                                            from £7.85
                                                                                            # 028
                                                                                            MPN: 319220362
                                                                                            GASKET
                                                                                            from £1.07
                                                                                            from £1.07
                                                                                            # 029
                                                                                            MPN: 319220315
                                                                                            GASKET
                                                                                            from £0.68
                                                                                            from £0.68
                                                                                            # 030
                                                                                            MPN: 319220107
                                                                                            CONN. FILTER
                                                                                            from £1.13
                                                                                            from £1.13
                                                                                            # 031
                                                                                            MPN: 319220360
                                                                                            DRAIN PIPE
                                                                                            Valid for 54, 70, 71
                                                                                            # 032
                                                                                            MPN: 319220361
                                                                                            WIRE INLET
                                                                                            Valid for 54, 70, 71
                                                                                            from £2.31
                                                                                            from £2.31
                                                                                            # 033
                                                                                            MPN: 312550143
                                                                                            FUEL FIFTER FLOP
                                                                                            from £2.95
                                                                                            from £2.95
                                                                                            This part replaces part number 312550516
                                                                                            # 034
                                                                                            MPN: 312520144
                                                                                            OPERING DEVICE
                                                                                            from £5.54
                                                                                            from £5.54
                                                                                            # 035
                                                                                            MPN: 167570512
                                                                                            SCREW
                                                                                            from £1.54
                                                                                            from £1.54
                                                                                            # 036
                                                                                            MPN: 119142160
                                                                                            SCREW
                                                                                            from £0.84
                                                                                            from £0.84
                                                                                            # 037
                                                                                            MPN: 135900043
                                                                                            WASHER
                                                                                            from £1.07
                                                                                            from £1.07
                                                                                            This part replaces part number 14496207
                                                                                            # 038
                                                                                            MPN: 312550520
                                                                                            CONTROL TIE ROD
                                                                                            from £1.76
                                                                                            from £1.76
                                                                                            # 039
                                                                                            MPN: 30211310
                                                                                            WIRE INLET
                                                                                            from £1.05
                                                                                            from £1.05
                                                                                            # 040
                                                                                            MPN: 312550515
                                                                                            MARQUE SCATING
                                                                                            from £1.07
                                                                                            from £1.07
                                                                                            This part replaces part number 312520515
                                                                                            # 041
                                                                                            MPN: 53451389
                                                                                            SPRING
                                                                                            from £1.07
                                                                                            from £1.07
                                                                                            # 042
                                                                                            MPN: 323320195
                                                                                            ACTUATOR
                                                                                            from £27.47
                                                                                            from £27.47
                                                                                            This part replaces part number 313320195
                                                                                            # 043
                                                                                            MPN: 313320196
                                                                                            ACTUATOR BRACKET
                                                                                            from £1.54
                                                                                            from £1.54
                                                                                            # 045
                                                                                            MPN: 135700050
                                                                                            WASHER
                                                                                            from £1.07
                                                                                            from £1.07
                                                                                            # 047
                                                                                            MPN: 312520499
                                                                                            BLOCK TO BIX OPERING DEVICE
                                                                                            from £0.68
                                                                                            from £0.68
                                                                                            # 048
                                                                                            MPN: 319220390
                                                                                            SLEEVE TO CONN. RELIEF VALVE TO TIP CONTROL VALVE
                                                                                            # 049
                                                                                            MPN: 319220134
                                                                                            PRESSURE RELIEF VALVE
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 050
                                                                                            MPN: 319220399
                                                                                            SHORT FELTER
                                                                                            Supersession
                                                                                            Supersession
