maserati 222 / 222e biturbo radiator for automatic transmission (3 hp) parts diagram

029.5 - Radiator for Automatic Transmission (3 HP)

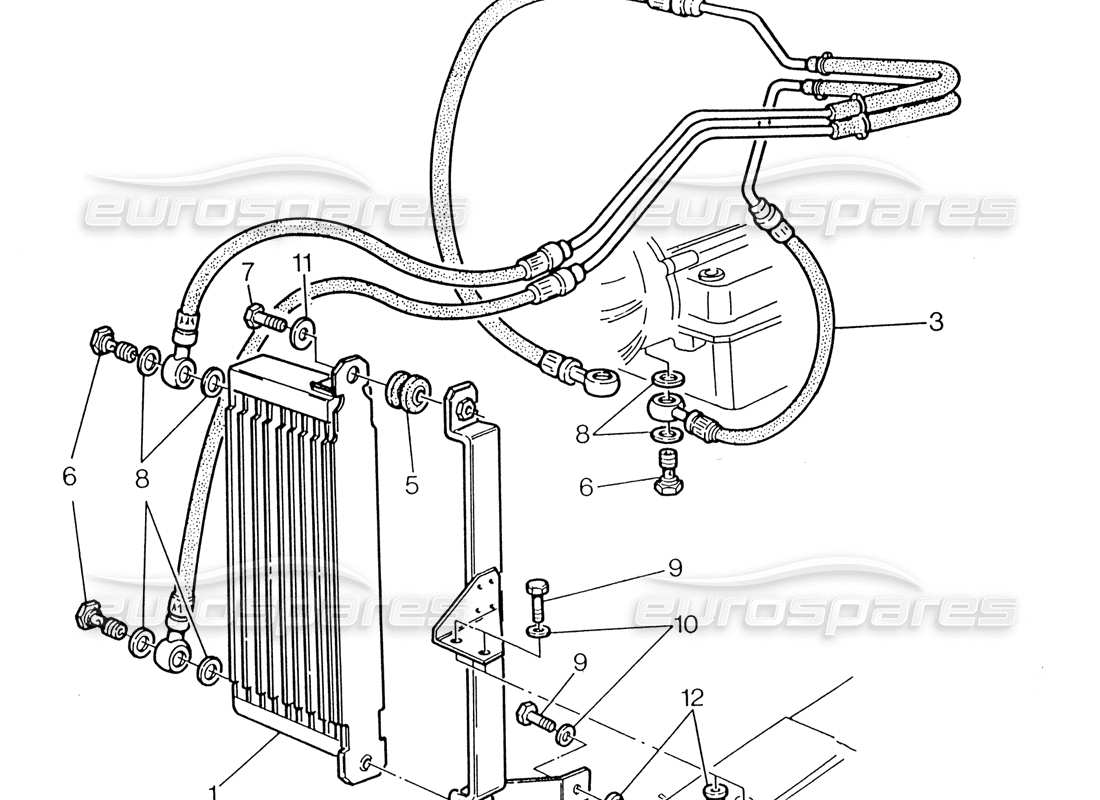

Maserati 222 / 222E Biturbo Radiator for Automatic Transmission (3 HP) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 311832106
OIL RADIATOR
Valid for Singapore
from £65.88
from £65.88
# 002
MPN: 311832107
OIL RADIATOR RETAINER
Valid for Singapore
from £4.17
from £4.17
# 003
MPN: 311832109
OIL RETURN PIPE
Valid for Singapore
from £30.65
from £30.65
# 004
MPN: 311832108
OIL DELIVERY PIPE
Valid for Singapore
from £27.83
from £27.83
# 005
MPN: 311832112
RUBBER RETAINER
Valid for Singapore
from £1.08
from £1.08
# 006
MPN: 311832343
SCREW
Valid for Singapore
from £1.55
from £1.55
# 007
MPN: 101206025
SCREW
Valid for Singapore
# 008
MPN: 317832381
GASKET
Valid for Singapore
# 009
MPN: 101206020
SCREW
Valid for Singapore
# 010
MPN: 138200060
WASHER
Valid for Singapore
# 011
MPN: 163030060
WASHER
Valid for Singapore
from £1.08
from £1.08
# 012
MPN: 315220303
BUSH
Valid for Singapore
from £0.69
from £0.69
