maserati 222 / 222e biturbo propeller shaft and carrier parts diagram

030 - Propeller Shaft and Carrier

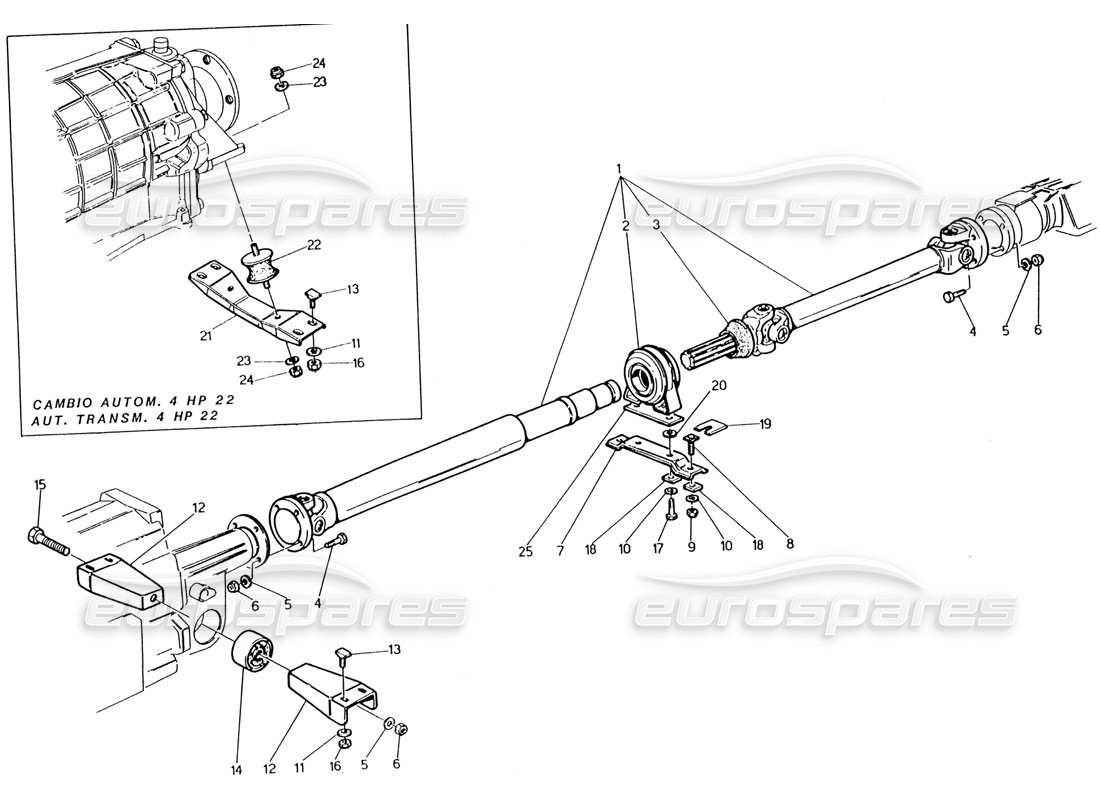

Maserati 222 / 222E Biturbo Propeller Shaft and Carrier Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 316020102
                              PROPELLERSHAFT ASSEMBLY C.M.
                              Valid for 51, 54, 60, 70, 74
                              from £580.32
                              from £580.32
                              This part replaces part number 316020100
                              # 001
                              MPN: 316032102
                              PROPELLER SHAFT ASSEMBLY C.A. 3HP
                              Valid for Singapore
                              from £570.44
                              from £570.44
                              # 001
                              MPN: 316055102
                              PROPELLER SHAFT ASSEMBLY C.A. 4 HP
                              Valid for 55, 61, 71, 75
                              from £572.10
                              from £572.10
                              # 002
                              MPN: 316020103
                              CENTRAL SUPPORT FOR PROPELLER SHAFT
                              from £679.58
                              from £679.58
                              # 003
                              MPN: 316020306
                              Dust bellows
                              from £4.63
                              from £4.63
                              # 004
                              MPN: 316020300
                              BOLT
                              from £13.79
                              from £13.79
                              # 006
                              MPN: 128360100
                              SELF LOCKING NUT
                              # 007
                              MPN: 316020330
                              PROPELLER SHAFT PLATE
                              from £4.63
                              from £4.63
                              # 008
                              MPN: 316020110
                              BOLT
                              from £1.16
                              from £1.16
                              # 009
                              MPN: 128350080
                              NUT
                              Supersession
                              Supersession
                              # 011
                              MPN: 163020080
                              WASHER
                              from £1.08
                              from £1.08
                              # 012
                              MPN: 314820302
                              SUPPORT
                              Valid for 51, 54, 60, 70, 74
                              from £2.94
                              from £2.94
                              # 012
                              MPN: 314832305
                              LH SUPPORT X C.A. 3 HP
                              Valid for Singapore cars
                              from £2.85
                              from £2.85
                              # 012
                              MPN: 314832306
                              RH SUPPORT X C.A. 3 HP
                              Valid for Singapore cars
                              from £2.59
                              from £2.59
                              # 013
                              MPN: 314820303
                              BOLT
                              from £12.40
                              from £12.40
                              # 014
                              MPN: 314820100
                              SILENT BLOC
                              Valid for 51, 54, 60, 70, 74
                              from £35.28
                              from £35.28
                              # 015
                              MPN: 100810070
                              BOLT
                              Valid for 51, 54, 60, 70, 74
                              # 016
                              MPN: 128350080
                              NUT
                              Supersession
                              Supersession
                              # 017
                              MPN: 101208020
                              BOLT
                              Valid for 51, 54, 60, 70, 74
                              # 017
                              MPN: 101208025
                              BOLT
                              Valid for 55, 61, 71, 75
                              # 018
                              MPN: 316020334
                              PLATE
                              from £1.31
                              from £1.31
                              # 019
                              MPN: 316020336
                              PLATE
                              from £0.69
                              from £0.69
                              # 020
                              MPN: 316055335
                              SPACER
                              Valid for 51, 54, 60, 70, 74
                              # 021
                              MPN: 314855305
                              BRACKET
                              Valid for 51, 54, 60, 70, 74
                              from £3.85
                              from £3.85
                              # 022
                              MPN: 314855104
                              SILENT BLOCK
                              Valid for 51, 54, 60, 70, 74
                              # 023
                              MPN: 314855306
                              WASHER
                              Valid for 51, 54, 60, 70, 74
                              from £2.16
                              from £2.16
                              # 024
                              MPN: 128350080
                              NUT
                              Valid for 51, 54, 60, 70, 74
                              Supersession
                              Supersession
