maserati 222 / 222e biturbo differential parts diagram

031 - DIFFERENTIAL

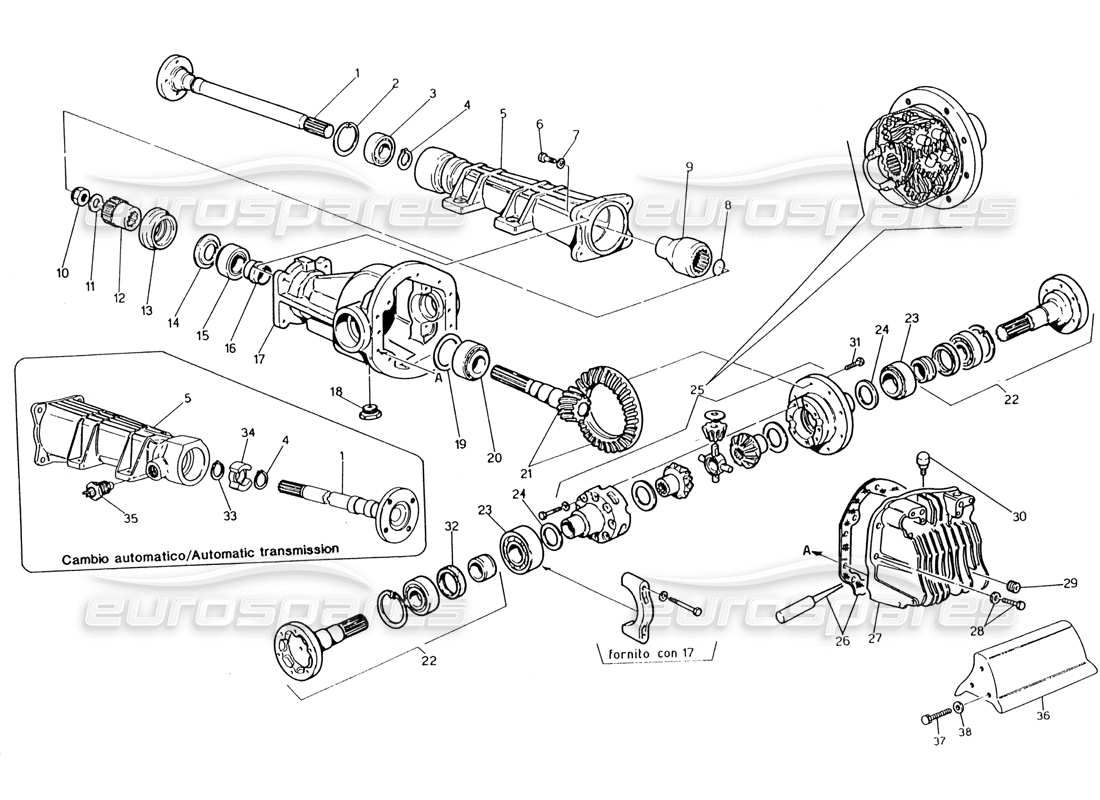

Maserati 222 / 222E Biturbo Differential Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 000
                                                            MPN: 326250009
                                                            DFFERENTIAL UNIT (RAPP. 3,73)
                                                            Valid for 51, 55, 61, 71, 75
                                                            # 000
                                                            MPN: 376200001
                                                            DFFERENTIAL UNIT (RAPP. 3,31)
                                                            from £1,602.21
                                                            from £1,602.21
                                                            This part replaces part number 396250004
                                                            # 001
                                                            MPN: 316220316
                                                            SHAFT EXTENSION
                                                            51, 54, 60, 70, 74
                                                            from £100.57
                                                            from £100.57
                                                            # 001
                                                            MPN: 316255316
                                                            SHAFT EXTENSION (FOR AUT, TRANS.4 HP)
                                                            Valid for 51, 55, 61, 71, 75
                                                            from £100.57
                                                            from £100.57
                                                            # 003
                                                            MPN: 178402030
                                                            SHAFT EXTENSION BEARING
                                                            from £15.60
                                                            from £15.60
                                                            # 004
                                                            MPN: 316220314
                                                            CIRCLIP
                                                            from £0.69
                                                            from £0.69
                                                            # 005
                                                            MPN: 316250305
                                                            SHAFT EXTENSION SUPPORT (FOR MAN. TRANS. AND AUT. TRANS. 3 HP)
                                                            Valid for Singapore cars - 51, 54, 60, 70, 74
                                                            Supersession
                                                            Supersession
                                                            # 005
                                                            MPN: 316255306
                                                            SUPPORT (FOR AUTOMATIC TRANSMISSION 4 HP)
                                                            Valid for 51, 55, 61, 71, 75
                                                            from £26.88
                                                            from £26.88
                                                            # 006
                                                            MPN: 101212035
                                                            SCREW
                                                            # 007
                                                            MPN: 138420120
                                                            WASHER
                                                            Supersession
                                                            Supersession
                                                            # 009
                                                            MPN: 316220319
                                                            COUPLING
                                                            from £95.95
                                                            from £95.95
                                                            This part replaces part number 316220317
                                                            # 010
                                                            MPN: 316220340
                                                            SELF LOCKING NUT
                                                            from £25.18
                                                            from £25.18
                                                            # 011
                                                            MPN: 316220341
                                                            WASHER
                                                            from £1.31
                                                            from £1.31
                                                            # 012
                                                            MPN: 316220347
                                                            UNION
                                                            from £117.49
                                                            from £117.49
                                                            This part replaces part number 316220342
                                                            # 013
                                                            MPN: 316220121
                                                            CLAMPING WASHER
                                                            from £80.19
                                                            from £80.19
                                                            # 014
                                                            MPN: 316220351
                                                            WASHER
                                                            from £15.78
                                                            from £15.78
                                                            # 015
                                                            MPN: 316220122
                                                            FRONT BEARING
                                                            from £85.46
                                                            from £85.46
                                                            # 016
                                                            MPN: 316220345
                                                            SPACER
                                                            from £2.47
                                                            from £2.47
                                                            # 017
                                                            -
                                                            DIFFERENTIAL GEAR ASSY (NOT SUPPLIED)
                                                            # 018
                                                            MPN: 316220346
                                                            OIL FILLING PLUG
                                                            from £12.17
                                                            from £12.17
                                                            This part replaces part number 316220362
                                                            # 018
                                                            MPN: 316220349
                                                            SPACER WASHER 005
                                                            as request
                                                            from £4.55
                                                            from £4.55
                                                            # 019
                                                            MPN: 316220348
                                                            SPACER WASHER 003
                                                            as request
                                                            from £4.08
                                                            from £4.08
                                                            # 019
                                                            MPN: 316220350
                                                            SPACER WASHER 010
                                                            as request
                                                            from £14.18
                                                            from £14.18
                                                            # 020
                                                            MPN: 316220123
                                                            REAR BEARING
                                                            from £120.35
                                                            from £120.35
                                                            # 021
                                                            MPN: 316220025
                                                            PINION AND GEAR (1 3X43) (INCLUDED PART N. 10-11-16-31) R=3,73
                                                            Valid for 51, 55, 61, 71, 75
                                                            from £936.16
                                                            from £936.16
                                                            # 021
                                                            MPN: 316225025
                                                            PINION AND GEAR R=3,31
                                                            Valid for Singapore cars - 54, 60, 70, 74
                                                            from £767.07
                                                            from £767.07
                                                            # 022
                                                            MPN: 316220013
                                                            propeller shaft
                                                            from £337.06
                                                            from £337.06
                                                            # 023
                                                            MPN: 316220126
                                                            INSIDE BEARING
                                                            from £128.67
                                                            from £128.67
                                                            # 024
                                                            MPN: 316220353
                                                            SPACER WASHER 003
                                                            as request
                                                            from £1.63
                                                            from £1.63
                                                            # 024
                                                            MPN: 316220354
                                                            SPACER WASHER 005
                                                            as request
                                                            from £104.75
                                                            from £104.75
                                                            # 024
                                                            MPN: 316220355
                                                            SPACER WASHER 010
                                                            as request
                                                            from £1.63
                                                            from £1.63
                                                            # 024
                                                            MPN: 316220356
                                                            SPACER WASHER 030
                                                            as request
                                                            from £2.16
                                                            from £2.16
                                                            # 025
                                                            MPN: 316032350
                                                            SPACER
                                                            Valid for Singapore
                                                            # 025
                                                            MPN: 326256010
                                                            QUAIFE DIFFERENTIAL GEAR
                                                            from £1,378.04
                                                            from £1,378.04
                                                            # 026
                                                            MPN: 316220365
                                                            GASKET (ALTERNATIVES)
                                                            from £3.63
                                                            from £3.63
                                                            # 026
                                                            MPN: 9441
                                                            HYLOSIL SILICON (ALTERNATIVES)
                                                            from £15.78
                                                            from £15.78
                                                            # 027
                                                            MPN: 316220363
                                                            COVER
                                                            from £225.93
                                                            from £225.93
                                                            # 028
                                                            MPN: 316220364
                                                            SCREW WITH WASHER
                                                            from £1.31
                                                            from £1.31
                                                            # 029
                                                            MPN: 316220362
                                                            LEVEL PLUG
                                                            Supersession
                                                            Supersession
                                                            # 030
                                                            MPN: 316220107
                                                            DRAIN VALVE
                                                            from £17.55
                                                            from £17.55
                                                            # 031
                                                            MPN: 316220357
                                                            SCREW
                                                            from £1.92
                                                            from £1.92
                                                            # 032
                                                            MPN: 316220125
                                                            OIL SEAL
                                                            from £8.63
                                                            from £8.63
                                                            # 033
                                                            MPN: 316255315
                                                            SPRING RING
                                                            Valid for 55, 61, 71, 75
                                                            from £0.69
                                                            from £0.69
                                                            # 034
                                                            MPN: 316255317
                                                            PHONIC WHEEL
                                                            Valid for 55, 61, 71, 75
                                                            from £5.08
                                                            from £5.08
                                                            # 035
                                                            MPN: 313620106
                                                            SWITCH
                                                            from £57.54
                                                            from £57.54
                                                            # 036
                                                            MPN: 316220327
                                                            AIR CONVEYOR
                                                            from £0.56
                                                            from £0.56
