maserati 222 / 222e biturbo front subframe and steering box parts diagram

033 - Front Subframe and Steering Box

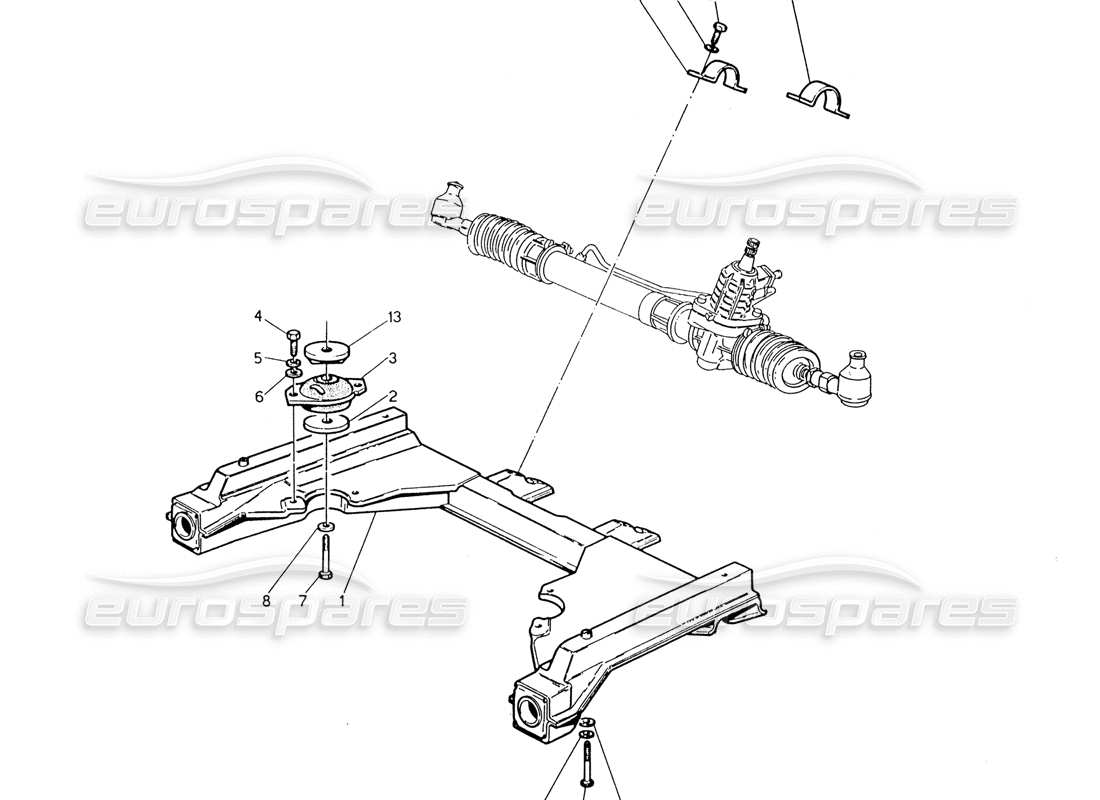

Maserati 222 / 222E Biturbo Front Subframe and Steering Box Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 312750100
                          FRONT FRAME FOR LH STEERING
                          Valid for 51, 54, 55, 60, 61
                          Supersession
                          Supersession
                          # 001
                          MPN: 362704102
                          FRONT FRAME FOR RH STEERING
                          Valid for 70, 71, 74, 75
                          from £6,308.54
                          from £6,308.54
                          This part replaces part number 312753102
                          # 002
                          MPN: 314220312
                          WASHER
                          from £2.16
                          from £2.16
                          # 003
                          MPN: 314220100
                          ENGINE SILENTBLOC
                          from £32.38
                          from £32.38
                          # 006
                          MPN: 314220314
                          WASHER
                          from £1.08
                          from £1.08
                          # 008
                          MPN: 138200120
                          SPRING WASHER
                          from £0.77
                          from £0.77
                          # 011
                          MPN: 100710035
                          SCREW
                          Valid for 51, 54, 55, 60, 61
                          # 011
                          MPN: 101210025
                          SCREW
                          4 quantity pre modif. 2 quantity after modif. (LH steering guide)
                          # 012
                          MPN: 135300084
                          SPRING WASHER PRE MOD.
                          # 013
                          MPN: 316220312
                          WASHER
                          from £1.08
                          from £1.08
                          # 014
                          MPN: 327856343
                          LH RETAINER FOR LH D. PRE MOD.
                          Valid for 51, 54, 55, 70, 71
                          from £1.55
                          from £1.55
                          # 014
                          MPN: 327870345
                          RH RETAINER FOR RH D.
                          Valid for 60, 61, 74, 75
                          from £0.69
                          from £0.69
                          # 015
                          MPN: 327856344
                          RETAINER
                          from £1.92
                          from £1.92
