maserati 222 / 222e biturbo wheels, hubs and front brakes parts diagram

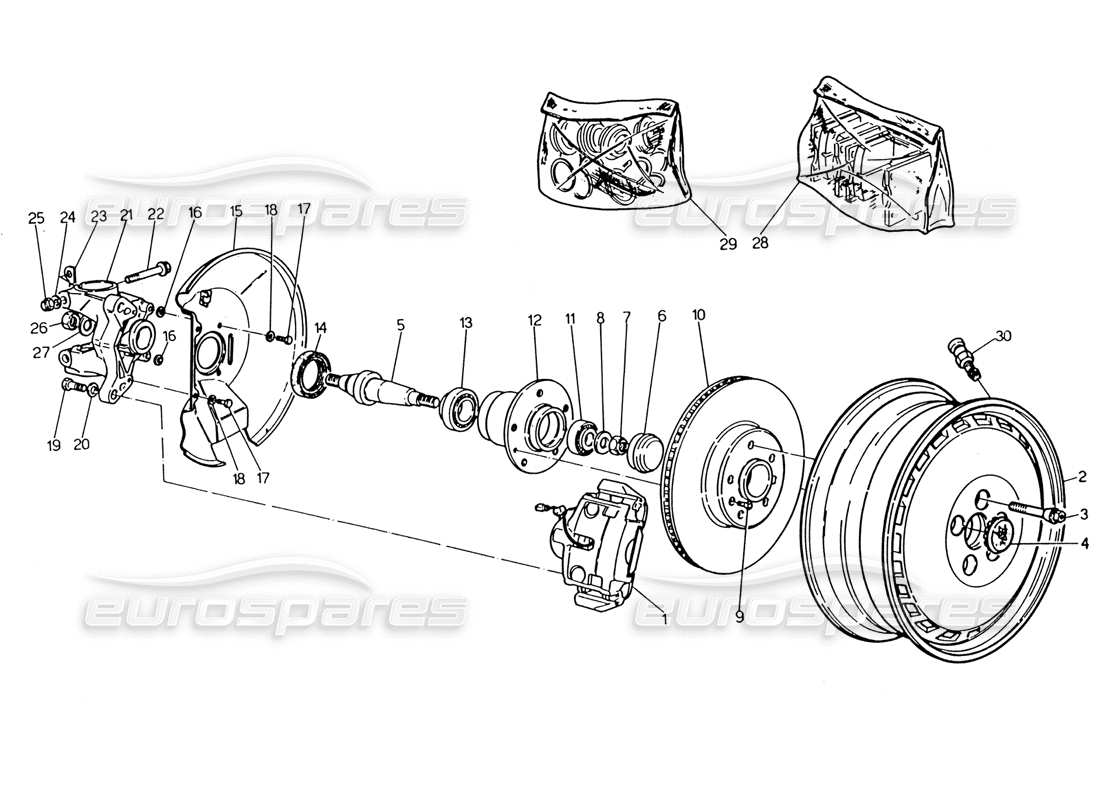

039 - Wheels, Hubs and Front Brakes

Maserati 222 / 222E Biturbo Wheels, Hubs and Front Brakes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 001
                                                          MPN: 327256107
                                                          FRONT CALIPER. LH
                                                          Supersession
                                                          Supersession
                                                          # 001
                                                          MPN: 327256108
                                                          FRONT CALIPER. RH
                                                          Supersession
                                                          Supersession
                                                          # 002
                                                          MPN: 327256117
                                                          WHEEL RIM EN ALUMINIUM 61/2 X 15 CH
                                                          Valid for 51
                                                          from £414.75
                                                          from £414.75
                                                          # 002
                                                          MPN: 327256119
                                                          WHEEL RIM EN ALUMINIUM 7J X 15 CH
                                                          Valid for 54, 55, 60, 61, 70, 71, 74, 75
                                                          from £71.58
                                                          from £71.58
                                                          This part replaces part number 327256122
                                                          # 003
                                                          MPN: 327256306
                                                          BOLT
                                                          from £3.94
                                                          from £3.94
                                                          This part replaces part number 317220306
                                                          # 004
                                                          MPN: 317220106
                                                          MARQUE FOR WHEEL RIM
                                                          from £11.80
                                                          from £11.80
                                                          # 005
                                                          MPN: 326656326
                                                          FUSE (NOT SUPPLIED IN SINGLE PART)
                                                          from £54.94
                                                          from £54.94
                                                          # 006
                                                          MPN: 557201324
                                                          WASHER
                                                          from £0.70
                                                          from £0.70
                                                          # 007
                                                          MPN: 317220314
                                                          NUT
                                                          from £14.67
                                                          from £14.67
                                                          # 008
                                                          MPN: 317220315
                                                          WASHER
                                                          from £1.08
                                                          from £1.08
                                                          # 009
                                                          MPN: 108506016
                                                          SCREW
                                                          from £1.11
                                                          from £1.11
                                                          # 010
                                                          MPN: 327256321
                                                          BRAKE DISC
                                                          from £657.52
                                                          from £657.52
                                                          # 011
                                                          MPN: 317220311
                                                          OUTSIDE BEARING
                                                          from £23.99
                                                          from £23.99
                                                          # 012
                                                          MPN: 327256313
                                                          wheel carrier
                                                          from £43.54
                                                          from £43.54
                                                          # 013
                                                          MPN: 317220312
                                                          INSIDE BEARING
                                                          from £30.21
                                                          from £30.21
                                                          # 014
                                                          MPN: 317220316
                                                          RETAINER RING
                                                          from £1.08
                                                          from £1.08
                                                          # 015
                                                          MPN: 326656105
                                                          LH DUST RING
                                                          from £14.82
                                                          from £14.82
                                                          # 015
                                                          MPN: 326656106
                                                          RH DUST RING
                                                          from £4.66
                                                          from £4.66
                                                          # 016
                                                          MPN: 326656364
                                                          SPACER
                                                          from £9.77
                                                          from £9.77
                                                          # 018
                                                          MPN: 135600060
                                                          SPRING WASHER
                                                          from £0.78
                                                          from £0.78
                                                          # 019
                                                          MPN: 327256319
                                                          SCREW
                                                          from £1.08
                                                          from £1.08
                                                          # 020
                                                          MPN: 138420120
                                                          WASHER
                                                          Supersession
                                                          Supersession
                                                          # 021
                                                          MPN: 326656115
                                                          LH FUSE HOLDER ASSY (WITH POS. 5-26-27)
                                                          from £192.30
                                                          from £192.30
                                                          # 021
                                                          MPN: 326656116
                                                          RH FUSE HOLDER ASSY (WITH POS. 5-26-27)
                                                          from £189.18
                                                          from £189.18
                                                          # 022
                                                          MPN: 326656309
                                                          SCREW
                                                          from £2.87
                                                          from £2.87
                                                          # 023
                                                          MPN: 326656313
                                                          SPACER
                                                          from £2.87
                                                          from £2.87
                                                          # 024
                                                          MPN: 14496601
                                                          WASHER
                                                          Supersession
                                                          Supersession
                                                          # 025
                                                          MPN: 326656321
                                                          NUT
                                                          from £3.57
                                                          from £3.57
                                                          # 026
                                                          MPN: 326656314
                                                          NUT (NOT SUPPLIED IN SINGLE PART)
                                                          from £20.26
                                                          from £20.26
                                                          # 027
                                                          MPN: 326656320
                                                          WASHER (NOT SUPPLIED IN SINGLE PART)
                                                          from £11.09
                                                          from £11.09
                                                          # 028
                                                          MPN: 310254039
                                                          FRONT BRAKE PADS SET
                                                          Use on Exhaustion of 327256130
                                                          from £74.68
                                                          from £74.68
                                                          This part replaces part number 327256130
                                                          # 028
                                                          MPN: 310254039
                                                          FRONT BRAKE PADS, SET WITH AMIANTHUS
                                                          from £74.68
                                                          from £74.68
                                                          This part replaces part number 327256130
                                                          # 028
                                                          MPN: 327256130
                                                          FRONT BRAKE PADS, SET WITHOUT AMIANTHUS
                                                          USE 310254039
                                                          Supersession
                                                          Supersession
                                                          # 029
                                                          MPN: 320256031
                                                          KIT FOR BRAKE CALIPER OVERHAUL
                                                          from £33.72
                                                          from £33.72
                                                          # 030
                                                          MPN: 317220103
                                                          TUBELESS VALVE
                                                          Supersession
                                                          Supersession
