maserati 222 / 222e biturbo hydraulic brake lines parts diagram

042.2 - Hydraulic Brake Lines

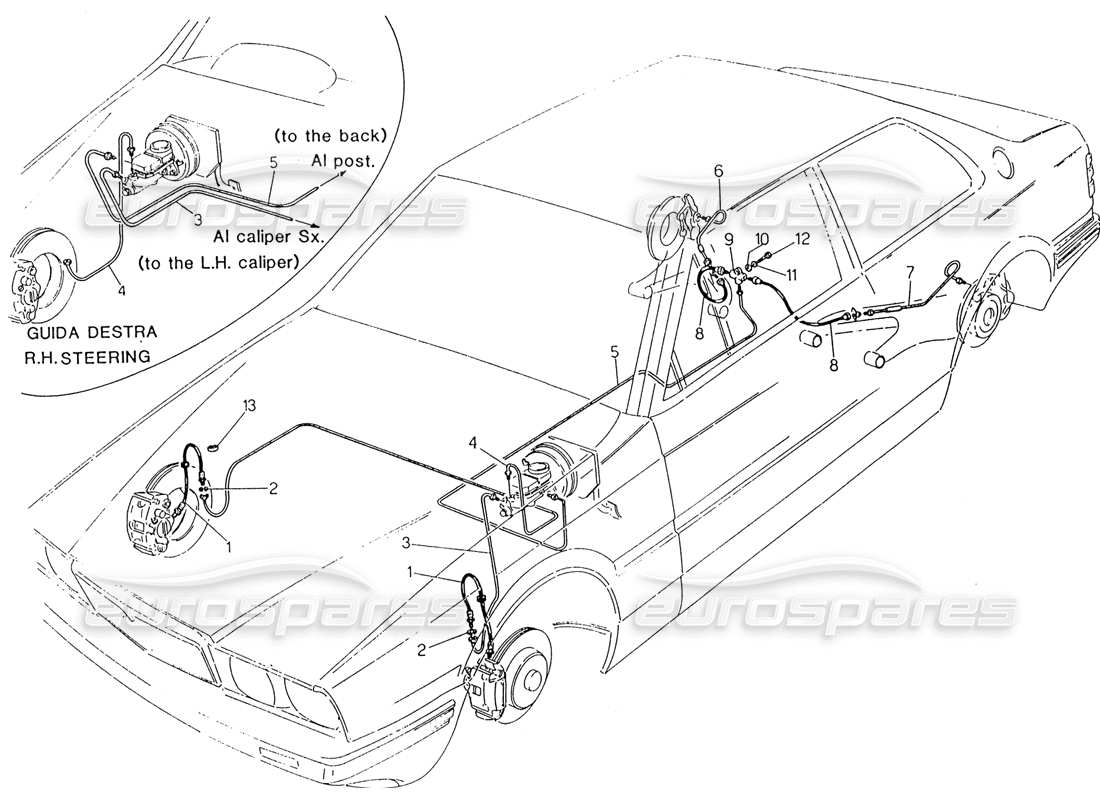

Maserati 222 / 222E Biturbo Hydraulic Brake Lines Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 327456129
                      BRAKE HOSE
                      from £36.15
                      from £36.15
                      # 002
                      MPN: 135600100
                      SPRING WASHER
                      from £1.08
                      from £1.08
                      # 003
                      MPN: 327456117
                      brake line
                      Valid for 51, 54, 55, 60, 61
                      from £3.21
                      from £3.21
                      # 003
                      MPN: 327470120
                      brake line
                      Valid for 70, 71, 74, 75
                      # 004
                      MPN: 327456118
                      brake line
                      Valid for 51, 54, 55, 60, 61
                      from £0.47
                      from £0.47
                      # 004
                      MPN: 327470119
                      brake line
                      Valid for 70, 71, 74, 75
                      # 005
                      MPN: 317453131
                      brake line
                      Valid for 51, 54, 55, 60, 61
                      from £10.99
                      from £10.99
                      # 005
                      MPN: 317470132
                      brake line
                      Valid for 70, 71, 74, 75
                      # 006
                      MPN: 317420134
                      brake line
                      from £0.47
                      from £0.47
                      # 007
                      MPN: 317420133
                      brake line
                      from £5.53
                      from £5.53
                      # 008
                      MPN: 317420129
                      BRAKE HOSE
                      from £29.99
                      from £29.99
                      # 009
                      MPN: 557401307
                      T CONNECTOR
                      from £2.24
                      from £2.24
                      # 010
                      MPN: 135900064
                      WASHER
                      from £0.47
                      from £0.47
                      # 011
                      MPN: 135600060
                      SPRING WASHER
                      from £0.77
                      from £0.77
                      # 012
                      MPN: 100706030
                      SCREW
                      # 013
                      MPN: 319220361
                      GROMMET
                      from £2.31
                      from £2.31
