maserati 222 / 222e biturbo body shell: outer panels parts diagram

043 - Body Shell: Outer Panels

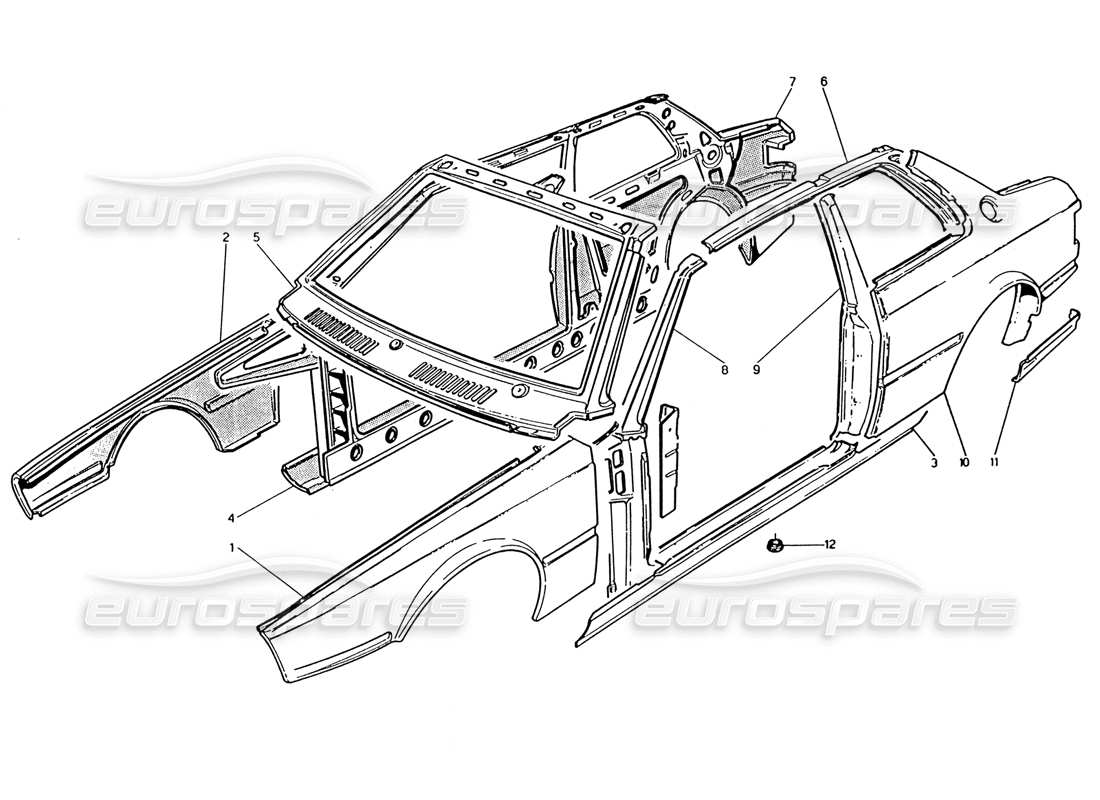

Maserati 222 / 222E Biturbo Body Shell: Outer Panels Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 312550301
                        OUTSIDE BODY PANEL FOR LH FRONT FENDER
                        from £1,449.16
                        from £1,449.16
                        # 002
                        MPN: 312550302
                        OUTSIDE BODY PANEL FOR RH FRONT FENDER
                        from £60.58
                        from £60.58
                        # 003
                        MPN: 312520329
                        OUTSIDE BODY PANEL FOR LH SPAR
                        Supersession
                        Supersession
                        # 004
                        MPN: 312520330
                        OUTSIDE BODY PANEL FOR RH SPAR
                        Supersession
                        Supersession
                        # 005
                        MPN: 312520148
                        OUTSIDE BODY PANEL FOR WINDSCREEN, ASSY
                        Valid for 51, 54, 55, 60, 61
                        from £557.23
                        from £557.23
                        # 005
                        MPN: 312527148
                        OUTSIDE BODY PANEL FOR WINDSCREEN, ASSY
                        Valid for 70, 71, 74, 75
                        from £46.23
                        from £46.23
                        # 006
                        MPN: 312527101
                        LH BODY SIDE, ASSY
                        from £310.86
                        from £310.86
                        # 007
                        MPN: 312520102
                        RH BODY SIDE, ASSY
                        from £804.66
                        from £804.66
                        # 008
                        MPN: 312520105
                        L.H, FRONT HINGE PILLAR, ASSY
                        from £87.43
                        from £87.43
                        # 008
                        MPN: 312520106
                        RH FRONT HINGE PILLAR, ASSY
                        from £85.05
                        from £85.05
                        # 009
                        MPN: 312520114
                        RH DOOR CENTRAL PILLAR, ASSY
                        from £44.55
                        from £44.55
                        # 009
                        MPN: 312527113
                        LH DOOR CENTRAL PILLAR, ASSY
                        from £61.96
                        from £61.96
                        # 010
                        MPN: 312520377
                        OUTSIDE BODY PANEL FOR LH REAR FENDER
                        from £95.65
                        from £95.65
                        # 010
                        MPN: 312520378
                        OUTSIDE BODY PANEL FOR RH REAR FENDER
                        from £96.42
                        from £96.42
                        # 011
                        MPN: 312520127
                        LH REAR BODY PANEL, ASSY
                        from £10.01
                        from £10.01
                        # 011
                        MPN: 312520128
                        RH REAR BODY PANEL, ASSY
                        from £33.89
                        from £33.89
                        # 012
                        MPN: 312120305
                        CAP
                        from £1.08
                        from £1.08
