maserati 222 / 222e biturbo body shell: front panel, roof panel, doors, bonnet boot lid parts diagram

045 - Body Shell: Front Panel, Roof Panel, Doors, Bonnet Boot Lid

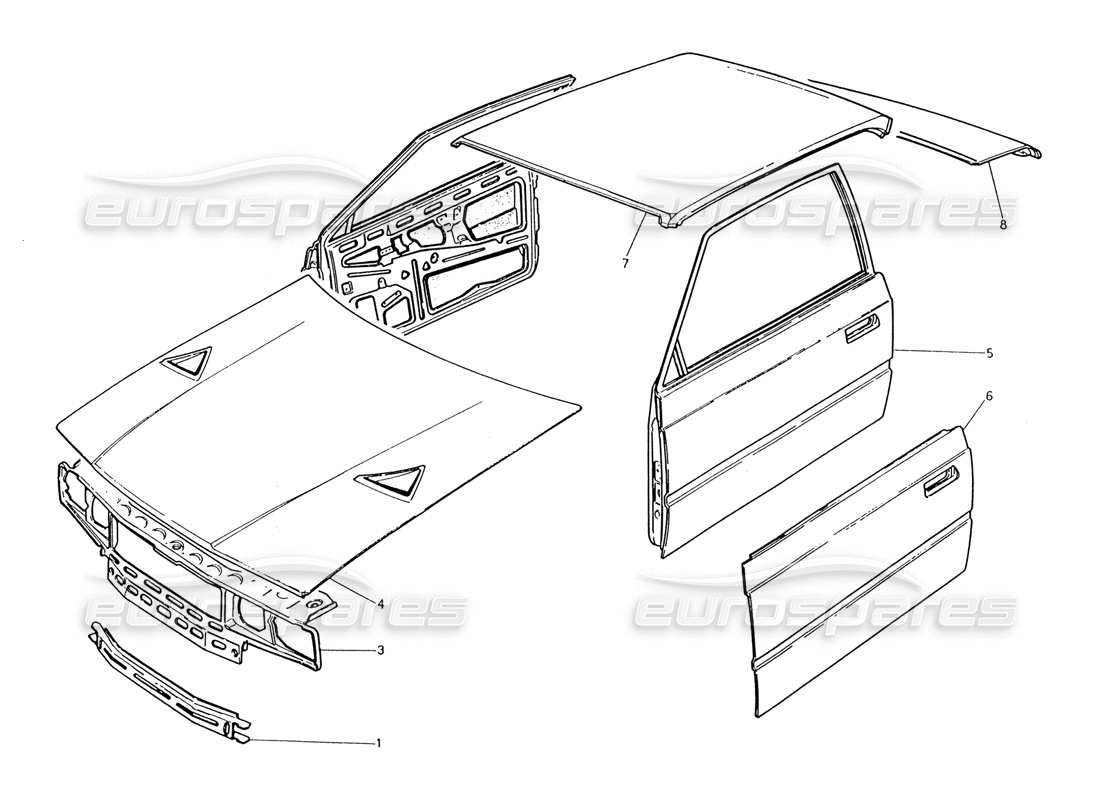

Maserati 222 / 222E Biturbo Body Shell: Front Panel, Roof Panel, Doors, Bonnet Boot Lid Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 311320300
              FRONT INSIDE BODY PANEL
              from £62.89
              from £62.89
              # 003
              MPN: 311322103
              FRONT PANEL, ASSY
              from £372.85
              from £372.85
              This part replaces part number 311320103
              # 004
              MPN: 314350100

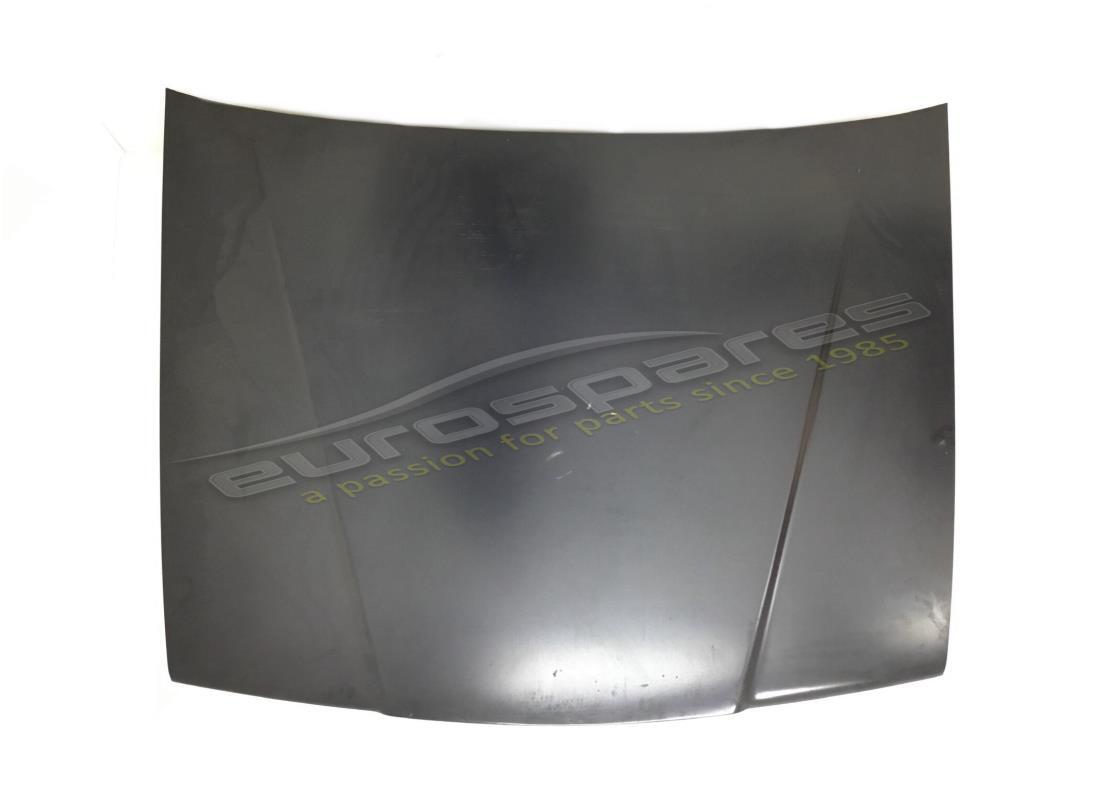

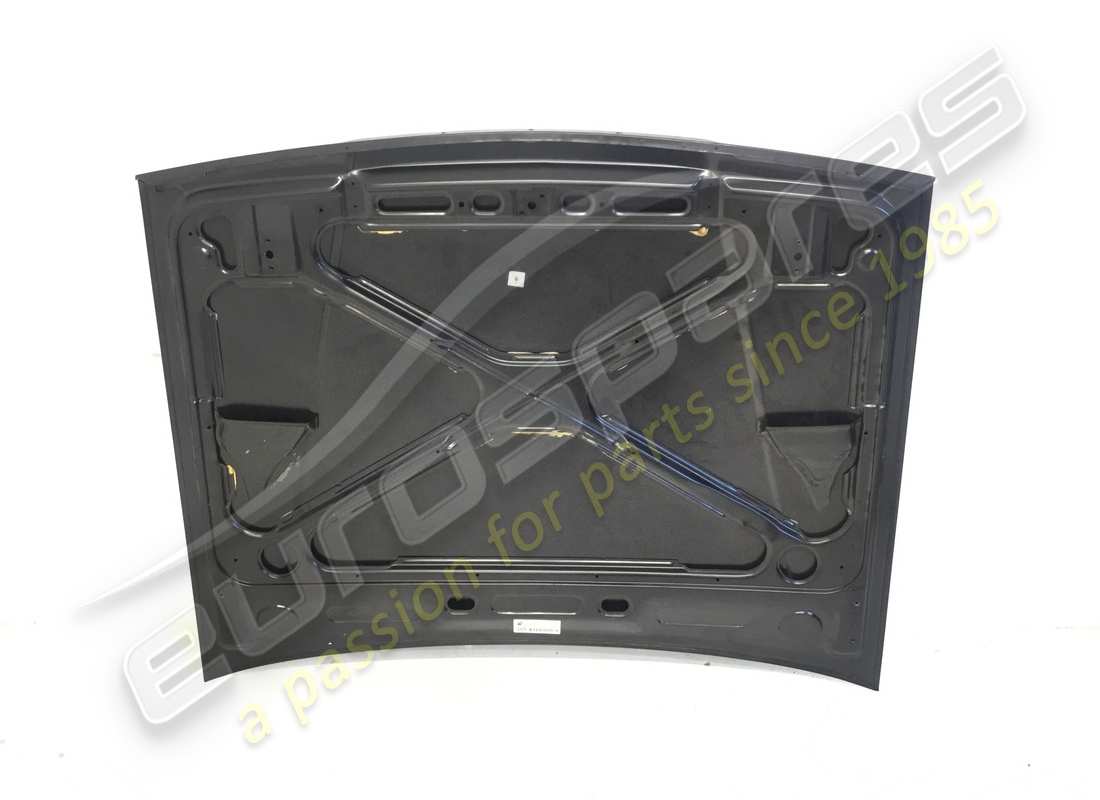

              ENGINE HOOD ASSY
              Valid for 51, 60, 61
              from £367.50
              from £367.50
              # 004
              MPN: 314353100
              ENGINE HOOD ASSY
              Valid for 54, 55, 70, 71, 74, 75
              from £1,485.54
              from £1,485.54
              # 005
              MPN: 314520103
              LH SIDE DOOR, ASSY
              from £409.03
              from £409.03
              This part replaces part number 314520301
              # 005
              MPN: 314530102
              RH SIDE DOOR, ASSY
              Supersession
              Supersession
              # 006
              MPN: 314520301
              OUTSIDE BODY PANEL FOR LH SIDE DOOR (IN DEPLETION)
              Supersession
              Supersession
              # 006
              MPN: 314520302
              OUTSIDE BODY PANEL FOR RH SIDE DOOR (IN DEPLETION)
              Supersession
              Supersession
              # 007
              MPN: 312520465
              OUTSIDE BODY PANEL FOR ROOF
              from £116.94
              from £116.94
              # 008
              MPN: 314750100
              LUGGAGE HOOD, ASSY
              from £218.14
              from £218.14
