048 - Doors: Hinges and Inner Controls

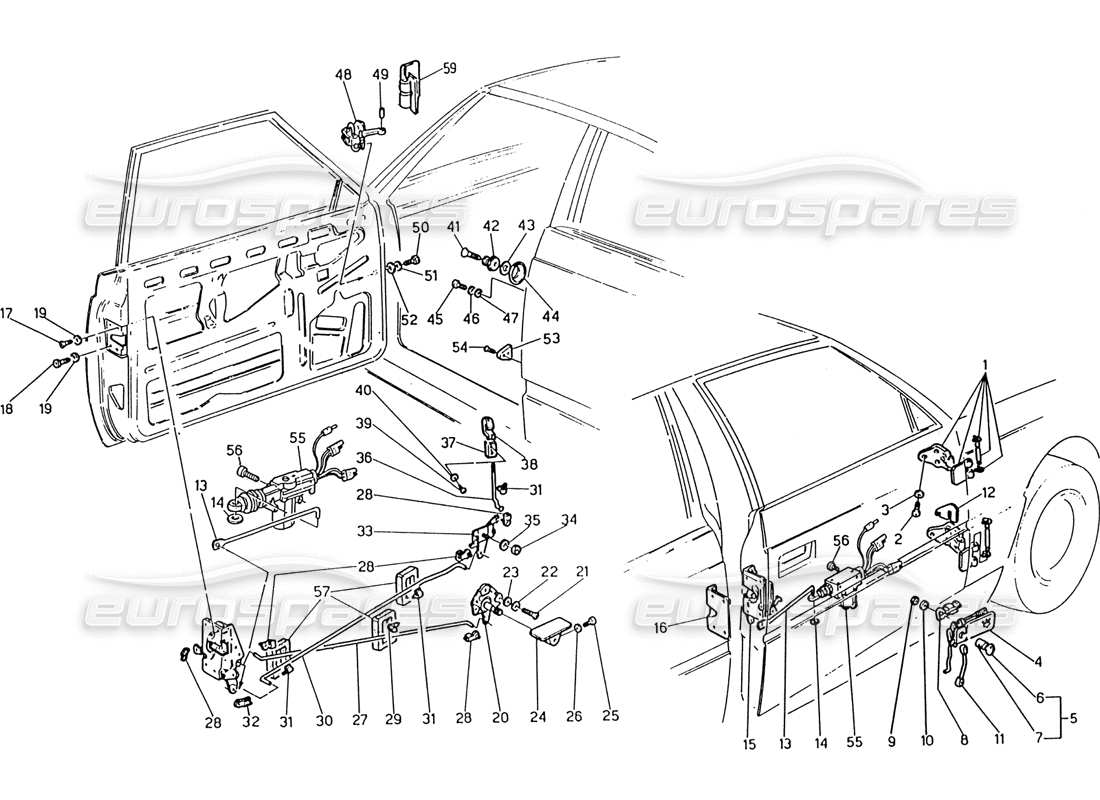

Maserati 222 / 222E Biturbo Doors: Hinges and Inner Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 314520113
DOOR HINGE ASSY
from £31.91
from £31.91
# 002
MPN: 167570825
SCREW
from £1.29
from £1.29
# 003
MPN: 135800080
SPRING WASHER
# 004
MPN: 314520025
EXTERIOR HANDLE SET
from £72.08
from £72.08
# 005
MPN: 314520011
BARREL SET WITH THREE KEYS
from £17.85
from £17.85
# 006
MPN: 53451375
Key
Specify the profile type (three profile types are available - indentifiable from these initial figures: 1…3…5…)
from £12.60
from £12.60
# 007
-
BARREL FOR LH HANDLE (NOT SUPPLIED)
# 007
-
BARREL FOR RH HANDLE (NOT SUPPLIED)
# 008
MPN: 314520381
CRAMP
Supersession
Supersession
# 009
MPN: 125100060
NUT
# 010
MPN: 314520417
SPRING WASHER
from £1.64
from £1.64
This part replaces part number 314520415
# 011
MPN: 314520019
ROD TO CONTROL LH HANDLE KEY
from £5.68
from £5.68
# 011
MPN: 314520020
ROD TO CONTROL RH HANDLE KEY
from £5.54
from £5.54
# 012
MPN: 314520402
SPACER PLATE
*On request
Supersession
Supersession
# 012
MPN: 314520403
SPACER PLATE
*On request
from £7.80
from £7.80
# 013
MPN: 314520461
LH ACTUATOR ROD
from £1.71
from £1.71
# 013
MPN: 314520462
RH ACTUATOR ROD
from £1.85
from £1.85
# 014
MPN: 53826313
WASHER
from £1.09
from £1.09
# 015
MPN: 314520145
LH DOOR LOCK
from £19.02
from £19.02
# 015
MPN: 314520146
R. H. DOOR LOCK
from £19.95
from £19.95
# 016
MPN: 314520411
LH COVER PLATE
from £444.21
from £444.21
# 016
MPN: 314520412
RH COVER PLATE
from £5.26
from £5.26
# 017
MPN: 112806020
SCREW
# 018
MPN: 112806030
SCREW
from £0.48
from £0.48
# 019
MPN: 314520417
WASHER
from £1.64
from £1.64
This part replaces part number 314520415
# 020
MPN: 314520183
LH REMOTE CONTROL
from £5.14
from £5.14
# 020
MPN: 314520184
RH REMOTE CONTROL
from £4.67
from £4.67
# 021
MPN: 101205010
SCREW
# 022
MPN: 135600050
SPRING WASHER
from £1.17
from £1.17
# 023
MPN: 135900064
WASHER
from £0.47
from £0.47
# 024
MPN: 314553426
CONTROL LEVER (ANTRACITE COLOR)
from £95.00
from £95.00
This part replaces part number 314520426
# 025
MPN: 112805016
SCREW
# 026
MPN: 135900053
WASHER
# 027
MPN: 314520418
ROD
from £1.98
from £1.98
# 028
MPN: 53451371
CLAMP
from £0.71
from £0.71
This part replaces part number 14578080
# 029
MPN: 314520419
CLAMP
from £0.70
from £0.70
# 030
MPN: 314520416
ROD
from £2.35
from £2.35
# 031
MPN: 314520420
CLIP
from £0.70
from £0.70
# 032
MPN: 30451423
CLIP
# 033
MPN: 314520153
LH SAFETY CONTROL
from £2.34
from £2.34
# 033
MPN: 314520154
RH SAFETY CONTROL
from £2.34
from £2.34
# 034
MPN: 125100060
NUT
# 035
MPN: 314520417
WASHER
from £1.64
from £1.64
This part replaces part number 314520415
# 036
MPN: 314520421
LOCK BUTTON FOR DOOR SAFETY
from £8.40
from £8.40
# 037
MPN: 314520428
ELEMENT TO LINK ROD
from £1.09
from £1.09
# 038
MPN: 314520427
PULL KNOB
Supersession
Supersession
# 039
MPN: 167590414
SCREW
from £1.56
from £1.56
# 040
MPN: 135900043
WASHER
from £1.09
from £1.09
This part replaces part number 14496207
# 041
MPN: 314520410
SCREW
from £1.56
from £1.56
# 042
MPN: 314520151
PIN
from £14.26
from £14.26
# 043
MPN: 314520406
SPACER
*On request
from £0.70
from £0.70
# 043
MPN: 314520407
SPACER
*On request
from £0.70
from £0.70
# 044
MPN: 314520413
COVER PLATE
from £0.54
from £0.54
# 045
MPN: 112806020
SCREW
# 046
MPN: 314520417
WASHER
from £1.64
from £1.64
This part replaces part number 314520415
# 047
MPN: 136110066
WASHER
# 048
MPN: 314520142
ROD
from £56.70
from £56.70
# 049
MPN: 314520408
PIN
from £1.51
from £1.51
# 050
MPN: 101205010
SCREW
# 051
MPN: 135600050
WASHER
from £1.17
from £1.17
# 052
MPN: 136110055
WASHER
from £0.78
from £0.78
# 053
MPN: 314520140
PLATE
from £6.46
from £6.46
# 054
MPN: 113106025
SCREW
# 055
MPN: 323320194
MOTOR ACTUATOR
from £71.92
from £71.92
# 056
MPN: 119148220
SCREW
from £1.09
from £1.09
# 057
MPN: 314520429
VIBRATION-DAMPING ON REAR ROD
from £1.56
from £1.56
# 058
MPN: 314520414
WASHER
from £1.09
from £1.09
# 059
MPN: 312520322
CONNECTION
from £29.96
from £29.96
