maserati 222 / 222e biturbo boot: badges, carpets and tools parts diagram

054 - Boot: Badges, Carpets and Tools

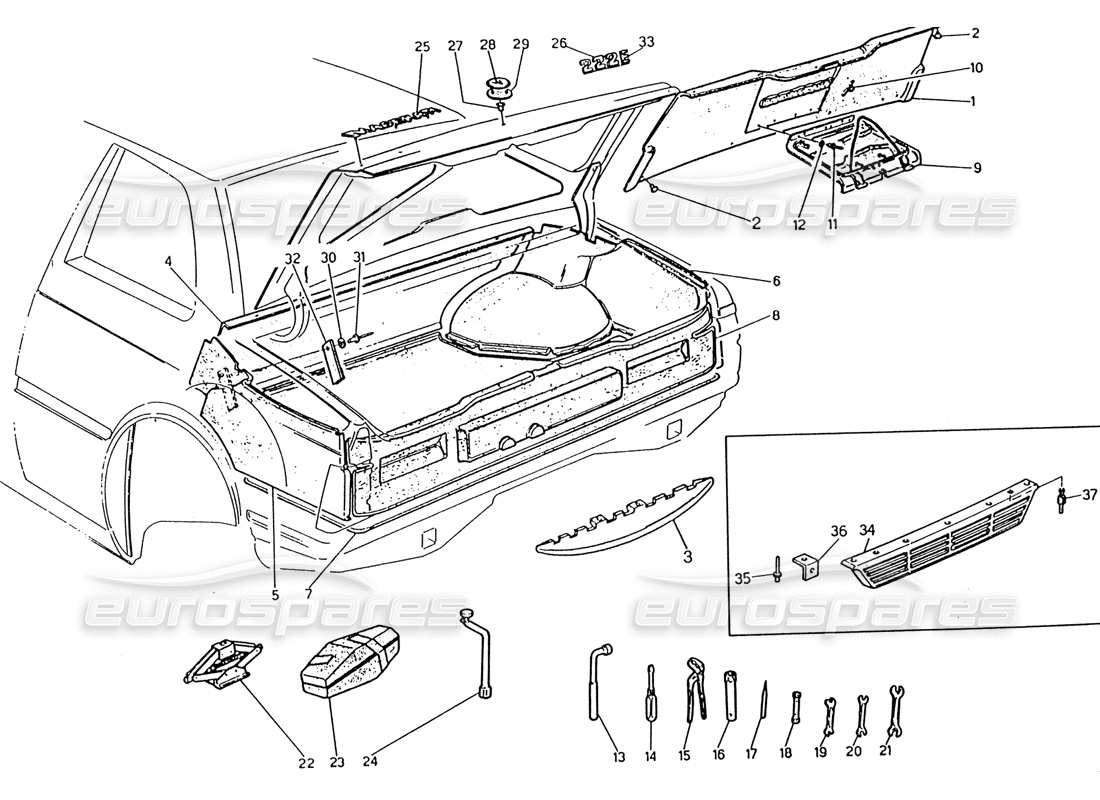

Maserati 222 / 222E Biturbo Boot: Badges, Carpets and Tools Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 001
                                                            MPN: 314750142
                                                            TRUNK LID INTERIOR COVERING (ANTRACITE COLOR)
                                                            from £29.65
                                                            from £29.65
                                                            # 001
                                                            MPN: MASSHOP001
                                                            BI-TURBO WORKSHOP MANUEL
                                                            Engine workshop manuel 2.0 /2.5 /2.8
                                                            # 002
                                                            MPN: 312520504
                                                            PLUG (BLACK COLOR)
                                                            from £2.33
                                                            from £2.33
                                                            # 003
                                                            MPN: 336320340
                                                            WHEEL SCREEN
                                                            Valid for 51, 60, 61, 70, 71, 74, 75
                                                            from £15.78
                                                            from £15.78
                                                            This part replaces part number 316353340
                                                            # 004
                                                            MPN: 314750136
                                                            FUEL TANK COMPART. PANEL (ANTRACITE COLOR)
                                                            Supersession
                                                            Supersession
                                                            # 005
                                                            MPN: 314750137
                                                            TRUNK SIDE COVERING LH (ANTRACITE COLOR)
                                                            from £13.49
                                                            from £13.49
                                                            # 006
                                                            MPN: 314750138
                                                            TRUNK SIDE COVERING RH (ANTRACITE COLOR)
                                                            from £15.89
                                                            from £15.89
                                                            # 007
                                                            MPN: 314750139
                                                            TRUNK FLOOR COVERING (ANTRACITE COLOR)
                                                            from £5.10
                                                            from £5.10
                                                            # 008
                                                            MPN: 314750140
                                                            REAR PANEL (ANTRACITE COLOR)
                                                            from £27.91
                                                            from £27.91
                                                            # 009
                                                            MPN: 318150134
                                                            TOOLBOX (ANTRACITE COLOR)
                                                            from £9.88
                                                            from £9.88
                                                            # 010
                                                            MPN: 318120361
                                                            SPRING
                                                            from £1.08
                                                            from £1.08
                                                            # 012
                                                            MPN: 169020005
                                                            WASHER
                                                            from £1.08
                                                            from £1.08
                                                            # 013
                                                            MPN: 329856103
                                                            WHEEL WRENCH
                                                            from £0.53
                                                            from £0.53
                                                            # 014
                                                            MPN: 319820104
                                                            DOUBLE SCREW DRIVER
                                                            from £1.55
                                                            from £1.55
                                                            # 015
                                                            MPN: 319820105
                                                            PLIERS
                                                            Supersession
                                                            Supersession
                                                            # 016
                                                            MPN: 319820300
                                                            SPARK PLUG SOCKET WRENCH
                                                            from £0.57
                                                            from £0.57
                                                            # 017
                                                            MPN: 319820301
                                                            PULLING NEEDLE
                                                            from £1.55
                                                            from £1.55
                                                            # 018
                                                            MPN: 319820302
                                                            8/10 SOCKET WRENCH
                                                            from £0.57
                                                            from £0.57
                                                            # 019
                                                            MPN: 319820303
                                                            8/10 WRENCH
                                                            from £1.00
                                                            from £1.00
                                                            # 020
                                                            MPN: 319820304
                                                            11/13 WRENCH
                                                            from £1.16
                                                            from £1.16
                                                            # 021
                                                            MPN: 319820305
                                                            17/19 WRENCH
                                                            from £1.51
                                                            from £1.51
                                                            # 022
                                                            MPN: 349800107
                                                            JACK
                                                            from £50.80
                                                            from £50.80
                                                            # 023
                                                            MPN: 319850009
                                                            JACK (ANTRACITE COLOR)
                                                            from £1.00
                                                            from £1.00
                                                            This part replaces part number 319820009
                                                            # 024
                                                            MPN: 319820113
                                                            DRIVER WRENCH
                                                            from £3.67
                                                            from £3.67
                                                            # 025
                                                            MPN: 318353360
                                                            Maserati BADGE
                                                            (plastic)
                                                            from £25.20
                                                            from £25.20
                                                            # 025
                                                            MPN: 318353360/A
                                                            Maserati BADGE
                                                            (metal)
                                                            # 026
                                                            MPN: 318354363
                                                            222 BADGE
                                                            from £3.35
                                                            from £3.35
                                                            # 027
                                                            MPN: 31471311
                                                            PIN SEAT
                                                            from £0.69
                                                            from £0.69
                                                            # 028
                                                            MPN: 318320109
                                                            BOOT OVAL BADGE
                                                            from £105.25
                                                            from £105.25
                                                            # 029
                                                            MPN: 318320362
                                                            GASKET FOR BADGE
                                                            from £0.74
                                                            from £0.74
                                                            # 031
                                                            MPN: 169020005
                                                            RIVET
                                                            from £1.08
                                                            from £1.08
                                                            # 032
                                                            MPN: 314750141
                                                            TAPE (ANTRACITE COLOR)
                                                            from £1.55
                                                            from £1.55
                                                            This part replaces part number 314720141
                                                            # 033
                                                            MPN: 318354366

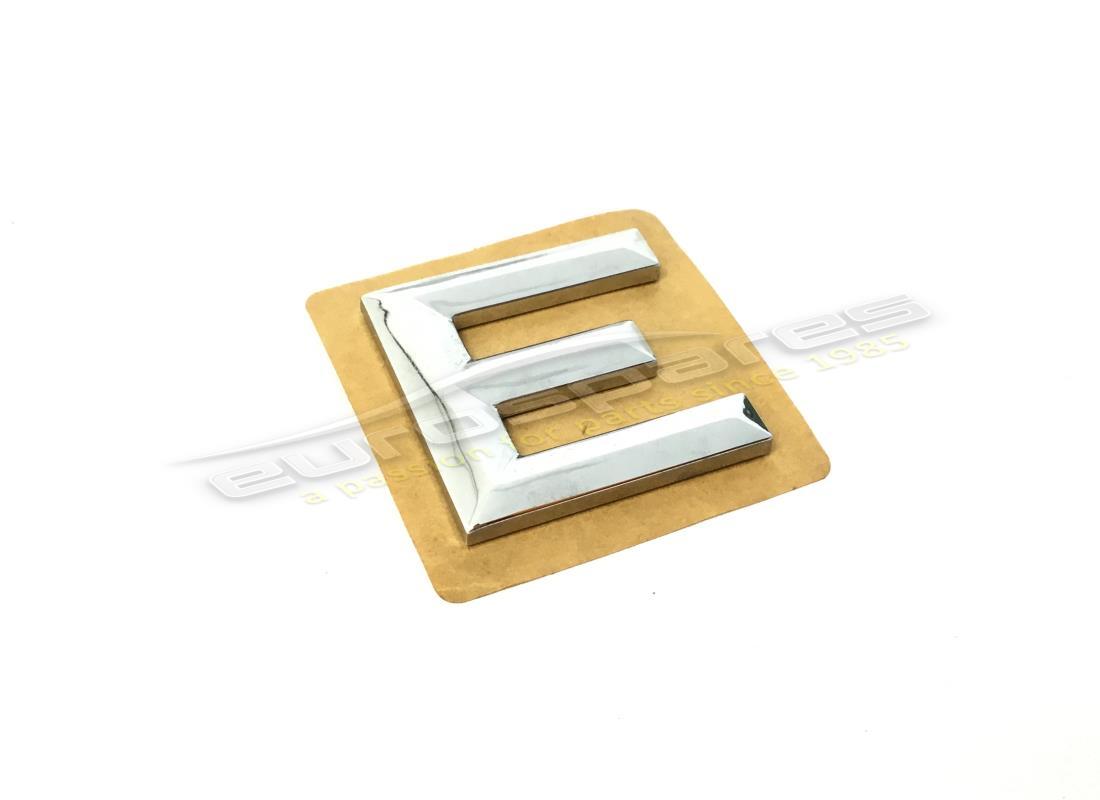

                                                            E BADGE
                                                            Valid for 51, 60, 61, 70, 71, 74, 75
                                                            from £5.20
                                                            from £5.20
                                                            # 034
                                                            MPN: 316353340
                                                            SPARE WHEEL COVER
                                                            Valid for 54, 55
                                                            Supersession
                                                            Supersession
                                                            # 035
                                                            MPN: 348300354
                                                            RIVET
                                                            Valid for 54, 55
                                                            # 036
                                                            MPN: 316353342
                                                            PLATE
                                                            Valid for 54, 55
                                                            # 037
                                                            MPN: 316353341
                                                            BOTTOM
                                                            Valid for 54, 55
