maserati 222 / 222e biturbo front lights parts diagram

056 - Front Lights

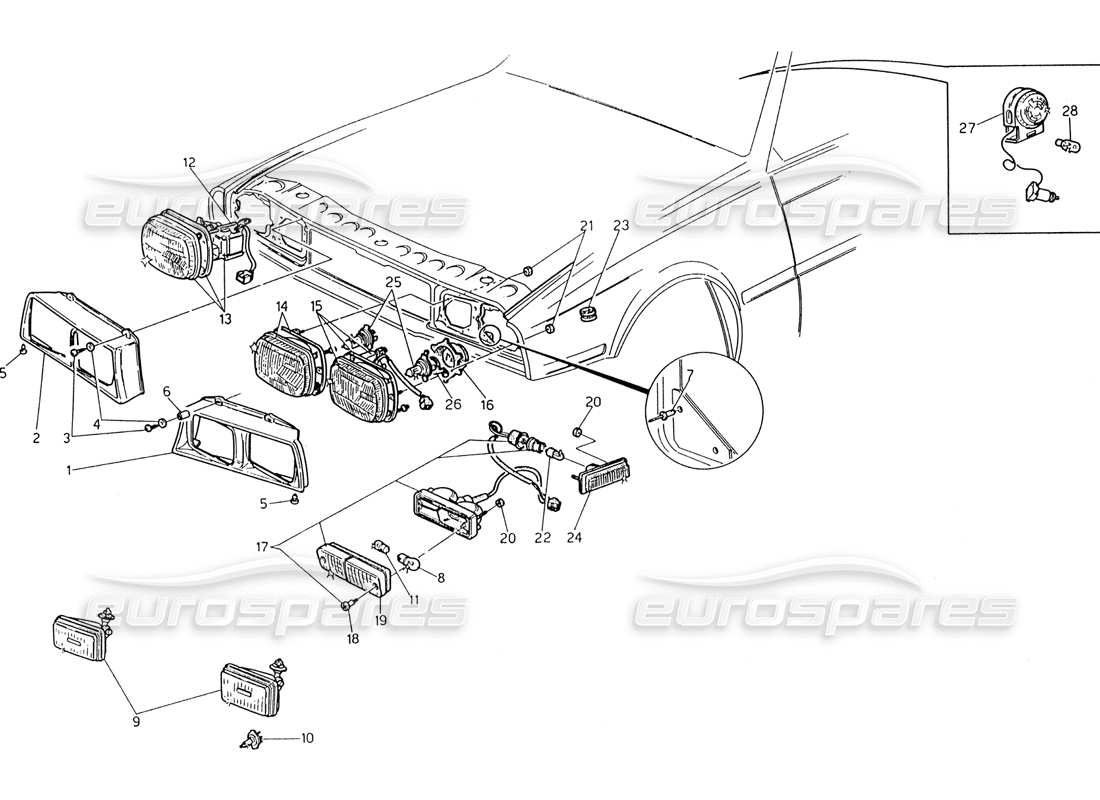

Maserati 222 / 222E Biturbo Front Lights Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 318350301
LH HEADLAMP BEZEL
Valid for 51, 54, 55, 70, 71, 74, 75
from £25.52
from £25.52
This part replaces part number 318353301
# 002
MPN: 318350302
RH HEADLAMP BEZEL
Valid for 51, 54, 55, 70, 71, 74, 75
from £17.78
from £17.78
This part replaces part number 318353302
# 003
MPN: 167590414
SCREW
Valid for 51, 54, 55, 70, 71, 74, 75
from £1.55
from £1.55
# 004
MPN: 135000043
WASHER
Valid for 51, 54, 55, 70, 71, 74, 75
from £1.08
from £1.08
# 005
MPN: 31302307
PIN
Valid for 51, 54, 55, 70, 71, 74, 75
from £0.53
from £0.53
# 006
MPN: 318320315
BUSHING
Valid for 51, 54, 55, 70, 71, 74, 75
from £1.05
from £1.05
# 007
MPN: 164353062
RIVET
Valid for 51, 54, 55, 70, 71, 74, 75
# 008
MPN: 87720021
BULB 12V 21 W
Valid for 51, 54, 55, 70, 71, 74, 75
from £1.00
from £1.00
# 009
MPN: 323156120
FOG LIGHT, ASSY
Valid for 51, 54, 55, 70, 71, 74, 75
from £33.98
from £33.98
# 010
MPN: 87770055
BULB
Valid for 51, 54, 55, 70, 71, 74, 75
from £4.01
from £4.01
# 011
MPN: 87540500
BULB 12V 5W
Valid for 51, 54, 55, 70, 71, 74, 75
from £0.52
from £0.52
# 012
MPN: 323120216
ACTUATOR LAMP
Valid for 51, 54, 55, 70, 71, 74, 75
from £7.64
from £7.64
# 013
MPN: 313120104
RH HEADLAMP WITH ADJUSTMENT CONTROL
Valid for 51, 54, 55/ *Headlamp with bulb
from £23.99
from £23.99
This part replaces part number 323120104
# 013
MPN: 323127104
RH HEADLAMP WITH ADJUSTMENT CONTROL
Valid for 70, 71, 74, 75/ *Headlamp with bulb
from £13.17
from £13.17
This part replaces part number 313127104
# 014
MPN: 313127102
INSIDE HEADLAMP AFTER MODIF.
Valid for 51, 54, 55, 70, 71, 74, 75 *Headlamp with bulb
from £140.00
from £140.00
This part replaces part number 313120102
# 015
MPN: 323120103
LH HEADLAMP WITH ADJUSTMENT CONTROL
Valid for 51, 54, 55/ *Headlamp with bulb
from £80.78
from £80.78
# 015
MPN: 323127103
LH HEADLAMP WITH ADJUSTMENT CONTROL
Valid for 70, 71, 74, 75/ *Headlamp with bulb
from £13.17
from £13.17
This part replaces part number 313127103
# 016
MPN: 313127321
INSIDE COVER
Valid for 51, 54, 55, 70, 71, 74, 75
from £1.55
from £1.55
# 016
MPN: 53316320
OUTSIDE COVER
Valid for 51, 54, 55, 70, 71, 74, 75
# 017
MPN: 313120130
RH FRONT LAMP
Valid for 51, 54, 55, 70, 71, 74, 75
from £95.00
from £95.00
This part replaces part number 313120209 - and 1 more. Click to view details
# 017
MPN: 313120131
LH FRONT LAMP
Valid for 51, 54, 55, 70, 71, 74, 75
from £110.75
from £110.75
This part replaces part number 313120401
# 018
MPN: 313120403
SCREW
Valid for 51, 54, 55, 70, 71, 74, 75
from £2.49
from £2.49
# 019
MPN: 313120401
LH LENS
Valid for 51, 54, 55, 70, 71, 74, 75
Supersession
Supersession
# 019
MPN: 313120402
RH LENS
Valid for 51, 54, 55, 70, 71, 74, 75
Supersession
Supersession
# 020
MPN: 122600050
NUT
Valid for 51, 54, 55, 70, 71, 74, 75
# 021
MPN: 122700050
NUT
Valid for 51, 54, 55, 70, 71, 74, 75
# 022
MPN: 87720004
BULB 12V 4W
Valid for 51, 54, 55, 70, 71, 74, 75
from £0.47
from £0.47
# 023
MPN: 53241312
GROMMET
Valid for 51, 54, 55, 70, 71, 74, 75
from £1.09
from £1.09
# 024
MPN: 373180127
SIDE LAMP
Valid for 51, 54, 55, 70, 71, 74, 75
from £48.50
from £48.50
This part replaces part number 363100127
# 025
MPN: 187770056
BULB 12V 55W
Valid for 70, 71, 74, 75
# 025
MPN: 87756055
BULB 12V 55/60W (HALOGEN)
Valid for 51, 54, 55, 70, 71, 74, 75
from £4.01
from £4.01
# 026
MPN: 313120406
BULB SPRING HOLDER
Valid for 51, 54, 55
# 027
MPN: 313121112
INSPECTION LIGHT
Valid for 51, 54, 55, 70, 71, 74, 75
from £23.01
from £23.01
# 028
MPN: 87541000
BULB
Valid for 51, 54, 55, 70, 71, 74, 75
