maserati 222 / 222e biturbo rear tail light parts diagram

057 - Rear Tail Light

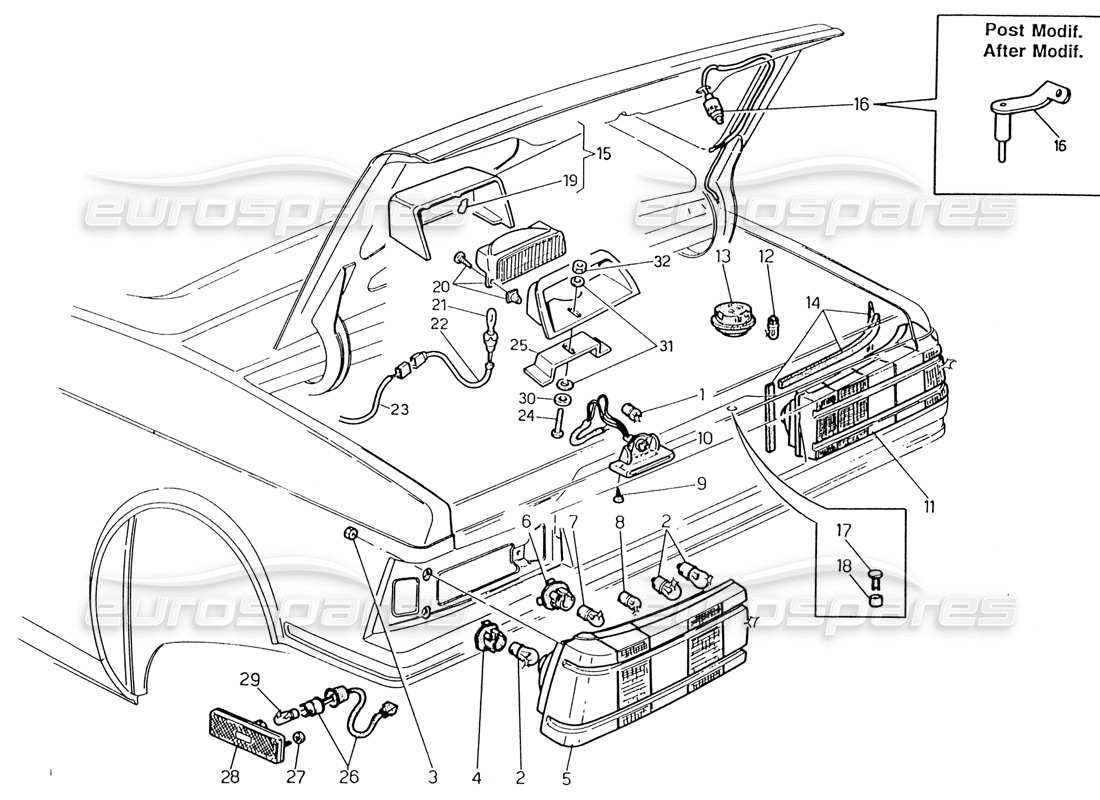

Maserati 222 / 222E Biturbo Rear Tail Light Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 87540500
                              BULB 12V5W
                              from £0.52
                              from £0.52
                              # 002
                              MPN: 87720021
                              BULB 12 V 21 W
                              from £0.98
                              from £0.98
                              # 004
                              MPN: 313120404
                              BULB HOLDER
                              from £4.00
                              from £4.00
                              # 005
                              MPN: 313120138
                              LH REAR LAMP
                              Valid for 51, 54, 55, 70, 71, 74, 75
                              Supersession
                              Supersession
                              This part replaces part number 313120210
                              # 005
                              MPN: 313130108
                              LH REAR LAMP
                              Valid for 60, 61
                              from £4.75
                              from £4.75
                              # 006
                              MPN: 313120405
                              BULBHOLDER
                              from £0.85
                              from £0.85
                              # 007
                              MPN: 87720521
                              BULB 12 V 5/21 W
                              from £3.00
                              from £3.00
                              # 008
                              MPN: 87541000
                              BUIB12W10W
                              # 010
                              MPN: 30311111
                              NUMBER - PLATE LAMP
                              # 011
                              MPN: 313120137
                              RH REAR LAMP
                              Valid for 51, 54, 55, 70, 71, 74, 75
                              Supersession
                              Supersession
                              This part replaces part number 313120211 which we have in stock
                              # 011
                              MPN: 313130107
                              RH REAR LAMP
                              Valid for 60, 61
                              from £7.33
                              from £7.33
                              # 012
                              MPN: 87760005
                              BULB 12V5W
                              from £0.64
                              from £0.64
                              # 013
                              MPN: 313153118
                              LUGGAGE ROOM LIGHT
                              from £9.96
                              from £9.96
                              # 014
                              MPN: 313120407
                              GASKET FOR TAIL LIGHT
                              minimum order quantity = 4
                              from £1.55
                              from £1.55
                              # 015
                              MPN: 323132106
                              COVER WITH SPRING (BEIGE COLOR)
                              Valid for 60, 61, 74, 75
                              from £3.20
                              from £3.20
                              This part replaces part number 323160334
                              # 015
                              MPN: 323160334
                              COVER WITH SPRING (GREY COLOR)
                              Valid for 60, 61, 74, 75
                              Supersession
                              Supersession
                              # 016
                              MPN: 30331111
                              SWITCH AFTER MODIF.
                              # 016
                              MPN: 323356104
                              SWITCH PRE.MODIF.
                              Supersession
                              Supersession
                              # 017
                              MPN: 318320499
                              PLUG PRE MODIF.
                              from £0.77
                              from £0.77
                              # 018
                              MPN: 323356304
                              SPACER PRE MODIF.
                              from £0.69
                              from £0.69
                              # 019
                              MPN: 323132324
                              SPRING
                              Valid for 60, 61, 74, 75
                              from £0.69
                              from £0.69
                              # 020
                              MPN: 323132105
                              STOP LAMP WITH SUPPORT
                              Valid for 60, 61, 74, 75
                              from £15.61
                              from £15.61
                              # 021
                              MPN: 323132325
                              BULB
                              Valid for 60, 61, 74, 75
                              from £0.47
                              from £0.47
                              # 022
                              MPN: 323132104
                              BULB HOLDER WITH CABLE
                              Valid for 60, 61, 74, 75
                              from £3.63
                              from £3.63
                              # 023
                              MPN: 323132102
                              CABLE
                              Valid for 60, 61, 74, 75
                              from £5.54
                              from £5.54
                              # 024
                              MPN: 101206016
                              SCREW
                              Valid for 60, 61, 74, 75
                              # 025
                              MPN: 313137103
                              BRACKET
                              Valid for 60, 61, 74, 75
                              from £4.63
                              from £4.63
                              # 026
                              MPN: 30311128
                              LAMP HOLDER
                              Valid for 60, 61
                              from £3.91
                              from £3.91
                              # 027
                              MPN: 122600050
                              NUT
                              Valid for 60, 61
                              # 028
                              MPN: 30311122
                              REAR SIDE MARKER (RED)
                              Valid for 60, 61
                              from £12.96
                              from £12.96
                              # 029
                              MPN: 87760003
                              BULB, 12V/3W
                              Valid for 60, 61
                              from £0.47
                              from £0.47
                              # 030
                              MPN: 135600060
                              SPRING WASHER
                              Valid for 60, 61, 74, 75
                              from £0.77
                              from £0.77
                              # 031
                              MPN: 163030060
                              WASHER
                              Valid for 60, 61, 74, 75
                              from £1.08
                              from £1.08
                              # 032
                              MPN: 125100060
                              NUT
                              Valid for 60, 61, 74, 75
