059 - Instrumentation

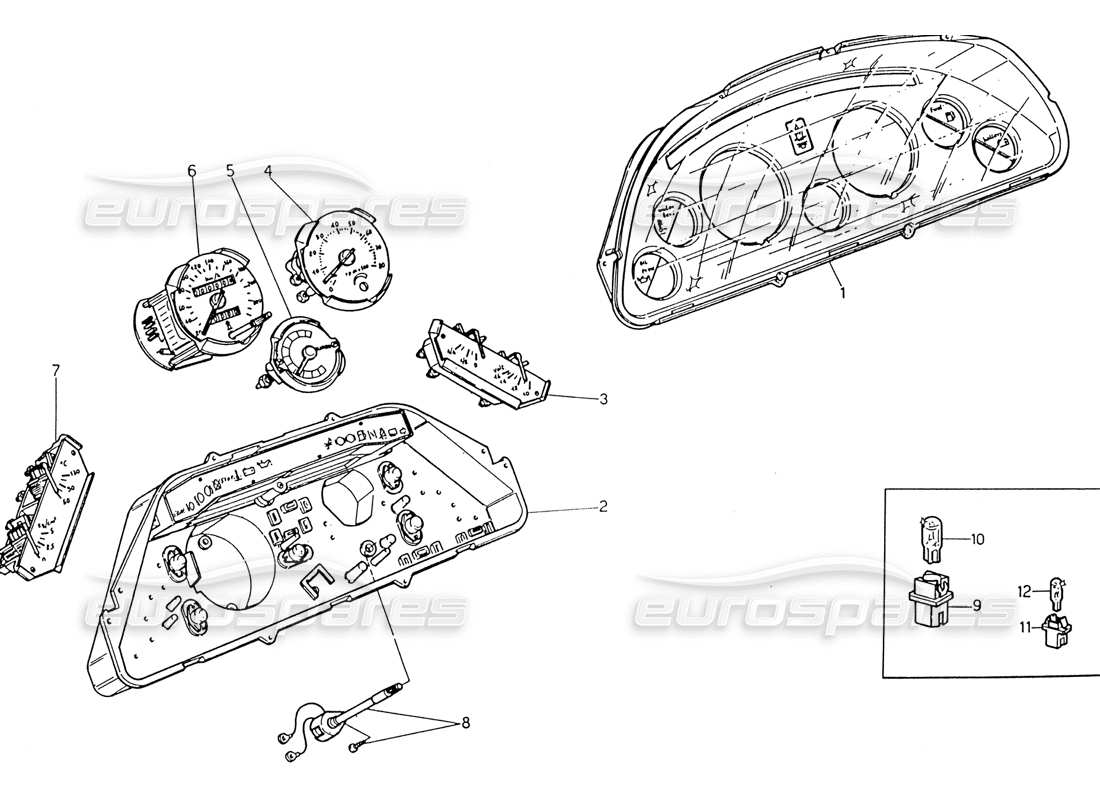

Maserati 222 / 222E Biturbo Instrumentation Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 313620114
INSTRUMENTATION, ASSY
Valid for 51
from £377.74
from £377.74
# 000
MPN: 313627114
INSTRUMENTATION, ASSY
Valid for 60, 70
from £353.74
from £353.74
# 000
MPN: 313671114
INSTRUMENTATION, ASSY
Valid for 61, 71
from £362.90
from £362.90
# 000
MPN: 313675114
INSTRUMENTATION, ASSY
Valid for 55, 75
from £385.22
from £385.22
# 000
MPN: 323656114
INSTRUMENTATION, ASSY
Valid for 54, 74
from £484.63
from £484.63
This part replaces part number 343600114
# 001
MPN: 313632208
VISOR
Valid for 60, 61, 70, 74
from £39.28
from £39.28
# 001
MPN: 323620208
VISOR, ASSY
Valid for 51
from £89.63
from £89.63
# 001
MPN: 323656208
VISOR
Valid for 54, 55, 74, 75
from £76.45
from £76.45
# 002
MPN: 323620213
BOX, ASSY (NOT SUPPLIED)
from £119.68
from £119.68
# 003
MPN: 313632206

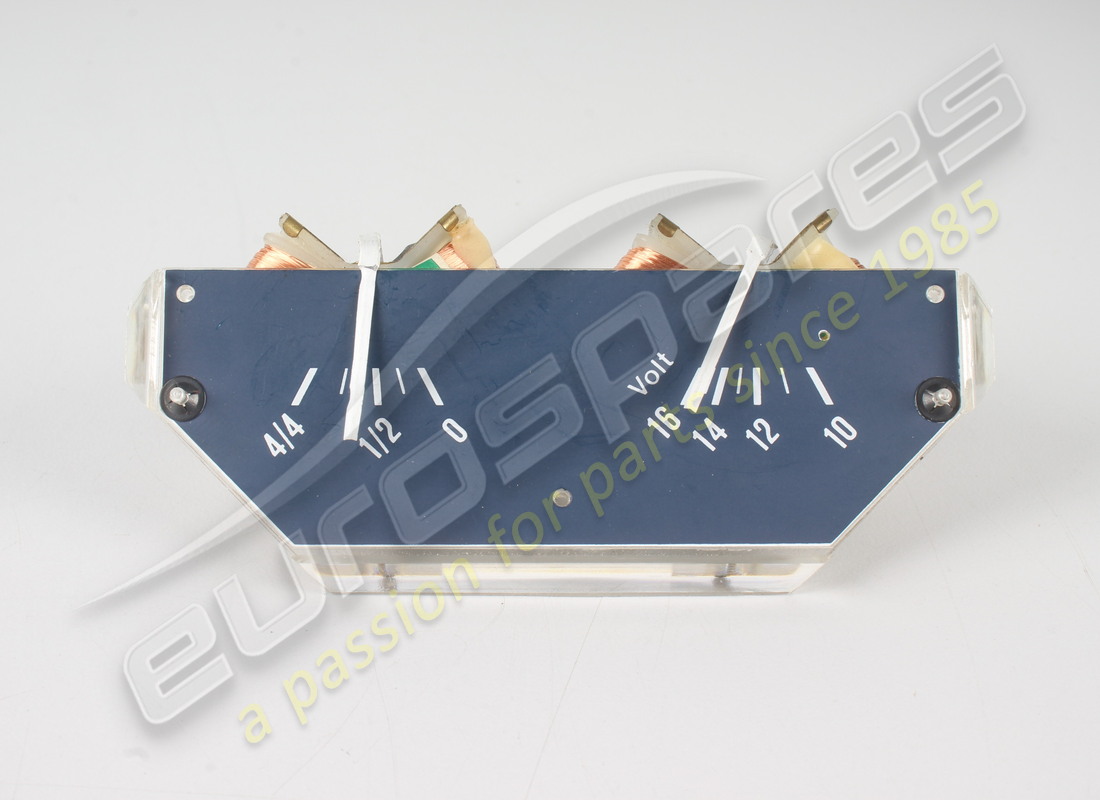

FUEL GAUGE AND VOLTMETER
Valid for 60, 61, 70, 71
from £184.91
from £184.91
# 003
MPN: 323620206
FUEL GAUGE AND VOLTMETER
Valid for 51
from £46.07
from £46.07
# 003
MPN: 343600206
FUEL GAUGE AND VOLTMETER
Valid for 54, 55, 74, 75
from £81.25
from £81.25
# 004
MPN: 313620214
REV. COUNTER
Valid for 51
from £48.95
from £48.95
# 004
MPN: 313632214
REV. COUNTER
Valid for 60, 61, 70, 71
from £103.89
from £103.89
# 004
MPN: 343600214
REV. COUNTER
Valid for 54, 55, 74, 75
from £126.73
from £126.73
# 005
MPN: 313632204
TURBO BLOWER PRESSURE GAUGE
Valid for 54, 55, 74, 75
from £67.02
from £67.02
# 005
MPN: 323620204
TURBO BLOWER PRESSURE GAUGE
Valid for 51, 60, 61, 70, 71
from £67.57
from £67.57
# 006
MPN: 313627201
SPEEDOMETER
Valid for 60, 70
from £231.93
from £231.93
# 006
MPN: 313671201
SPEEDOMETER
Valid for 61, 71
from £69.41
from £69.41
# 006
MPN: 313675201
SPEEDOMETER
Valid for 55, 75
from £187.21
from £187.21
# 006
MPN: 323610201
SPEEDOMETER
Valid for 51
from £341.35
from £341.35
# 006
MPN: 343600201
SPEEDOMETER
Valid for 54, 74
from £380.21
from £380.21
# 007
MPN: 313632203
WATER THERM. AND OIL
Valid for 60, 61, 70, 71
from £56.03
from £56.03
# 007
MPN: 323620203
WATER THERM. AND OIL PRESSURE
Valid for 51
from £75.72
from £75.72
# 007
MPN: 343600203
WATER THERM. AND OIL
Valid for 54, 55, 74, 75
from £37.03
from £37.03
# 008
MPN: 323620211
RHEOSTAT
from £10.29
from £10.29
# 009
MPN: 313620403
BULB HOLDER (3 W)
# 010
MPN: 87760003
BULB 12 V- 3 W
from £0.47
from £0.47
# 011
MPN: 313620402
BULB HOLDER (1,2 W)
# 012
MPN: 87760012
BULB 12 V- 1,2 W
from £0.47
from £0.47
