maserati 222 / 222e biturbo automatic air-conditioner set (rh steering) parts diagram

063.1 - Automatic Air-Conditioner Set (RH Steering)

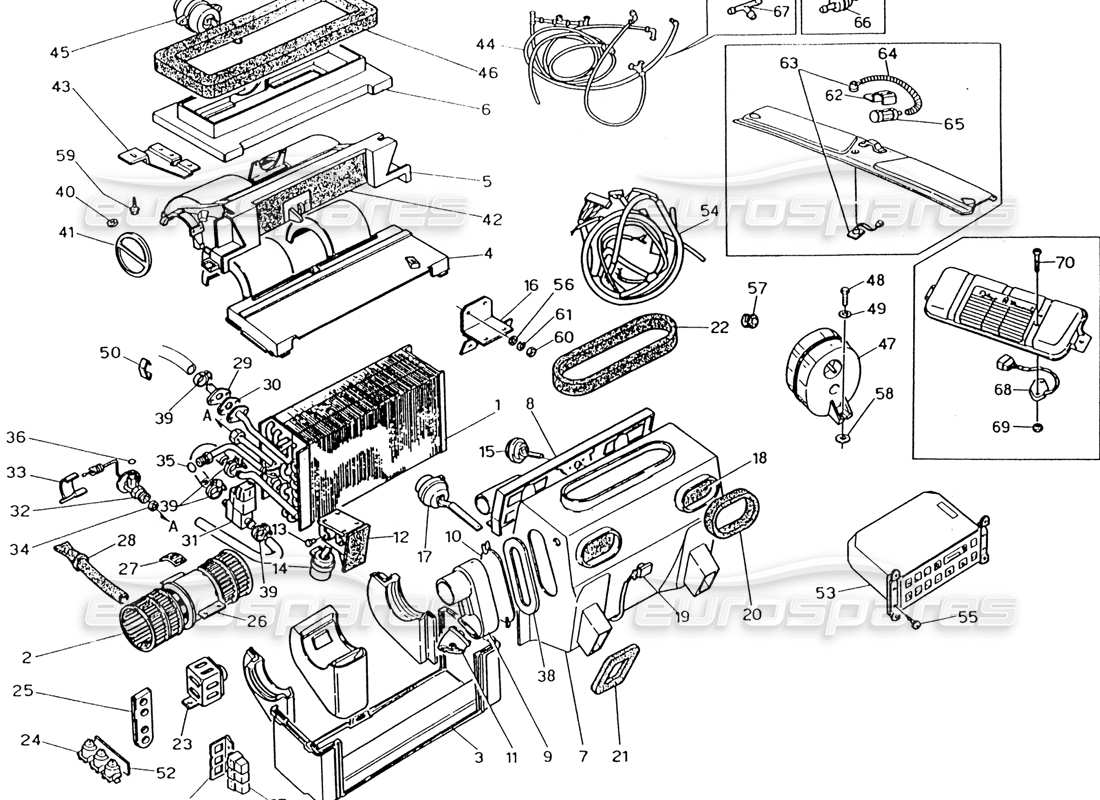

Maserati 222 / 222E Biturbo Automatic Air-Conditioner Set (R.H. Steering) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 315570165
EVAPORATOR-HEATER
Valid for 70, 71, 74, 75
from £176.07
from £176.07
# 002
MPN: 315520167
ELECTRIC FAN
Valid for 70, 71, 74, 75
from £221.12
from £221.12
# 003
MPN: 315570380
LOWER BOX
Valid for 70, 71, 74, 75
from £17.23
from £17.23
# 004
MPN: 315520381
INTERMEDIATE BOX
Valid for 70, 71, 74, 75
from £12.73
from £12.73
# 005
MPN: 315520382
UPPER BOX
Valid for 70, 71, 74, 75
from £7.76
from £7.76
# 006
MPN: 315520470
CONVEYOR
Valid for 70, 71, 74, 75
from £42.32
from £42.32
# 007
MPN: 315520471
Front Body
Valid for 70, 71, 74, 75
from £11.02
from £11.02
This part replaces part number 315520384
# 008
MPN: 315520472
UPPER COVER
Valid for 70, 71, 74, 75
# 009
MPN: 315520474
NOZZLE FOR AIR, RH
Valid for 70, 71, 74, 75
from £8.58
from £8.58
# 010
MPN: 315520163
DOOR FOR LH NOZZLE
Valid for 70, 71, 74, 75
from £3.21
from £3.21
This part replaces part number 315520129
# 010
MPN: 315520164
DOOR FOR RH NOZZLE
Valid for 70, 71, 74, 75
from £4.14
from £4.14
This part replaces part number 315520130
# 010
MPN: 315520473
NOZZLE FOR AIR, LH
Valid for 70, 71, 74, 75
from £8.58
from £8.58
# 011
MPN: 315520387
INNER DUCT
Valid for 70, 71, 74, 75
from £18.88
from £18.88
# 012
MPN: 315520018
LOWER DOOR ASSY
Valid for 70, 71, 74, 75
from £10.42
from £10.42
# 013
-
PIN FOR DOOR (NOT SUPPLIED)
# 014
MPN: 315520158
ACTUATOR TO CONTROL DOOR
Valid for 70, 71, 74, 75
from £9.23
from £9.23
# 015
MPN: 315520162
ACTUATOR WITH TWO POSITION
Valid for 70, 71, 74, 75
from £4.58
from £4.58
# 016
MPN: 315520138
PAD TO SUPPORT CONDITIONER
Valid for 70, 71, 74, 75
from £3.26
from £3.26
# 017
MPN: 315520159
ACTUATOR
Valid for 70, 71, 74, 75
from £12.87
from £12.87
# 018
MPN: 315520134
DOOR THROW AIR
Valid for 70, 71, 74, 75
# 019
MPN: 315520206
SENSOR
Valid for 70, 71, 74, 75
from £18.91
from £18.91
# 020
MPN: 315520396
GASKET FOR NOZZLE
Valid for 70, 71, 74, 75
# 021
MPN: 315520397
GASKET FOR NOZZLE
Valid for 70, 71, 74, 75
from £3.50
from £3.50
# 022
MPN: 315520398
GASKET
Valid for 70, 71, 74, 75
from £3.50
from £3.50
# 023
MPN: 315520143
RESISTANCE
Valid for 70, 71, 74, 75
from £17.27
from £17.27
# 024
MPN: 315520207
SOLENOID VALVE
Valid for 70, 71, 74, 75
from £41.43
from £41.43
# 025
MPN: 315520475
GASKET
Valid for 70, 71, 74, 75
# 026
MPN: 315520402
PAD
Valid for 70, 71, 74, 75
# 027
MPN: 315520403
BUMPER
Valid for 70, 71, 74, 75
# 028
MPN: 315520017
DRAIN PIPE
Valid for 70, 71, 74, 75
from £1.77
from £1.77
# 029
MPN: 315520210
CONNECTOR
Valid for 70, 71, 74, 75
from £4.53
from £4.53
# 030
MPN: 315520482
GASKET
Valid for 70, 71, 74, 75
from £2.91
from £2.91
# 031
MPN: 315522144
COMPLEX COCK
Valid for 70, 71, 74, 75
from £398.54
from £398.54
# 032
MPN: 315520166
EXPANSION VALVE AFTER MODIF
Valid for 70, 71, 74, 75
from £77.33
from £77.33
# 032
MPN: 315522166
EXPANSION VALVE PRE MODIF
Valid for 70, 71, 74, 75
from £72.30
from £72.30
# 033
MPN: 315520408
SPRING
Valid for 70, 71, 74, 75
from £1.94
from £1.94
# 034
MPN: 315520445
SEAL RING
Valid for 70, 71, 74, 75
from £0.70
from £0.70
# 035
MPN: 315520444
SEAL RING
Valid for 70, 71, 74, 75
from £0.70
from £0.70
# 036
MPN: 315520443
SEAL RING
Valid for 70, 71, 74, 75
from £1.05
from £1.05
# 037
MPN: 30331137
RELAY
Valid for 70, 71, 74, 75
Supersession
Supersession
# 038
MPN: 315520483
GASKET
Valid for 70, 71, 74, 75
from £3.86
from £3.86
# 039
MPN: 315520415
CLAMP
Valid for 70, 71, 74, 75
# 040
MPN: 315520417
SPRING FOR DOOR
Valid for 70, 71, 74, 75
# 041
MPN: 315520416
DOOR
Valid for 70, 71, 74, 75
from £9.23
from £9.23
# 042
MPN: 315520136
AIR CONTROL DOOR
Valid for 70, 71, 74, 75
# 043
MPN: 315520419
LH PAD FIX. CONDITIONER
Valid for 70, 71, 74, 75
# 043
MPN: 315520420
RH PAD FIX. CONDITIONER
Valid for 70, 71, 74, 75
# 044
MPN: 315520208
PNEUMATIC SYSTEM
Valid for 70, 71, 74, 75
from £10.25
from £10.25
# 045
MPN: 315520160
ACTUATOR FOR AIR DOOR
Valid for 70, 71, 74, 75
from £3.85
from £3.85
# 046
MPN: 315520422
GASKET
Valid for 70, 71, 74, 75
from £2.91
from £2.91
# 047
MPN: 30551155
Tank
Valid for 70, 71, 74, 75
# 048
MPN: 119148160
SCREW
Valid for 70, 71, 74, 75
# 049
MPN: 169020005
WASHER
Valid for 70, 71, 74, 75
from £1.08
from £1.08
# 050
MPN: 315520423
SPRING
Valid for 70, 71, 74, 75
# 051
MPN: 315520477
BRACKET
Valid for 70, 71, 74, 75
from £18.16
from £18.16
# 052
MPN: 315520478
SOLENOID VALVE BRACKET
Valid for 70, 71, 74, 75
# 053
MPN: 365500201
CLIMATE CONTROL UNIT
Supersession
Supersession
This part replaces part number 315550204
# 053
MPN: 365504201
CLIMATE CONTROL UNIT
from £1,275.72
from £1,275.72
This part replaces part number 365500201
# 054
MPN: 315520209
WIRING HARNESS
Valid for 70, 71, 74, 75
from £45.75
from £45.75
# 055
MPN: 119529130
SCREW
Valid for 70, 71, 74, 75
from £1.08
from £1.08
# 056
MPN: 169020406
WASHER
Valid for 70, 71, 74, 75
from £0.78
from £0.78
# 057
MPN: 53211308
GROMMET
Valid for 70, 71, 74, 75
from £0.57
from £0.57
# 058
MPN: 312520511
GASKET
Valid for 70, 71, 74, 75
from £1.72
from £1.72
# 059
MPN: 314320345
SCREW
Valid for 70, 71, 74, 75
from £41.83
from £41.83
# 060
MPN: 125100060
NUT
Valid for 70, 71, 74, 75
# 061
MPN: 135600060
WASHER
Valid for 70, 71, 74, 75
from £0.78
from £0.78
# 062
MPN: 315520465
CLAMP
Valid for 70, 71, 74, 75
from £3.26
from £3.26
# 063
MPN: 315520199
INSIDE FEELER
Valid for 70, 71, 74, 75
from £28.20
from £28.20
# 064
MPN: 315520467
HOSE
Valid for 70, 71, 74, 75
from £0.71
from £0.71
# 065
MPN: 315520200
FAN
Valid for 70, 71, 74, 75
from £60.15
from £60.15
# 066
MPN: 315520153
VALVE
Valid for 70, 71, 74, 75
from £8.85
from £8.85
# 067
MPN: 315520424
UNION
Valid for 70, 71, 74, 75
from £0.50
from £0.50
# 068
MPN: 315520196
OUTSIDE FEELER
Valid for 70, 71, 74, 75
from £13.76
from £13.76
# 069
MPN: 122600060
NUT
Valid for 70, 71, 74, 75
# 070
MPN: 112804016
SCREW
Valid for 70, 71, 74, 75
