011.1 - Boost Control System

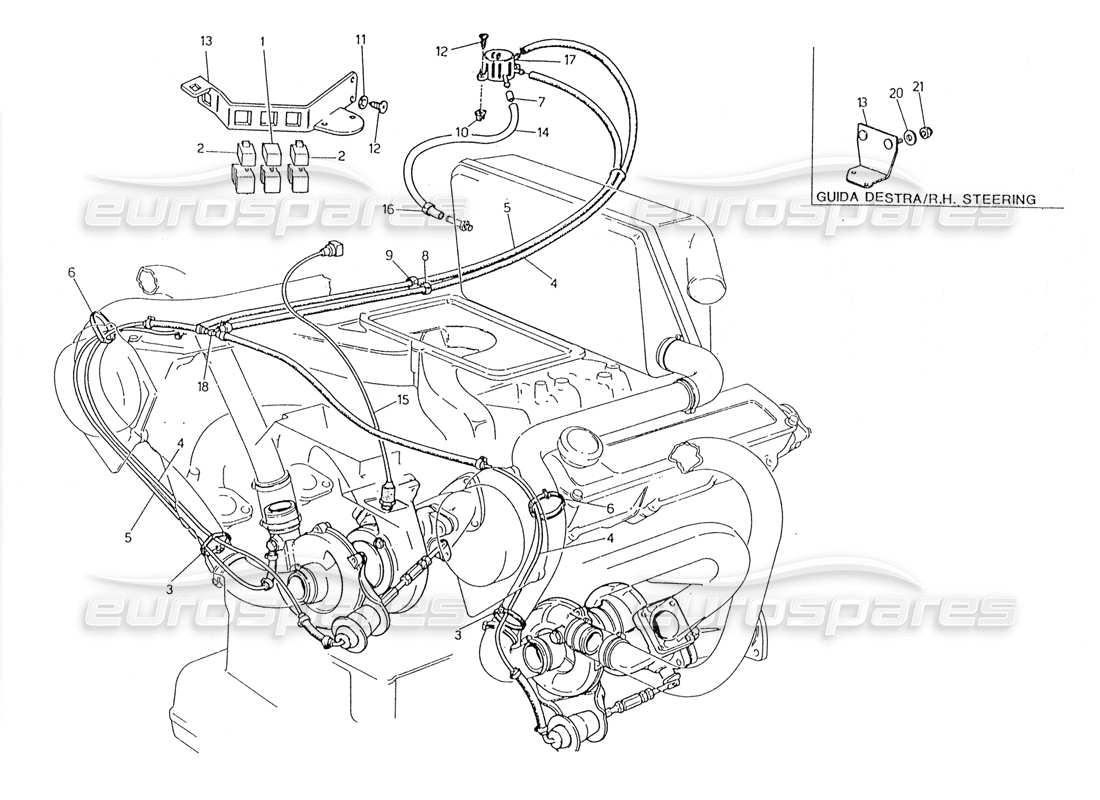

Maserati 228 Boost Control System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 312020397
IDENTIFICATION CLAMP (W)
from £0.74
from £0.74
# 001
MPN: 313320134
IGNITION RELAY
from £19.39
from £19.39
This part replaces part number 184101
# 002
MPN: 313353106
RELAY
from £9.08
from £9.08
This part replaces part number 313320106
# 003
MPN: 312020380
CLAMP
# 004
MPN: 312053020
PIPE TO CONN. LH AND RH TURBOB. WASTEGATA COMPLETE
Supersession
Supersession
This part replaces part number 312020511
# 005
MPN: 312053025
PIPE TO CONN. RH TURBOB. COMPLETE
Supersession
Supersession
# 006
MPN: 312020382
CLAMP
from £0.74
from £0.74
# 007
MPN: 342000375
RESTRICTION ON R OUTLET SOLENOID
# 009
MPN: 312020396
IDENTIFICATION CLAMP (C)
from £0.74
from £0.74
# 010
MPN: 319220324
SCREW
from £0.68
from £0.68
This part replaces part number 82457087
# 011
MPN: 169020005
WASHER
from £1.17
from £1.17
# 012
MPN: 119148130
SCREW
from £0.91
from £0.91
# 013
MPN: 313048101
SUPPORT ELEMENT FOR RH STEERING
Valid for GB (manual), GB (automatic), Australia (manual), Australia (automatic)
# 013
MPN: 313720102
SUPPORT ELEMENT
Valid for Italy (manual), Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
from £7.31
from £7.31
# 014
MPN: 312020508
SLOEVO TO CONN. R SOLENOID VALVE TO LOWER COVER FILTER
Supersession
Supersession
# 015
MPN: 470089701
ACCELERATING SENSOR
from £126.51
from £126.51
# 016
MPN: 312020395
IDENTIFICATION CLAMP (R)
from £0.83
from £0.83
# 017
MPN: 452089801
SOLENOID VALVE
from £122.90
from £122.90
# 018
MPN: 312020399
Y-CONNECTOR
from £1.09
from £1.09
# 020
MPN: 135900064
WASHER
Valid for GB (manual), GB (automatic), Australia (manual), Australia (automatic)
from £0.47
from £0.47
# 021
MPN: 122600060
NUT
Valid for GB (manual), GB (automatic), Australia (manual), Australia (automatic)
