maserati 228 differential parts diagram

031 - DIFFERENTIAL

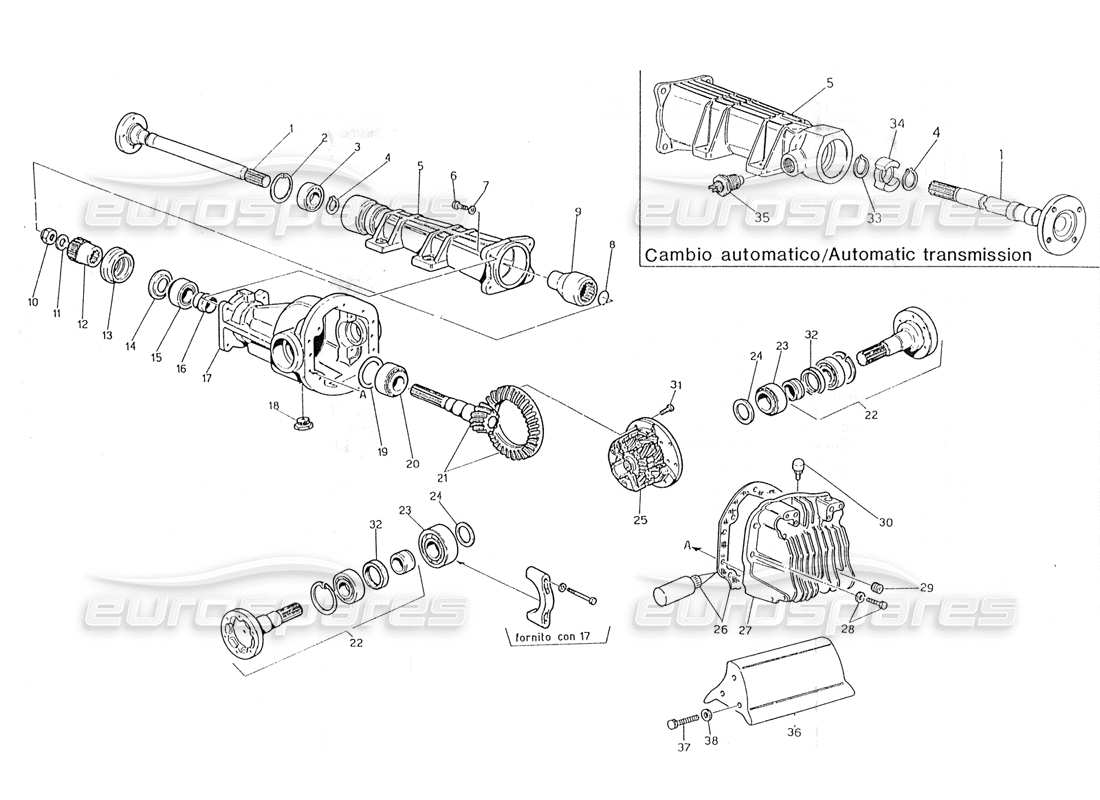

Maserati 228 Differential Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Key
                                                                  Price
                                                                  # 000
                                                                  MPN: 326250009
                                                                  DIFFERENTIAL ASSY (R. 3.73)
                                                                  Valid for Switzerland (automatic), USA (automatic), GB (automatic), Australia (automatic)
                                                                  DIFFERENTIAL ASSEMBLY R=3,73 Genuine Maserati Part - New (to order)
                                                                  # 000
                                                                  MPN: 376200001
                                                                  DIFFERENTIAL ASSY (R. 3.31)
                                                                  from £1,650.33
                                                                  from £1,650.33
                                                                  This part replaces part number 396250004
                                                                  DIFFERENZIALE R=3,31 Genuine Maserati Part - New (to order)
                                                                  # 001
                                                                  MPN: 316220316
                                                                  SHAFT EXTENSION
                                                                  Valid for Italy (manual) Switzerland (manual), USA (manual), GB (manual), Australia (manual)
                                                                  from £103.59
                                                                  from £103.59
                                                                  Maserati PART 316220316 Genuine Maserati Part - New (to order)
                                                                  # 001
                                                                  MPN: 316255316
                                                                  SHAFT EXTENSION (FOR AUTOM. TRANSMISSION)
                                                                  Valid for Switzerland (automatic), USA (automatic), GB (automatic), Australia (automatic)
                                                                  from £103.59
                                                                  from £103.59
                                                                  SHAFT EXTENSION Genuine Maserati Part - New (to order)
                                                                  # 003
                                                                  MPN: 178402030
                                                                  SHAFT EXTENSION BEARING
                                                                  from £16.12
                                                                  from £16.12
                                                                  BEARING EU6206-2RS Genuine Maserati Part - New (to order)
                                                                  # 004
                                                                  MPN: 316220314
                                                                  CIRCLIP
                                                                  from £0.71
                                                                  from £0.71
                                                                  RING Genuine Maserati Part - New (to order)
                                                                  # 005
                                                                  MPN: 316250305
                                                                  SUPPORT (FOR MECH. TRANSMISSION)
                                                                  Valid for Italy (manual) Switzerland (manual), USA (manual), GB (manual), Australia (manual)
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Maserati Part (no longer available to order)
                                                                  # 005
                                                                  MPN: 316255306
                                                                  SUPPORT (FOR AUTOM. TRANSMISSION)
                                                                  Valid for Switzerland (automatic), USA (automatic), GB (automatic), Australia (automatic)
                                                                  from £27.68
                                                                  from £27.68
                                                                  SUPPORT Genuine Maserati Part - New (to order)
                                                                  # 006
                                                                  MPN: 101212035
                                                                  SCREW
                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                  # 007
                                                                  MPN: 138420120
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Maserati Part (no longer available to order)
                                                                  # 009
                                                                  MPN: 316220319
                                                                  COUPLING
                                                                  from £99.20
                                                                  from £99.20
                                                                  This part replaces part number 316220317
                                                                  GROOVED SLEEVE Genuine Maserati Part - New (to order)
                                                                  # 010
                                                                  MPN: 316220340
                                                                  SELF LOCKING NUT
                                                                  from £25.93
                                                                  from £25.93
                                                                  SELF-LOCKING NUT Genuine Maserati Part - New (to order)
                                                                  # 011
                                                                  MPN: 316220341
                                                                  WASHER
                                                                  from £1.35
                                                                  from £1.35
                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                  # 012
                                                                  MPN: 316220347
                                                                  UNION
                                                                  from £121.46
                                                                  from £121.46
                                                                  This part replaces part number 316220342
                                                                  PINION UNION 12HU102004 Genuine Maserati Part - New (to order)
                                                                  # 013
                                                                  MPN: 316220121
                                                                  OIL SEAL
                                                                  from £82.55
                                                                  from £82.55
                                                                  SEALING RING 12HU 019-002 Genuine Maserati Part - New (to order)
                                                                  # 014
                                                                  MPN: 316220351
                                                                  SPACER WASHER
                                                                  from £24.39
                                                                  from £24.39
                                                                  SEALING RING Genuine Maserati Part - New (to order)
                                                                  # 015
                                                                  MPN: 316220122
                                                                  FRONT BEARING
                                                                  from £88.35
                                                                  from £88.35
                                                                  BEARING SB7HA-022-2 Genuine Maserati Part - New (to order)
                                                                  # 016
                                                                  MPN: 316220345
                                                                  SPACER
                                                                  from £2.54
                                                                  from £2.54
                                                                  SPACER Genuine Maserati Part - New (to order)
                                                                  # 017
                                                                  MPN: 316220012
                                                                  DIFFERENTIAL GEAR ASSY (NOT SUPPLIED)
                                                                  Scatola differenz. con Genuine Maserati Part - New (to order)
                                                                  # 018
                                                                  MPN: 316220346
                                                                  OIL FILLING PLUG
                                                                  from £18.80
                                                                  from £18.80
                                                                  This part replaces part number 316220362
                                                                  OIL DRAINING PLUG 05HA059003 Genuine Maserati Part - New In stock
                                                                  # 019
                                                                  MPN: 316220348
                                                                  SPACER WASHER 003
                                                                  from £4.20
                                                                  from £4.20
                                                                  Maserati PART 316220348 Genuine Maserati Part - New (to order)
                                                                  # 019
                                                                  MPN: 316220349
                                                                  SPACER WASHER 005
                                                                  from £4.67
                                                                  from £4.67
                                                                  SHIMMING WASHER 005 Genuine Maserati Part - New (to order)
                                                                  # 019
                                                                  MPN: 316220350
                                                                  SPACER WASHER 010
                                                                  from £14.59
                                                                  from £14.59
                                                                  SHIMMING WASHER 010 Genuine Maserati Part - New (to order)
                                                                  # 020
                                                                  MPN: 316220123
                                                                  REAR BEARING
                                                                  from £124.43
                                                                  from £124.43
                                                                  BEARING SB7HA-023-1 Genuine Maserati Part - New (to order)
                                                                  # 021
                                                                  MPN: 316220025
                                                                  PINION AND GEAR (R-3.73) (INCLUDED PART N. 21-10-11-16-31)
                                                                  Valid for Switzerland (automatic), USA (automatic), GB (automatic), Australia (automatic)
                                                                  from £963.73
                                                                  from £963.73
                                                                  Maserati PART 316220025 Genuine Maserati Part - New (to order)
                                                                  # 021
                                                                  MPN: 316225025
                                                                  PINION AND GEAR (R-3.31) (INCLUDED PART N. 21-10-1 1-16-31)
                                                                  Valid for Switzerland (manual), USA (manual), GB (manual), Australia (manual)
                                                                  from £789.67
                                                                  from £789.67
                                                                  COPPIA CONICA RIC 12HA 10500 Genuine Maserati Part - New (to order)
                                                                  # 022
                                                                  MPN: 316220013
                                                                  propeller shaft
                                                                  from £347.18
                                                                  from £347.18
                                                                  ALBERO TRASMISSIONE Genuine Maserati Part - New (to order)
                                                                  # 023
                                                                  MPN: 316220126
                                                                  INSIDE BEARING
                                                                  from £133.03
                                                                  from £133.03
                                                                  CUSCINETTO SB 7HA-024 Genuine Maserati Part - New (to order)
                                                                  # 024
                                                                  MPN: 316220353
                                                                  SPACER WASHER 003
                                                                  from £1.67
                                                                  from £1.67
                                                                  SHIMMING WASHER 003 Genuine Maserati Part - New (to order)
                                                                  # 024
                                                                  MPN: 316220354
                                                                  SPACOR WASHER 005
                                                                  from £107.85
                                                                  from £107.85
                                                                  SHIMMING WASHER 005 2HA-047 Genuine Maserati Part - New (to order)
                                                                  # 024
                                                                  MPN: 316220355
                                                                  SPACER WASHER 010
                                                                  from £1.67
                                                                  from £1.67
                                                                  SHIMMING WASHER 010 02HA-048 Genuine Maserati Part - New (to order)
                                                                  # 024
                                                                  MPN: 316220356
                                                                  SPACER WASHER 030
                                                                  from £2.22
                                                                  from £2.22
                                                                  SHIMMING WASHER 030 2HA-049 Genuine Maserati Part - New In stock
                                                                  # 025
                                                                  MPN: 326256010
                                                                  QUAIFE DIFFERENTIAL GEAR
                                                                  from £1,419.42
                                                                  from £1,419.42
                                                                  SCATOLA DIFFERENZIALE RANGER Genuine Maserati Part - New (to order)
                                                                  # 026
                                                                  MPN: 316220365
                                                                  GASKET (ALTERNATIVES)
                                                                  from £3.74
                                                                  from £3.74
                                                                  GASKET Genuine Maserati Part - New (to order)
                                                                  # 026
                                                                  MPN: 9441
                                                                  DOPE (ALTERNATIVES)
                                                                  from £16.26
                                                                  from £16.26
                                                                  SILICONE HYLOSIL Genuine Maserati Part - New (to order)
                                                                  # 027
                                                                  MPN: 316220363
                                                                  COVER
                                                                  from £232.71
                                                                  from £232.71
                                                                  COVER Genuine Maserati Part - New (to order)
                                                                  # 028
                                                                  MPN: 316220364
                                                                  SCREW WITH WASHER
                                                                  from £1.35
                                                                  from £1.35
                                                                  VITE Genuine Maserati Part - New (to order)
                                                                  # 029
                                                                  MPN: 316220362
                                                                  LEVEL PLUG
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Maserati Part (no longer available to order)
                                                                  # 030
                                                                  MPN: 316220107
                                                                  DRAIN VALVE
                                                                  from £18.15
                                                                  from £18.15
                                                                  BLEEDER VALVE Genuine Maserati Part - New (to order)
                                                                  # 031
                                                                  MPN: 316220357
                                                                  SCREW
                                                                  from £1.98
                                                                  from £1.98
                                                                  BULLONE Genuine Maserati Part - New (to order)
                                                                  # 032
                                                                  MPN: 316220125
                                                                  OIL SEAL
                                                                  from £8.89
                                                                  from £8.89
                                                                  ANELLO TENUTA Genuine Maserati Part - New (to order)
                                                                  # 033
                                                                  MPN: 316255315
                                                                  SPRING RING
                                                                  Valid for Switzerland (automatic), USA (automatic), GB (automatic), Australia (automatic)
                                                                  from £0.71
                                                                  from £0.71
                                                                  SPRING RING Genuine Maserati Part - New (to order)
                                                                  # 034
                                                                  MPN: 316255317
                                                                  PHONIC WHEEL
                                                                  Valid for Switzerland (automatic), USA (automatic), GB (automatic), Australia (automatic)
                                                                  from £5.23
                                                                  from £5.23
                                                                  PHONIC WHEEL Genuine Maserati Part - New (to order)
                                                                  # 035
                                                                  MPN: 313620106
                                                                  SWITCH
                                                                  Valid for Switzerland (automatic), USA (automatic), GB (automatic), Australia (automatic)
                                                                  from £59.24
                                                                  from £59.24
                                                                  PULSE GENERATOR (313620106) Eurospares Approved Part - New (to order)
                                                                  PULSE GENERATOR Genuine Maserati Part - New (to order)
                                                                  # 036
                                                                  MPN: 316220327
                                                                  AIR CONVEYOR
                                                                  from £0.58
                                                                  from £0.58
                                                                  AIR DUCT Genuine Maserati Part - New (to order)
