053 - Front Bumper and Sound Proof Felts

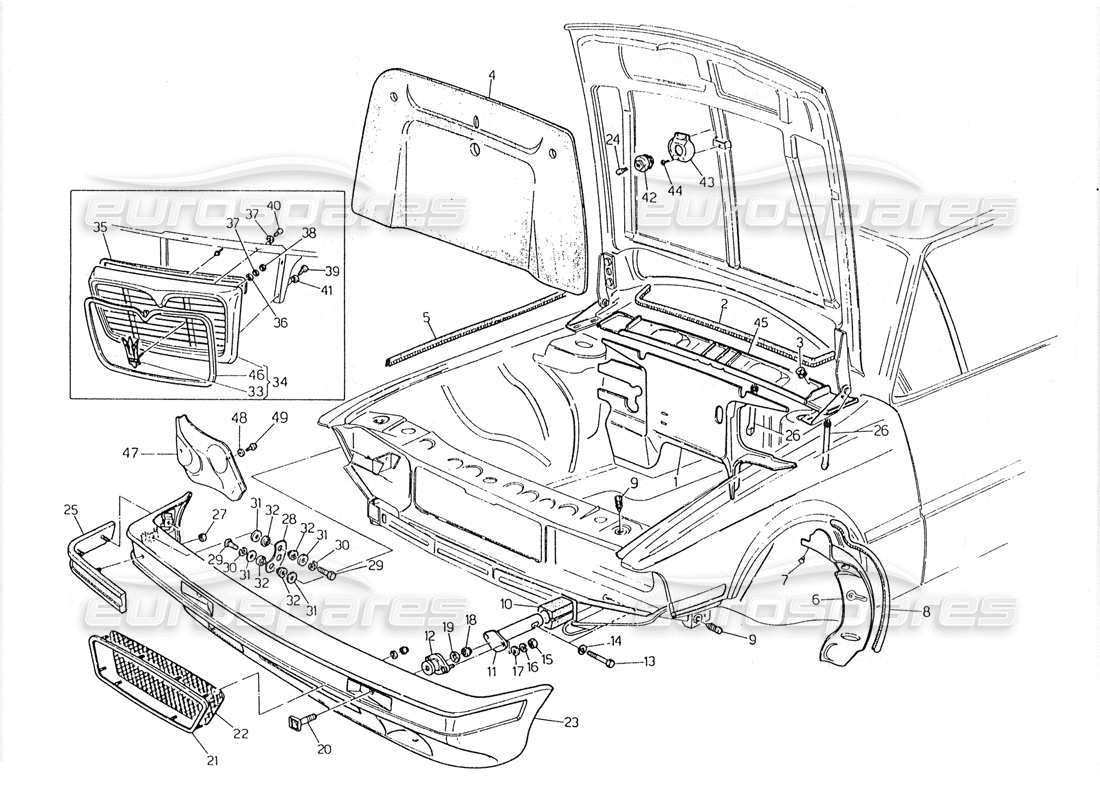

Maserati 228 Front Bumper and Sound Proof Felts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 311553402
COVERING
Valid for Italy (manual), Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
from £210.00
from £210.00
This part replaces part number 361500402 - and 1 more. Click to view details
# 001
MPN: 321570402
COVERING
Valid for GB (manual), GB (automatic), Australia (manual), Australia (automatic)
from £116.12
from £116.12
# 002
MPN: 344300358
GASKET
from £18.56
from £18.56
# 003
MPN: 349200428
GROMMET
# 004
MPN: 344300361
INSULATING PADDING
from £71.48
from £71.48
# 005
MPN: 344300359
GASKET
from £7.37
from £7.37
# 006
MPN: 342500505
LH MUDGUARD
from £18.56
from £18.56
# 006
MPN: 342500506
RH MUDGUARD
from £18.56
from £18.56
# 007
MPN: 312520509
PLUG
from £1.11
from £1.11
This part replaces part number 312025509
# 008
MPN: 342500508
GASKET
from £4.28
from £4.28
This part replaces part number 312520508 - and 1 more. Click to view details
# 009
MPN: 374330426
RUBBER PAD
from £1.11
from £1.11
This part replaces part number 53431319
# 010
MPN: 316320325
RUBBER LUG
from £1.59
from £1.59
# 011
MPN: 346300121
LH CENTRAL
from £22.99
from £22.99
# 011
MPN: 346300122
RH CENTRAL
from £22.99
from £22.99
# 012
MPN: 346300117
SPACER
from £22.12
from £22.12
# 013
MPN: 100814075
SCREW
# 014
MPN: 135300150
SPRING WASHER
from £1.11
from £1.11
# 015
MPN: 125100080
NUT
from £0.86
from £0.86
# 016
MPN: 135300084
SPRING WASHER
# 017
MPN: 136110090
WASHER
from £1.11
from £1.11
# 018
MPN: 125100080
NUT
from £0.86
from £0.86
# 019
MPN: 136110110
WASHER
from £2.22
from £2.22
# 020
MPN: 316320112
STIFFENER
from £48.66
from £48.66
# 021
MPN: 346300101
MOLDING
from £60.68
from £60.68
# 022
MPN: 346300350
GRILL
from £29.28
from £29.28
# 023
MPN: 346300103
FRONT BUMPER
Valid for Italy (manual), Switzerland (manual), Switzerland (automatic), GB (manual), GB (automatic), Australia (manual), Australia (automatic)
Supersession
Supersession
# 023
MPN: 346310104
FRONT BUMPER
Valid for USA (manual), USA (automatic)
from £622.86
from £622.86
This part replaces part number 346300103
# 024
MPN: 87760005
LAMP
from £0.66
from £0.66
# 025
MPN: 346300106
CLAMP
Valid for Italy (manual), Switzerland (manual), Switzerland (automatic), GB (manual), GB (automatic), Australia (manual), Australia (automatic)
from £25.73
from £25.73
# 025
MPN: 346310108
CLAMP
Valid for USA (manual), USA (automatic)
from £90.55
from £90.55
# 026
MPN: 312120321
PIPE
from £1.45
from £1.45
# 027
MPN: 122600060
NUT
# 028
MPN: 316320338
LEVER
from £1.59
from £1.59
# 029
MPN: 101208020
SCREW
# 030
MPN: 135300084
SPRING WASHER
# 031
MPN: 163030080
WASHER
from £1.21
from £1.21
# 032
MPN: 316320334
SPACER
from £1.19
from £1.19
# 033
MPN: 314120109
STENCIL
Supersession
Supersession
# 034
MPN: 344100005
RADIATOR GRIL
from £386.76
from £386.76
# 035
MPN: 344100317
GASKET
from £0.71
from £0.71
# 036
MPN: 135900053
WASHER
# 037
MPN: 135600050
SPRING WASHER
from £0.79
from £0.79
# 038
MPN: 125100050
NUT
from £0.69
from £0.69
# 039
MPN: 119142190
SCREW
# 040
MPN: 119135095
SCREW
# 041
MPN: 135900043
WASHER
from £1.11
from £1.11
This part replaces part number 14496207
# 042
MPN: 313120119
ROOF LIGHT
from £8.69
from £8.69
# 043
MPN: 344300362
SUPPORT
from £6.43
from £6.43
# 044
MPN: 119142130
SCREW
# 045
MPN: 342500146
GUARD
from £15.28
from £15.28
# 046
MPN: 344100108
SHAPE
# 047
MPN: 312520145
GUARD
from £2.35
from £2.35
# 048
MPN: 135000053
WASHER
# 049
MPN: 30151340
SCREW
from £0.47
from £0.47
