061 - Wiring Harness and Electrical Components

Maserati 228 Wiring Harness and Electrical Components Parts Diagram

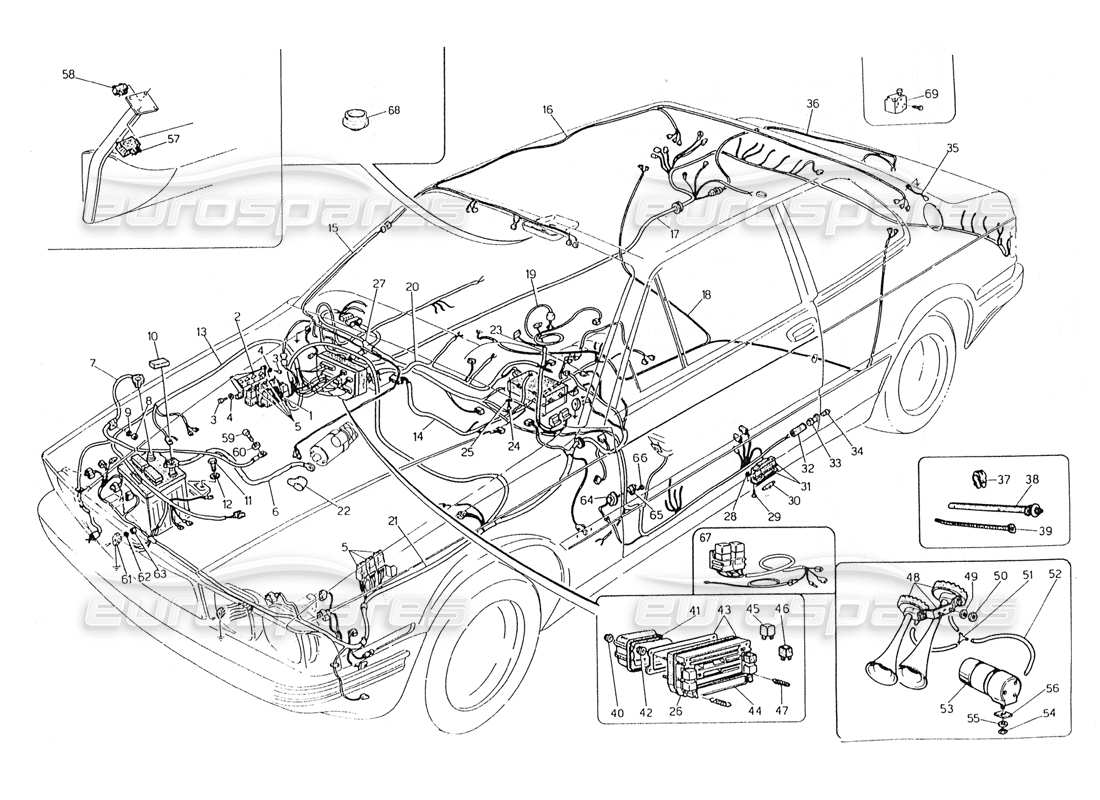

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                          #
                                                                                                                          Part number
                                                                                                                          Description
                                                                                                                          Key
                                                                                                                          Price
                                                                                                                          # 001
                                                                                                                          MPN: 313320134
                                                                                                                          START RELAY
                                                                                                                          from £19.39
                                                                                                                          from £19.39
                                                                                                                          This part replaces part number 184101
                                                                                                                          BOSCH RELE' 30 AMP.X 9468 332 Genuine Maserati Part - New In stock
                                                                                                                          # 002
                                                                                                                          MPN: 313720102
                                                                                                                          SUPPORT RELAY
                                                                                                                          Valid for Italy (manual), Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
                                                                                                                          from £7.31
                                                                                                                          from £7.31
                                                                                                                          SOLENOID MOUNT Genuine Maserati Part - New (to order)
                                                                                                                          # 003
                                                                                                                          MPN: 119148130
                                                                                                                          SCREW
                                                                                                                          from £0.91
                                                                                                                          from £0.91
                                                                                                                          SCREW Genuine Maserati Part - New In stock
                                                                                                                          # 004
                                                                                                                          MPN: 169020005
                                                                                                                          WASHER
                                                                                                                          from £1.17
                                                                                                                          from £1.17
                                                                                                                          WASHER Genuine Maserati Part - New (to order)
                                                                                                                          # 005
                                                                                                                          MPN: 313353106
                                                                                                                          RELAY WITH FUSE
                                                                                                                          from £9.08
                                                                                                                          from £9.08
                                                                                                                          This part replaces part number 313320106
                                                                                                                          RELAY WITH FUSE Genuine Maserati Part - New (to order)
                                                                                                                          # 006
                                                                                                                          MPN: 313020117
                                                                                                                          POSITIVE CABLE
                                                                                                                          Supersession
                                                                                                                          Supersession
                                                                                                                          Genuine Maserati Part (no longer available to order)
                                                                                                                          # 007
                                                                                                                          MPN: 313750106
                                                                                                                          NEGATIVE CABLE
                                                                                                                          from £9.98
                                                                                                                          from £9.98
                                                                                                                          This part replaces part number 313020122
                                                                                                                          BATTERY NEGATIVE CABLE Genuine Maserati Part - New (to order)
                                                                                                                          # 008
                                                                                                                          MPN: 125100080
                                                                                                                          NUT
                                                                                                                          from £0.86
                                                                                                                          from £0.86
                                                                                                                          DADO Genuine Maserati Part - New (to order)
                                                                                                                          # 010
                                                                                                                          MPN: 313020300
                                                                                                                          CAP
                                                                                                                          from £1.29
                                                                                                                          from £1.29
                                                                                                                          PART Genuine Maserati Part - New (to order)
                                                                                                                          # 012
                                                                                                                          MPN: 1302/00000
                                                                                                                          WASHER
                                                                                                                          WASHER Genuine Maserati Part - New (to order)
                                                                                                                          # 013
                                                                                                                          MPN: 343000109
                                                                                                                          RH ENGINE WIRING HARNESS
                                                                                                                          Valid for Italy (manual), Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
                                                                                                                          from £59.20
                                                                                                                          from £59.20
                                                                                                                          WIRING HARNESS Genuine Maserati Part - New (to order)
                                                                                                                          # 013
                                                                                                                          MPN: 343020109
                                                                                                                          RH /LH ENGINE WIRING HARNESS
                                                                                                                          Valid for GB (manual), GB (automatic), Australia (manual), Australia (automatic)
                                                                                                                          from £478.91
                                                                                                                          from £478.91
                                                                                                                          Maserati PART 343020109 Genuine Maserati Part - New (to order)
                                                                                                                          # 014
                                                                                                                          MPN: 323050110
                                                                                                                          CONSOLE WIRING HARNESS
                                                                                                                          from £49.52
                                                                                                                          from £49.52
                                                                                                                          WIRING HARNESS Genuine Maserati Part - New (to order)
                                                                                                                          # 015
                                                                                                                          MPN: 343000147
                                                                                                                          FUSE BOX WIRING HARNESS
                                                                                                                          from £3.13
                                                                                                                          from £3.13
                                                                                                                          WIRING HARNESS Genuine Maserati Part - New (to order)
                                                                                                                          # 016
                                                                                                                          MPN: 343000148
                                                                                                                          ROOF LIGHT WIRING HARNESS
                                                                                                                          from £16.76
                                                                                                                          from £16.76
                                                                                                                          LAMP WIRING Genuine Maserati Part - New (to order)
                                                                                                                          # 017
                                                                                                                          MPN: 343000108
                                                                                                                          REAR WIRING HARNESS
                                                                                                                          Valid for Italy (manual), Switzerland (manual), Switzerland (automatic)
                                                                                                                          from £88.97
                                                                                                                          from £88.97
                                                                                                                          REAR WIRING HARNESS Genuine Maserati Part - New (to order)
                                                                                                                          # 017
                                                                                                                          MPN: 343010108
                                                                                                                          REAR WIRING HARNESS
                                                                                                                          Valid for USA (manual), USA (automatic)
                                                                                                                          from £182.77
                                                                                                                          from £182.77
                                                                                                                          REAR WIRING HARNESS Genuine Maserati Part - New (to order)
                                                                                                                          # 017
                                                                                                                          MPN: 343020108
                                                                                                                          REAR WIRING HARNESS
                                                                                                                          Valid for GB (manual), GB (automatic), Australia (manual), Australia (automatic)
                                                                                                                          from £158.38
                                                                                                                          from £158.38
                                                                                                                          Maserati PART 343020108 Genuine Maserati Part - New (to order)
                                                                                                                          # 018
                                                                                                                          MPN: 313030118
                                                                                                                          LOUDSPEAKER WIRING HARNESS
                                                                                                                          from £25.13
                                                                                                                          from £25.13
                                                                                                                          LOUDSPEAKER WIRING HARNESS Genuine Maserati Part - New (to order)
                                                                                                                          # 019
                                                                                                                          MPN: 313020121
                                                                                                                          GENERATOR CABLA
                                                                                                                          Valid for Switzerland (automatic), USA (automatic), GB (automatic), Australia (automatic)
                                                                                                                          from £10.19
                                                                                                                          from £10.19
                                                                                                                          PART Genuine Maserati Part - New (to order)
                                                                                                                          # 019
                                                                                                                          MPN: 313055121
                                                                                                                          GENERATOR CABLE
                                                                                                                          Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
                                                                                                                          from £4.29
                                                                                                                          from £4.29
                                                                                                                          Maserati PART 313055121 Genuine Maserati Part - New (to order)
                                                                                                                          # 020
                                                                                                                          MPN: 313020144
                                                                                                                          INSTRUMENT PANEL WIRING HARNESS
                                                                                                                          Valid for Italy (manual), Switzerland (manual), Switzerland (automatic)
                                                                                                                          from £153.65
                                                                                                                          from £153.65
                                                                                                                          DASHBOARD WIRING HARNESS Genuine Maserati Part - New (to order)
                                                                                                                          # 020
                                                                                                                          MPN: 313027107
                                                                                                                          INSTRUMENT PANEL WIRING HARNESS
                                                                                                                          Valid for GB (manual), GB (automatic), Australia (manual), Australia (automatic)
                                                                                                                          from £168.65
                                                                                                                          from £168.65
                                                                                                                          DASHBOARD WIRING HARNESS Genuine Maserati Part - New (to order)
                                                                                                                          # 020
                                                                                                                          MPN: 313037144
                                                                                                                          INSTRUMENT PANEL WIRING HARNESS
                                                                                                                          Valid for USA (manual), USA (automatic)
                                                                                                                          from £124.51
                                                                                                                          from £124.51
                                                                                                                          DASHBOARD WIRING HARNESS Genuine Maserati Part - New (to order)
                                                                                                                          # 021
                                                                                                                          MPN: 343000142
                                                                                                                          LH ENGINE COMPART WIRING HARNESS
                                                                                                                          Valid for Italy (manual), Switzerland (manual), Switzerland (automatic)
                                                                                                                          from £136.32
                                                                                                                          from £136.32
                                                                                                                          Maserati PART 343000142 Genuine Maserati Part - New (to order)
                                                                                                                          # 021
                                                                                                                          MPN: 343010106
                                                                                                                          LH ENGINE COMPART, WIRING HARNESS
                                                                                                                          Valid for USA (manual), USA (automatic)
                                                                                                                          from £277.29
                                                                                                                          from £277.29
                                                                                                                          WIRING HARNESS Genuine Maserati Part - New (to order)
                                                                                                                          # 022
                                                                                                                          MPN: 313020301
                                                                                                                          CAP
                                                                                                                          from £15.03
                                                                                                                          from £15.03
                                                                                                                          Maserati PART 313020301 Genuine Maserati Part - New (to order)
                                                                                                                          # 023
                                                                                                                          MPN: 313020113
                                                                                                                          CHOK WIRING HARNESS
                                                                                                                          from £17.85
                                                                                                                          from £17.85
                                                                                                                          CHECK/INSTRUMENT WIRING HARNES Genuine Maserati Part - New (to order)
                                                                                                                          # 023
                                                                                                                          MPN: 313027113
                                                                                                                          CHOK WIRING HARNESS
                                                                                                                          Valid for USA (manual), USA (automatic)
                                                                                                                          from £22.28
                                                                                                                          from £22.28
                                                                                                                          CHECK CABLE SET Genuine Maserati Part - New (to order)
                                                                                                                          # 023
                                                                                                                          MPN: 313030113
                                                                                                                          CHEK WIRNG HARNESS
                                                                                                                          Valid for Italy (manual), Switzerland (manual), Switzerland (automatic)
                                                                                                                          from £30.29
                                                                                                                          from £30.29
                                                                                                                          CHECK SYST. WIRING HARNESS Genuine Maserati Part - New (to order)
                                                                                                                          # 024
                                                                                                                          MPN: 119142300
                                                                                                                          SCREW
                                                                                                                          Valid for GB (manual), GB (automatic), Australia (manual), Australia (automatic)
                                                                                                                          SCREW Genuine Maserati Part - New (to order)
                                                                                                                          # 025
                                                                                                                          MPN: 135900043
                                                                                                                          WASHER
                                                                                                                          from £1.17
                                                                                                                          from £1.17
                                                                                                                          This part replaces part number 14496207
                                                                                                                          FLAT WASHER Genuine Maserati Part - New In stock
                                                                                                                          # 026
                                                                                                                          MPN: 313022104
                                                                                                                          FUSE HOLDER ASSY
                                                                                                                          FUSE HOLDER ASSEMBLY Genuine Maserati Part - New (to order)
                                                                                                                          # 027
                                                                                                                          MPN: 343001119
                                                                                                                          WIRING HARNESS ASSY
                                                                                                                          Valid for Italy (manual), Switzerland (manual), Switzerland (automatic), USA (manual), USA (autoamtic)
                                                                                                                          from £137.92
                                                                                                                          from £137.92
                                                                                                                          Maserati PART 343001119 Genuine Maserati Part - New (to order)
                                                                                                                          # 027
                                                                                                                          MPN: 343020119
                                                                                                                          WIRING HARNESS ASSY
                                                                                                                          Valid for GB (manual), GB (automatic), Australia (manual), Australia (automatic)
                                                                                                                          from £134.72
                                                                                                                          from £134.72
                                                                                                                          Maserati PART 343020119 Genuine Maserati Part - New (to order)
                                                                                                                          # 028
                                                                                                                          MPN: 568300330
                                                                                                                          NUT
                                                                                                                          NUT Genuine Maserati Part - New (to order)
                                                                                                                          # 029
                                                                                                                          MPN: 119129130
                                                                                                                          SCREW
                                                                                                                          from £0.47
                                                                                                                          from £0.47
                                                                                                                          VITE AUTOF.TBIC D.3X12(15956 Genuine Maserati Part - New (to order)
                                                                                                                          # 030
                                                                                                                          MPN: 87560500
                                                                                                                          BULB
                                                                                                                          from £0.92
                                                                                                                          from £0.92
                                                                                                                          REAR NUMBER PLATE LIGHT BULB 12V/ Genuine Maserati Part - New (to order)
                                                                                                                          # 031
                                                                                                                          MPN: 343100112
                                                                                                                          BULB ASSY
                                                                                                                          from £3.02
                                                                                                                          from £3.02
                                                                                                                          DOOR LIGHT Genuine Maserati Part - New (to order)
                                                                                                                          # 032
                                                                                                                          MPN: 53311300
                                                                                                                          CAP
                                                                                                                          from £0.74
                                                                                                                          from £0.74
                                                                                                                          DOOR LIGHT CAP Genuine Maserati Part - New In stock
                                                                                                                          # 033
                                                                                                                          MPN: 30311113
                                                                                                                          DOOR LIGHT
                                                                                                                          from £53.92
                                                                                                                          from £53.92
                                                                                                                          DOOR INDICATOR LIGHT Genuine Maserati Part - New (to order)
                                                                                                                          # 034
                                                                                                                          MPN: 87720004
                                                                                                                          BULB12V4W
                                                                                                                          from £3.48
                                                                                                                          from £3.48
                                                                                                                          BULB Genuine Maserati Part - New (to order)
                                                                                                                          # 035
                                                                                                                          MPN: 53301127
                                                                                                                          EARTH CABLE
                                                                                                                          from £0.95
                                                                                                                          from £0.95
                                                                                                                          EARTH CABLE Genuine Maserati Part - New (to order)
                                                                                                                          # 036
                                                                                                                          MPN: 343000111
                                                                                                                          LUGGAGE ROOM WIRING HARNESS
                                                                                                                          from £6.34
                                                                                                                          from £6.34
                                                                                                                          Maserati PART 343000111 Genuine Maserati Part - New (to order)
                                                                                                                          # 037
                                                                                                                          MPN: 53471340
                                                                                                                          WIRE CLIP 0 6,5
                                                                                                                          from £1.22
                                                                                                                          from £1.22
                                                                                                                          CONTROL GABLE SPRING Genuine Maserati Part - New In stock
                                                                                                                          # 038
                                                                                                                          MPN: 313020307
                                                                                                                          STRAP
                                                                                                                          Supersession
                                                                                                                          Supersession
                                                                                                                          Genuine Maserati Part (no longer available to order)
                                                                                                                          # 039
                                                                                                                          MPN: 313020308
                                                                                                                          STRAP
                                                                                                                          from £0.74
                                                                                                                          from £0.74
                                                                                                                          CLAMP-200.7711101 Genuine Maserati Part - New (to order)
                                                                                                                          # 041
                                                                                                                          MPN: 313020331
                                                                                                                          FUSE BOX GUARD
                                                                                                                          from £2.08
                                                                                                                          from £2.08
                                                                                                                          Maserati PART 313020331 Genuine Maserati Part - New (to order)
                                                                                                                          # 043
                                                                                                                          MPN: 313020104
                                                                                                                          FUSE BOX, ASSY
                                                                                                                          from £269.48
                                                                                                                          from £269.48
                                                                                                                          FUSE BOX Genuine Maserati Part - New (to order)
                                                                                                                          # 044
                                                                                                                          MPN: 313020339
                                                                                                                          FUSE BOX CAP
                                                                                                                          from £0.72
                                                                                                                          from £0.72
                                                                                                                          FUSE BOX COVER Genuine Maserati Part - New (to order)
                                                                                                                          # 045
                                                                                                                          MPN: 313320137
                                                                                                                          RELAY
                                                                                                                          RELAY Genuine Maserati Part - New (to order)
                                                                                                                          # 046
                                                                                                                          MPN: 313320136
                                                                                                                          DIODES BRIDGE
                                                                                                                          from £10.34
                                                                                                                          from £10.34
                                                                                                                          DIODES BRIDGE Genuine Maserati Part - New (to order)
                                                                                                                          # 046
                                                                                                                          MPN: 87200005
                                                                                                                          FUSE
                                                                                                                          FUSE Genuine Maserati Part - New (to order)
                                                                                                                          # 047
                                                                                                                          MPN: 87200008
                                                                                                                          FUSE
                                                                                                                          FUSE Genuine Maserati Part - New (to order)
                                                                                                                          # 047
                                                                                                                          MPN: 87200016
                                                                                                                          FUSE
                                                                                                                          FUSE Genuine Maserati Part - New (to order)
                                                                                                                          # 048
                                                                                                                          MPN: 313320145
                                                                                                                          HORN SET
                                                                                                                          HORN SET Genuine Maserati Part - New (to order)
                                                                                                                          # 051
                                                                                                                          MPN: 313320324
                                                                                                                          THREE WAY UNION
                                                                                                                          from £7.68
                                                                                                                          from £7.68
                                                                                                                          THREE WAY UNION Genuine Maserati Part - New (to order)
                                                                                                                          # 052
                                                                                                                          MPN: 314020316
                                                                                                                          PIPE
                                                                                                                          from £1.94
                                                                                                                          from £1.94
                                                                                                                          This part replaces part number 313320325
                                                                                                                          BREATHER PIPE Genuine Maserati Part - New (to order)
                                                                                                                          # 053
                                                                                                                          MPN: 313320146
                                                                                                                          AIR COMPRESSOR
                                                                                                                          from £60.50
                                                                                                                          from £60.50
                                                                                                                          HORN COMPRESSOR Genuine Maserati Part - New (to order)
                                                                                                                          # 054
                                                                                                                          MPN: 125100080
                                                                                                                          NUT
                                                                                                                          from £0.86
                                                                                                                          from £0.86
                                                                                                                          DADO Genuine Maserati Part - New (to order)
                                                                                                                          # 057
                                                                                                                          MPN: 323320193
                                                                                                                          GEARCASE
                                                                                                                          from £24.62
                                                                                                                          from £24.62
                                                                                                                          DOOR ACTUATOR ECU Genuine Maserati Part - New (to order)
                                                                                                                          # 058
                                                                                                                          MPN: 30301124
                                                                                                                          THERMIC SWITCH
                                                                                                                          from £12.67
                                                                                                                          from £12.67
                                                                                                                          THERMIC SWITCH Genuine Maserati Part - New (to order)
                                                                                                                          # 061
                                                                                                                          MPN: 313027326
                                                                                                                          PLATE
                                                                                                                          from £1.17
                                                                                                                          from £1.17
                                                                                                                          GROUND PLATE Genuine Maserati Part - New (to order)
                                                                                                                          # 062
                                                                                                                          MPN: 135700060
                                                                                                                          WASHER
                                                                                                                          WASHER Genuine Maserati Part - New (to order)
                                                                                                                          # 064
                                                                                                                          MPN: 53211305
                                                                                                                          GASKET
                                                                                                                          from £0.74
                                                                                                                          from £0.74
                                                                                                                          DOOR LIGHTS GASKET Genuine Maserati Part - New (to order)
                                                                                                                          # 066
                                                                                                                          MPN: 119535130
                                                                                                                          SCREW
                                                                                                                          SCREW Genuine Maserati Part - New (to order)
                                                                                                                          # 067
                                                                                                                          MPN: 313050103
                                                                                                                          WIRING HARNESS
                                                                                                                          WIRING HARNESS Genuine Maserati Part - New (to order)
                                                                                                                          # 068
                                                                                                                          MPN: 313120117
                                                                                                                          ROOT LAMP
                                                                                                                          from £0.88
                                                                                                                          from £0.88
                                                                                                                          GLASS SELLING + WINDSHIELD Genuine Maserati Part - New (to order)
                                                                                                                          # 069
                                                                                                                          MPN: 313330135
                                                                                                                          SWITCH
                                                                                                                          from £16.09
                                                                                                                          from £16.09
                                                                                                                          INERTIA SWITCH Genuine Maserati Part - New (to order)
