maserati 418 / 4.24v / 430 exhaust system, 2000 3v parts diagram

001 - Exhaust System, 2000 3V

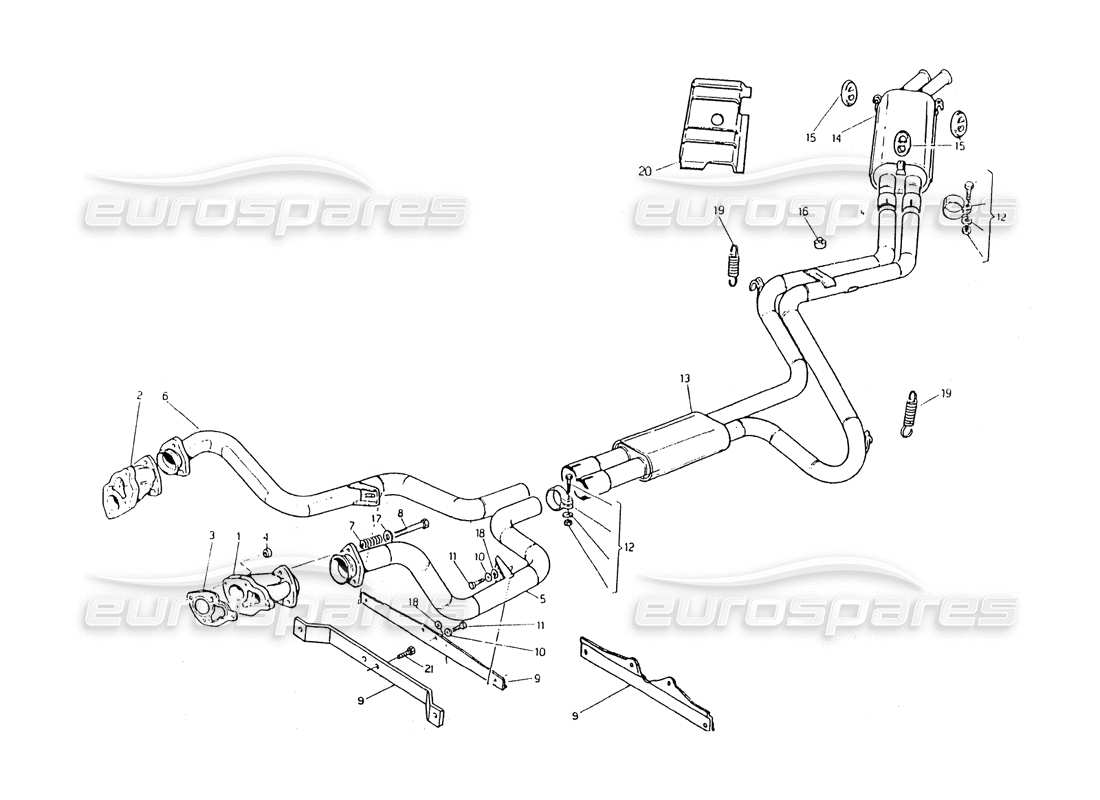

Maserati 418 / 4.24v / 430 Exhaust System, 2000 3V Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 001
                                          MPN: 312020301
                                          LH MANIFOLD
                                          Valid for 51 / 65 3v / 66
                                          from £89.99
                                          from £89.99
                                          SLEEVE BETWEEN TURBO AND EXH. PIPE Genuine Maserati Part - New (to order)
                                          # 002
                                          MPN: 312020302
                                          RH MANIFOID
                                          from £89.99
                                          from £89.99
                                          RH TURBO MANIFOLD Genuine Maserati Part - New (to order)
                                          # 003
                                          MPN: 312020303
                                          GASKET
                                          from £19.97
                                          from £19.97
                                          GASKET Genuine Maserati Part - New In stock
                                          # 004
                                          MPN: 14058519
                                          COPPER PLATED NUT
                                          from £0.51
                                          from £0.51
                                          This part replaces part number 312051309 which we have in stock
                                          NUT (14058519) Genuine Ferrari Part - New In stock
                                          NUT. Genuine Maserati Part - New (to order)
                                          # 005
                                          MPN: 319021101
                                          LH FRONT EXHAUST PIPE
                                          from £76.53
                                          from £76.53
                                          PIPE Genuine Maserati Part - New (to order)
                                          # 006
                                          MPN: 319021102
                                          RH FRONT EXHAUST PIPE
                                          from £76.53
                                          from £76.53
                                          Maserati PART 319021102 Genuine Maserati Part - New (to order)
                                          # 007
                                          MPN: 319020303
                                          SPRING
                                          from £2.95
                                          from £2.95
                                          SHORT SPRING Genuine Maserati Part - New (to order)
                                          # 008
                                          MPN: 319020301
                                          SCREW
                                          Supersession
                                          Supersession
                                          Genuine Maserati Part (no longer available to order)
                                          # 009
                                          MPN: 319020107
                                          SUPPORT (ZF TRANSM.)
                                          from £1.40
                                          from £1.40
                                          SUPPORT Genuine Maserati Part - New (to order)
                                          # 009
                                          MPN: 319055108
                                          SUPPORT (GHP22 AUTOMATIC TRANSM.)
                                          from £4.54
                                          from £4.54
                                          Maserati PART 319055108 Genuine Maserati Part - New (to order)
                                          # 009
                                          MPN: 329053107
                                          SUPPORT (GETRAG TRANSM.)
                                          from £4.70
                                          from £4.70
                                          PART Genuine Maserati Part - New (to order)
                                          # 012
                                          MPN: 319021003
                                          CLAMP
                                          from £7.15
                                          from £7.15
                                          This part replaces part number 319020003
                                          PIPE TIGHTENING CLAMP,MS 435 Genuine Maserati Part - New In stock
                                          # 013
                                          MPN: 329011110
                                          CENTRAL PIPE, ASSY
                                          from £178.32
                                          from £178.32
                                          CENTRAL SILENCER 420S MS2315 Genuine Maserati Part - New (to order)
                                          # 014
                                          MPN: 329050109
                                          MUFFLER, ASSY
                                          from £181.40
                                          from £181.40
                                          SILENZ.POST.MS 2317 Genuine Maserati Part - New (to order)
                                          # 015
                                          MPN: 319020300
                                          RUBBER RING
                                          from £1.60
                                          from £1.60
                                          RUBBER MOUNT Genuine Maserati Part - New In stock
                                          # 016
                                          MPN: 312120300
                                          BUFFER
                                          from £2.13
                                          from £2.13
                                          RUBBER BUSHING Genuine Maserati Part - New (to order)
                                          # 018
                                          MPN: 163020080
                                          WASHER
                                          from £1.07
                                          from £1.07
                                          FLAT WASHER Genuine Maserati Part - New In stock
                                          # 019
                                          MPN: 319030312
                                          SPRING
                                          from £1.40
                                          from £1.40
                                          CATALYST TEN. SPRING Genuine Maserati Part - New (to order)
                                          # 020
                                          MPN: 329050117
                                          SCREEN
                                          from £24.70
                                          from £24.70
                                          Maserati PART 329050117 Genuine Maserati Part - New (to order)
                                          # 021
                                          MPN: 101208028
                                          SCREW
                                          SCREW Genuine Maserati Part - New (to order)
