001.3 - Catalyzed Exhaust System, 4V

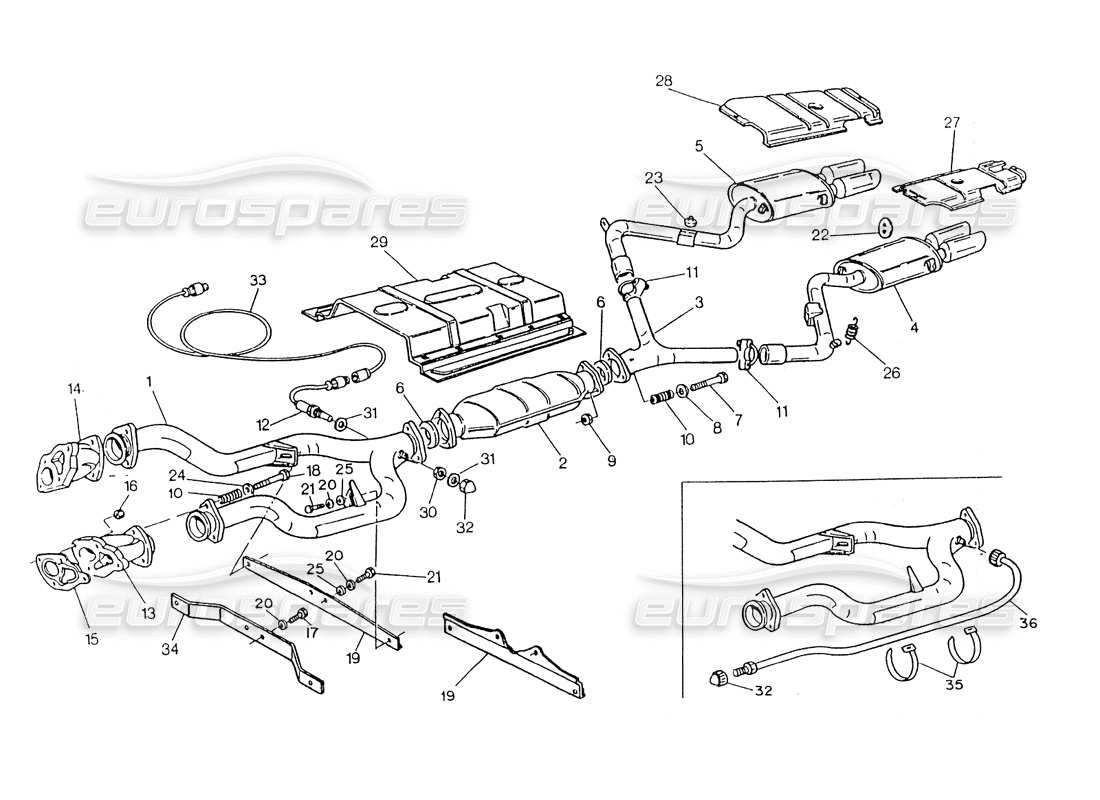

Maserati 418 / 4.24v / 430 Catalyzed Exhaust System, 4V Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 319053104

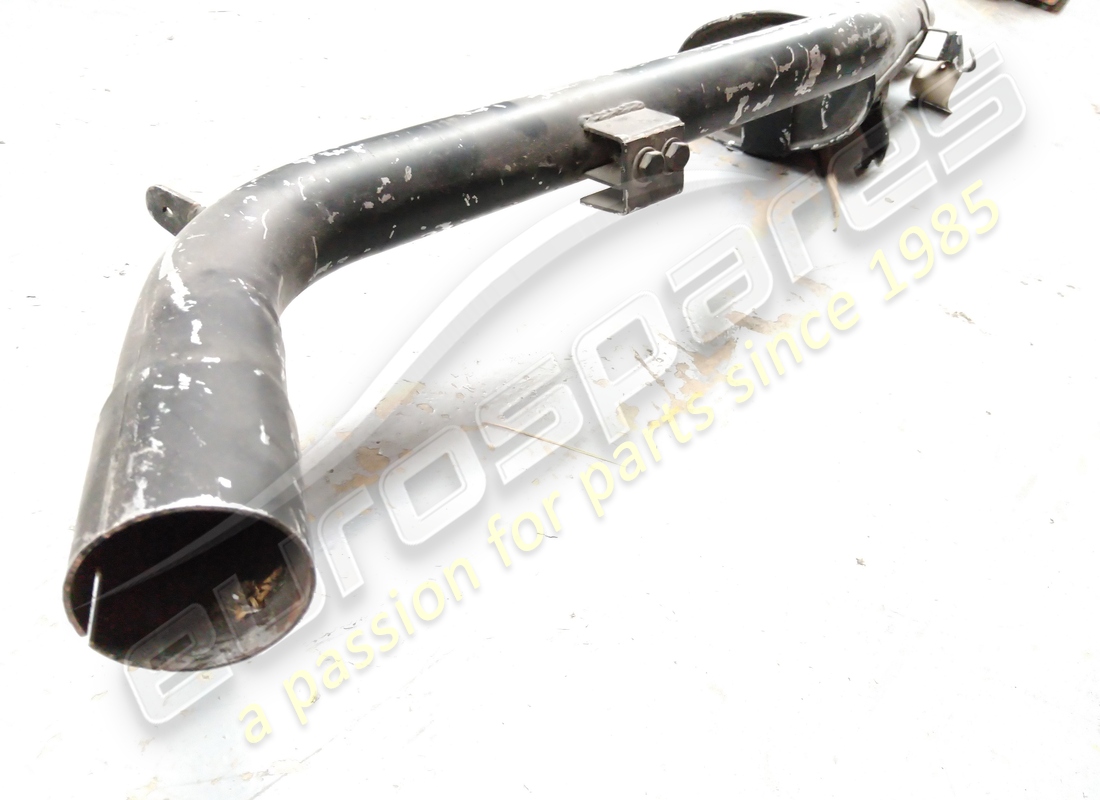

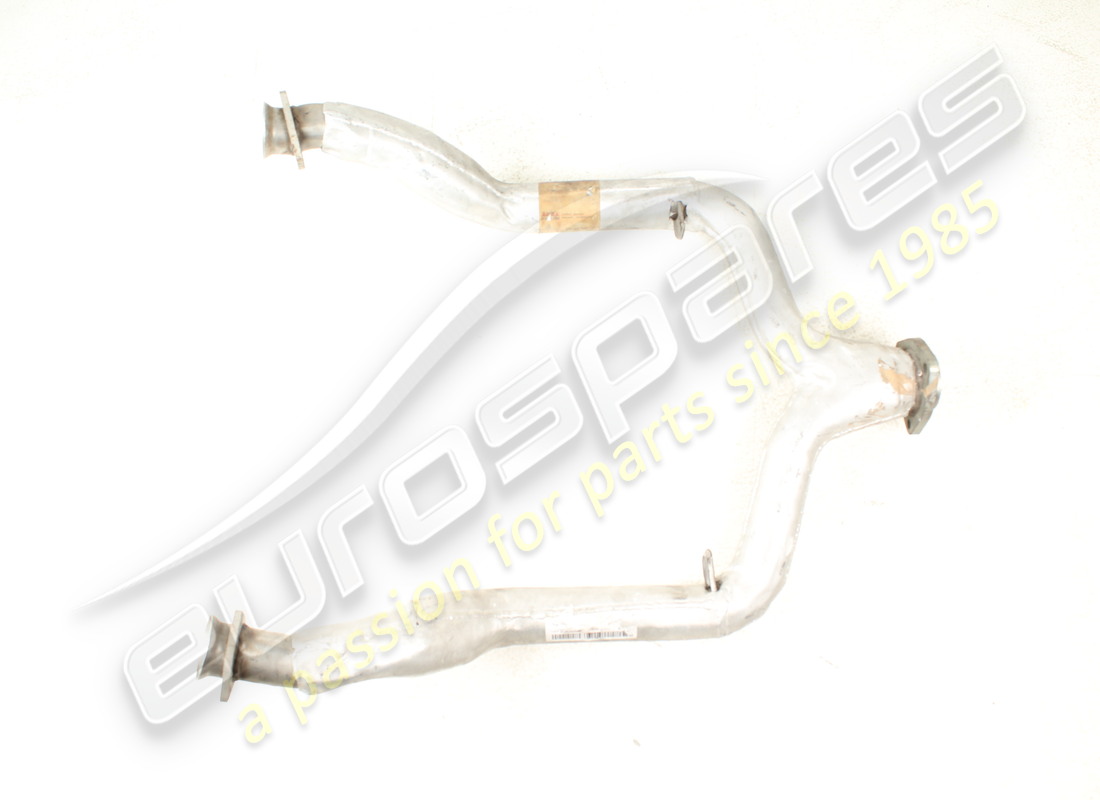

FRONT EXHAUST PIPE
VALID FOR 53 / 69 4V
from £481.68
from £481.68
# 001
MPN: 319062104
FRONT EXHAUST PIPE
Valid for 62 / 69 4V / 79
from £406.63
from £406.63
# 002
MPN: 319062105
CENTRAL PAINT CATALYST
VALID FOR 53 / 62 / 65 4V / 69 4V / 86
from £311.06
from £311.06
# 003
MPN: 319062106
CENTRAL PIPE, ASSY
Valid for 62 / 69 4V / 79
from £17.69
from £17.69
# 003
MPN: 329053106
CENTRAL PIPE, ASSY
VALID FOR 53 / 69 4V
from £84.05
from £84.05
# 004
MPN: 329053109
LH REAR SILENCER
VALID FOR 53 / 69 4V
Supersession
Supersession
# 004
MPN: 329062109
LH REAR SILENCER
Valid for 62 / 69 4V / 79
from £321.20
from £321.20
# 005
MPN: 329053110
RH REAR SILENCER
VALID FOR 53 / 65 4v (2000cc 4V)
Supersession
Supersession
# 005
MPN: 329062110
RH REAR SILENCER
Valid for 62 / 69 4V / 79
from £321.20
from £321.20
# 006
MPN: 339050305
SEALING RING
VALID FOR 53 / 62 / 65 4V / 69 4V / 83
from £10.99
from £10.99
# 007
MPN: 14421074

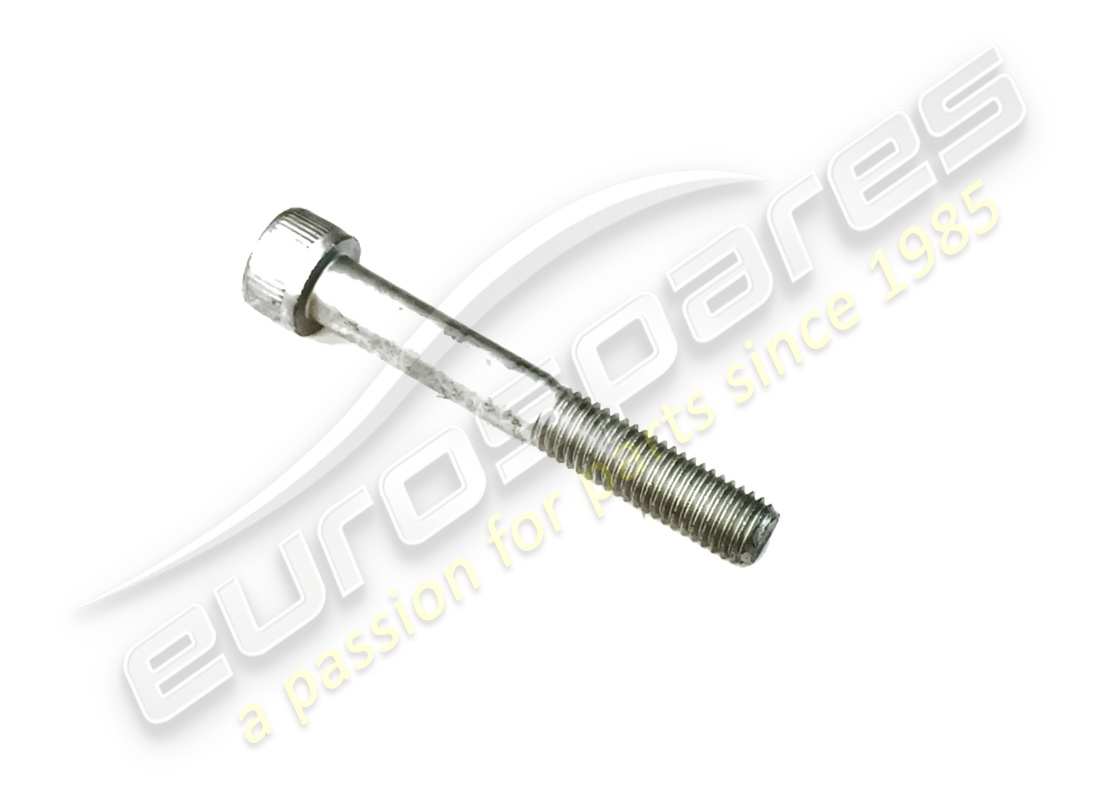

SCREW
VALID FOR 53 / 62 / 65 4V / 69 4V / 84
from £4.88
from £4.88
This part replaces part number 14421071
# 008
MPN: 14496601
FLAT WASHER
VALID FOR 53 / 62 / 65 4V / 69 4V / 85
Supersession
Supersession
# 009
MPN: 125100100
NUT
VALID FOR 53 / 62 / 65 4V / 69 4V / 86
# 010
MPN: 319030313

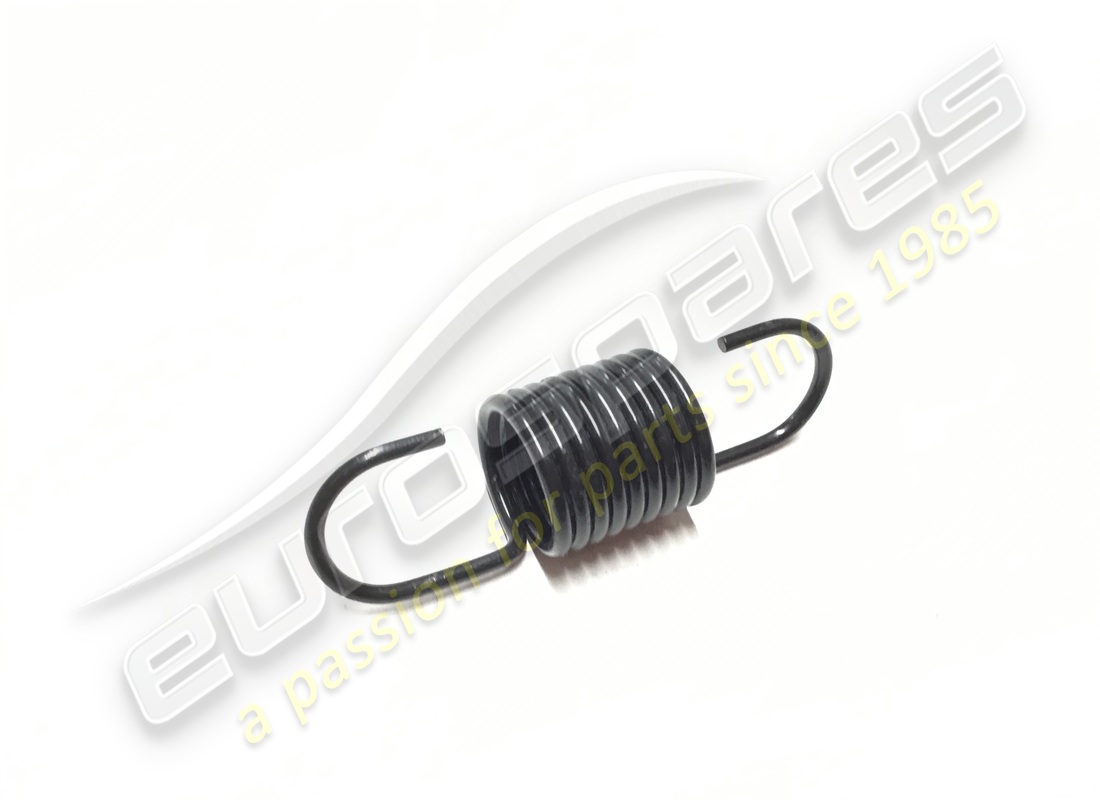

SPRING
VALID FOR 53 / 62 / 65 4V / 69 4V / 87
from £2.12
from £2.12
# 011
MPN: 329056008
CLAMP
VALID FOR 53 / 62 / 65 4V / 69 4V / 88
from £2.32
from £2.32
# 012
MPN: 473082340
LAHBDA PROBE
VALID FOR 53 / 62 / 65 4V / 69 4V / 89
from £489.53
from £489.53
# 013
MPN: 312020301
LH MANIFOLD
VALID FOR 53 / 69 4V
from £90.40
from £90.40
# 013
MPN: 467361901
LH MANIFOLD
Valid for 62 / 69 4V / 79
from £98.99
from £98.99
# 014
MPN: 312020302
RH MAN1F01D
VALID FOR 53 / 69 4V
from £90.40
from £90.40
# 014
MPN: 467361801
RH MANIFOLD
Valid for 62 / 69 4V / 79
from £98.99
from £98.99
# 015
MPN: 329053107
SUPPORT (GETRAG TRANSM.)
VALID FOR 53 / 62 / 65 4V / 69 4V / 83
from £4.72
from £4.72
# 016
MPN: 14058519
COPPER PLATED NUT
VALID FOR 53 / 62 / 65 4V / 69 4V / 84
from £0.51
from £0.51
This part replaces part number 312051309 which we have in stock
# 017
MPN: 319020303
SPRING
VALID FOR 53 / 62 / 65 4V / 69 4V / 85
from £4.46
from £4.46
# 018
MPN: 319020301
SCREW
VALID FOR 53 / 69 4V
Supersession
Supersession
# 018
MPN: 349000301
SCREW
Valid for 62 / 69 4V / 79
from £3.16
from £3.16
# 019
MPN: 323760108
CABLE FOR LAMBDA FEELER
VALID FOR 53 / 62 / 65 4V / 69 4V / 79
from £8.98
from £8.98
# 020
MPN: 138200080
WASHER
VALID FOR 53 / 62 / 65 4V / 69 4V / 80
# 021
MPN: 101208016
SCREW
VALID FOR 53 / 62 / 65 4V / 69 4V / 81
# 022
MPN: 319020300
RUBBER RING
VALID FOR 53 / 62 / 65 4V / 69 4V / 82
from £1.61
from £1.61
# 023
MPN: 312120300

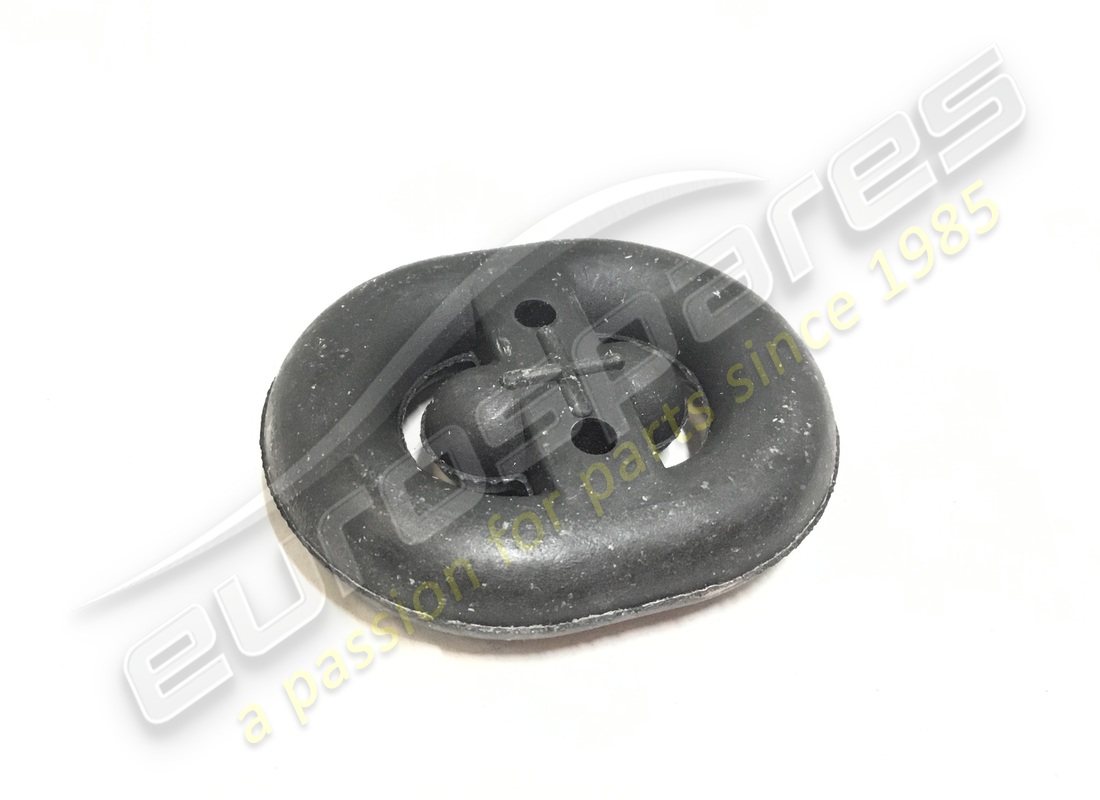

BUFFER
VALID FOR 53 / 62 / 65 4V / 69 4V / 83
from £2.14
from £2.14
# 024
MPN: 14496601
FLAT WASHER
VALID FOR 53 / 62 / 65 4V / 69 4V / 84
Supersession
Supersession
# 025
MPN: 163020080
WASHER
VALID FOR 53 / 62 / 65 4V / 69 4V / 85
from £1.08
from £1.08
# 026
MPN: 319030312
SPRING
VALID FOR 53 / 62 / 65 4V / 69 4V / 86
from £2.12
from £2.12
# 027
MPN: 329060119
LH SCREEN
VALID FOR 53 / 62 / 65 4V / 69 4V / 87
from £38.00
from £38.00
# 028
MPN: 329060120
RH SCREEN
VALID FOR 53 / 62 / 65 4V / 69 4V / 88
from £38.00
from £38.00
# 029
MPN: 329060118
CENTRAL SCREEN
VALID FOR 53 / 62 / 65 4V / 69 4V / 89
from £14.27
from £14.27
# 030
MPN: 319030329
NUT
VALID FOR 65 4V ( NOT SUPPLIED)
from £0.77
from £0.77
# 031
MPN: 134700105
WASHER
VALID FOR 53 / 62 / 65 4V / 69 / 79
from £1.08
from £1.08
# 032
MPN: 319030328
CUP NUT
VALID FOR 53 / 62 / 65 4V / 69 / 80
from £1.63
from £1.63
# 034
MPN: 319062112
GAS ANALYSIS DRAWING PIPE
VALID FOR 62 (ONLY SWITZERLAND)
# 035
MPN: 186500400
COPPER PLATED CLAMP
VALID FOR 62 (ONLY SWITZERLAND)
# 036
MPN: 312020303
GASKET
from £10.98
from £10.98
# 036
MPN: 580362400
GASKET
VALID FOR 62 / 69 / 79
from £9.45
from £9.45
This part replaces part number 342000303
# 037
MPN: 319053326
PLUG
VALID FOR 53 / 62 / 65 4V / 69 / 80
from £0.69
from £0.69
# 038
MPN: 319020424
GASKET
VALID FOR 53 / 62 / 65 4V / 69 / 81
