002 - Engine Cooling, 4V

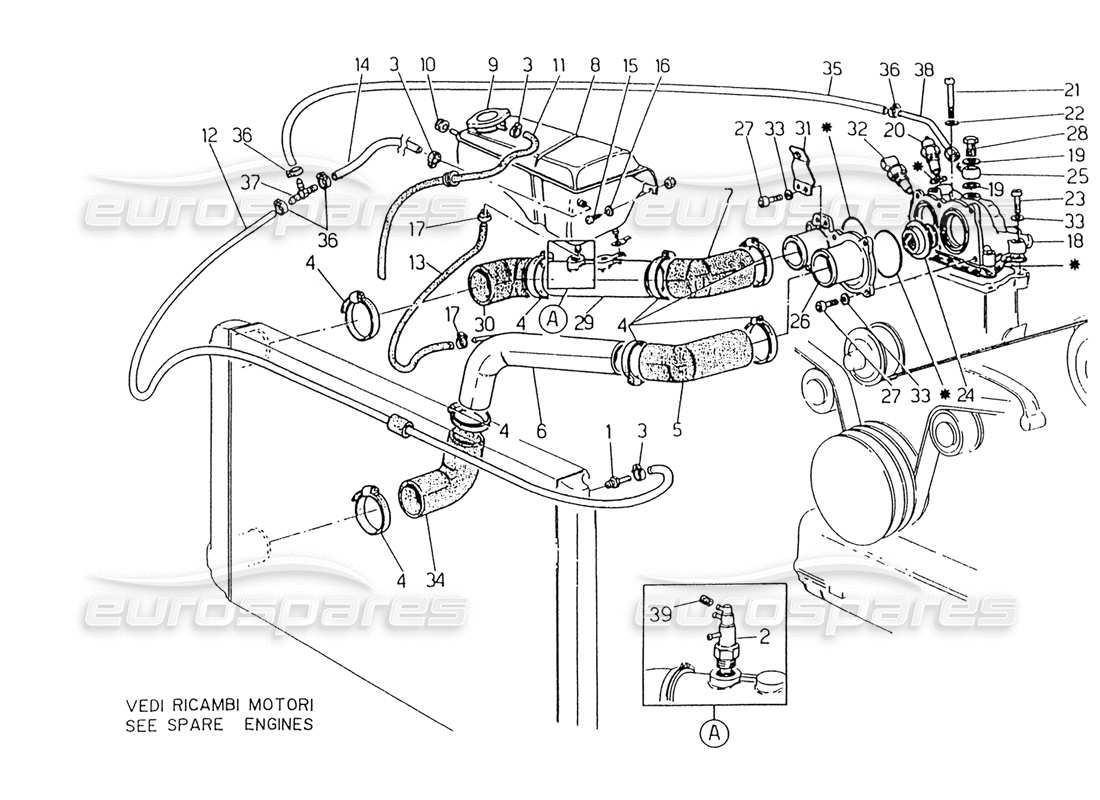

Maserati 418 / 4.24v / 430 Engine Cooling, 4V Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: 314020328
        MANIFOLD FOR EXPANSION TANK
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        from £1.82
        from £1.82
        UNION Genuine Maserati Part - New (to order)
        # 002
        MPN: 312030127
        VACUUM SWITCH
        VALID FOR 62 / 69 / 79
        from £30.26
        from £30.26
        COMPLETE INTERRUTTORE X VUOTO Genuine Maserati Part - New (to order)
        # 003
        MPN: 186402016
        CLAMP
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        Maserati PART 186402016 Genuine Maserati Part - New (to order)
        # 004
        MPN: 312020136
        CLAMP
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        Supersession
        Supersession
        Genuine Maserati Part (no longer available to order)
        # 005
        MPN: 324032320
        UPPER SLEEVE
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        from £61.97
        from £61.97
        This part replaces part number 314053332
        UPPER SLEEVE 5824085 Genuine Maserati Part - New (to order)
        # 006
        MPN: 314020107
        PIPE
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        from £117.21
        from £117.21
        LINE Genuine Maserati Part - New (to order)
        # 007
        MPN: 314053330
        SLEEVE
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        from £27.57
        from £27.57
        PIPE FROM THERM. HOLD.TO SENS.HOL Genuine Maserati Part - New (to order)
        # 008
        MPN: 554021102
        EXPANSION TANK
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        from £42.00
        from £42.00
        This part replaces part number 314020102
        VASCHETTA ESPANSIONE Genuine Maserati Part - New In stock
        # 009
        MPN: 554021103

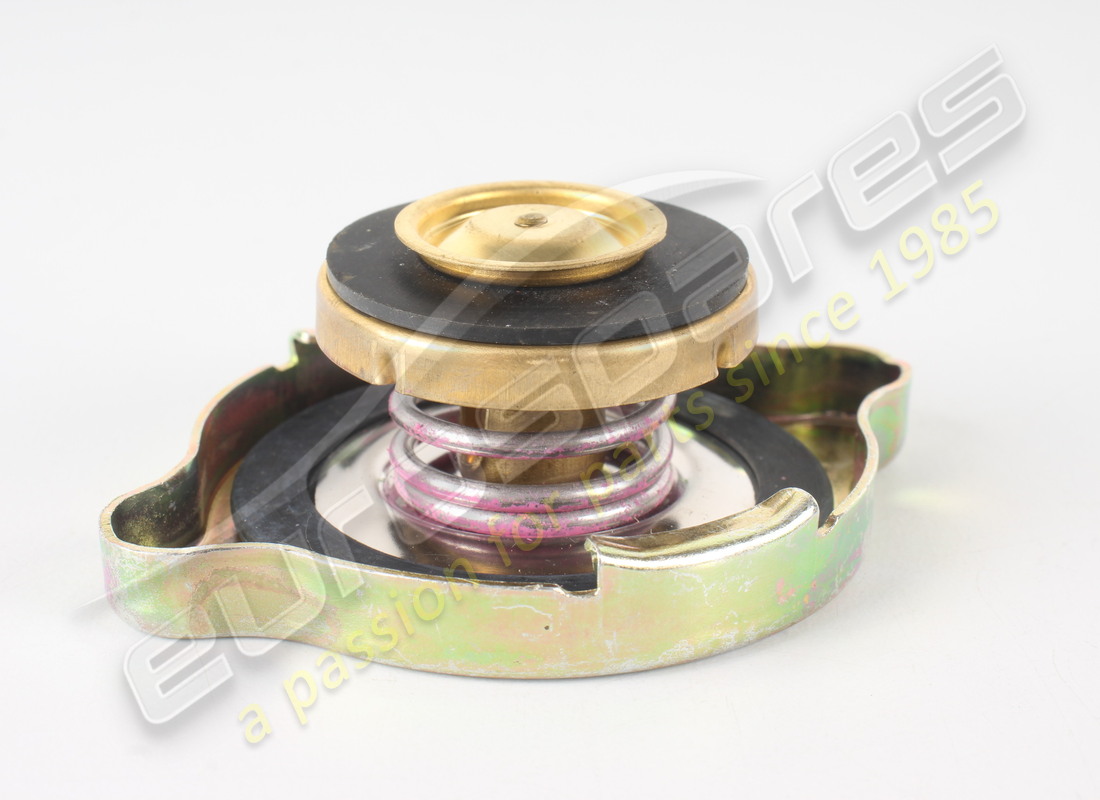

        CAP
        from £5.42
        from £5.42
        PRES.-FITTED CAP FOR EXPAN.T Genuine Maserati Part - New (to order)
        # 010
        MPN: 53401311
        RING
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        from £0.68
        from £0.68
        RADIATOR FASTENING RING Genuine Maserati Part - New (to order)
        # 011
        MPN: 314020316
        BREATHER PIPE
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        from £1.80
        from £1.80
        This part replaces part number 313320325
        TUBAZIONE Genuine Maserati Part - New (to order)
        # 012
        MPN: 314020317
        PIPING
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        from £2.18
        from £2.18
        This part replaces part number 374000317
        LINE 5204029 Genuine Maserati Part - New (to order)
        # 013
        MPN: 314020318
        PIPING
        VALID FOR 53 / 62 / 65 4V
        from £20.76
        from £20.76
        TUBAZIONE 5204019 Genuine Maserati Part - New (to order)
        # 013
        MPN: 314069318
        PIPING
        VALID FOR 62 / 65 4V / 69 / 79
        PIPING Genuine Maserati Part - New (to order)
        # 014
        MPN: 394050319
        SLEEVE
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        from £4.14
        from £4.14
        CONNECTION PIPE 106.4518.25 TANK Genuine Maserati Part - New (to order)
        # 015
        MPN: 101206020
        SCREW
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        Maserati PART 101206020 Genuine Maserati Part - New (to order)
        # 016
        MPN: 163010060
        FLAT WASHER
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        Maserati PART 163010060 Genuine Maserati Part - New (to order)
        # 017
        MPN: 186402024
        CLAMP
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        Supersession
        Supersession
        Genuine Maserati Part (no longer available to order)
        # 018
        MPN: 314053355
        THERMOSTAT HOUSING (4 HOLE FASTENER)
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        Maserati PART 314053355 Genuine Maserati Part - New (to order)
        # 019
        MPN: 14453381
        RUBBER
        from £0.64
        from £0.64
        O.R.GASKET. (14453381) Genuine Ferrari Part - New In stock
        O-RING D. 15.60X1 Genuine Maserati Part - New In stock
        # 020
        MPN: 470042800
        WATER TEMPERATURE FEELER
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        from £13.31
        from £13.31
        This part replaces part number 313630102
        WATER/OIL TEMPERATURE SENSOR 0103 Genuine Maserati Part - New (to order)
        # 021
        MPN: 108006080
        SCREW
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        from £1.31
        from £1.31
        SCREW D.6X1X80 ZPG 8G Genuine Maserati Part - New (to order)
        # 022
        MPN: 310620364
        GASKET
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        from £5.58
        from £5.58
        RUBBER GASKET D.6.7X13.2 Genuine Maserati Part - New (to order)
        # 023
        MPN: 108006025
        SCREW
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        Maserati PART 108006025 Genuine Maserati Part - New (to order)
        # 024
        MPN: 470045601
        WATER THERMOSTAT, 73°
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        from £72.35
        from £72.35
        This part replaces part number 314020123
        WATER THERMOSTAT (470045601) Eurospares Approved Part - New In stock
        WATER THERMOSTAT Genuine Maserati Part - New (to order)
        # 025
        MPN: 312020509
        SCREW UNION
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        Maserati PART 312020509 Genuine Maserati Part - New (to order)
        # 026
        MPN: 314053358
        THERMOSTAT COVER
        not as spare part - use part number: 470045502
        Supersession
        Supersession
        Genuine Maserati Part (no longer available to order)
        # 026
        MPN: 470045502
        THERMOSTAT COVER
        (replaces: 314053358)
        from £14.12
        from £14.12
        This part replaces part number 314053358
        COPERCHIO PER SCATOLA TERMOS Genuine Maserati Part - New (to order)
        # 027
        MPN: 108006018
        SCREW
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        Maserati PART 108006018 Genuine Maserati Part - New (to order)
        # 028
        MPN: 312020510
        SCREW
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        from £2.67
        from £2.67
        This part replaces part number 193520 - and 1 more. Click to view details
        UNION SCREW 12X1.25 Genuine Maserati Part - New (to order)
        UNION SCREW 12X1.25 Genuine Maserati Part - Used In stock
        # 029
        MPN: 314052331
        SENSOR HOLDER
        VALID FOR 53 / 65 4V
        SENSOR HOLDER Genuine Maserati Part - New (to order)
        # 029
        MPN: 314062331
        SENSOR HOLDER
        VALID FOR 62 / 69 / 79
        Supersession
        Supersession
        Genuine Maserati Part (no longer available to order)
        # 030
        MPN: 314053332
        SLEEVE
        VALID FOR 53 / 65 4V
        Supersession
        Supersession
        Genuine Maserati Part (no longer available to order)
        # 030
        MPN: 314062332
        SLEEVE
        VALID FOR 62 / 69 / 79
        Maserati PART 314062332 Genuine Maserati Part - New (to order)
        # 031
        MPN: 318253304
        PLATE, ACCELERATOR SHEATH
        Valid for 53 / 62
        PLATE, ACCELERATOR SHEATH Genuine Maserati Part - New (to order)
        # 032
        MPN: 470079800
        WATER TEMPERATURE SWITCH
        from £63.84
        from £63.84
        WATER TEMPERATURE SENSOR Genuine Maserati Part - New (to order)
        WATER TEMPERATURE SENSOR (470079800) Original Equipment - New In stock
        # 033
        MPN: 138410060
        SPRING WASHER
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        Maserati PART 138410060 Genuine Maserati Part - New (to order)
        # 034
        MPN: 394050323
        LOWER SLEEVE
        VALID FOR 53 / 62 / 65 4V / 69 / 79
        Supersession
        Supersession
        Genuine Maserati Part (no longer available to order)
        # 035
        MPN: 19058089
        SLEEVE
        VALID FOR 53 / 62 / 65 4V / 69 / 80
        from £9.61
        from £9.61
        This part replaces part number 379200379 - and 2 more. Click to view details
        TUBO BENZINA MN 96012 Genuine Maserati Part - New (to order)
        # 036
        MPN: 314022359
        CLAMP
        VALID FOR 53 / 62 / 65 4V / 69 / 81
        from £0.68
        from £0.68
        CLICK CLAMP 66 D.11.5 Genuine Maserati Part - New (to order)
        # 037
        MPN: 314022364
        T CONNECTION
        VALID FOR 53 / 62 / 65 4V / 69 / 82
        Supersession
        Supersession
        Genuine Maserati Part (no longer available to order)
        # 038
        MPN: 314022125
        HOSE
        VALID FOR 53 / 62 / 65 4V / 69 / 83
        from £3.93
        from £3.93
        COMPLETE TUBO SFIATO SU SCAT PORT Genuine Maserati Part - New (to order)
        # 039
        MPN: 312030411
        FILTER
        VALID FOR 53 / 62 / 65 4V / 69 / 84
        FILTER Genuine Maserati Part - New (to order)
