002.1 - Engine Cooling, 3V

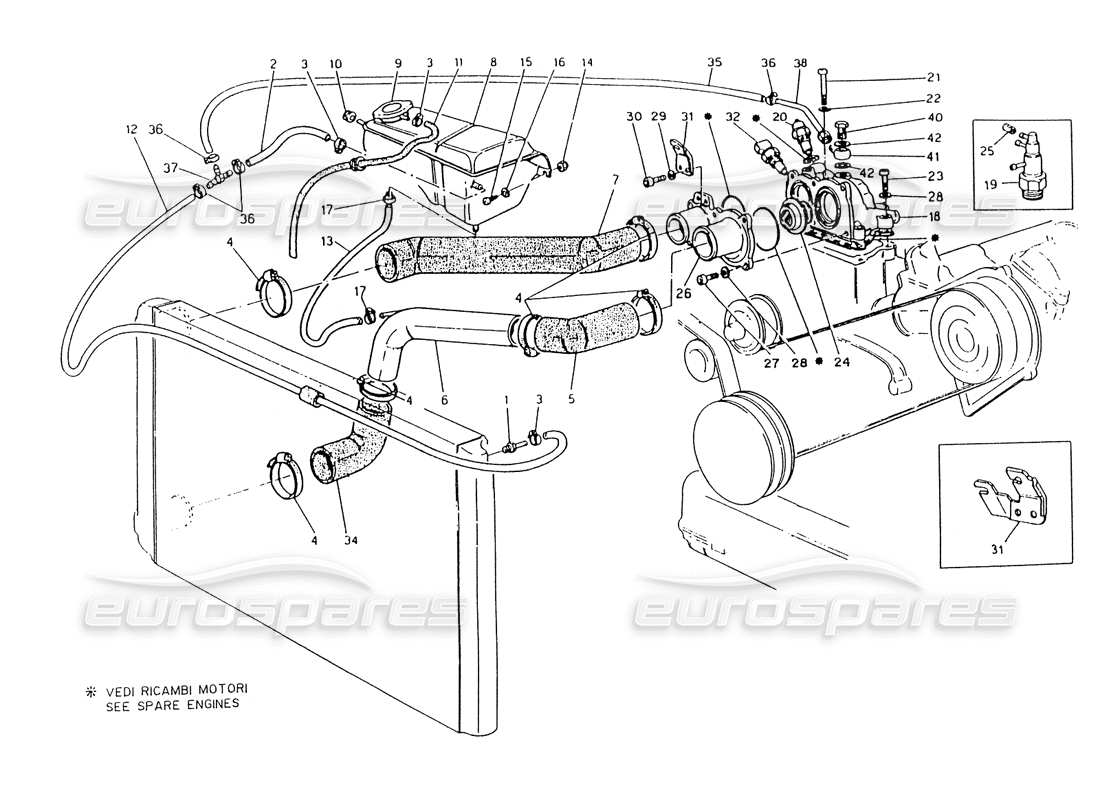

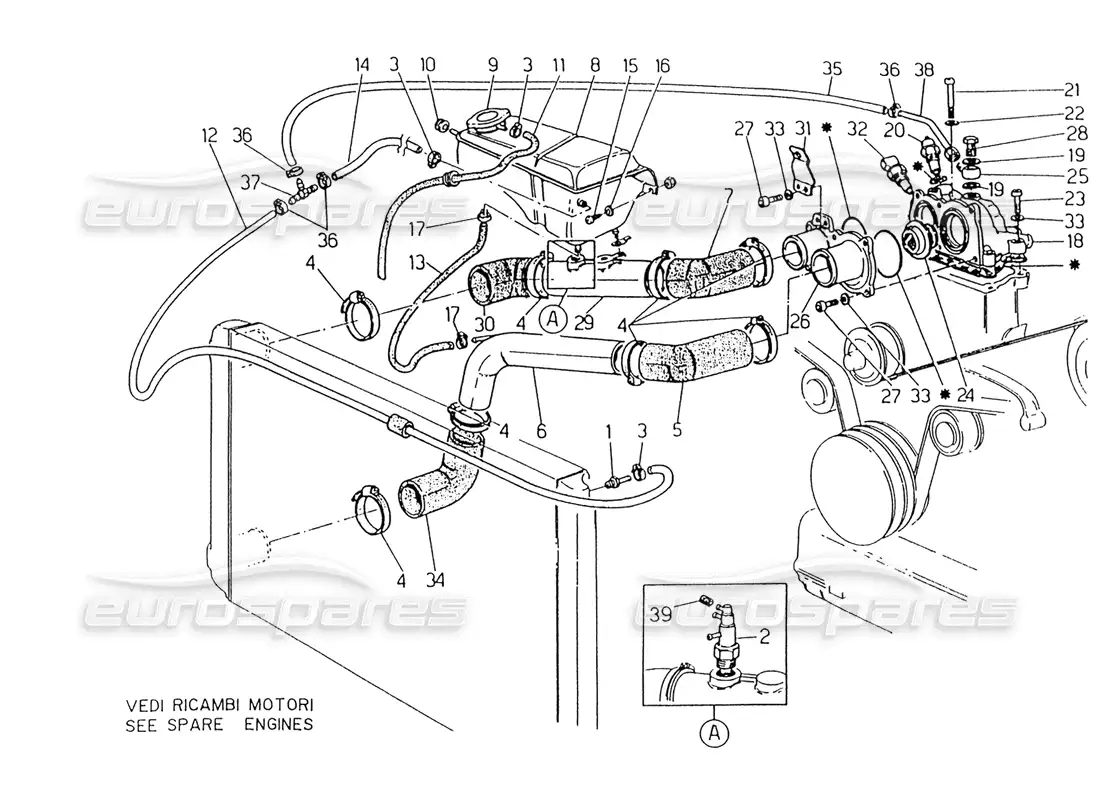

Maserati 418 / 4.24v / 430 Engine Cooling, 3V Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 314020328
MANIFOLD FOR EXPANSION TANK
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
from £1.83
from £1.83
# 002
MPN: 394050319
SLEEVE
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
from £4.16
from £4.16
# 003
MPN: 186402016
CLAMP
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
# 004
MPN: 312020136
CLAMP
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
Supersession
Supersession
# 005
MPN: 324032320
UPPER SLEEVE
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
from £41.49
from £41.49
This part replaces part number 314053332
# 006
MPN: 314020107
PIPE
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
from £78.49
from £78.49
# 007
MPN: 324032325
SLEEVE
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
from £7.89
from £7.89
# 008
MPN: 554021102

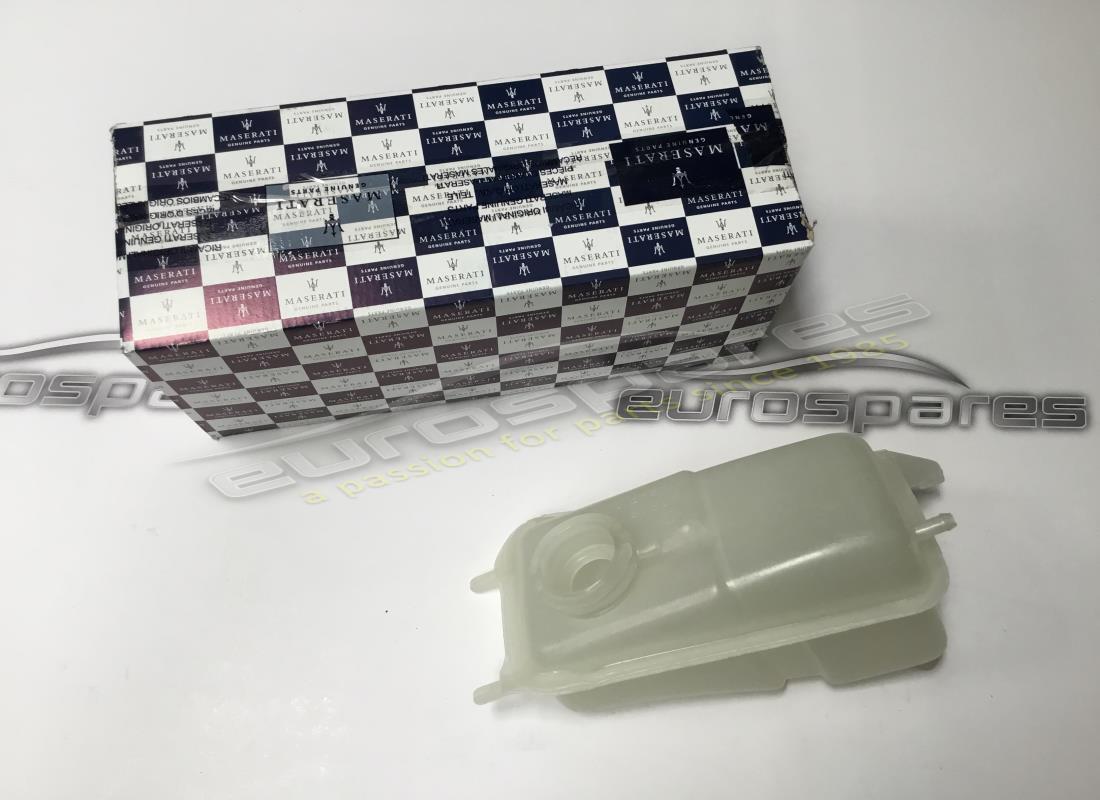

EXPANSION TANK
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
from £20.79
from £20.79
This part replaces part number 314020102
# 009
MPN: 554021103
CAP
from £3.63
from £3.63
# 010
MPN: 53401311
RING
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
from £0.69
from £0.69
# 011
MPN: 314020316
BREATHER PIPE
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
from £1.20
from £1.20
This part replaces part number 313320325
# 012
MPN: 314020317
PIPING
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
from £2.19
from £2.19
This part replaces part number 374000317
# 013
MPN: 314020318
PIPING
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
from £20.86
from £20.86
# 014
MPN: 128300060
NUT
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
Supersession
Supersession
# 015
MPN: 101206020
SCREW
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
# 016
MPN: 163010060
FLAT WASHER
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
# 017
MPN: 186402024
CLAMP
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
Supersession
Supersession
# 018
MPN: 314022355
THERMOSTAT HOUSING
Valid for 51
from £17.16
from £17.16
# 019
MPN: 312030127
VACUUM SWITCH
VALID FOR 58 / 59 / 77 / 78
from £20.25
from £20.25
# 020
MPN: 470042800
WATER TEMPERATURE FEELER
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
from £8.91
from £8.91
This part replaces part number 313630102
# 022
MPN: 310620364
GASKET
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
from £1.08
from £1.08
# 023
MPN: 108006025
SCREW
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
# 024
MPN: 470045601

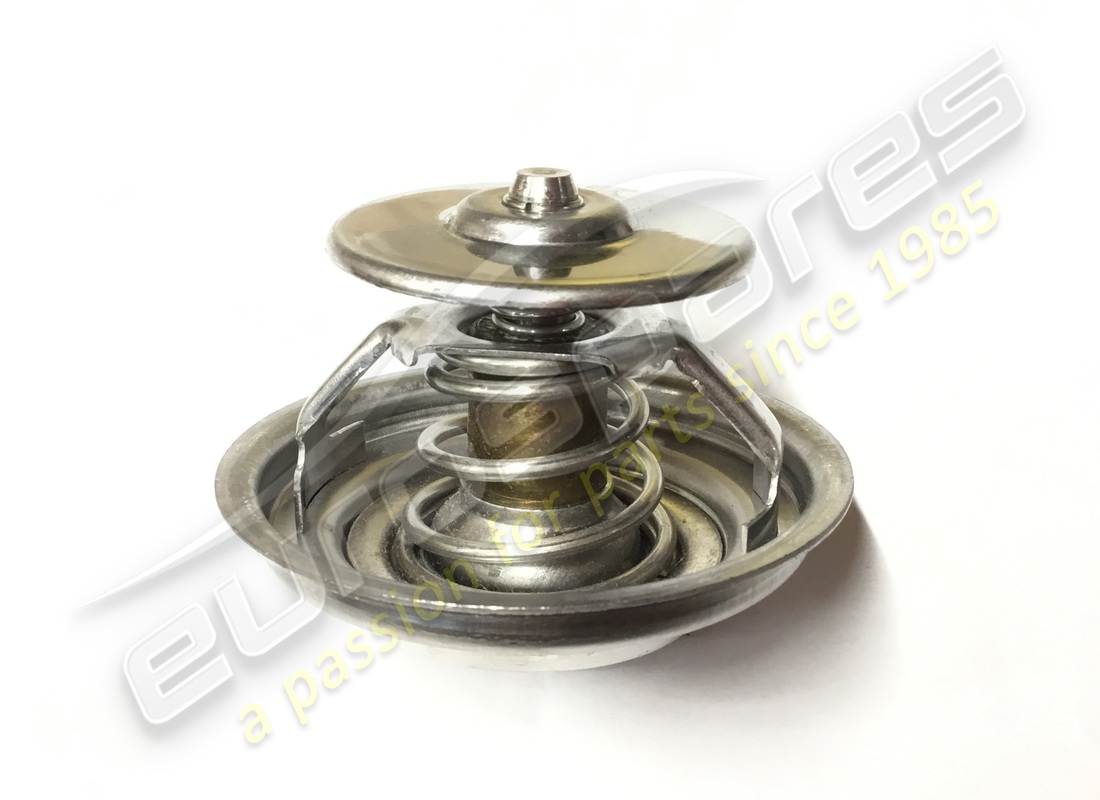

WATER THERMOSTAT, 73
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
from £72.05
from £72.05
This part replaces part number 314020123
# 025
MPN: 312030441
FILTER
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
# 026
MPN: 314053358
THERMOSTAT COVER
not as spare part - use part number: 470045502
Supersession
Supersession
# 026
MPN: 470045502
THERMOSTAT COVER
(replaces: 314053358)
from £14.19
from £14.19
This part replaces part number 314053358
# 027
MPN: 108006018
SCREW
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
# 028
MPN: 138410060
SPRING WASHER
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
# 029
MPN: 138410060
SPRING WASHER
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
# 030
MPN: 108006012
SCREW
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
from £0.54
from £0.54
# 031
MPN: 314638310
PLATE, ACCELERATOR AND KICK DOWN CONTROL
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
# 031
MPN: 318220304
PLATE, ACCELERATOR SHEATH
VALID FOR 51 / 58 / 65 3V / 67 / 77
# 032
MPN: 470079800
WATER TEMPERATURE SWITCH
from £84.76
from £84.76
# 034
MPN: 394050323
LOWER SLEEVE
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
Supersession
Supersession
# 035
MPN: 312020511
SLEEVE
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
Supersession
Supersession
# 036
MPN: 314022359
CLAMP
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
from £0.69
from £0.69
# 037
MPN: 314022364
T CONNECTION
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
Supersession
Supersession
# 038
MPN: 314022125
HOSE
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
from £3.94
from £3.94
# 040
MPN: 312020510
SCREW
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
from £2.68
from £2.68
This part replaces part number 193520 - and 1 more. Click to view details
# 041
MPN: 312020509
SCREW UNION
VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
# 042
MPN: 14453381
RUBBER
from £0.74
from £0.74
