maserati 418 / 4.24v / 430 radiator and cooling fans parts diagram

003 - radiator and cooling fans

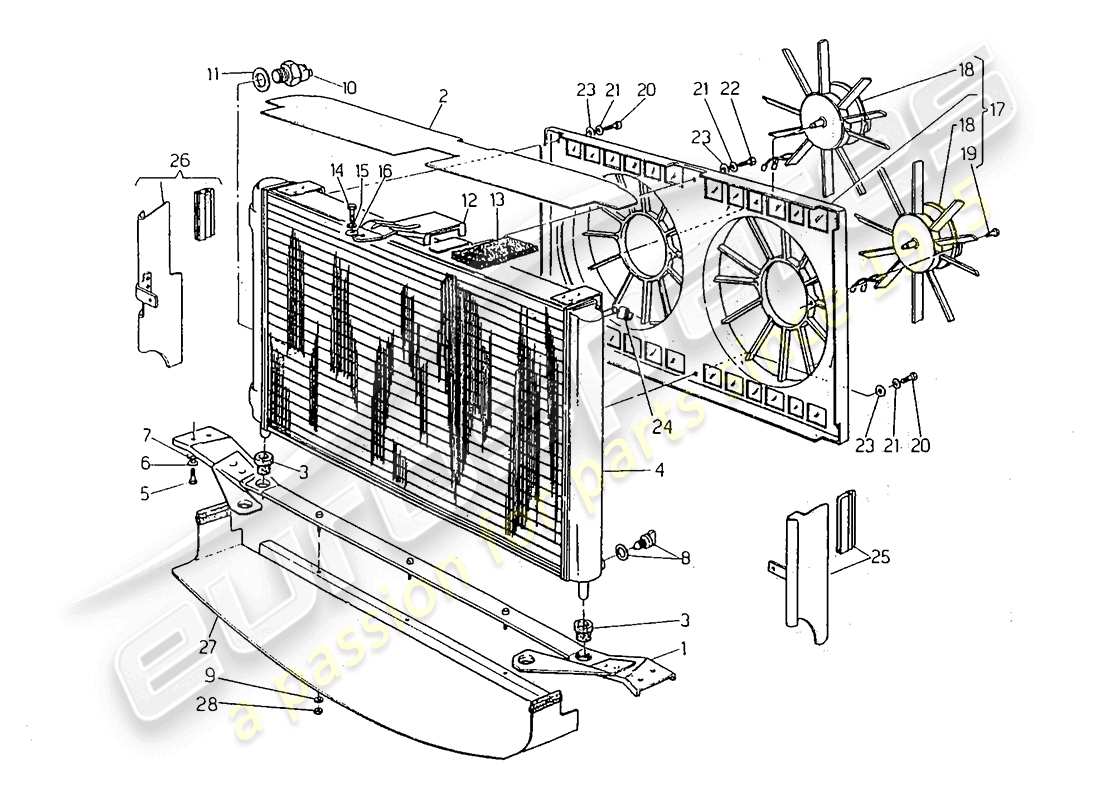

Maserati 418 / 4.24v / 430 Radiator and Cooling Fans Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 314053108
                                  SUPPORT
                                  VALID FOR 51 / 53 / 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
                                  from £32.24
                                  from £32.24
                                  This part replaces part number 314020103 - and 1 more. Click to view details
                                  # 001
                                  MPN: 314062108
                                  SUPPORT
                                  VALID FOR 62 / 69 / 79
                                  from £257.79
                                  from £257.79
                                  # 002
                                  MPN: 314037360
                                  CONVEYOR
                                  from £24.24
                                  from £24.24
                                  This part replaces part number 314053018 - and 2 more. Click to view details
                                  # 002
                                  MPN: 314053018
                                  CONVEYOR
                                  VALID FOR 51 / 53 / 65 4V
                                  Supersession
                                  Supersession
                                  # 002
                                  MPN: 314062360
                                  CONVEYOR
                                  VALID FOR 62 / 69 / 79
                                  from £38.32
                                  from £38.32
                                  # 003
                                  MPN: 189453
                                  BUSH
                                  from £1.07
                                  from £1.07
                                  This part replaces part number 374030312
                                  # 003
                                  MPN: 394050100
                                  RADIATOR
                                  VALID FOR 62 / 69 / 79
                                  from £711.39
                                  from £711.39
                                  # 004
                                  MPN: 314037100
                                  WATER RADIATOR (COPPER)
                                  from £640.51
                                  from £640.51
                                  # 004
                                  MPN: 324050109
                                  RADIATOR (ALUMINIUM)
                                  VALID FOR 51 / 53 / 65 4V
                                  Supersession
                                  Supersession
                                  # 007
                                  MPN: 163020080
                                  WASHER
                                  from £1.07
                                  from £1.07
                                  # 008
                                  MPN: 314037326
                                  WATER DRAIN COCK
                                  VALID FOR 58 / 59 / 62 / 65 3V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                                  from £10.00
                                  from £10.00
                                  # 008
                                  MPN: 314051051
                                  WATER DRAIN COCK
                                  VALID FOR 51 / 53 / 65 4V
                                  from £3.61
                                  from £3.61
                                  This part replaces part number 314020326 - and 1 more. Click to view details
                                  # 010
                                  MPN: 313320172
                                  FAN ACTUATING THERMAL SWITCH
                                  from £2.18
                                  from £2.18
                                  # 011
                                  MPN: 53331300
                                  WASHER
                                  from £1.07
                                  from £1.07
                                  # 012
                                  MPN: 314020106
                                  UPPER RETAINER
                                  VALID FOR 51 / 53 / 65 4V
                                  from £3.23
                                  from £3.23
                                  # 012
                                  MPN: 314037106
                                  UPPER RETAINER
                                  VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
                                  from £3.23
                                  from £3.23
                                  This part replaces part number 324056106
                                  # 012
                                  MPN: 314062106
                                  UPPER RETAINER
                                  VALID FOR 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
                                  from £41.39
                                  from £41.39
                                  # 013
                                  MPN: 314030308
                                  BUFFER
                                  VALID FOR 51 / 53 / 65 4V
                                  from £1.53
                                  from £1.53
                                  # 013
                                  MPN: 314037308
                                  BUFFER
                                  VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
                                  from £9.61
                                  from £9.61
                                  This part replaces part number 324056308
                                  # 013
                                  MPN: 394050308
                                  BUFFER
                                  VALID FOR 62 / 69 / 79
                                  from £9.61
                                  from £9.61
                                  # 017
                                  MPN: 313354105
                                  FAN BLADE SHROUD, ASSY
                                  VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
                                  from £209.53
                                  from £209.53
                                  This part replaces part number 323356105
                                  # 017
                                  MPN: 323356105
                                  FAN BLADE SHROUD, ASSY
                                  VALID FOR 51 / 53 / 65 4V
                                  Supersession
                                  Supersession
                                  This part replaces part number 313330105 - and 1 more. Click to view details
                                  # 017
                                  MPN: 393350105
                                  FAN BLADE SHROUD, ASSY
                                  VALID FOR 62 / 69 / 79
                                  from £157.50
                                  from £157.50
                                  # 018
                                  MPN: 313354102
                                  FAN MOTOR (AP6)
                                  VALID FOR 58 / 59 / 62 / 65 3V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                                  Supersession
                                  Supersession
                                  # 018
                                  MPN: 323332102
                                  FAN MOTOR (AP4)
                                  VALID FOR 51 / 53 / 65 3V / 65 4V / 66
                                  from £51.16
                                  from £51.16
                                  # 023
                                  MPN: 169020406
                                  WASHER
                                  from £0.76
                                  from £0.76
                                  # 024
                                  MPN: 313320333
                                  CABLE CLIP
                                  from £0.68
                                  from £0.68
                                  # 025
                                  MPN: 314053131
                                  LH SHIELD ASSY
                                  VALID FOR 51 / 53 / 62 / 65 4V / 69 / 79
                                  from £13.83
                                  from £13.83
                                  # 025
                                  MPN: 324050128
                                  LH SHIELD ASSY
                                  VALID FOR 58 / 65 3V / 67 / 77
                                  from £54.09
                                  from £54.09
                                  # 026
                                  MPN: 314062129
                                  RH SHIELD ASSY
                                  VALID FOR 62 / 69 / 79
                                  from £67.93
                                  from £67.93
                                  # 026
                                  MPN: 324050129
                                  RH SHIELD ASSY
                                  VALID FOR 51 / 53 / 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
                                  from £60.16
                                  from £60.16
                                  # 027
                                  MPN: 314053133
                                  LOWER BULKHEAD
                                  VALID FOR 51 / 53 / 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
                                  from £145.87
                                  from £145.87
                                  # 027
                                  MPN: 314062133
                                  LOWER BULKHEAD
                                  VALID FOR 62 / 69 / 79
                                  from £273.36
                                  from £273.36
                                  # 028
                                  MPN: 128350060
                                  SELF LOCKING NUT
