004 - Air Conditioning System, LH Steering

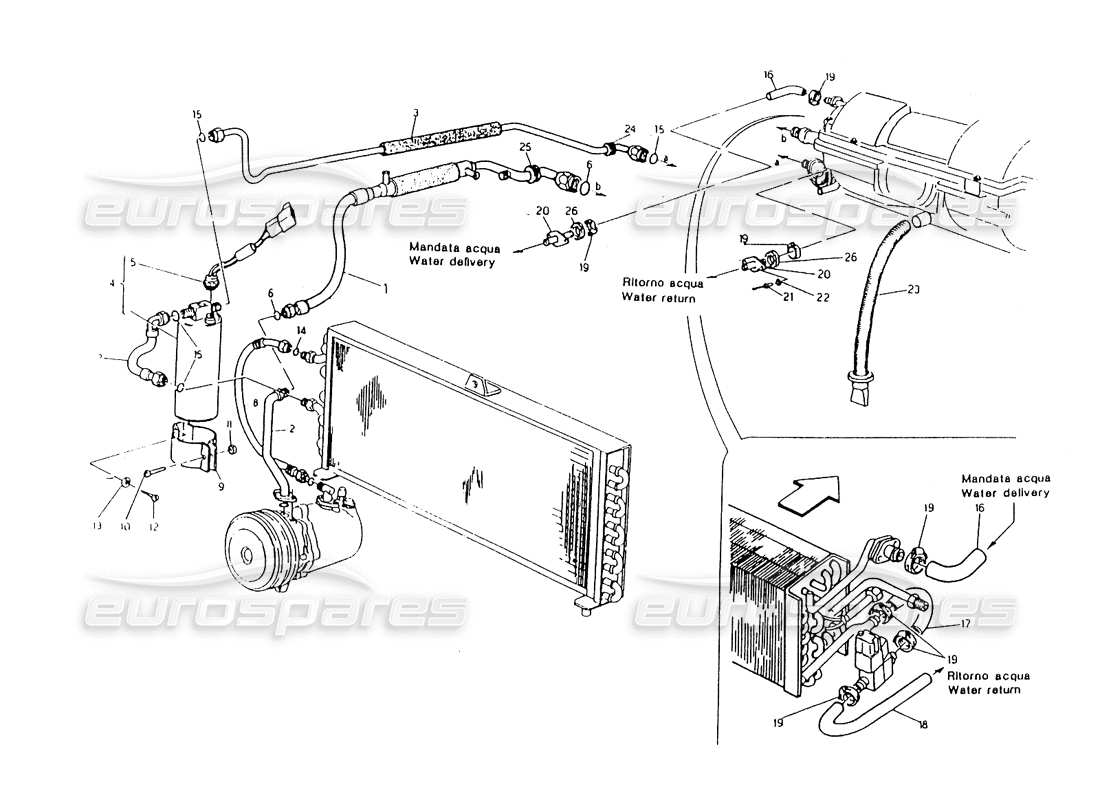

Maserati 418 / 4.24v / 430 Air Conditioning System, LH Steering Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 315551173
    FREON RETURN PIPE WITH GASOLINE COOLING
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £73.63
    from £73.63
    Maserati PART 315551173 Genuine Maserati Part - New (to order)
    # 002
    MPN: 315553185
    FREON RETURN PIPE
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £38.97
    from £38.97
    FREON INLET PIPE TO COMPRESSOR Genuine Maserati Part - New (to order)
    # 003
    MPN: 315551182
    FREON DELIVERY PIPE
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £11.99
    from £11.99
    Maserati PART 315551182 Genuine Maserati Part - New (to order)
    # 004
    MPN: 365502174
    FREON FILTER
    from £107.93
    from £107.93
    This part replaces part number 315520174
    FILTRO FREON COMPLETO R12/R1 Genuine Maserati Part - New (to order)
    # 005
    MPN: 315520175
    MAX. AND MIN. CAPACITY PRESSURE SWITCH
    VALID FOR 51 / 53 / 58 / 59 / 62
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 006
    -
    0-RING 1/2 FREON LINE
    VALID FOR 51 / 53 / 58 / 59 / 62 NOT SUPPLIED
    # 007
    MPN: 315550181
    FREON DELIVERY PIPE
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £3.29
    from £3.29
    This part replaces part number 315521181
    FREON PIPE FROM CONDENSER TO FILT Genuine Maserati Part - New (to order)
    # 008
    MPN: 315553179
    FREON DELIVERY PIPE
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £29.48
    from £29.48
    FREON DELIVERY LINE use 315553262+453375442 Genuine Maserati Part - New (to order)
    # 009
    MPN: 315520301
    CLAMP
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £17.89
    from £17.89
    FILTER CLAMP FREON Genuine Maserati Part - New (to order)
    # 010
    MPN: 101206025
    SCREW
    VALID FOR 51 / 53 / 58 / 59 / 62
    Maserati PART 101206025 Genuine Maserati Part - New (to order)
    # 011
    MPN: 128300060
    NUT
    VALID FOR 51 / 53 / 58 / 59 / 62
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 012
    MPN: 119148160
    SCREW
    VALID FOR 51 / 53 / 58 / 59 / 62
    Maserati PART 119148160 Genuine Maserati Part - New (to order)
    # 013
    MPN: 169020005
    WASHER
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £1.13
    from £1.13
    WASHER Genuine Maserati Part - New (to order)
    # 014
    -
    0-RING 5/8 FREON PIPE
    VALID FOR 51 / 53 / 58 / 59 / 62 NOT SUPPLIED
    # 015
    -
    0-RING 3/8 FREON PIPE
    VALID FOR 51 / 53 / 58 / 59 / 62 NOT SUPPLIED
    # 016
    MPN: 315520479
    TUBE
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £8.48
    from £8.48
    SLEEVE Genuine Maserati Part - New In stock
    # 017
    MPN: 315520480
    TUBE
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £2.13
    from £2.13
    SLEEVE Genuine Maserati Part - New (to order)
    # 018
    MPN: 315520481
    TUBE
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £8.11
    from £8.11
    WATER SLEEVE AUTOC 71463 Genuine Maserati Part - New (to order)
    # 019
    MPN: 186402028
    CLAMP
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £1.61
    from £1.61
    CLAMP Genuine Maserati Part - New (to order)
    # 020
    MPN: 315520370
    UNION
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £0.74
    from £0.74
    CONNECTING UNION Genuine Maserati Part - New (to order)
    # 021
    MPN: 164323413
    RIVET
    VALID FOR 51 / 53 / 58 / 59 / 62
    RIVET Genuine Maserati Part - New (to order)
    # 022
    MPN: 169020005
    WASHER
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £1.13
    from £1.13
    WASHER Genuine Maserati Part - New (to order)
    # 023
    MPN: 315520017
    CONDENSATE DRAINAGE TUBE
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £1.83
    from £1.83
    EXHAUST PIPE Genuine Maserati Part - New (to order)
    # 024
    MPN: 31331303
    FAIRLEAD
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £1.09
    from £1.09
    GROMMET Genuine Maserati Part - New (to order)
    # 025
    MPN: 315520371
    FAIRLEAD
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £0.66
    from £0.66
    FAIRLEAD Genuine Maserati Part - New (to order)
    # 026
    MPN: 315520372
    GASKET
    VALID FOR 51 / 53 / 58 / 59 / 62
    from £0.73
    from £0.73
    GASKET Genuine Maserati Part - New (to order)
