004.1 - Air Conditioning System, RH Steering

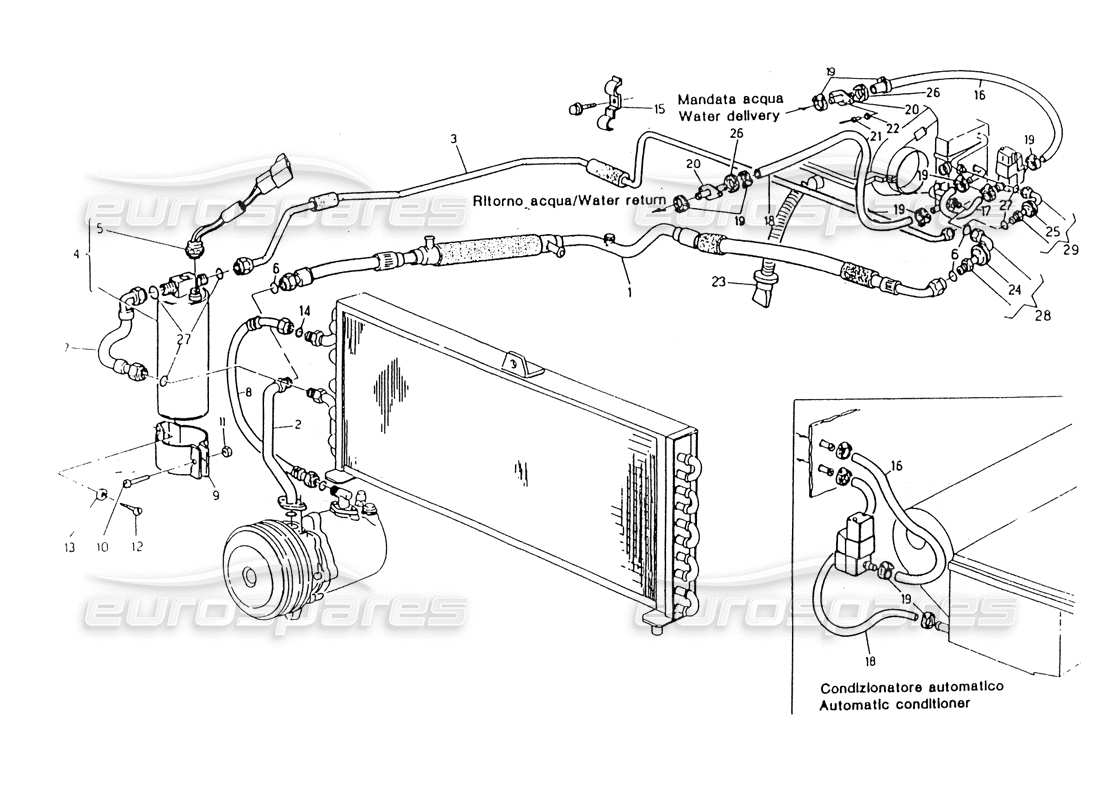

Maserati 418 / 4.24v / 430 Air Conditioning System, RH Steering Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 315570111
RETURN CONNECTOR ASSY
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £70.63
from £70.63
This part replaces part number 315527106 - and 1 more. Click to view details
# 002
MPN: 325570250
FREON RETURN PIPE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £57.42
from £57.42
This part replaces part number 345500185
# 003
MPN: 315517105
FREON DELIVERY PIPE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 004
MPN: 315520171
FILTER ASSY
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £36.74
from £36.74
# 005
MPN: 315520175
MAX. AND MIN. CAPACITY PRESSURE SWITCH
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
Supersession
Supersession
# 006
-
OR 1/2 FREON RETURN PIPE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79 NOT SUPPLIED
# 007
MPN: 315550181
FREON DELIVERY PIPE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £3.15
from £3.15
This part replaces part number 315521181
# 008
MPN: 315553179
FREON DELIVERY PIPE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £28.20
from £28.20
# 009
MPN: 315520301
CLAMP
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £17.10
from £17.10
# 010
MPN: 101206025
SCREW
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 011
MPN: 128300060
NUT
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
Supersession
Supersession
# 012
MPN: 119118160
SCREW
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 013
MPN: 169020005
WASHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.08
from £1.08
# 014
-
OR 3/8, FREON PIPE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79 NOT SUPPLIED
# 015
MPN: 315527302
BRACKET
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 016
MPN: 315570359
TUBE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £5.03
from £5.03
# 017
MPN: 315520180
TUBE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 018
MPN: 315570358
TUBE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £3.91
from £3.91
# 019
MPN: 186102028
CLAMP
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 020
MPN: 315520370
UNION
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.69
from £0.69
# 021
MPN: 161323113
RIVET
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 022
MPN: 169020005
WASHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.08
from £1.08
# 023
MPN: 315520017
CONOENSATE DRAINAGE TUBE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.76
from £1.76
# 024
MPN: 31331303
FAIRLEAD
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.05
from £1.05
# 025
MPN: 315520371
FAIRLEAD
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.62
from £0.62
# 026
MPN: 315520372
GASKET
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.69
from £0.69
# 027
-
OR 3/8
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79 NOT SUPPLIED
# 028
MPN: 315570111
RETURN CONNECTOR ASSY
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £70.63
from £70.63
This part replaces part number 315527106 - and 1 more. Click to view details
# 029
MPN: 315527112
DELIVERY CONNECTOR ASSY
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £15.52
from £15.52
