007 - FUEL TANK

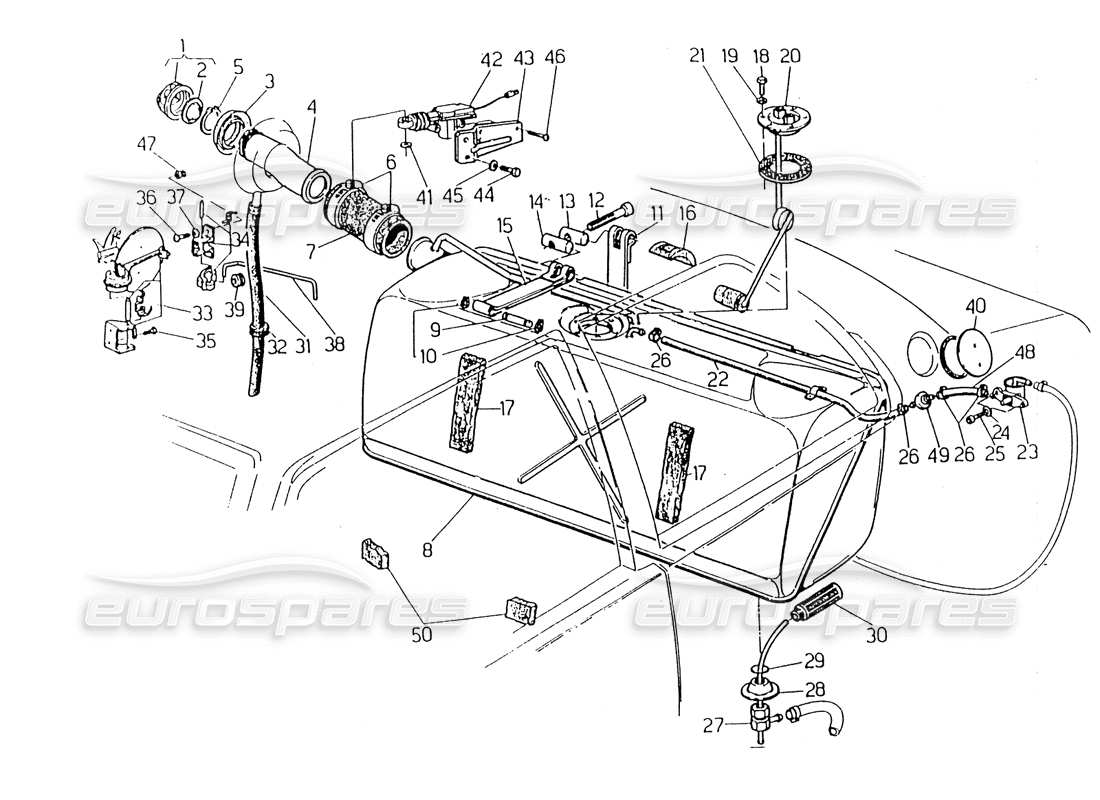

Maserati 418 / 4.24v / 430 Fuel Tank Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 319220354
FUEL TANK CAP
VALID FOR 51 / 65 3V / 65 4V / 66 / 67 / 68 NOT CATALYZED
from £9.57
from £9.57
This part replaces part number 319220007
# 002
MPN: 329232355
GASKET
VALID FOR 53 / 58 / 59 / 62 / 69 / 77 / 78 / 79 CATALYZED
from £10.16
from £10.16
# 003
MPN: 319250411
SEAL RING
VALID FOR 53 / 58 / 59 / 62 / 69 / 77 / 78 / 79 CATALYZED
from £3.93
from £3.93
This part replaces part number 329232410 - and 1 more. Click to view details
# 004
MPN: 329232117
FUEL INLET
VALID FOR 51 / 53 / 65 3V / 65 4V / 67 / 68 / NOT CATALYZED
from £13.19
from £13.19
# 004
MPN: 329232118
FUEL INLET
from £16.22
from £16.22
This part replaces part number 319220115
# 005
MPN: 151700500
SNAP RING
VALID FOR 53 / 58 / 59 / 62 / 69 / 77 / 78 / 79 CATALYZED
# 006
MPN: 186404087
CLAMP
Supersession
Supersession
# 007
MPN: 319220383
SLEEVE, FUEL INLET
from £4.14
from £4.14
This part replaces part number 319220382
# 007
MPN: 329232383
SLEEVE
from £43.91
from £43.91
# 008
MPN: 319220005
FUEL TANK
from £204.72
from £204.72
This part replaces part number 319220103
# 009
MPN: 30921336
PIN
from £3.61
from £3.61
# 010
MPN: 150800050
SNAP RING
# 011
MPN: 319220106
FUEL TANK LOWER FASTENING STRIP
from £7.70
from £7.70
# 012
MPN: 53921333
SCREW
from £1.85
from £1.85
# 013
MPN: 53921331
STRIP PIN
from £1.54
from £1.54
# 014
MPN: 53921332
STRIP PIN
from £2.31
from £2.31
# 015
MPN: 319220385
TANK FASTENING UPPER STRIP
from £6.77
from £6.77
# 016
MPN: 319220337
STRIP RETAINING PAD
from £1.93
from £1.93
# 017
MPN: 319220398
GASKET
Supersession
Supersession
# 018
MPN: 53361308
SCREW
Supersession
Supersession
# 019
MPN: 136220043
FLAT WASHER
# 020
MPN: 313620111
FUEL LEVEL GAUGE
from £52.98
from £52.98
# 021
MPN: 33331300
GASKET
from £1.93
from £1.93
# 022
MPN: 319220389
PIPING
from £5.40
from £5.40
# 023
MPN: 319220102
CHECK VALVE FOR VEHICLE TURNOVER
Supersession
Supersession
# 024
MPN: 163030050
FLAT WASHER
# 025
MPN: 119142160
SCREW
from £0.84
from £0.84
# 026
MPN: 30921110
CLAMP
# 027
MPN: 319220017
UNION
from £7.85
from £7.85
# 028
MPN: 319220362
GASKET
from £1.07
from £1.07
# 029
MPN: 319220315
RUBBER GASKET
from £0.68
from £0.68
# 030
MPN: 319220107
FUEL FILTER
from £1.13
from £1.13
# 031
MPN: 319220360
DRAIN PIPE
# 032
MPN: 319220361
GROMMET
from £2.31
from £2.31
# 033
MPN: 312550143
FUEL FLAP
from £2.95
from £2.95
This part replaces part number 312550516
# 034
MPN: 312520144
RATCHET
from £5.54
from £5.54
# 035
MPN: 167570512
SCREW
from £1.54
from £1.54
# 036
MPN: 119142160
SCREW
from £0.84
from £0.84
# 037
MPN: 135900043
FLAT WASHER
from £1.07
from £1.07
This part replaces part number 14496207
# 038
MPN: 322520520
CONTROL TIE ROD
from £0.63
from £0.63
# 039
MPN: 30211310
FAIRLEAD
from £1.05
from £1.05
# 040
MPN: 312550515
ESCUTCHEON HOLDING PLATE
from £1.07
from £1.07
This part replaces part number 312520515
# 041
MPN: 53451389
SPRING CLIP
from £1.07
from £1.07
# 042
MPN: 323320195
MOTOR ACTUATOR
from £27.47
from £27.47
This part replaces part number 313320195
# 043
MPN: 313320196
SUPPORT
from £1.54
from £1.54
# 044
MPN: 101205010
SCREW
# 045
MPN: 135700050
LOCK WASHER
from £1.07
from £1.07
# 046
MPN: 119148160
SCREW
# 047
MPN: 312520499
NUT SCREW
from £0.68
from £0.68
# 048
MPN: 319220390
SLEEVE
# 049
MPN: 319220134
LIMITING VALVE
Supersession
Supersession
# 050
MPN: 319220399
FELT PAD
Supersession
Supersession
