maserati 418 / 4.24v / 430 clutch for gearbox getrag parts diagram

008 - Clutch for Gearbox Getrag

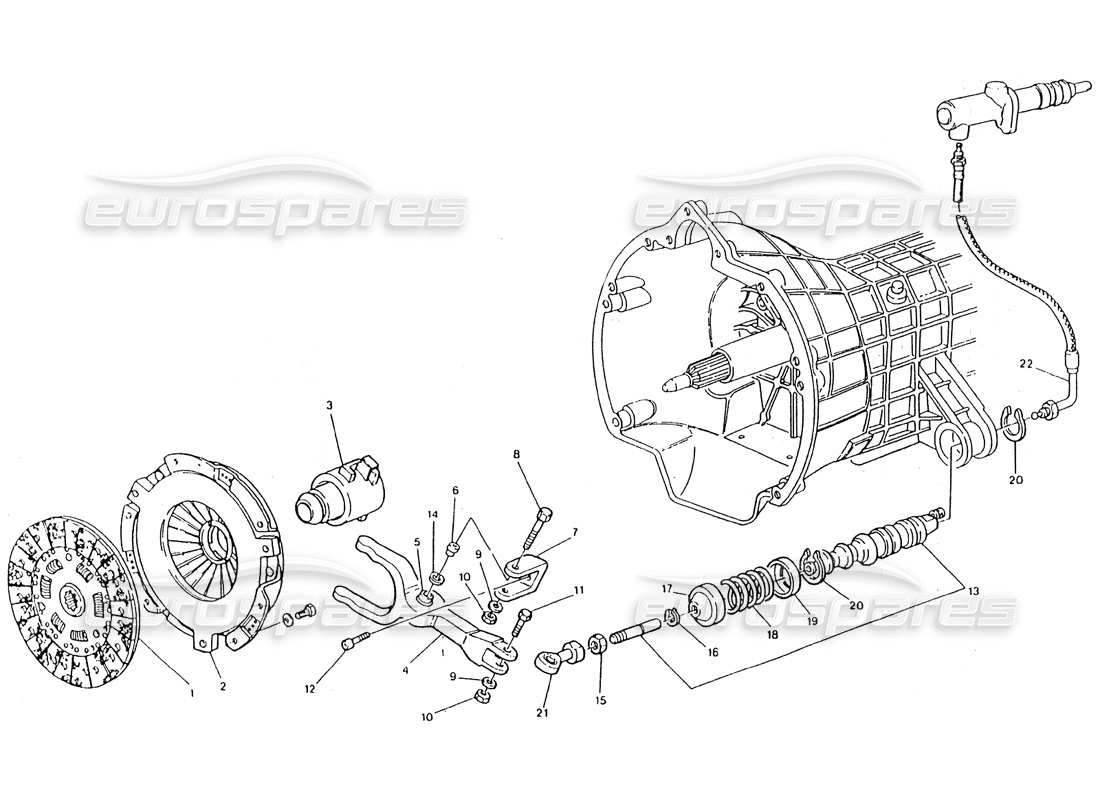

Maserati 418 / 4.24v / 430 Clutch for Gearbox Getrag Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 324620112
      CLUTCH DISC
      230 mm
      from £98.66
      from £98.66
      # 002
      MPN: 394650102
      CLUTCH DEVICE
      VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
      from £449.95
      from £449.95
      This part replaces part number 394650101
      # 003
      MPN: 384601108

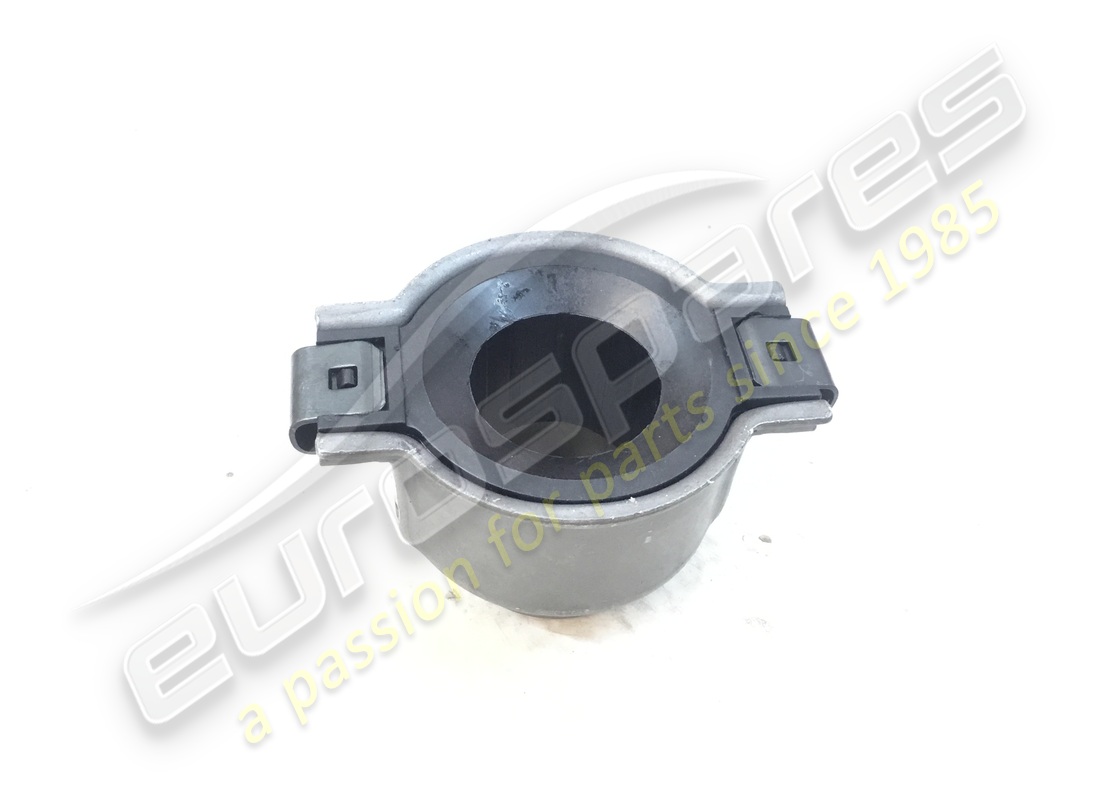

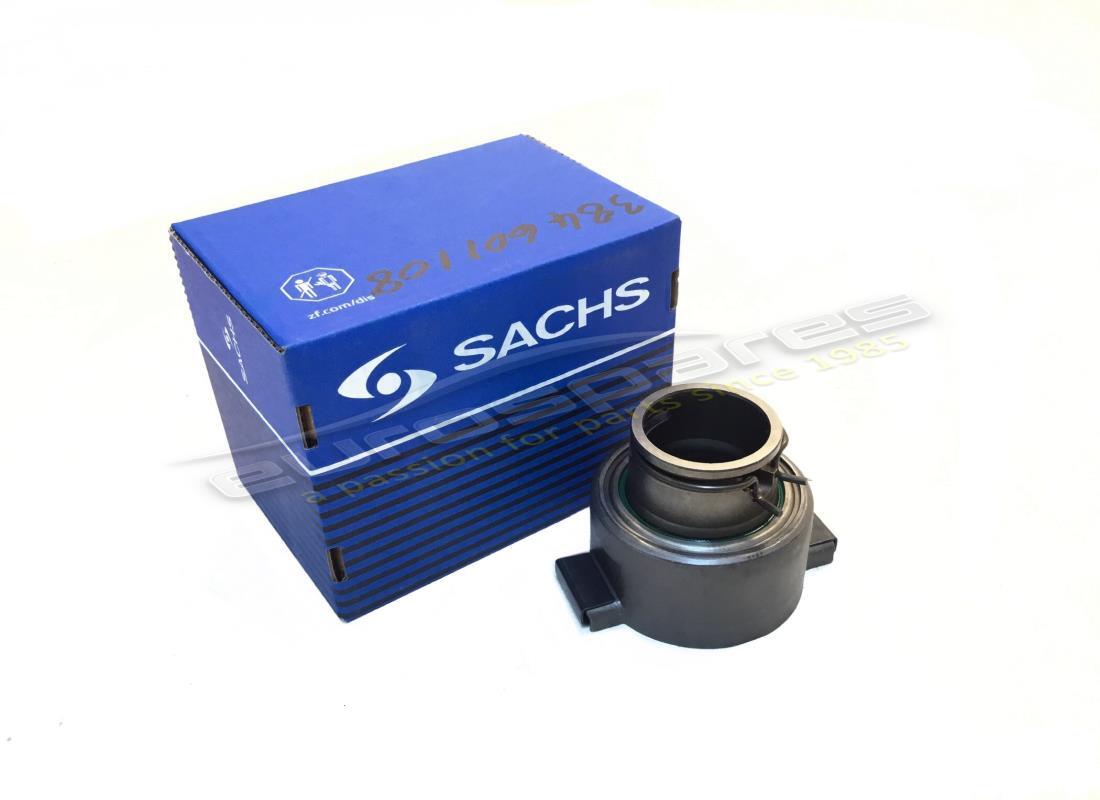

      Clutch Bearing
      from £380.96
      from £380.96
      This part replaces part number 384600108
      # 004
      MPN: 324653318
      CLUTCH LEVER
      VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
      Supersession
      Supersession
      # 005
      MPN: 324653320
      BALL JOINT
      VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
      from £19.35
      from £19.35
      # 006
      MPN: 324653329
      BUSH
      VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
      from £3.74
      from £3.74
      # 007
      MPN: 324653328
      FORK
      VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
      from £3.74
      from £3.74
      # 008
      MPN: 324653330
      SCREW
      VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
      from £6.58
      from £6.58
      # 009
      MPN: 135100084
      WASHER
      VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
      # 010
      MPN: 128350080
      SELFLOCK1NG NUT
      VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
      Supersession
      Supersession
      # 011
      MPN: 328253324
      SCREW
      VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
      # 012
      MPN: 108010025
      SCREW
      VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
      # 013
      MPN: 328253105
      CLUTCH CYLINDER
      VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
      Supersession
      Supersession
      # 014
      MPN: 151700260
      STOP RING
      VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
      # 015
      MPN: 125300080
      NUT
      VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
      # 016
      MPN: 150800080
      SNAP RING
      VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
      # 017
      MPN: 328253333
      FRONT CUP
      VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
      from £38.08
      from £38.08
      # 018
      MPN: 328253331
      SPRING
      VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
      from £3.98
      from £3.98
      # 019
      MPN: 328253332
      CUP
      VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
      from £5.23
      from £5.23
      # 020
      MPN: 152100350
      SNAP RING
      VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
      # 021
      MPN: 324653326
      BALL JOINT
      VALID FOR 65 3V / 65 4V / 67 / 69 / 77 / 79
      from £15.78
      from £15.78
      # 022
      MPN: 328253112
      CLUTCH PUMP CONNECTING HOSE
      VALID FOR 53 / 58 / 62
      from £29.02
      from £29.02
      # 022
      MPN: 398270112
      CLUTCH PUMP CONNECTING HOSE
      VALID FOR 65 3V / 65 4V / 67 / 69 / 77 / 79
      from £46.88
      from £46.88
