maserati 418 / 4.24v / 430 gearbox, getrag parts diagram

009 - Gearbox, Getrag

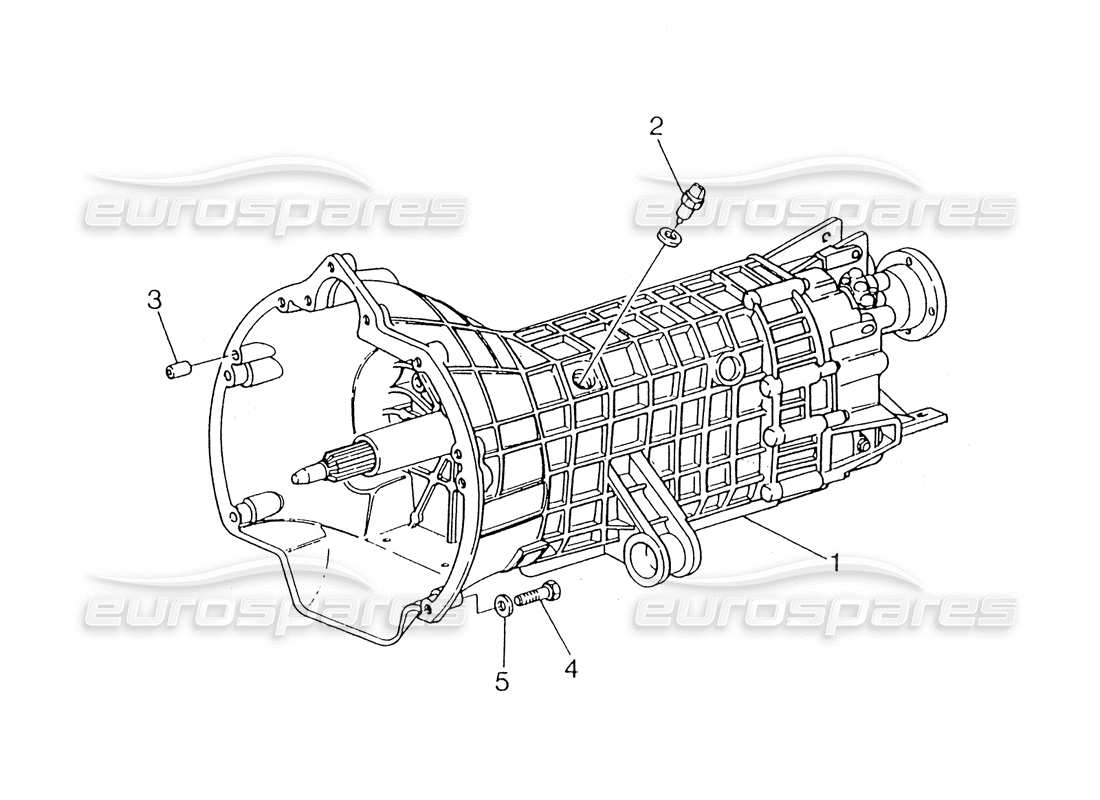

Maserati 418 / 4.24v / 430 Gearbox, Getrag Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 324853006
GEARBOX ASSY
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
from £6,874.65
from £6,874.65
Maserati PART 324853006 Genuine Maserati Part - New (to order)
# 002
MPN: 323353131
REVERSE GEAR SWITCH
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
from £12.44
from £12.44
REVERSE GEAR SWITCH Genuine Maserati Part - New (to order)
# 003
MPN: 310420311
DOWEL
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
from £10.84
from £10.84
CENTRING DOWEL D.12X8.5X20 Genuine Maserati Part - New In stock
# 004
MPN: 100810040
SCREW
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
from £1.37
from £1.37
SCREW D= 10X1.5X40 Genuine Maserati Part - New (to order)
# 005
MPN: 138410100
WASHER
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
Maserati PART 138410100 Genuine Maserati Part - New (to order)
