maserati 418 / 4.24v / 430 gearbox, getrag - externals controls parts diagram

009.1 - Gearbox, Getrag - Externals Controls

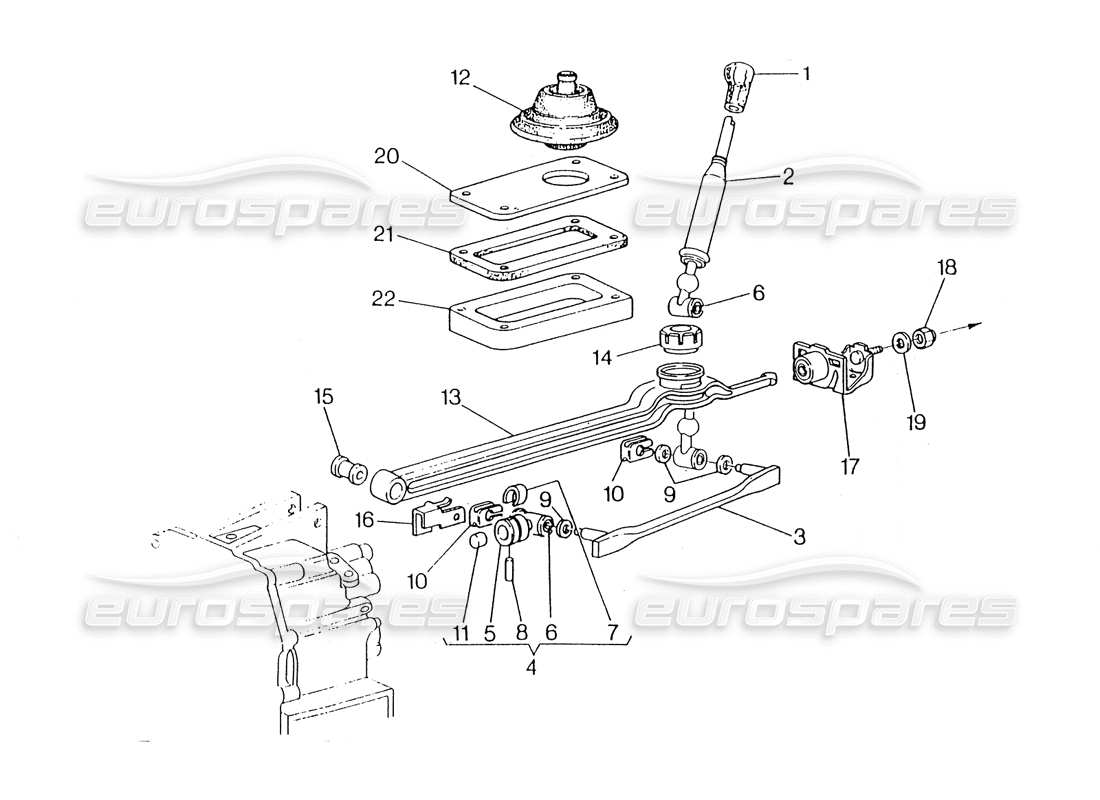

Maserati 418 / 4.24v / 430 Gearbox, Getrag - Externals Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 325253103
KNOB GEARBOX LEVER
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
from £26.42
from £26.42
# 002
MPN: 325253172
CONTROL LEVER
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
Supersession
Supersession
# 003
MPN: 325253150
GEARSHIFT
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
from £82.19
from £82.19
# 004
MPN: 325253176
ARTICULATION
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
from £422.12
from £422.12
# 005
-
BALL JOINT FOR ROD
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
# 006
-
BUSH
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
# 007
-
STOP RING
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
# 008
-
PIN
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
# 009
MPN: 325253564
WASHER
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
from £1.47
from £1.47
# 010
MPN: 325253572
CLIPS
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
from £1.08
from £1.08
# 011
-
DAMPER FOR BALL JOINT
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
# 012
MPN: 325253300
GEARSHIFT LEVER BOOT
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
from £20.64
from £20.64
# 013
MPN: 325253566
LEVER
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
from £6.23
from £6.23
# 014
MPN: 325253569
NYLON BUSH
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
from £11.79
from £11.79
# 015
MPN: 325253568
BUSH
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
from £9.63
from £9.63
# 016
MPN: 325253178
PIN WITH CLIPS
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
from £14.11
from £14.11
# 017
MPN: 325253180
SUPPORT
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
from £13.10
from £13.10
# 018
MPN: 128350080
SELF LOCKING NUT
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
Supersession
Supersession
# 019
MPN: 135100004
WASHER
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
# 020
MPN: 395250301
Frame
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
from £10.09
from £10.09
# 021
MPN: 315232407
GASKET
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
from £1.92
from £1.92
# 022
MPN: 325253302
SPONGE RUBBER PROTECTION
VALID FOR 53 / 58 / 62 / 65 3V / 65 4V / 67 / 69 / 77 / 79
from £4.63
from £4.63
