010.4 - Gearbox, ZF-Layshaft

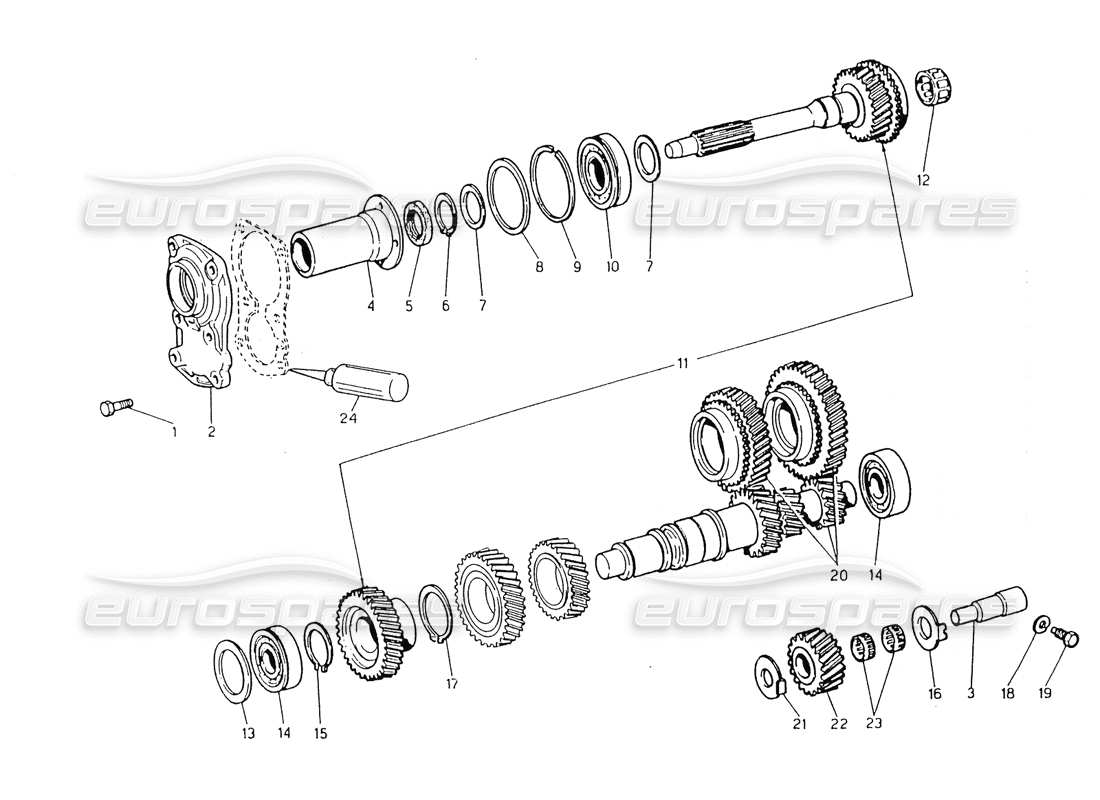

Maserati 418 / 4.24v / 430 Gearbox, ZF-Layshaft Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 315020384
SCREW
Valid for 51
from £1.85
from £1.85
# 002
MPN: 315020381
CENTERING FLANGE
Valid for 51
from £42.96
from £42.96
# 003
MPN: 315020465
PIN
Valid for 51
from £3.24
from £3.24
# 004
MPN: 315020383
GUIDE
Valid for 51
from £12.40
from £12.40
# 005
MPN: 315020111
SEAL RING
Valid for 51
from £22.95
from £22.95
# 006
MPN: 315020303
RETAINING RING (2)
Valid for 51
from £0.69
from £0.69
# 007
MPN: 315020388
THRUST RING (1,5)
Valid for 51
from £1.31
from £1.31
# 007
MPN: 315020389
THRUST RING (1,4)
Valid for 51
from £2.55
from £2.55
# 007
MPN: 315020390
THRUST RING (1,3)
Valid for 51
# 007
MPN: 315020391
THRUST RING (1,2)
Valid for 51
from £2.55
from £2.55
# 007
MPN: 315020392
THRUST RING (1,1)
Valid for 51
from £2.55
from £2.55
# 007
MPN: 315020393
THRUST RING (1,0)
Valid for 51
from £2.55
from £2.55
# 007
MPN: 315020394
THRUST RING (0,9)
Valid for 51
from £1.31
from £1.31
# 007
MPN: 315020395
THRUST RING (0,8)
Valid for 51
from £2.55
from £2.55
# 007
MPN: 315020396
THRUST RING (0,7)
Valid for 51
from £2.55
from £2.55
# 007
MPN: 315020397
THRUST RING (0,6)
Valid for 51
from £2.55
from £2.55
# 007
MPN: 315020398
THRUST RING (0,5)
Valid for 51
from £1.31
from £1.31
# 008
MPN: 314820341
THRUST RING (1)
Valid for 51
from £3.55
from £3.55
# 008
MPN: 314820342
THRUST RING (0,9)
Valid for 51
from £3.55
from £3.55
# 008
MPN: 314820343
THRUST RING (0,8)
Valid for 51
from £3.55
from £3.55
# 008
MPN: 314820344
THRUST RING (0,7)
Valid for 51
from £3.55
from £3.55
# 008
MPN: 314820345
THRUST RING (0,6)
Valid for 51
from £3.55
from £3.55
# 008
MPN: 314820346
THRUST RING (0,5)
Valid for 51
from £3.55
from £3.55
# 008
MPN: 314820347
THRUST RING (0,4)
Valid for 51
from £3.55
from £3.55
# 008
MPN: 315020409
THRUST RING (0,45)
Valid for 51
from £11.28
from £11.28
# 008
MPN: 315020410
THRUST RING (0,55)
Valid for 51
from £11.28
from £11.28
# 008
MPN: 315020411
THRUST RING (0,65)
Valid for 51
from £11.28
from £11.28
# 008
MPN: 315020412
THRUST RING (0,75)
Valid for 51
from £5.09
from £5.09
# 008
MPN: 315020413
THRUST RING (0,85)
Valid for 51
from £11.28
from £11.28
# 008
MPN: 315020414
THRUST RING (0,95)
Valid for 51
from £5.09
from £5.09
# 009
MPN: 315020341
SPRING
Valid for 51
from £1.55
from £1.55
# 010
MPN: 315020112
BEARING
Valid for 51
from £120.49
from £120.49
# 018
MPN: 315020458
SPRING WASHER
Valid for 51
from £0.77
from £0.77
# 019
MPN: 315020459
SCREW
Valid for 51
from £2.47
from £2.47
# 020
MPN: 315020010
LAYSHAFT WITH 1ST AND 2ND GEAR
Valid for 51
from £598.17
from £598.17
# 021
MPN: 315020463
LOCKING PLATE I
Valid for 51
from £6.04
from £6.04
# 022
MPN: 315020464
REVERSE GEAR
Valid for 51
from £38.44
from £38.44
# 023
MPN: 315020103
ROLLER BEARING
Valid for 51
from £5.43
from £5.43
# 024
MPN: 315020385
JOINTING COMPOUNDCARTRIDGE
Valid for 51
from £19.01
from £19.01
