maserati 418 / 4.24v / 430 automat. transm., zf-externals controls parts diagram

011.1 - Automat. Transm., ZF-Externals Controls

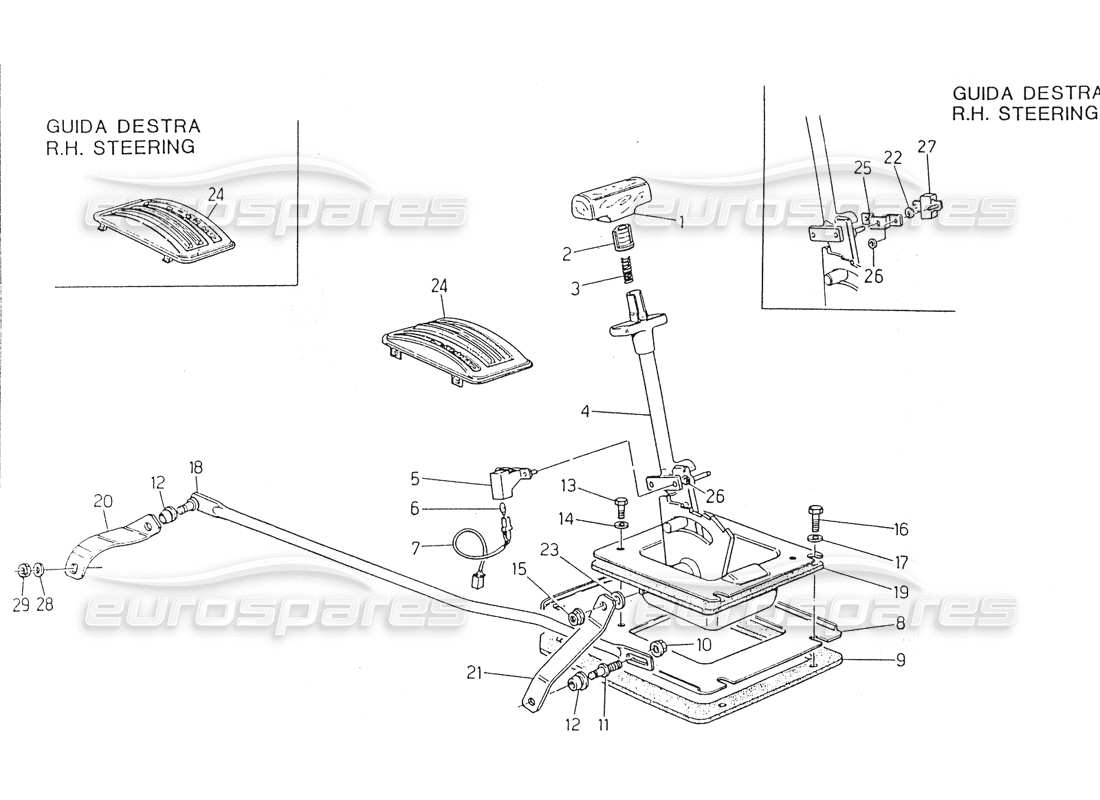

Maserati 418 / 4.24v / 430 Automat. Transm., ZF-Externals Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 315255101
TRANSMISSION KNOB
VALID FOR 59 / 66 / 68 / 78
Supersession
Supersession
# 002
MPN: 315232417
BUSH
VALID FOR 59 / 66 / 68 / 78
from £0.94
from £0.94
This part replaces part number 375206313
# 003
MPN: 315232418
SPRING
VALID FOR 59 / 66 / 68 / 78
from £5.19
from £5.19
# 004
MPN: 315255016
GEAR SELECTOR
VALID FOR 59 / 66 / 68 / 78
from £117.42
from £117.42
# 005
MPN: 313155143
LAMP HOLDER BODY
VALID FOR 59 / 66 / 68 / 78
from £1.10
from £1.10
# 006
MPN: 87760012
BULB 12V-1.2W
VALID FOR 59 / 66 / 68 / 78
from £0.48
from £0.48
# 007
MPN: 313155147
LAMP HOLDER
VALID FOR 59 / 66 / 68 / 78
from £6.47
from £6.47
# 008
MPN: 315232151
PLATE
VALID FOR 59 / 66 / 68 / 78
from £2.23
from £2.23
# 009
MPN: 315232407
GASKET
VALID FOR 59 / 66 / 68 / 78
from £1.97
from £1.97
# 010
MPN: 128350080
SELFLOCK1NG NUT
VALID FOR 59 / 66 / 68 / 78
Supersession
Supersession
# 011
MPN: 315255401
PIN
VALID FOR 59 / 66 / 68 / 78
from £65.77
from £65.77
# 012
MPN: 315232402
BUSH
VALID FOR 59 / 66 / 68 / 78
from £15.08
from £15.08
This part replaces part number 325255402
# 013
MPN: 101205012
SCREW
VALID FOR 59 / 66 / 68 / 78
# 014
MPN: 136110360
WASHER
VALID FOR 59 / 66 / 68 / 78
# 015
MPN: 128350080
SELF LOCKING NUT
VALID FOR 59 / 66 / 68 / 78
Supersession
Supersession
# 016
MPN: 167200625
SCREW
VALID FOR 59 / 66 / 68 / 78
from £2.53
from £2.53
# 017
MPN: 169020406
WASHER
VALID FOR 59 / 66 / 68 / 78
from £0.79
from £0.79
# 018
MPN: 315255150
ROD, AUTOMATIC TRANSM. CONTROL
VALID FOR 59 / 66 / 68 / 78
from £24.87
from £24.87
# 019
MPN: 315232408
GASKET
VALID FOR 59 / 66 / 68 / 78
from £1.58
from £1.58
# 020
MPN: 315255405
LEVER
VALID FOR 59 / 66 / 68 / 78
from £6.55
from £6.55
# 021
MPN: 315255400
LEVER
VALID FOR 59 / 66 / 68 / 78
from £6.08
from £6.08
# 022
MPN: 30551347
SPRING
minimum order quantity = 10
from £0.71
from £0.71
# 023
MPN: 315255409
WASHER
VALID FOR 59 / 66 / 68 / 78
# 024
MPN: 328355282
MOULDING, AUTOM. TRANSM.
valid for LHD
from £25.42
from £25.42
This part replaces part number 318355282
# 024
MPN: 328371282
MOULDING, AUTOM. TRANSM.
VALID FOR 59 / 66 / 68 / 78
from £2.26
from £2.26
# 025
MPN: 315271415
BRACKET, LAMP HOLDER
VALID FOR 59 / 66 / 68 / 78
# 026
MPN: 163560030
SPRING
VALID FOR 59 / 66 / 68 / 78
# 027
MPN: 313171146
LAMP HOLDER BODV
VALID FOR 59 / 66 / 68 / 78
from £2.61
from £2.61
# 028
MPN: 315255411
WASHER
VALID FOR 59 / 66 / 68 / 78
# 029
MPN: 315255410
NUT
VALID FOR 59 / 66 / 68 / 78
from £1.10
from £1.10
