maserati 418 / 4.24v / 430 automatic transmission zf-oil cooler parts diagram

011.2 - Automatic Transmission ZF-Oil Cooler

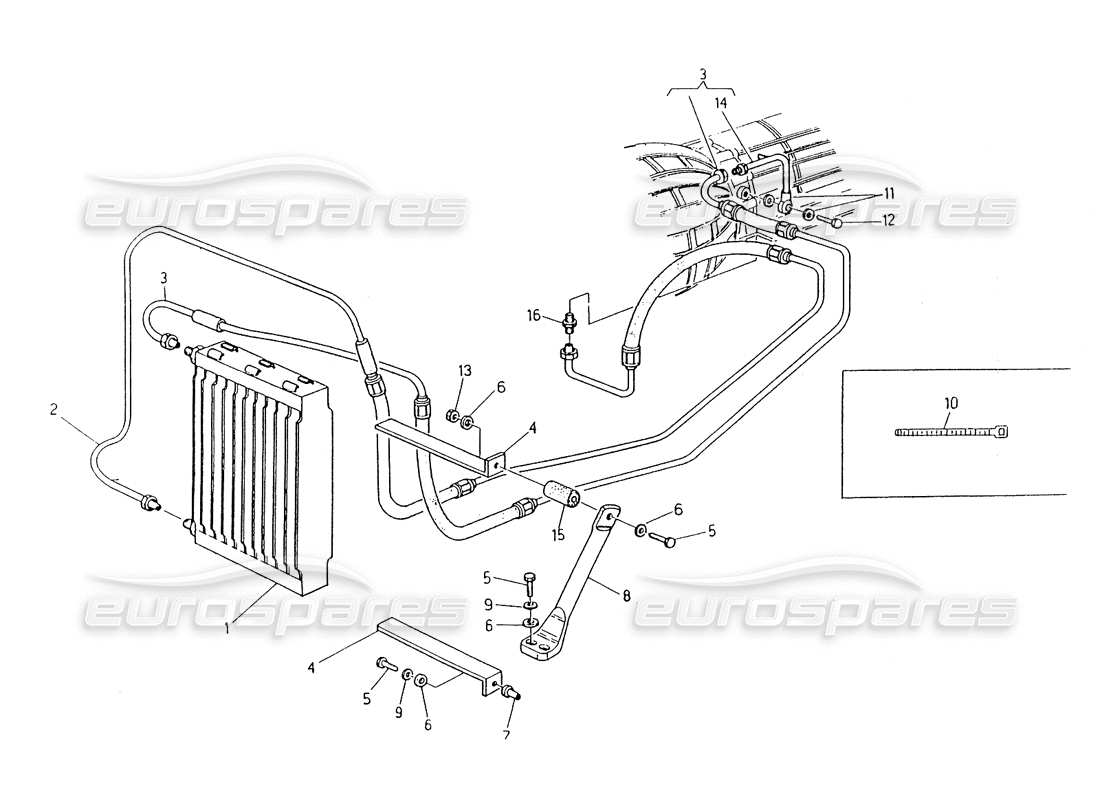

Maserati 418 / 4.24v / 430 Automatic Transmission ZF-Oil Cooler Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 311855106
OIL COOLER
VALID FOR 59 / 66 / 68 / 78
from £113.69
from £113.69
# 002
MPN: 311855109
OIL DELIVERY PIPE
VALID FOR 59 / 66 / 68 / 78
from £90.77
from £90.77
# 003
MPN: 311855108
OIL RETURN PIPE
VALID FOR 59 / 66 / 68 / 78
from £90.77
from £90.77
# 004
MPN: 311855333
BRACKET, OIL COOLER SUPPORT
VALID FOR 59 / 66 / 68 / 78
from £6.44
from £6.44
# 005
MPN: 101206022
SCREW
VALID FOR 59 / 66 / 68 / 78
# 006
MPN: 136110066
FLAT WASHER
VALID FOR 59 / 66 / 68 / 78
# 007
MPN: 315220303
BUSHING
VALID FOR 59 / 66 / 68 / 78
from £0.70
from £0.70
# 008
MPN: 311855111
ROD
VALID FOR 59 / 66 / 68 / 78
from £18.60
from £18.60
# 009
MPN: 135600060
SPRING WASHER
VALID FOR 59 / 66 / 68 / 78
from £0.78
from £0.78
# 010
MPN: 312130302
PLASTIC CLAMP
VALID FOR 59 / 66 / 68 / 78
# 011
MPN: 311855316
COPPER GASKET
VALID FOR 59 / 66 / 68 / 78
from £1.94
from £1.94
# 012
MPN: 311832343
CONNECTOR
VALID FOR 59 / 66 / 68 / 78
from £1.55
from £1.55
# 013
MPN: 128350060
SELF LOCKING NUT
VALID FOR 59 / 66 / 68 / 78
# 014
-
CONNECTOR
# 015
MPN: 311855310
SPACER
VALID FOR 59 / 66 / 68 / 78
from £1.16
from £1.16
# 016
MPN: 311855344
NIPPLE
VALID FOR 59 / 66 / 68 / 78
from £6.44
from £6.44
