012.1 - Propeller Shaft, ZF

Maserati 418 / 4.24v / 430 Propeller Shaft, ZF Parts Diagram

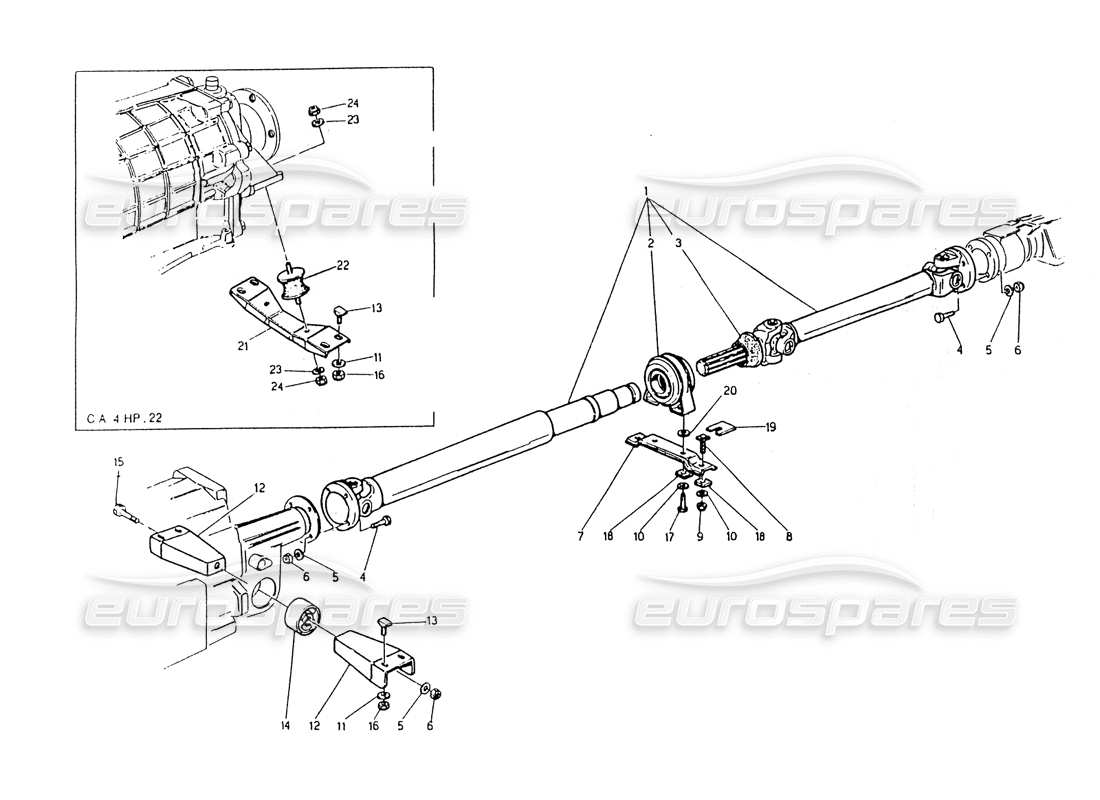

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 326020102
PROPELLER SHAFT ASSEMBLY, MAN. TRANSM.
VALID FOR 51 / 59 / 66 / 68 / 78
from £444.67
from £444.67
# 001
MPN: 326055102
PROPELLER SHAFT ASSEMBLY, AUT TRANSM 4HP
VALID FOR 59 / 66 / 68 / 78
from £411.39
from £411.39
# 002
MPN: 316020103
CENTRAL SUPPORT
VALID FOR 51 / 59 / 66 / 68 / 78
from £702.54
from £702.54
# 003
MPN: 316020306
Dust bellows
VALID FOR 51 / 59 / 66 / 68 / 78
from £4.76
from £4.76
# 004
MPN: 316020300
SCREW
VALID FOR 51 / 59 / 66 / 68 / 78
from £14.19
from £14.19
# 005
MPN: 138410100
WASHER
VALID FOR 51 / 59 / 66 / 68 / 78
# 006
MPN: 128360100
SELF LOCKING NUT
VALID FOR 51 / 59 / 66 / 68 / 78
# 007
MPN: 316020330
CROSS MEMBER
VALID FOR 51 / 59 / 66 / 68 / 78
from £4.76
from £4.76
# 008
MPN: 128350080
SELF LOCKING NUT
VALID FOR 51 / 59 / 66 / 68 / 78
Supersession
Supersession
# 008
MPN: 316020110
SCREW
VALID FOR 51 / 59 / 66 / 68 / 78
from £1.19
from £1.19
# 009
MPN: 138200080
WASHER
VALID FOR 51 / 59 / 66 / 68 / 78
# 010
MPN: 163020080
WASHER
VALID FOR 51 / 59 / 66 / 68 / 78
from £1.11
from £1.11
# 011
MPN: 314820302
CARRIER
VALID FOR 51 / 59 / 66 / 68 / 78
from £3.04
from £3.04
# 012
MPN: 314820303
SCREW
VALID FOR 51 / 59 / 66 / 68 / 78
from £12.77
from £12.77
# 013
MPN: 314820100
SILENT BLOC
VALID FOR 51 / 59 / 66 / 68 / 78
from £54.50
from £54.50
# 014
MPN: 100810070
SCREW
VALID FOR 51 / 59 / 66 / 68 / 78
# 015
MPN: 128350080
SELF LOCKING NUT
VALID FOR 51 / 59 / 66 / 68 / 78
Supersession
Supersession
# 016
MPN: 101208020
SCREW
VALID FOR 51 / 59 / 66 / 68 / 78
# 017
MPN: 101208025
SCREW
VALID FOR 51 / 59 / 66 / 68 / 78
# 018
MPN: 316020334
PLATE
VALID FOR 51 / 59 / 66 / 68 / 78
from £1.35
from £1.35
# 019
MPN: 316020336
PLATE
VALID FOR 51 / 59 / 66 / 68 / 78
from £0.71
from £0.71
# 020
MPN: 316055335
SPACER
VALID FOR 51 / 59 / 66 / 68 / 78
# 021
MPN: 314855305
BRACKET
VALID FOR 51 / 59 / 66 / 68 / 78
from £3.98
from £3.98
# 022
MPN: 324853120
SILENT BLOCK
VALID FOR 51 / 59 / 66 / 68 / 78
from £17.36
from £17.36
This part replaces part number 314855119 - and 1 more. Click to view details
# 023
MPN: 314855306
WASHER
VALID FOR 51 / 59 / 66 / 68 / 78
from £2.22
from £2.22
# 024
MPN: 128350080
SELF LOCKING NUT
VALID FOR 51 / 59 / 66 / 68 / 78
Supersession
Supersession
