013 - DIFFERENTIAL

Maserati 418 / 4.24v / 430 Differential Parts Diagram

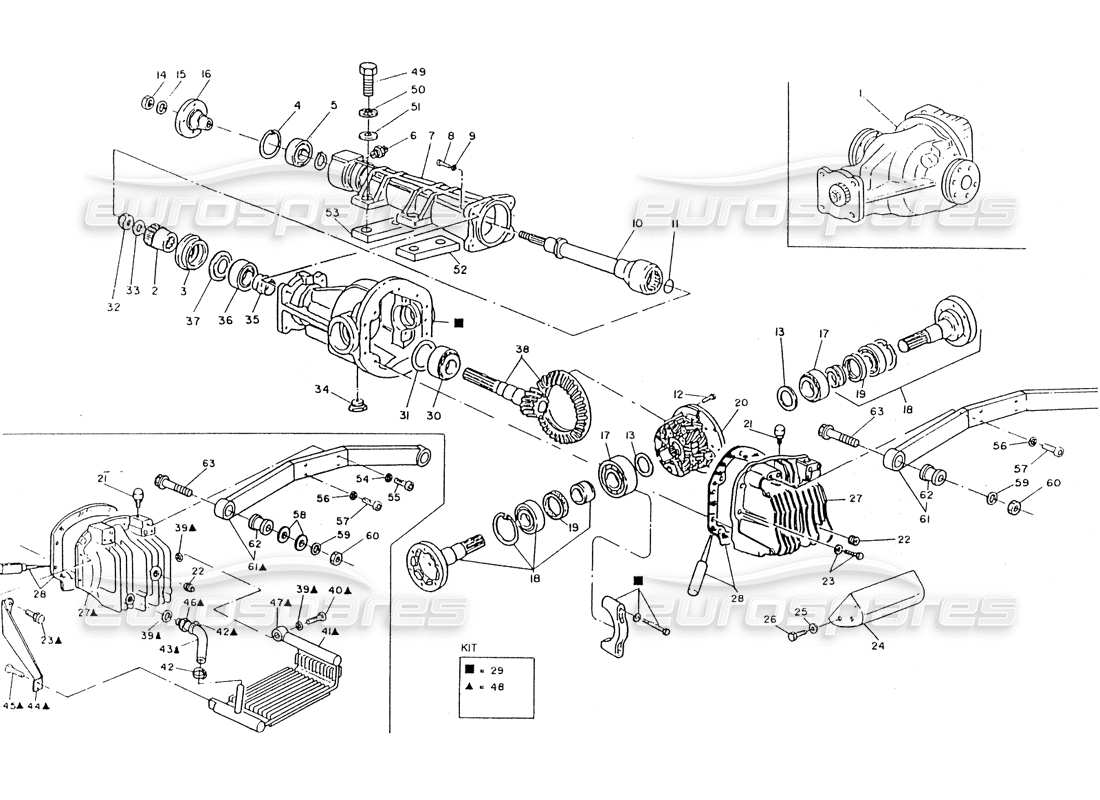

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Price
                                                                        # 001
                                                                        MPN: 316259005
                                                                        DIFFERENTIAL UNIT, R=3,77 WITH MOD1F. COVER
                                                                        VALID FOR 59 / 68 / 78
                                                                        from £1,035.40
                                                                        from £1,035.40
                                                                        This part replaces part number 326253009 - and 1 more. Click to view details
                                                                        # 001
                                                                        MPN: 326253009
                                                                        DIFFERENTIAL UNIT, R=3,77
                                                                        VALID FOR 51 / 53 / 65 3V / 65 4V / 66
                                                                        Supersession
                                                                        Supersession
                                                                        # 001
                                                                        MPN: 396250004
                                                                        DIFFERENTIAL UNIT, R=3,31 WITH MODIF. COVER
                                                                        VALID FOR 58 / 62 / 67 / 69 / 77 / 79
                                                                        Supersession
                                                                        Supersession
                                                                        # 002
                                                                        MPN: 316220347
                                                                        GROOVED UNION
                                                                        from £118.34
                                                                        from £118.34
                                                                        This part replaces part number 316220342
                                                                        # 003
                                                                        MPN: 316220121
                                                                        SEAL RING
                                                                        from £80.42
                                                                        from £80.42
                                                                        # 005
                                                                        MPN: 178402030
                                                                        BEARING
                                                                        from £15.71
                                                                        from £15.71
                                                                        # 007
                                                                        MPN: 316255306
                                                                        SUPPORT
                                                                        BEFORE CHANGE
                                                                        from £26.97
                                                                        from £26.97
                                                                        # 007
                                                                        MPN: 326253305
                                                                        SUPPORT
                                                                        AFTER CHANGE
                                                                        Supersession
                                                                        Supersession
                                                                        This part replaces part number 316250305
                                                                        # 008
                                                                        MPN: 101212035
                                                                        SCREW
                                                                        # 009
                                                                        MPN: 138420120
                                                                        LOCK WASHER
                                                                        Supersession
                                                                        Supersession
                                                                        # 010
                                                                        MPN: 366202317
                                                                        SHAFT
                                                                        from £1,173.15
                                                                        from £1,173.15
                                                                        This part replaces part number 396250316
                                                                        # 012
                                                                        MPN: 316220357
                                                                        SCREW
                                                                        from £1.93
                                                                        from £1.93
                                                                        # 013
                                                                        MPN: 316220353
                                                                        003 SHIM WASHER
                                                                        from £1.63
                                                                        from £1.63
                                                                        # 013
                                                                        MPN: 316220354
                                                                        005 SHIM WASHER
                                                                        from £105.09
                                                                        from £105.09
                                                                        # 013
                                                                        MPN: 316220355
                                                                        010 SHIM WASHER
                                                                        from £1.63
                                                                        from £1.63
                                                                        # 013
                                                                        MPN: 316220356
                                                                        030 SHIM WASHER
                                                                        from £2.17
                                                                        from £2.17
                                                                        # 014
                                                                        MPN: 396250522
                                                                        RING NUT
                                                                        from £3.64
                                                                        from £3.64
                                                                        # 016
                                                                        MPN: 396250311
                                                                        FLANGE
                                                                        from £68.23
                                                                        from £68.23
                                                                        # 017
                                                                        MPN: 316220126
                                                                        BEARING
                                                                        from £129.62
                                                                        from £129.62
                                                                        # 018
                                                                        MPN: 316220013
                                                                        PROPELLER SHAFT COMPLETE ASSY
                                                                        from £338.28
                                                                        from £338.28
                                                                        # 019
                                                                        MPN: 316220125
                                                                        SEAL RING
                                                                        from £8.65
                                                                        from £8.65
                                                                        # 020
                                                                        MPN: 326256010
                                                                        QUAIFE DIFFERENTIAL CASING
                                                                        from £1,383.03
                                                                        from £1,383.03
                                                                        # 021
                                                                        MPN: 316220107
                                                                        BREATHER VALVE
                                                                        from £17.68
                                                                        from £17.68
                                                                        # 022
                                                                        MPN: 316220362
                                                                        LEVEL PLUG
                                                                        Supersession
                                                                        Supersession
                                                                        # 023
                                                                        MPN: 316220364
                                                                        SCREW AND WASHER
                                                                        from £1.31
                                                                        from £1.31
                                                                        # 024
                                                                        MPN: 316220327
                                                                        AIR DEFLECTOR
                                                                        from £0.57
                                                                        from £0.57
                                                                        # 027
                                                                        MPN: 316220363
                                                                        COVER
                                                                        VALID FOR 51 / 53 / 65 3V / 65 4V / 66
                                                                        from £226.75
                                                                        from £226.75
                                                                        # 027
                                                                        MPN: 396250525
                                                                        COVER
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £241.69
                                                                        from £241.69
                                                                        # 028
                                                                        MPN: 316220365
                                                                        GASKET
                                                                        from £3.64
                                                                        from £3.64
                                                                        # 028
                                                                        MPN: 9441
                                                                        HYLOSIL SILICON
                                                                        from £15.85
                                                                        from £15.85
                                                                        # 029
                                                                        -
                                                                        DIFFERENTIAL CASING
                                                                        # 030
                                                                        MPN: 316220123
                                                                        BEARING
                                                                        from £121.24
                                                                        from £121.24
                                                                        # 031
                                                                        MPN: 316220348
                                                                        003 SHIM WASHER
                                                                        from £4.09
                                                                        from £4.09
                                                                        # 031
                                                                        MPN: 316220349
                                                                        005 SHIM WASHER
                                                                        from £4.56
                                                                        from £4.56
                                                                        # 031
                                                                        MPN: 316220350
                                                                        010 SHIM WASHER
                                                                        from £14.22
                                                                        from £14.22
                                                                        # 032
                                                                        MPN: 316220340
                                                                        SELF LOCKING NUT
                                                                        from £25.26
                                                                        from £25.26
                                                                        # 033
                                                                        MPN: 316220341
                                                                        WASHER
                                                                        from £1.31
                                                                        from £1.31
                                                                        # 034
                                                                        MPN: 316220346
                                                                        DRAINING PLUG
                                                                        from £18.32
                                                                        from £18.32
                                                                        This part replaces part number 316220362
                                                                        # 035
                                                                        MPN: 316220345
                                                                        SPACER
                                                                        from £2.47
                                                                        from £2.47
                                                                        # 036
                                                                        MPN: 316220122
                                                                        BEARING
                                                                        from £86.08
                                                                        from £86.08
                                                                        # 037
                                                                        MPN: 316220351
                                                                        SEAL RING
                                                                        from £23.78
                                                                        from £23.78
                                                                        # 038
                                                                        MPN: 316225025
                                                                        CROWN WHEEL AND PINION (R=3.31)
                                                                        VALID FOR 58 / 62 / 67 / 69 / 77 / 79
                                                                        from £769.42
                                                                        from £769.42
                                                                        # 038
                                                                        MPN: 326253025
                                                                        CROWN WHEEL AND PINION (R=3.77)
                                                                        VALID FOR 51 / 53 / 59 / 65 3V / 65 4V / 66
                                                                        from £573.93
                                                                        from £573.93
                                                                        # 039
                                                                        MPN: 396250545
                                                                        WASHER
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        # 040
                                                                        MPN: 396250543
                                                                        CAPSTAN SCREW
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £8.41
                                                                        from £8.41
                                                                        # 041
                                                                        MPN: 396250160
                                                                        RADIATOR
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        Supersession
                                                                        Supersession
                                                                        # 042
                                                                        MPN: 396250540
                                                                        CLAMP
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £1.55
                                                                        from £1.55
                                                                        # 043
                                                                        MPN: 396250537
                                                                        HOSE
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £45.79
                                                                        from £45.79
                                                                        # 044
                                                                        MPN: 396250538
                                                                        BRACKET
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        Supersession
                                                                        Supersession
                                                                        # 045
                                                                        MPN: 101208018
                                                                        SCREW
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        # 046
                                                                        MPN: 396250541

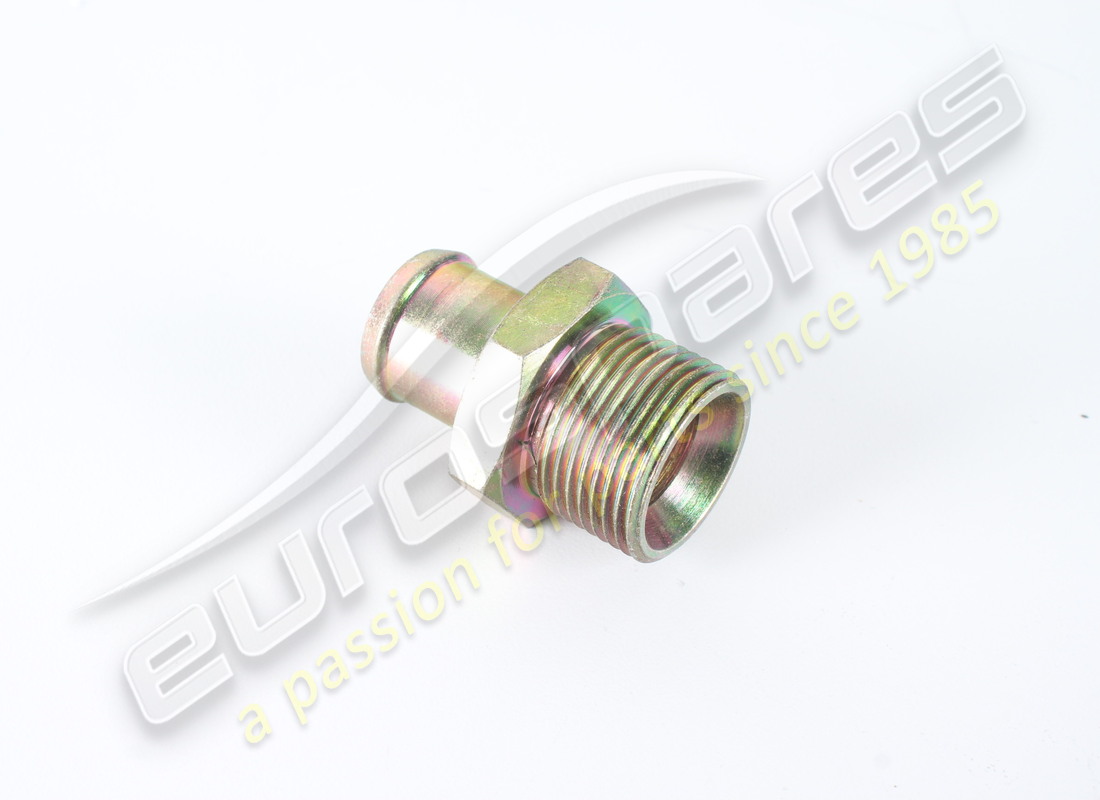

                                                                        UNION
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £26.92
                                                                        from £26.92
                                                                        # 047
                                                                        MPN: 396250546
                                                                        EYE UNION
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £5.85
                                                                        from £5.85
                                                                        # 048
                                                                        MPN: 396250876
                                                                        KIT, DIFFERENTIAL RADIATOR
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £622.46
                                                                        from £622.46
                                                                        # 049
                                                                        MPN: 101312035
                                                                        SCREW
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        # 050
                                                                        MPN: 138420120
                                                                        LOCK WASHER
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        Supersession
                                                                        Supersession
                                                                        # 051
                                                                        MPN: 14496601
                                                                        FLAT WASHER
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        Supersession
                                                                        Supersession
                                                                        # 052
                                                                        MPN: 316255506
                                                                        SPACER
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £13.13
                                                                        from £13.13
                                                                        # 053
                                                                        MPN: 316255504
                                                                        SPACER
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £39.40
                                                                        from £39.40
                                                                        # 054
                                                                        MPN: 43842
                                                                        SCREW
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        Supersession
                                                                        Supersession
                                                                        # 055
                                                                        MPN: 100810040
                                                                        SCREW
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £1.31
                                                                        from £1.31
                                                                        # 056
                                                                        MPN: 138410100
                                                                        WASHER
                                                                        VALID FOR 51 / 53 / 65 3V / 65 4V / 66
                                                                        # 056
                                                                        MPN: 51581
                                                                        SCREW
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        Supersession
                                                                        Supersession
                                                                        # 057
                                                                        MPN: 101210020
                                                                        SCREW
                                                                        VALID FOR 51 / 53 / 65 3V / 65 4V / 66
                                                                        # 057
                                                                        MPN: 108008090
                                                                        SCREW
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        # 058
                                                                        MPN: 396250508
                                                                        WASHER
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £5.10
                                                                        from £5.10
                                                                        # 059
                                                                        MPN: 136110110
                                                                        WASHER
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £2.17
                                                                        from £2.17
                                                                        # 059
                                                                        MPN: 346200334
                                                                        SPACER (1 MM)
                                                                        VALID FOR 51 / 53 / 65 3V / 65 4V / 66
                                                                        # 061
                                                                        MPN: 326256105
                                                                        BRACKET FOR REAR DIFFERENTIAL
                                                                        VALID FOR 51 / 53 / 65 3V / 65 4V / 66
                                                                        from £215.92
                                                                        from £215.92
                                                                        This part replaces part number 326256106 - and 1 more. Click to view details
                                                                        # 061
                                                                        MPN: 396250153
                                                                        BRACKET FOR REAR DIFFERENTIAL
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        Supersession
                                                                        Supersession
                                                                        # 062
                                                                        MPN: 346200101
                                                                        VIBRATION-DAMPING SUPPORT
                                                                        VALID FOR 51 / 53 / 65 3V / 65 4V / 66
                                                                        from £21.49
                                                                        from £21.49
                                                                        # 062
                                                                        MPN: 396250101
                                                                        VIBRATION-DAMPING SUPPORT
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £9.29
                                                                        from £9.29
                                                                        # 063
                                                                        MPN: 326656309
                                                                        SCREW
                                                                        from £2.85
                                                                        from £2.85
                                                                        # 1.5
                                                                        MPN: 396250516
                                                                        WASHER
                                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
