016 - Power Steering Unit, LH Steering

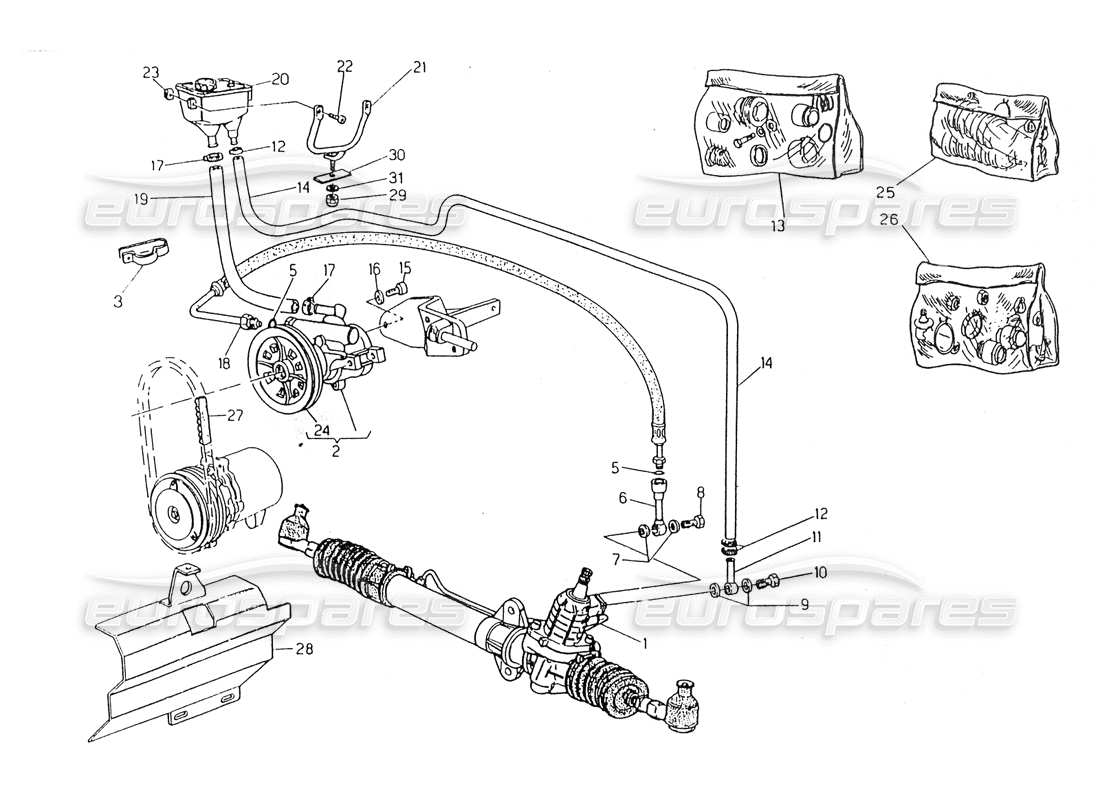

Maserati 418 / 4.24v / 430 Power Steering Unit, LH Steering Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 397850225
LHD POWER STEERING BOX (POST. MOD.)
Replaces 397850125
from £724.97
from £724.97
This part replaces part number 397850125
# 001
MPN: 397870225
RHD POWER STEERING ASSY,
from £492.42
from £492.42
This part replaces part number 317870125
# 002
MPN: 317832104
PUMP WITH PULLEY
Valid for 51
from £264.95
from £264.95
# 003
MPN: 317832390
BRAKET
Valid for 51
from £1.93
from £1.93
# 005
MPN: 192415108
0-RING
Valid for 51
from £1.28
from £1.28
# 006
MPN: 317832127
UNION PIPE
Valid for 51
Supersession
Supersession
# 007
MPN: 319220424
GASKET
Valid for 51
from £1.02
from £1.02
# 008
MPN: 317832380
UNION SCREW
Valid for 51
from £9.01
from £9.01
# 009
MPN: 317851388
COPPER GASKET
Valid for 51
from £1.07
from £1.07
# 010
MPN: 317851387
UNION SCREW
Valid for 51
Supersession
Supersession
# 011
MPN: 317851386
EYELET UNION
Valid for 51
from £5.76
from £5.76
# 012
MPN: 317832389
CLAMP
Valid for 51
from £1.93
from £1.93
# 013
MPN: 310232040
KIT FOR PIPE AND UNION REPLACEMENT
Valid for 51
from £31.70
from £31.70
# 014
MPN: 317832385
COUPLING, OIL RETURN
Valid for 51
Supersession
Supersession
# 015
MPN: 14306424
SCREW
Valid for 51
from £0.47
from £0.47
This part replaces part number 14306421
# 016
MPN: 138410080
SPRING WASHER
Valid for 51
# 017
MPN: 168403022
CLAMP
Valid for 51
# 018
MPN: 327853207
OIL DELIVERY PIPE, LH STEERING
Valid for 51
from £126.89
from £126.89
This part replaces part number 317832139
# 019
MPN: 317832370
SLEEVE
Valid for 51
Supersession
Supersession
# 020
MPN: 397850130
OIL TANK
Valid for 51
from £20.83
from £20.83
This part replaces part number 317853130
# 021
MPN: 397870131
TANK FIXING BRACKET
Valid for 51
from £13.92
from £13.92
# 022
MPN: 119148130
SCREW
Valid for 51
from £0.84
from £0.84
# 023
MPN: 163610050
SPRING CLIP
Valid for 51
from £0.47
from £0.47
# 024
-
PUMP BELT PULLEY
# 025
MPN: 390250080
KIT FOR BELLOWS AND CLAMP REPLACEMENT
Valid for 51
from £126.34
from £126.34
This part replaces part number 320250033
# 026
MPN: 320250034
Track Rod Ends
Track rod ends only
from £307.94
from £307.94
# 027
MPN: 317837372
POWER STEERING BELT
Valid for 51
from £12.50
from £12.50
# 028
MPN: 397850200
BULKHEAD
Valid for 51
Supersession
Supersession
# 029
MPN: 122600080
NUT
Valid for 51
# 030
MPN: 397870360
WASHER
Valid for 51
# 031
MPN: 138410080
SPRING WASHER
Valid for 51
