016.1 - Power Steering Box With Oil Cooler

Maserati 418 / 4.24v / 430 Power Steering Box With Oil Cooler Parts Diagram

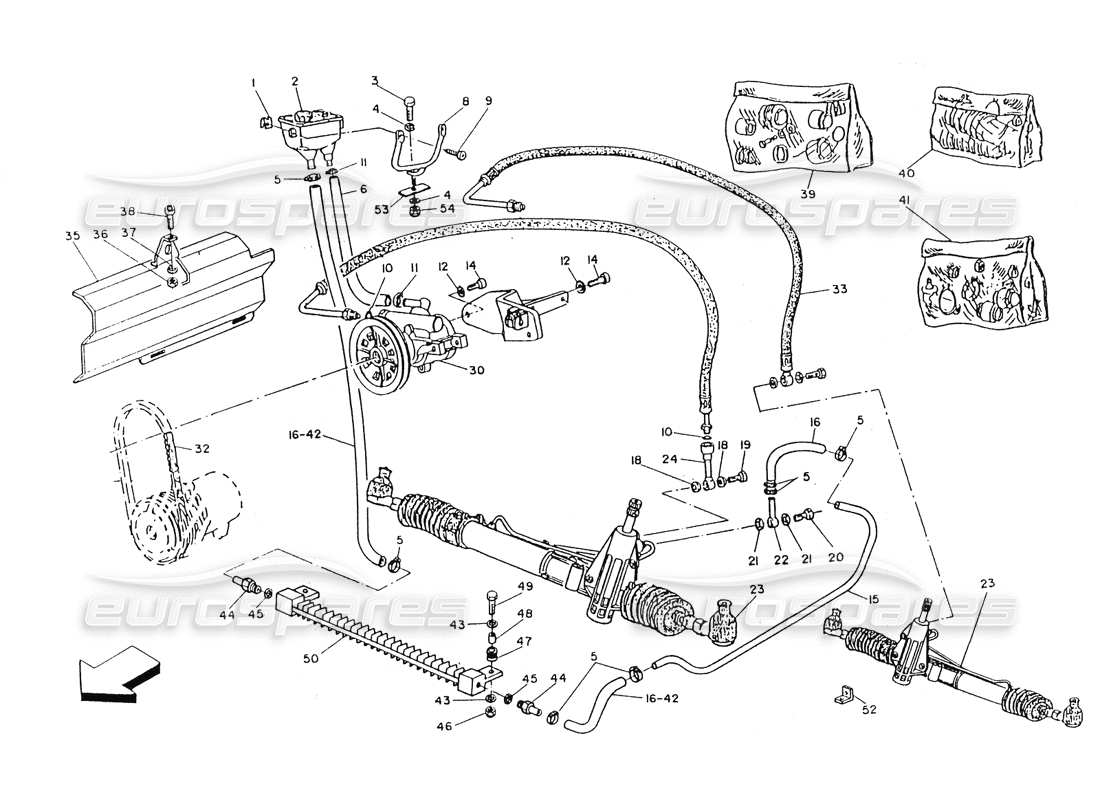

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 163610050
SPRING CLIP
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.47
from £0.47
# 002
MPN: 397850130
OIL TANK
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £21.38
from £21.38
This part replaces part number 317853130
# 004
MPN: 138410080
SPRING WASHER
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 005
MPN: 317832389
CLAMP
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.97
from £1.97
# 006
MPN: 71608
SLEEVE
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 008
MPN: 397870131
TANK FIXING BRACKET
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £14.29
from £14.29
# 009
MPN: 119148130
SCREW
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.87
from £0.87
# 010
MPN: 192415108
0-RING
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.28
from £1.28
# 011
MPN: 186402028
CLAMP
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.58
from £1.58
# 012
MPN: 138410080
SPRING WASHER
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 014
MPN: 14306424
SCREW
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.47
from £0.47
This part replaces part number 14306421
# 015
MPN: 397850612
OIL RETURN BUNDY PIPE
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £31.89
from £31.89
# 016
MPN: 54780
SLEEVE
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
Supersession
Supersession
# 018
MPN: 317851602
GASKET
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.10
from £1.10
# 019
MPN: 317832380
UNION SCREW
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £9.25
from £9.25
# 020
MPN: 317851387
UNION SCREW
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
Supersession
Supersession
# 021
MPN: 317851601
COPPER GASKET
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.10
from £1.10
# 022
MPN: 317851386
EYELET UNION
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £5.90
from £5.90
# 023
MPN: 317870125
POWER STEERING ASSY, RH STEERING
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
Supersession
Supersession
# 023
MPN: 397850125
POWER STEERING ASSY, LH STEERING
VALID FOR 53 / 58 / 59 / 62 - not as spare part - use part number: 397850225
Supersession
Supersession
# 023
MPN: 397850225
LHD POWER STEERING BOX (POST. MOD.)
Replaces 397850125
from £744.03
from £744.03
This part replaces part number 397850125
# 024
MPN: 317832127
UNION PIPE
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
Supersession
Supersession
# 030
MPN: 317832104
PUMP WITH PULLEY
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £181.27
from £181.27
# 032
MPN: 317837372
POWER STEERING BELT
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £12.50
from £12.50
# 033
MPN: 317869215
OIL DELIVERY PIPE, RH STEERING
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £85.87
from £85.87
# 033
MPN: 327853207
OIL DELIVERY PIPE, LH STEERING
VALID FOR 53 / 58 / 59 / 62
from £130.23
from £130.23
This part replaces part number 317832139
# 035
MPN: 397850200
BULKHEAD
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
Supersession
Supersession
# 036
MPN: 128350060
SELF LOCKING NUT
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 037
MPN: 135000064
FLAT WASHER
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 038
MPN: 108006012
SCREW
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.54
from £0.54
# 039
MPN: 310232040
KIT FOR PIPE AND UNION REPLACEMENT
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £32.54
from £32.54
# 040
MPN: 390250080
KIT FOR BELLOWS AND CLAMP REPLACEMENT
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £129.66
from £129.66
This part replaces part number 320250033
# 041
MPN: 320250034
Track Rod Ends
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £316.04
from £316.04
# 042
MPN: 96615
CORRUGATED PIPE
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 043
MPN: 135900064
LAT WASHER
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.47
from £0.47
# 044
MPN: 397850609
UNION
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.80
from £1.80
# 045
MPN: 397850608
GASKET
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.10
from £1.10
# 046
MPN: 128300060
NUT
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
Supersession
Supersession
# 047
MPN: 315520375
RING
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
Supersession
Supersession
# 048
MPN: 397850624
SPACER
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £2.45
from £2.45
# 049
MPN: 108006025
SCREW
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 050
MPN: 397850618
OIL COOLER
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £133.68
from £133.68
# 052
MPN: 397870214
PLATE
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 053
MPN: 397870360
WASHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 054
MPN: 122600080
NUT
VALID FOR 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
