017 - Front Suspension

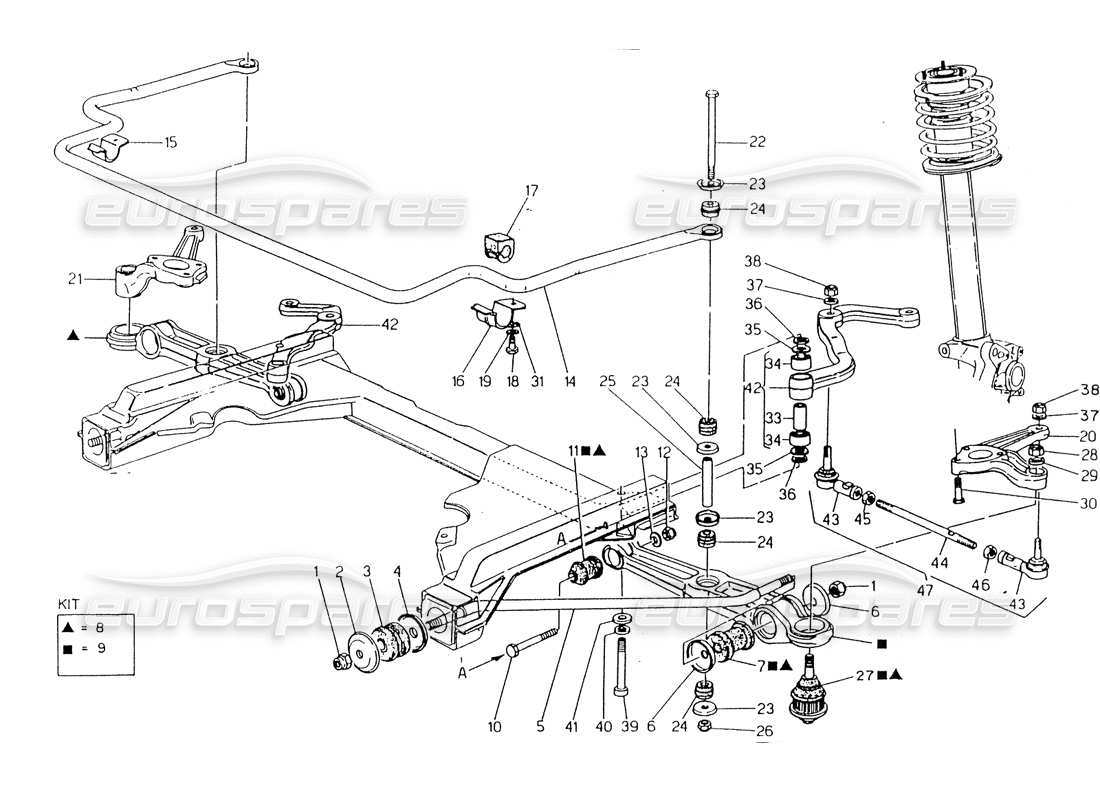

Maserati 418 / 4.24v / 430 Front Suspension Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Price
                                                                                          # 001
                                                                                          MPN: 12575811
                                                                                          SELF LOCKING NUT
                                                                                          from £1.35
                                                                                          from £1.35
                                                                                          # 002
                                                                                          MPN: 346601343
                                                                                          CUP
                                                                                          from £10.78
                                                                                          from £10.78
                                                                                          # 003
                                                                                          MPN: 396650110
                                                                                          BUFFER
                                                                                          from £18.71
                                                                                          from £18.71
                                                                                          # 004
                                                                                          MPN: 346601341
                                                                                          CAP
                                                                                          from £9.83
                                                                                          from £9.83
                                                                                          # 005
                                                                                          MPN: 326656318
                                                                                          CONTROL ARM
                                                                                          from £65.80
                                                                                          from £65.80
                                                                                          # 006
                                                                                          MPN: 316620342
                                                                                          WASHER
                                                                                          from £1.59
                                                                                          from £1.59
                                                                                          # 007
                                                                                          MPN: 316620112
                                                                                          ANTIV1BRATION RUBBER MOUNT
                                                                                          from £1.52
                                                                                          from £1.52
                                                                                          # 008
                                                                                          MPN: 326656120
                                                                                          RH LOWER SUSPENSION ARM, ASSY
                                                                                          from £263.10
                                                                                          from £263.10
                                                                                          # 009
                                                                                          MPN: 326656119
                                                                                          LH LOWER SUSPENSION ARM, ASSY
                                                                                          from £283.34
                                                                                          from £283.34
                                                                                          # 011
                                                                                          MPN: 316620113
                                                                                          ANT I VI BRAT ION RUBBER MOUNT
                                                                                          from £2.24
                                                                                          from £2.24
                                                                                          # 012
                                                                                          MPN: 128350120
                                                                                          SELF LOCKING NUT
                                                                                          from £1.11
                                                                                          from £1.11
                                                                                          # 014
                                                                                          MPN: 326656350
                                                                                          STABILIZER BAR, DIA 19
                                                                                          from £62.03
                                                                                          from £62.03
                                                                                          # 015
                                                                                          MPN: 316620352
                                                                                          RH CRAMP
                                                                                          from £1.11
                                                                                          from £1.11
                                                                                          # 016
                                                                                          MPN: 316620353
                                                                                          LH CRAMP
                                                                                          Not supplied
                                                                                          from £1.11
                                                                                          from £1.11
                                                                                          # 017
                                                                                          MPN: 326656354
                                                                                          LH INSULATOR
                                                                                          from £0.71
                                                                                          from £0.71
                                                                                          # 017
                                                                                          MPN: 326656355
                                                                                          RH INSULATOR
                                                                                          from £2.63
                                                                                          from £2.63
                                                                                          # 018
                                                                                          MPN: 101210030
                                                                                          SCREW
                                                                                          from £1.59
                                                                                          from £1.59
                                                                                          # 020
                                                                                          MPN: 326656305
                                                                                          LH WHEEL CONTROL ARM
                                                                                          from £56.86
                                                                                          from £56.86
                                                                                          # 021
                                                                                          MPN: 326656306
                                                                                          RH WHEEL CONTROL ARM
                                                                                          from £43.14
                                                                                          from £43.14
                                                                                          # 022
                                                                                          MPN: 316620363
                                                                                          SCREW
                                                                                          from £15.07
                                                                                          from £15.07
                                                                                          # 023
                                                                                          MPN: 316620362
                                                                                          WASHER FOR ROD
                                                                                          from £1.07
                                                                                          from £1.07
                                                                                          # 024
                                                                                          MPN: 316620360
                                                                                          RUBBER FOR ROD
                                                                                          from £3.57
                                                                                          from £3.57
                                                                                          # 025
                                                                                          MPN: 326656361
                                                                                          SPACER FOR ROD
                                                                                          from £3.23
                                                                                          from £3.23
                                                                                          # 026
                                                                                          MPN: 128200080
                                                                                          NUT
                                                                                          from £0.86
                                                                                          from £0.86
                                                                                          # 027
                                                                                          MPN: 316620103
                                                                                          BALL JOINT
                                                                                          from £188.27
                                                                                          from £188.27
                                                                                          # 028
                                                                                          MPN: 127800120
                                                                                          SELF LOCKING NUT
                                                                                          # 030
                                                                                          MPN: 326656337
                                                                                          SCREW
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 031
                                                                                          MPN: 136110110
                                                                                          WASHER
                                                                                          from £2.22
                                                                                          from £2.22
                                                                                          # 033
                                                                                          MPN: 326656348
                                                                                          USHING
                                                                                          (minimium order quantity = 2)
                                                                                          from £31.71
                                                                                          from £31.71
                                                                                          # 034
                                                                                          MPN: 326656310
                                                                                          BEARING
                                                                                          from £7.66
                                                                                          from £7.66
                                                                                          # 035
                                                                                          MPN: 326656349
                                                                                          WASHER
                                                                                          from £12.28
                                                                                          from £12.28
                                                                                          # 036
                                                                                          MPN: 326656344
                                                                                          2.5 THICK WASHER
                                                                                          from £48.69
                                                                                          from £48.69
                                                                                          # 036
                                                                                          MPN: 326656346
                                                                                          2.7 THICK WASHER
                                                                                          from £40.76
                                                                                          from £40.76
                                                                                          # 036
                                                                                          MPN: 326656347
                                                                                          2.3 THICK WASHER
                                                                                          from £29.10
                                                                                          from £29.10
                                                                                          # 037
                                                                                          MPN: 14496601
                                                                                          FLAT WASHER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 039
                                                                                          MPN: 326656338
                                                                                          SCREW
                                                                                          from £5.63
                                                                                          from £5.63
                                                                                          # 040
                                                                                          MPN: 138200120
                                                                                          SPRING WASHER
                                                                                          from £0.79
                                                                                          from £0.79
                                                                                          # 042
                                                                                          MPN: 326656125
                                                                                          LH COMPLETE LEVER
                                                                                          from £958.84
                                                                                          from £958.84
                                                                                          # 042
                                                                                          MPN: 326656126
                                                                                          RH COMPLETE LEVER
                                                                                          from £413.27
                                                                                          from £413.27
                                                                                          # 043
                                                                                          MPN: 366602133
                                                                                          LH STEERING KNUCKLE
                                                                                          from £30.93
                                                                                          from £30.93
                                                                                          This part replaces part number 397850133
                                                                                          # 043
                                                                                          MPN: 366602134
                                                                                          RH STEERING KNUCKLE
                                                                                          from £34.02
                                                                                          from £34.02
                                                                                          This part replaces part number 397850134
                                                                                          # 044
                                                                                          MPN: 327856340
                                                                                          TIE ROD
                                                                                          from £5.64
                                                                                          from £5.64
                                                                                          # 045
                                                                                          MPN: 327856347
                                                                                          NUT
                                                                                          from £12.28
                                                                                          from £12.28
                                                                                          # 047
                                                                                          MPN: 327853124
                                                                                          TIE ROD ASSY
                                                                                          from £50.61
                                                                                          from £50.61
