maserati 418 / 4.24v / 430 electr. adjust. rear shock absorber parts diagram

020.1 - Electr. Adjust. Rear Shock Absorber

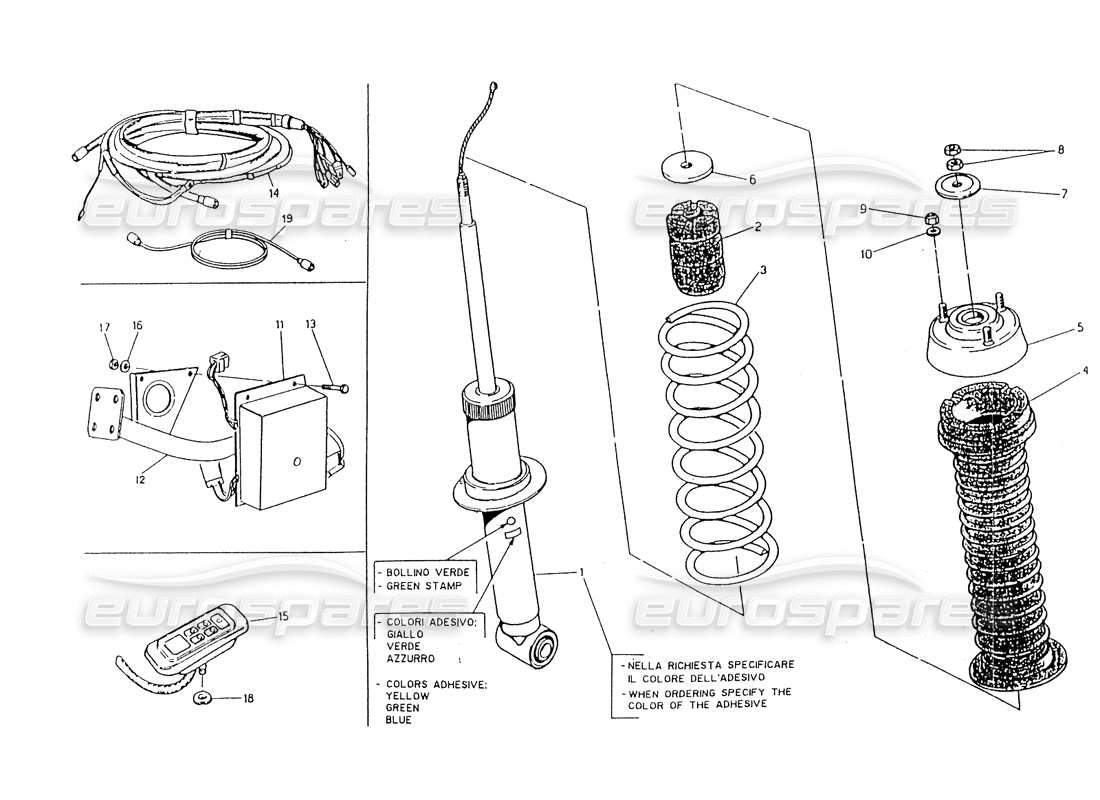

Maserati 418 / 4.24v / 430 Electr. Adjust. Rear Shock Absorber Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 001
                                    MPN: 327053104
                                    ELECTRONIC ADJUST. REAR SHOCK-ABSORBER
                                    from £169.61
                                    from £169.61
                                    This part replaces part number 327053110
                                    REAR SHOCK ABSORBER Genuine Maserati Part - New (to order)
                                    # 002
                                    MPN: 327020332
                                    BUFFER
                                    Supersession
                                    Supersession
                                    This part replaces part number 317020332
                                    Genuine Maserati Part (no longer available to order)
                                    # 003
                                    MPN: 327056334
                                    SPRING
                                    from £29.17
                                    from £29.17
                                    This part replaces part number 347001333
                                    REAR SUSPENSION SPRING Genuine Maserati Part - New (to order)
                                    # 004
                                    MPN: 317020331
                                    BELLOWS
                                    from £4.34
                                    from £4.34
                                    BELLOWS Genuine Maserati Part - New (to order)
                                    # 005
                                    MPN: 317053116
                                    SHOCK ABSORBER MOUNT
                                    from £29.48
                                    from £29.48
                                    REAR UPPER FLEXIBLE COUPLING Genuine Maserati Part - New (to order)
                                    # 006
                                    MPN: 317053340
                                    WASHER
                                    from £11.92
                                    from £11.92
                                    WASHER Genuine Maserati Part - New (to order)
                                    # 007
                                    MPN: 317053346
                                    CUP
                                    from £2.02
                                    from £2.02
                                    CUP Genuine Maserati Part - New In stock
                                    # 009
                                    MPN: 128300080
                                    SELF LOCKING NUT
                                    Maserati PART 128300080 Genuine Maserati Part - New (to order)
                                    # 011
                                    MPN: 313953101
                                    SHOCK-ABSORBER CONTROL UNIT
                                    Supersession
                                    Supersession
                                    Genuine Maserati Part (no longer available to order)
                                    # 012
                                    MPN: 312353121
                                    SUPPORT
                                    from £16.99
                                    from £16.99
                                    Maserati PART 312353121 Genuine Maserati Part - New (to order)
                                    # 013
                                    MPN: 101204020
                                    SCREW
                                    from £0.73
                                    from £0.73
                                    This part replaces part number 53361308
                                    SCREW Genuine Maserati Part - New (to order)
                                    # 014
                                    MPN: 313053150
                                    SHOCK ABSORBER WIRING
                                    Supersession
                                    Supersession
                                    Genuine Maserati Part (no longer available to order)
                                    # 015
                                    MPN: 313953100
                                    SUSPENSION CONTROL PUSHBUTTON
                                    from £276.88
                                    from £276.88
                                    COMPLETE ACTIVE SUSP. COMPLETE CONTROL Genuine Maserati Part - New (to order)
                                    # 016
                                    MPN: 135000043
                                    WASHER
                                    from £1.13
                                    from £1.13
                                    WASHER Genuine Maserati Part - New (to order)
                                    # 017
                                    MPN: 122600040
                                    NUT
                                    from £0.47
                                    from £0.47
                                    DADO Genuine Maserati Part - New (to order)
                                    # 018
                                    MPN: 30551347
                                    SPRING
                                    minimum order quantity = 10
                                    from £0.73
                                    from £0.73
                                    CLIP Genuine Maserati Part - New (to order)
                                    # 019
                                    MPN: 313970102
                                    EXTENSION FOR SHOCK ABSORBER WIRING
                                    VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                                    from £17.39
                                    from £17.39
                                    EXTENSION Genuine Maserati Part - New (to order)
