022 - Hubs, Rear Brakes and Axle Shafts

Maserati 418 / 4.24v / 430 Hubs, Rear Brakes and Axle Shafts Parts Diagram

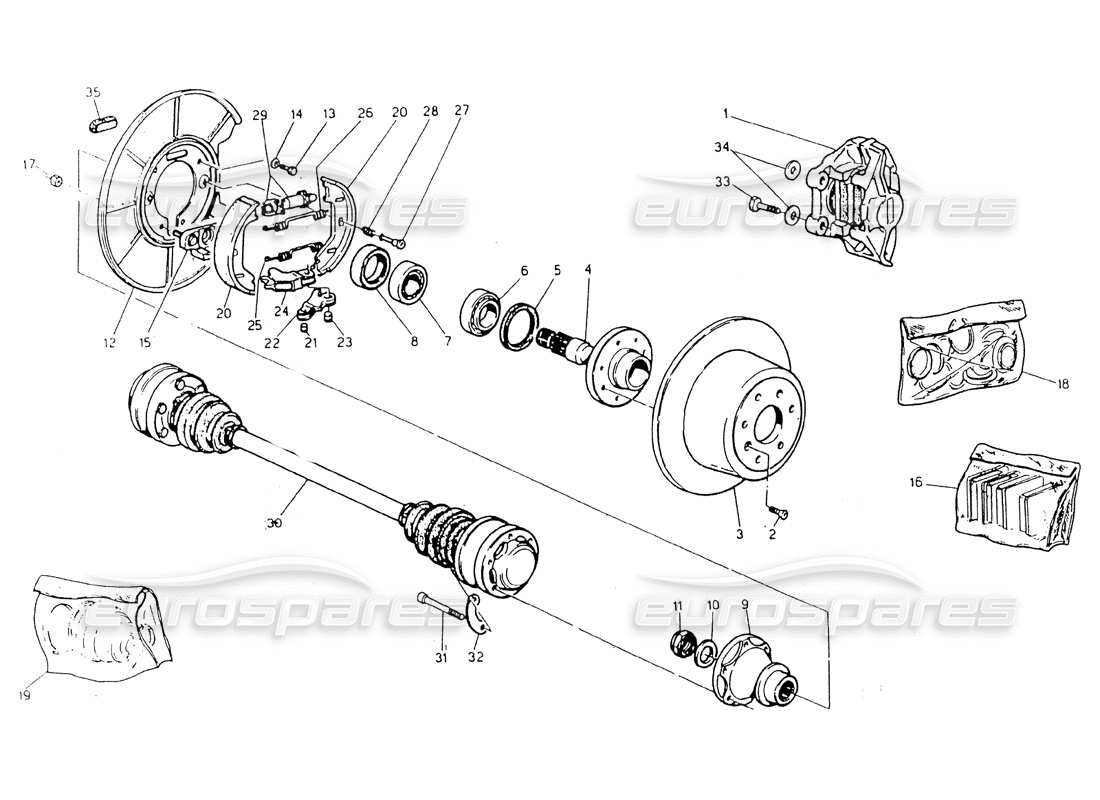

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 001
                                                                  MPN: 317254111
                                                                  REAR CALIPER LH ASSY
                                                                  from £152.69
                                                                  from £152.69
                                                                  This part replaces part number 317220111
                                                                  # 001
                                                                  MPN: 317254112
                                                                  REAR CALIPER RH ASSY
                                                                  from £101.79
                                                                  from £101.79
                                                                  This part replaces part number 317220112
                                                                  # 002
                                                                  MPN: 108506020
                                                                  SCREW
                                                                  from £1.10
                                                                  from £1.10
                                                                  # 003
                                                                  MPN: 347201351
                                                                  REAR BRAKE DISC
                                                                  from £478.84
                                                                  from £478.84
                                                                  # 004
                                                                  MPN: 347200126
                                                                  REAR WHEEL HUB
                                                                  from £241.05
                                                                  from £241.05
                                                                  # 005
                                                                  MPN: 317220347
                                                                  SEALING RING
                                                                  from £1.07
                                                                  from £1.07
                                                                  # 006
                                                                  MPN: 317220343
                                                                  OUTER BEARING
                                                                  from £37.68
                                                                  from £37.68
                                                                  # 007
                                                                  MPN: 327256345
                                                                  INNER BEARING
                                                                  from £107.98
                                                                  from £107.98
                                                                  # 008
                                                                  MPN: 317220346
                                                                  SEALING
                                                                  from £2.31
                                                                  from £2.31
                                                                  # 009
                                                                  MPN: 347200355
                                                                  SLEEVE
                                                                  from £63.69
                                                                  from £63.69
                                                                  # 010
                                                                  MPN: 327256354
                                                                  SHIM RING
                                                                  from £1.62
                                                                  from £1.62
                                                                  This part replaces part number 317220348
                                                                  # 011
                                                                  MPN: 317220340
                                                                  SELFLOCKING RING NUT
                                                                  Supersession
                                                                  Supersession
                                                                  # 012
                                                                  MPN: 317020111
                                                                  LH REAR DUST COVER
                                                                  from £72.86
                                                                  from £72.86
                                                                  # 012
                                                                  MPN: 317020112
                                                                  RH REAR DUST COVER
                                                                  from £72.86
                                                                  from £72.86
                                                                  # 014
                                                                  MPN: 135600060
                                                                  SPRING WASHER
                                                                  from £0.76
                                                                  from £0.76
                                                                  # 015
                                                                  MPN: 318020115
                                                                  HAND BRAKE CABLE BRACKET
                                                                  from £18.01
                                                                  from £18.01
                                                                  # 016
                                                                  MPN: 310254042
                                                                  REAR BRAKE PAD, SET
                                                                  USE 108134
                                                                  from £119.90
                                                                  from £119.90
                                                                  This part replaces part number 327256131
                                                                  # 017
                                                                  MPN: 128350080
                                                                  SELF LOCKING NUT
                                                                  Supersession
                                                                  Supersession
                                                                  # 018
                                                                  MPN: 310220032
                                                                  REAR BRAKE CALIPER OVERHAUL SET
                                                                  each caliper
                                                                  from £102.52
                                                                  from £102.52
                                                                  # 019
                                                                  MPN: 310220036
                                                                  BELLOWS AND CLIP DET FOR JOINTS
                                                                  from £94.40
                                                                  from £94.40
                                                                  # 020
                                                                  MPN: 328060111
                                                                  HAND BRAKE SHOE ASSEMBLY
                                                                  from £31.69
                                                                  from £31.69
                                                                  This part replaces part number 318020111
                                                                  # 021
                                                                  MPN: 318020332
                                                                  PIN
                                                                  from £1.39
                                                                  from £1.39
                                                                  # 022
                                                                  MPN: 318020330
                                                                  CONTROL LEVER
                                                                  from £25.54
                                                                  from £25.54
                                                                  # 023
                                                                  MPN: 318020333
                                                                  PIN
                                                                  from £1.85
                                                                  from £1.85
                                                                  # 024
                                                                  MPN: 318020331
                                                                  SHOE
                                                                  from £32.34
                                                                  from £32.34
                                                                  # 025
                                                                  MPN: 318020334
                                                                  LOWER DRAW SPRING
                                                                  from £19.71
                                                                  from £19.71
                                                                  # 026
                                                                  MPN: 318020335
                                                                  UPPER DRAW SPRING
                                                                  from £1.40
                                                                  from £1.40
                                                                  # 027
                                                                  MPN: 318020336
                                                                  PIN
                                                                  from £4.74
                                                                  from £4.74
                                                                  # 028
                                                                  MPN: 318020337
                                                                  SPRING
                                                                  from £0.57
                                                                  from £0.57
                                                                  # 029
                                                                  MPN: 318020113
                                                                  ADJUSTING DEVICE FOR HAND BRAKE
                                                                  from £6.77
                                                                  from £6.77
                                                                  # 030
                                                                  MPN: 316020105
                                                                  DRIVE SHAFT ASSEMBLY
                                                                  from £436.55
                                                                  from £436.55
                                                                  # 031
                                                                  MPN: 108010055
                                                                  SCREW
                                                                  VALID FOR51 / 53 / 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
                                                                  # 031
                                                                  MPN: 396050338
                                                                  SCREW
                                                                  VALID FOR 62 / 69 / 79
                                                                  from £9.61
                                                                  from £9.61
                                                                  # 032
                                                                  MPN: 316020310
                                                                  PLATE
                                                                  from £1.93
                                                                  from £1.93
                                                                  # 033
                                                                  MPN: 101210030
                                                                  SCREW
                                                                  from £1.54
                                                                  from £1.54
                                                                  # 034
                                                                  MPN: 14496601
                                                                  FLAT WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  # 035
                                                                  MPN: 317020328
                                                                  PLUG
                                                                  from £0.68
                                                                  from £0.68
