maserati 418 / 4.24v / 430 pedal board and power brake. lh steering parts diagram

024 - Pedal Board and Power Brake. LH Steering

Maserati 418 / 4.24v / 430 Pedal Board and Power Brake. LH Steering Parts Diagram

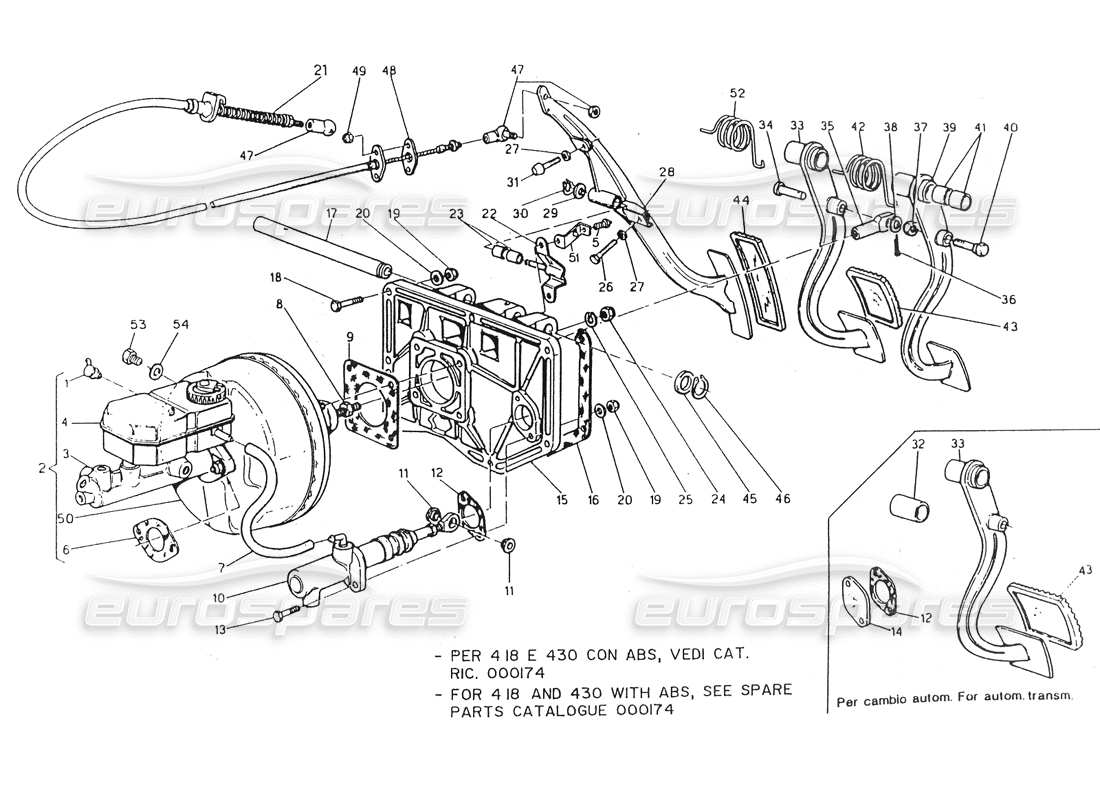

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 317420108
      CHEK VALVE
      Valid for 53 / 59
      from £16.22
      from £16.22
      NOT BACKFLOW VALVE Genuine Maserati Part - New (to order)
      # 002
      MPN: 317420112
      BRAKE BOOSTER WITH PUMP ASSY
      from £642.04
      from £642.04
      This part replaces part number 317420103
      BRAKE PUMP Genuine Maserati Part - New (to order)
      # 003
      MPN: 317420101
      BRAKE PUMP
      from £364.55
      from £364.55
      BRAKE PUMP Genuine Maserati Part - New (to order)
      BRAKE PUMP Original Equipment - New In stock
      # 004
      MPN: 317420104
      BRAKE PUMP TANK
      Valid for 53 / 59
      from £19.27
      from £19.27
      PUMP TANK Genuine Maserati Part - New (to order)
      # 005
      MPN: 323850107
      STOP SWITCH
      Valid for 53 / 59
      Supersession
      Supersession
      Genuine Maserati Part (no longer available to order)
      # 006
      MPN: 317420304
      GASKET
      Valid for 53 / 59
      from £1.61
      from £1.61
      BRAKE MASTER CYLINDER GASKET Genuine Maserati Part - New (to order)
      # 007
      MPN: 318220329
      PIPING
      Valid for 53 / 59
      from £1.09
      from £1.09
      LINE Genuine Maserati Part - New (to order)
      # 008
      MPN: 125300100
      CHECK NUT
      Valid for 53 / 59
      NUT Genuine Maserati Part - New (to order)
      # 009
      MPN: 317420303
      GASKET
      Valid for 53 / 59
      from £1.61
      from £1.61
      BRAKE SERVO FASTENING GASKET Genuine Maserati Part - New (to order)
      # 010
      MPN: 318220101
      CLUTCH PRIMARY PUMP
      Valid for 53 / 59
      from £64.79
      from £64.79
      PUMP Genuine Maserati Part - New (to order)
      PUMP Eurospares Approved Part - New In stock
      # 011
      MPN: 318420325
      BUSHING
      Valid for 53 / 59
      from £1.13
      from £1.13
      CLUTCH PEDAL CTRL ROD BUSHIN Genuine Maserati Part - New (to order)
      # 012
      MPN: 318220307
      GASKET
      Valid for 53 / 59
      from £1.13
      from £1.13
      Guarnizione Genuine Maserati Part - New (to order)
      # 013
      MPN: 100708040
      SCREW
      Valid for 53 / 59
      Maserati PART 100708040 Genuine Maserati Part - New (to order)
      # 014
      MPN: 318432322
      COVER
      Valid for 59
      COVER Genuine Maserati Part - New (to order)
      # 015
      MPN: 398450304
      PEDAL BOARD SUPPORT
      Valid for 53 / 62
      from £40.37
      from £40.37
      Maserati PART 398450304 Genuine Maserati Part - New (to order)
      # 016
      MPN: 318420348
      GASKET
      Valid for 53 / 59
      from £0.73
      from £0.73
      GASKET Genuine Maserati Part - New (to order)
      # 017
      MPN: 318420328
      PEDAL BOARD PIN
      Valid for 53 / 59
      from £8.62
      from £8.62
      PEDAL PIN Genuine Maserati Part - New (to order)
      # 018
      MPN: 100708030
      SCREW
      Valid for 53 / 59
      Maserati PART 100708030 Genuine Maserati Part - New (to order)
      # 019
      MPN: 128350080
      SELF LOCKING NUT
      Valid for 53 / 59
      Supersession
      Supersession
      Genuine Maserati Part (no longer available to order)
      # 020
      MPN: 135900084
      WASHER
      Valid for 53 / 59
      Maserati PART 135900084 Genuine Maserati Part - New (to order)
      # 021
      MPN: 318220010
      ACCELERATOR CONTROL CABLE
      Valid for 51 / 58
      Maserati PART 318220010 Genuine Maserati Part - New (to order)
      # 021
      MPN: 318253010
      ACCELERATOR CONTROL CABLE
      Valid for 53 / 59
      Supersession
      Supersession
      Genuine Maserati Part (no longer available to order)
      # 021
      MPN: 318255010
      ACCELERATOR CONTROL CABLE
      Valid for 59
      from £3.25
      from £3.25
      ACCELERATOR CONTROL CABLE Genuine Maserati Part - New (to order)
      # 022
      MPN: 318420110
      ACCELERATOR PEDAL SUPPORT
      VALID FOR 51 / 53 / 58 / 59 / 62
      from £3.06
      from £3.06
      SUPPORTO Genuine Maserati Part - New (to order)
      # 023
      MPN: 318420334
      BUSHING
      VALID FOR 51 / 53 / 58 / 59 / 62
      from £1.61
      from £1.61
      BOCCOLA ELAST ANTIFR PEDALE Genuine Maserati Part - New (to order)
      # 024
      MPN: 125100080
      NUT
      VALID FOR 51 / 53 / 58 / 59 / 62
      from £0.86
      from £0.86
      DADO Genuine Maserati Part - New (to order)
      # 025
      MPN: 138410080
      SPRING WASHER
      VALID FOR 51 / 53 / 58 / 59 / 62
      from £2.28
      from £2.28
      Maserati PART 138410080 Genuine Maserati Part - New (to order)
      # 026
      MPN: 101206040
      SCREW
      VALID FOR 51 / 53 / 58 / 59 / 62
      from £0.47
      from £0.47
      VITE FINE CORSA Genuine Maserati Part - New (to order)
      # 027
      MPN: 125100060
      NUT
      VALID FOR 51 / 53 / 58 / 59 / 62
      Maserati PART 125100060 Genuine Maserati Part - New (to order)
      # 028
      MPN: 318420113
      Accelerator Pedal
      VALID FOR 51 / 53 / 58 / 59 / 62
      from £31.40
      from £31.40
      PEDALE ACCELERATORE Genuine Maserati Part - New (to order)
      # 029
      MPN: 318420346
      WASHER
      VALID FOR 51 / 53 / 58 / 59 / 62
      from £1.13
      from £1.13
      WASHER Genuine Maserati Part - New (to order)
      # 030
      MPN: 150800090
      SNAP RING
      VALID FOR 51 / 53 / 58 / 59 / 62
      from £0.47
      from £0.47
      SEEGER Genuine Maserati Part - New (to order)
      # 031
      MPN: 318420114
      PAD
      VALID FOR 51 / 53 / 58 / 59 / 62
      from £1.94
      from £1.94
      END-OF-TRAVEL RUBBER BUSHING Genuine Maserati Part - New (to order)
      # 032
      MPN: 518432318
      SPACER
      Valid for 59
      SPACER Genuine Maserati Part - New (to order)
      # 033
      MPN: 328453104
      BRAKE PEDAL
      Valid for 53 / 62
      This part replaces part number 318420104
      BRAKE PEDAL Genuine Maserati Part - New (to order)
      # 034
      MPN: 318420312
      PIN
      VALID FOR 51 / 53 / 58 / 59 / 62
      PIN Genuine Maserati Part - New (to order)
      # 035
      MPN: 317420300
      THRUST PAD
      VALID FOR 53 / 58 / 59 / 62
      from £0.73
      from £0.73
      THRUST PAD Genuine Maserati Part - New (to order)
      # 036
      MPN: 146503220
      COTTER PIN
      VALID FOR 53 / 58 / 59 / 62
      Maserati PART 146503220 Genuine Maserati Part - New (to order)
      # 037
      MPN: 128300100
      NUT
      VALID FOR 53 / 58 / 59 / 62
      Maserati PART 128300100 Genuine Maserati Part - New (to order)
      # 038
      MPN: 135910105
      FLAT WASHER
      VALID FOR 53 / 58 / 59 / 62
      Maserati PART 135910105 Genuine Maserati Part - New (to order)
      # 039
      MPN: 398450121
      CLUTCH PEDAL
      VALID FOR 53 / 58 / 62
      CLUTCH PEDAL Genuine Maserati Part - New (to order)
      # 040
      MPN: 318420326
      PIN
      VALID FOR 53 / 58 / 59 / 62
      from £8.62
      from £8.62
      THRUST PAD PIN Genuine Maserati Part - New (to order)
      # 041
      MPN: 318420320
      BUSHING
      VALID FOR 53 / 58 / 59 / 62
      from £10.08
      from £10.08
      RUBBER BUSHING ON BRAKE PIN Genuine Maserati Part - New (to order)
      # 042
      MPN: 398450308
      SPRING
      VALID FOR 53 / 58 / 62
      from £0.71
      from £0.71
      CLUTCH PEDAL RETURN SPRING Genuine Maserati Part - New (to order)
      # 043
      MPN: 318420300
      BRAKE AND CLUTCH PEDAL COVER
      VALID FOR 53 / 58 / 62
      from £3.38
      from £3.38
      BRAKE AND CLUTCH PEDAL COVER 1 Genuine Maserati Part - New (to order)
      # 043
      MPN: 318432300
      BRAKE PEDAL COVER
      Valid for 59
      from £2.69
      from £2.69
      COPRIPEDALE FRENO M138CB Genuine Maserati Part - New (to order)
      # 044
      MPN: 318420301
      ACCELERATOR PEDAL COVER
      VALID FOR 53 / 58 / 59 / 62
      from £1.61
      from £1.61
      COPRIPEDALE ACCELERATORE M13 Genuine Maserati Part - New (to order)
      COPRIPEDALE ACCELERATORE M13 Genuine Maserati Part - Used In stock
      # 045
      MPN: 318420321
      SHIM WASHER
      VALID FOR 53 / 58 / 59 / 62
      WASHER Genuine Maserati Part - New (to order)
      # 046
      MPN: 151100180
      SNAP RING
      VALID FOR 53 / 58 / 59 / 62
      from £0.73
      from £0.73
      CIRCLIP Genuine Maserati Part - New In stock
      # 047
      MPN: 318420116
      BALL END PIN
      VALID FOR 53 / 58 / 59 / 62
      from £3.78
      from £3.78
      ACCELERATOR JOINT Genuine Maserati Part - New (to order)
      # 048
      MPN: 318220300
      GASKET
      VALID FOR 53 / 58 / 59 / 62
      from £0.73
      from £0.73
      GASKET Genuine Maserati Part - New (to order)
      # 049
      MPN: 128350060
      SELF LOCKING NUT
      VALID FOR 53 / 58 / 59 / 62
      Maserati PART 128350060 Genuine Maserati Part - New (to order)
      # 050
      MPN: 317420113
      Power Brake
      Valid for 53 / 62
      from £99.75
      from £99.75
      SERVO BRAKE Genuine Maserati Part - New (to order)
      # 051
      MPN: 328453120
      HYDROSTOP SUPPORT
      VALID FOR 53 / 58 / 62
      from £26.05
      from £26.05
      SUPPORT Genuine Maserati Part - New (to order)
      # 052
      MPN: 318420308
      SPRING
      Valid for 53 / 62
      from £2.19
      from £2.19
      BRAKE AND CLUTCH PEDAL RETURN SPR Genuine Maserati Part - New (to order)
      # 053
      MPN: 397450503
      PLUG
      Valid for 53 / 62
      from £11.92
      from £11.92
      PLUG Genuine Maserati Part - New (to order)
      # 054
      MPN: 397450505
      GASKET
      Valid for 53 / 62
      GASKET Genuine Maserati Part - New (to order)
