maserati 418 / 4.24v / 430 bodywork-internal frame parts diagram

028 - Bodywork-Internal Frame

Maserati 418 / 4.24v / 430 Bodywork-Internal Frame Parts Diagram

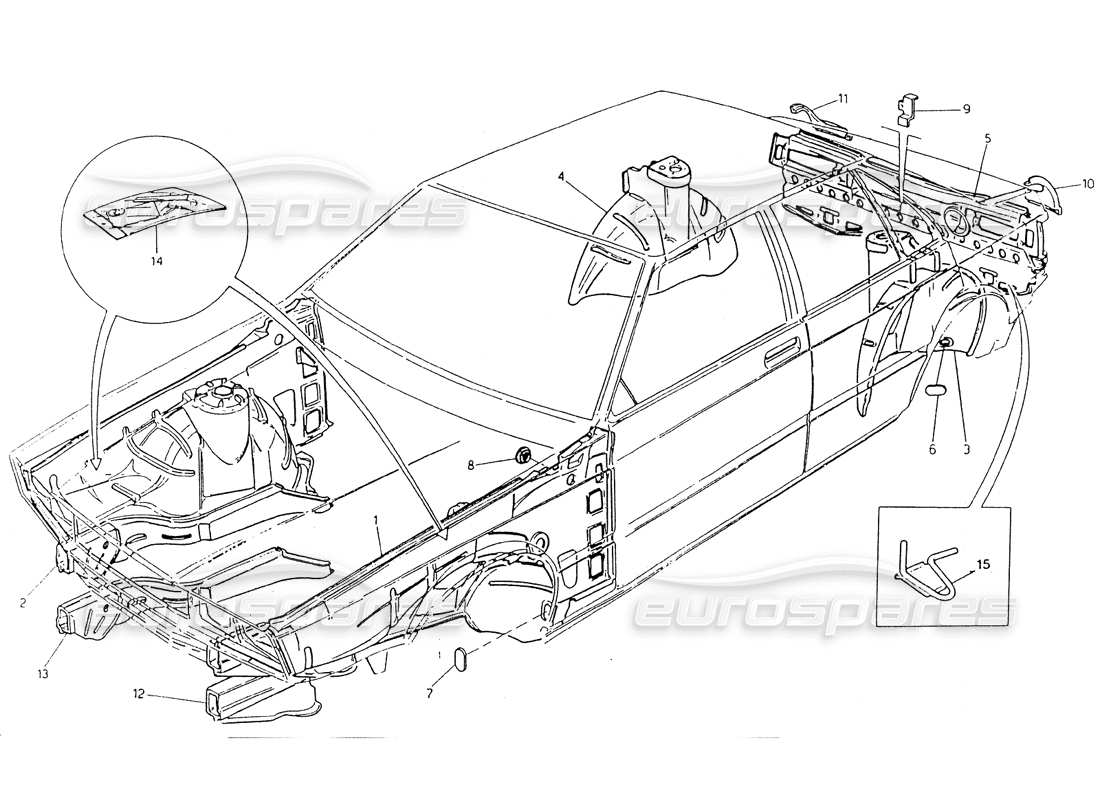

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 001
                                MPN: 311353111
                                LH INSIDE FRONT BODY-SIDE ASSY
                                from £1,348.84
                                from £1,348.84
                                This part replaces part number 311350111
                                # 002
                                MPN: 311353112
                                RH INSIDE FRONT BODY-SIDE ASSY
                                from £1,348.84
                                from £1,348.84
                                # 003
                                MPN: 321320219
                                LH INSIDE REAR UHEELHOUSE ASSY
                                from £117.90
                                from £117.90
                                # 004
                                MPN: 321320220
                                RH INSIDE REAR WHEELHOUSE ASSY
                                from £16.10
                                from £16.10
                                # 005
                                MPN: 321353228
                                REAR BODY PANEL ASSY
                                from £815.77
                                from £815.77
                                # 006
                                MPN: 312120307
                                REAR WHEELHOUSE THROUGH HOLE PLUG
                                from £0.70
                                from £0.70
                                # 007
                                MPN: 53211300
                                PLUG
                                Supersession
                                Supersession
                                # 008
                                MPN: 312120313
                                PLUG
                                from £1.08
                                from £1.08
                                # 009
                                MPN: 311320509
                                SUPPORT TO FIX ANT I -TILT VALVE
                                from £69.92
                                from £69.92
                                # 010
                                MPN: 322520469
                                LH REAR ANGLE
                                from £0.70
                                from £0.70
                                # 011
                                MPN: 322520470
                                RH REAR ANGLE
                                from £2.87
                                from £2.87
                                # 012
                                MPN: 341300115
                                LH BEAM, IRON GIRDER
                                from £129.25
                                from £129.25
                                # 013
                                MPN: 311320116
                                RH BEAM, IRON GIRDER
                                from £68.98
                                from £68.98
                                # 014
                                MPN: 9459
                                KIT SUPPORT BATTERY-COIL
                                from £9.77
                                from £9.77
                                # 015
                                MPN: 321353237
                                REAR TOW HOOK
                                from £4.66
                                from £4.66
