032.1 - Rear Doors

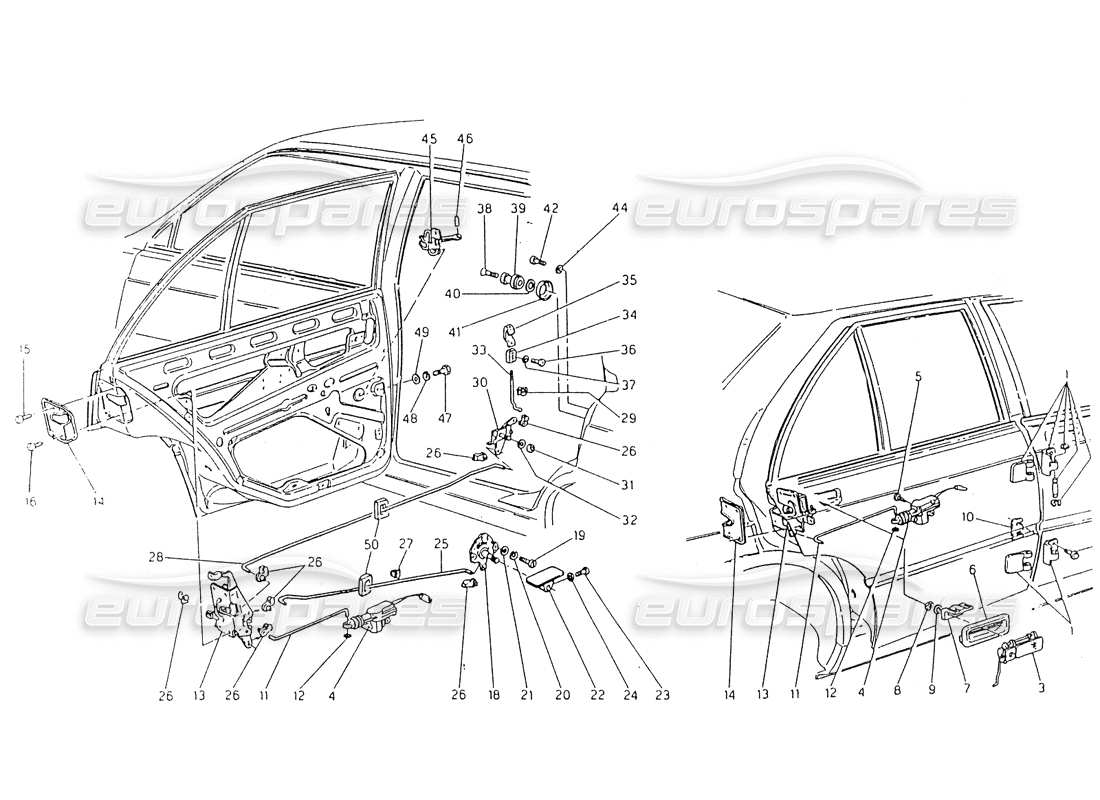

Maserati 418 / 4.24v / 430 Rear Doors Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 324520213
LOWER DOOR HINGE
from £10.97
from £10.97
# 001
MPN: 324520214
UPPER DOOR HINGE
from £10.97
from £10.97
# 002
MPN: 314320325
SCREW
Supersession
Supersession
# 003
MPN: 324550071
LH EXTERIOR HANDLE (CHROME PLATED)
VALID FOR 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
from £19.17
from £19.17
# 003
MPN: 324550072
RH EXTERIOR HANDLE (CHROME PLATED)
VALID FOR 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
from £21.30
from £21.30
# 003
MPN: 324553073
RH EXTERIOR HANDLE (BLACK)
VALID FOR 51 / 53 / 62 / 69 / 79
from £34.73
from £34.73
# 003
MPN: 324553074
RH EXTERIOR HANDLE (BLACK)
VALID FOR 51 / 53 / 62 / 69 / 79
from £34.73
from £34.73
# 004
MPN: 323320195
MOTOR ACTUATOR
from £18.39
from £18.39
This part replaces part number 313320195
# 005
MPN: 119148160
SCREW
# 006
MPN: 324520364
OUTER DOOR HANDLE PLATE
from £1.55
from £1.55
# 007
MPN: 324520381
HANDLE CRAMP
from £2.32
from £2.32
# 008
MPN: 125100060
NUT
# 009
MPN: 135600060
SPRING WASHER
from £0.77
from £0.77
# 010
MPN: 324520702
SPACERS, REAR DOOR HINGES
# 010
MPN: 324520703
SPACERS, REAR DOOR HINGES
from £0.69
from £0.69
# 011
MPN: 324520711
LH COVER PLATE
from £4.05
from £4.05
# 011
MPN: 324520722
TIE ROD FOR RH ACTUATOR CONTROL
from £0.63
from £0.63
# 011
MPN: 324520723
TIE ROD FOR LH ACTUATOR CONTROL
from £0.63
from £0.63
# 012
MPN: 53451389
SPRING CLIP
from £1.08
from £1.08
# 013
MPN: 324520245
LH DOOR LOCK
from £16.31
from £16.31
# 013
MPN: 324520246
RH DOOR LOCK
from £16.77
from £16.77
# 014
MPN: 324520712
RH COVER PLATE
from £4.05
from £4.05
# 015
MPN: 112806020
SCREW
# 016
MPN: 112806030
SCREW
from £0.48
from £0.48
# 018
MPN: 314520183
LH DOOR INTERNAL OPENING DEVICE
from £5.09
from £5.09
# 018
MPN: 314520184
RH DOOR INTERNAL OPENING DEVICE
from £4.63
from £4.63
# 019
MPN: 101205010
SCREW
# 020
MPN: 135600050
SPRING WASHER
from £0.82
from £0.82
# 021
MPN: 135900064
FLAT WASHER
from £0.47
from £0.47
# 022
MPN: 324520726
CONTROL LEVER
from £1.93
from £1.93
# 023
MPN: 112805016
SCREW
# 024
MPN: 135900053
FLAT WASHER
# 025
MPN: 324520718
TIE ROD TO CONTROL DEVICE
from £0.47
from £0.47
# 026
MPN: 53451371
SPRING CLIP
from £0.73
from £0.73
This part replaces part number 14578080
# 027
MPN: 314520419
SPRING CLIP
from £0.69
from £0.69
# 028
MPN: 324520716
TIE ROD TO CONTROL SAFETY
from £0.47
from £0.47
# 029
MPN: 314520420
SPRING CLIP
from £0.69
from £0.69
# 030
MPN: 314520153
LH SAFETY CONTROL
from £2.32
from £2.32
# 030
MPN: 314520154
RH SAFETY CONTROL
from £2.32
from £2.32
# 031
MPN: 125100060
NUT
# 032
MPN: 135600060
SPRING WASHER
from £0.77
from £0.77
# 033
MPN: 324520721
TIE ROD TO CONTROL SAFETY
# 034
MPN: 314520428
LINK ROD
from £1.08
from £1.08
# 035
MPN: 314553427
KNOB
from £9.23
from £9.23
This part replaces part number 314520427
# 036
MPN: 167590414
SELF TAPPING SCREW
from £1.55
from £1.55
# 037
MPN: 135900043
FLAT WASHER
from £1.08
from £1.08
This part replaces part number 14496207
# 038
MPN: 314551415
SCREW
from £6.65
from £6.65
# 039
MPN: 314520151
PIN
from £14.15
from £14.15
# 040
MPN: 314520406
2MM SHIM
from £0.69
from £0.69
# 040
MPN: 314520407
1MM SHIM
from £0.69
from £0.69
# 041
MPN: 314520413
COVER PLATE
from £0.54
from £0.54
# 042
MPN: 112806020
SCREW
# 044
MPN: 136110066
FLAT WASHER
# 045
MPN: 324520242
WASHER
from £3.67
from £3.67
# 046
MPN: 314520408
PIN
from £1.49
from £1.49
# 047
MPN: 101205010
SCREW
# 048
MPN: 135600050
SPRING WASHER
from £0.79
from £0.79
# 049
MPN: 136110055
FLAT WASHER
from £0.77
from £0.77
