036 - FRONT BUMPER

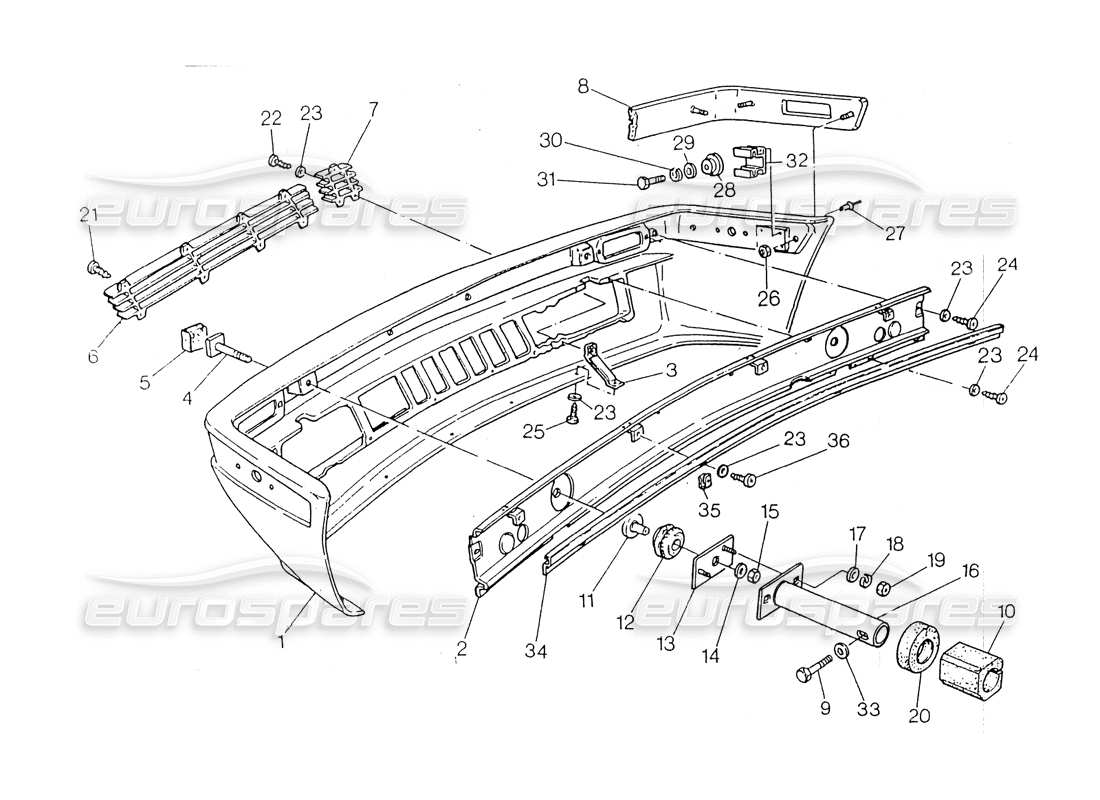

Maserati 418 / 4.24v / 430 Front Bumper Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 316353105
FRONT BUMPER
from £190.88
from £190.88
# 002
MPN: 316353120
Inner Cross Member
from £67.13
from £67.13
# 003
MPN: 316353122
SPOILER SUPPORT BRACKET
from £2.13
from £2.13
# 004
MPN: 316320112
CENTRAL SUPPORT
from £47.06
from £47.06
# 005
MPN: 316353349
SPACER
from £0.77
from £0.77
# 006
MPN: 316353346
CENTRAL GRID
from £44.60
from £44.60
# 007
MPN: 316353348
SAFETY HOOK GRID
from £14.60
from £14.60
# 008
MPN: 316353119
BUMPER CLAMP
from £109.16
from £109.16
# 009
MPN: 100814065
SCREW
# 010
MPN: 316320325
RUBBER PIECE
from £1.55
from £1.55
# 011
MPN: 316353115
PLATE
from £6.70
from £6.70
# 012
MPN: 316320315
ELASTIC PIECE
from £1.92
from £1.92
# 013
MPN: 316320117
PLATE
from £7.05
from £7.05
# 014
MPN: 136110110
WASHER
from £2.16
from £2.16
# 015
MPN: 128300100
NUT
# 016
MPN: 316320121
CENTRAL BRACKET
from £36.13
from £36.13
# 017
MPN: 136110090
WASHER
from £1.08
from £1.08
# 018
MPN: 135300084
SPRING WASHER
# 019
MPN: 125100080
NUT
from £0.86
from £0.86
# 020
MPN: 316320321
GASKET
from £1.08
from £1.08
# 021
MPN: 119142250
SELF TAPPING SCREW
# 022
MPN: 112804035
SCREW
from £0.47
from £0.47
# 023
MPN: 135000043
WASHER
from £1.08
from £1.08
# 024
MPN: 316353375
SCREW
from £0.86
from £0.86
# 025
MPN: 167590414
SELF TAPPING SCREW
from £1.55
from £1.55
# 026
MPN: 122700050
NUT
# 027
MPN: 164355105
RIVET
# 028
MPN: 316353127
RUBBER LUG
from £1.08
from £1.08
# 029
MPN: 163030080
WASHER
from £1.18
from £1.18
# 030
MPN: 135300084
SPRING WASHER
# 031
MPN: 101208020
SCREW
# 032
MPN: 316353353
BUMPER FIXING GUIDE
from £8.63
from £8.63
# 033
MPN: 135300150
SPRING WASHER
from £1.08
from £1.08
# 034
MPN: 316353382
REAR PROFILE
from £27.85
from £27.85
# 035
MPN: 396950454
SPRING CLIP
from £1.08
from £1.08
# 036
MPN: 119142160
SCREW
from £0.88
from £0.88
