maserati 418 / 4.24v / 430 trunk-trimmings and tools parts diagram

039 - Trunk-Trimmings and Tools

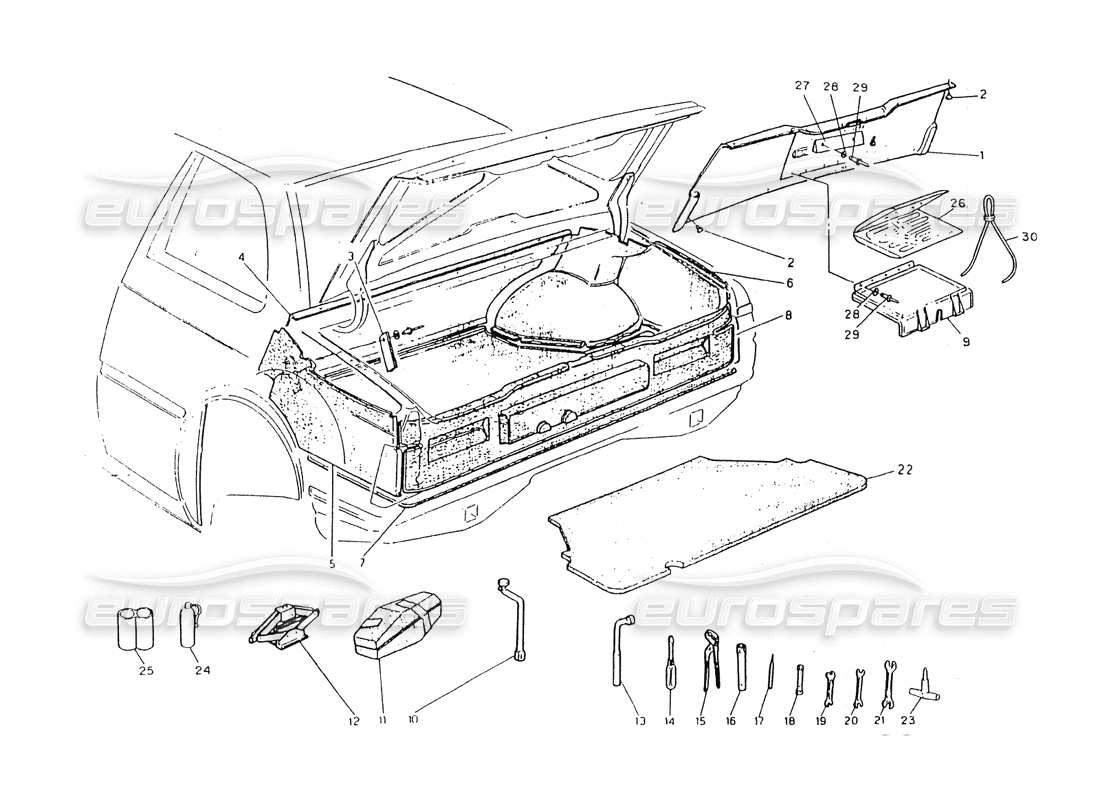

Maserati 418 / 4.24v / 430 Trunk-Trimmings and Tools Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 001
                                                            MPN: 324753152
                                                            TRUNK LID INTERIOR COVERING (ANTHRACITE COLOR)
                                                            # 002
                                                            MPN: 312520504
                                                            PLUG
                                                            from £2.59
                                                            from £2.59
                                                            # 003
                                                            MPN: 314750141
                                                            JACK BAG RETAINER
                                                            from £1.59
                                                            from £1.59
                                                            This part replaces part number 314720141
                                                            # 004
                                                            MPN: 324753146
                                                            FUEL TANK COMPART. CLOSED PANEL (ANTHRACITE COL
                                                            This part replaces part number 314750136
                                                            # 005
                                                            MPN: 324753147
                                                            TRUNK SIDE COVERING LH (ANTHRACITE COLOR)
                                                            from £19.51
                                                            from £19.51
                                                            This part replaces part number 324750137
                                                            # 006
                                                            MPN: 324753148
                                                            TRUNK SIDE COVERING RH (ANTHRACITE COLOR)
                                                            from £30.29
                                                            from £30.29
                                                            This part replaces part number 324750138
                                                            # 007
                                                            MPN: 324753149
                                                            TRUNK FLOOR COVERING (ANTHRACITE COLOR)
                                                            from £20.51
                                                            from £20.51
                                                            This part replaces part number 324750139
                                                            # 008
                                                            MPN: 324753150
                                                            REAR PANEL (ANTHRACITE COLOR)
                                                            from £20.68
                                                            from £20.68
                                                            This part replaces part number 324750140
                                                            # 009
                                                            MPN: 398150358
                                                            TOOL KIT BOX
                                                            from £3.60
                                                            from £3.60
                                                            # 010
                                                            MPN: 319820113
                                                            SPARE WHEEL WRENCH
                                                            from £3.79
                                                            from £3.79
                                                            # 011
                                                            MPN: 319850009
                                                            JACK BAG (ANTHRACITE)
                                                            from £1.04
                                                            from £1.04
                                                            This part replaces part number 319820009
                                                            # 012
                                                            MPN: 349800107
                                                            JACK
                                                            from £52.46
                                                            from £52.46
                                                            # 013
                                                            MPN: 329856103
                                                            WHEEL WRENCH
                                                            from £0.55
                                                            from £0.55
                                                            # 014
                                                            MPN: 319820104
                                                            DOUBLE SCREWDRIVER
                                                            from £2.39
                                                            from £2.39
                                                            # 015
                                                            MPN: 399850106
                                                            PLIERS
                                                            from £79.10
                                                            from £79.10
                                                            This part replaces part number 319820105
                                                            # 016
                                                            MPN: 319820300
                                                            SPARK PLUG SOCKET WRENCH
                                                            VALID FOR 51 / 58 / 59 / 65 3V / 66 / 67 / 68 / 77 / 78
                                                            from £0.59
                                                            from £0.59
                                                            # 016
                                                            MPN: 319853308
                                                            SPARK PLUG SOCKET WRENCH
                                                            VALID FOR 53 / 62 / 65 4V / 69 / 79
                                                            from £2.01
                                                            from £2.01
                                                            # 017
                                                            MPN: 319820301
                                                            PULLING NEEDLE
                                                            from £1.59
                                                            from £1.59
                                                            # 018
                                                            MPN: 319820302
                                                            8/10 SOCKET WRENCH
                                                            from £0.59
                                                            from £0.59
                                                            # 019
                                                            MPN: 319820303
                                                            8/10 WRENCH
                                                            from £1.04
                                                            from £1.04
                                                            # 020
                                                            MPN: 319820304
                                                            11/13 WRENCH
                                                            from £1.19
                                                            from £1.19
                                                            # 021
                                                            MPN: 319820305
                                                            17/19 WRENCH
                                                            from £1.55
                                                            from £1.55
                                                            # 022
                                                            MPN: 321553420
                                                            TRUNK FLOOR DEADENING TRIM
                                                            from £112.67
                                                            from £112.67
                                                            # 023
                                                            MPN: 329853115
                                                            ANTITHEFT SCREW WRENCH, OZ
                                                            from £8.61
                                                            from £8.61
                                                            # 023
                                                            MPN: 329853117
                                                            ANT I THEFT SCREW WRENCH, FOMB
                                                            from £6.42
                                                            from £6.42
                                                            This part replaces part number 379800117
                                                            # 024
                                                            MPN: 398150238
                                                            TUBE BLOWING BOTTLE (400 GR)
                                                            from £20.38
                                                            from £20.38
                                                            # 025
                                                            MPN: 398150239
                                                            BOTTLE CASE
                                                            from £20.98
                                                            from £20.98
                                                            # 026
                                                            MPN: 319852309
                                                            TOOL KIT BAG
                                                            # 027
                                                            MPN: 328150359
                                                            HOOK
                                                            from £1.98
                                                            from £1.98
                                                            # 028
                                                            MPN: 169020005
                                                            WASHER
                                                            from £1.11
                                                            from £1.11
                                                            # 030
                                                            MPN: 398150360
                                                            CORD
                                                            from £2.93
                                                            from £2.93
