040.1 - Windshield Wiper, RH Steering

Maserati 418 / 4.24v / 430 Windshield Wiper, RH Steering Parts Diagram

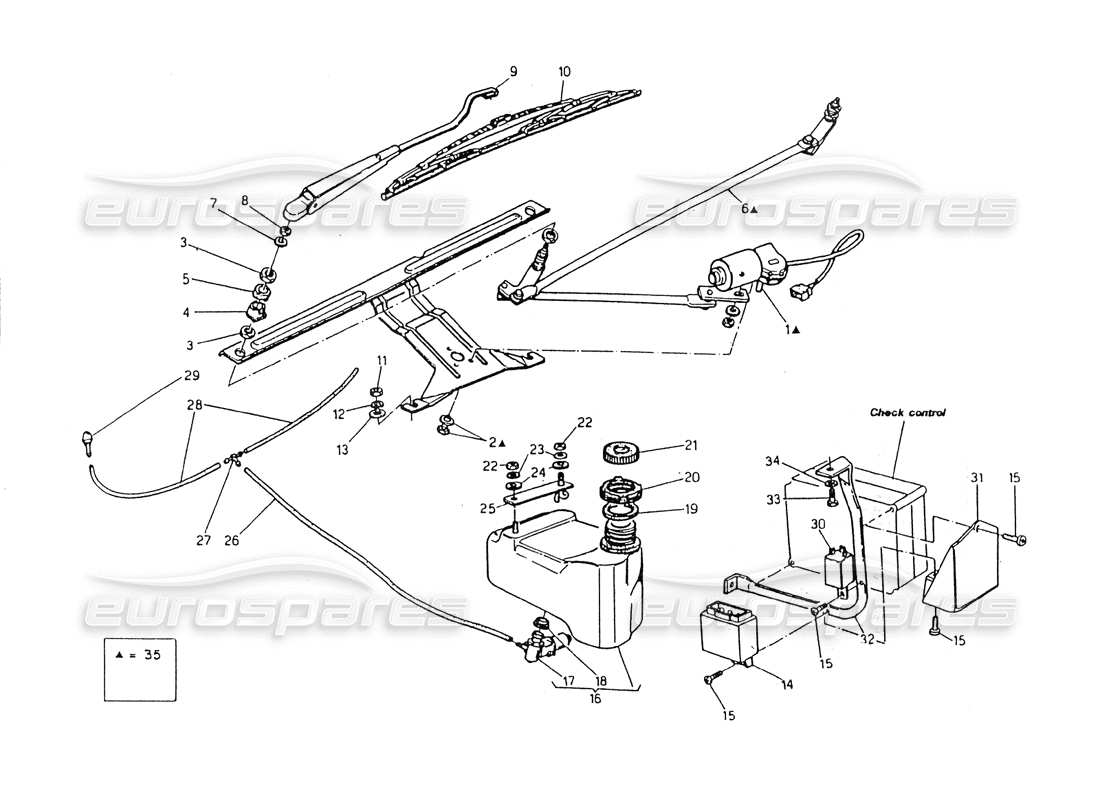

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 313327201
wiper motor
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
Supersession
Supersession
# 002
MPN: 313320401
SCREW AND WASHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 003
MPN: 313320402
NUT
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.63
from £1.63
# 004
MPN: 393350328
INTERNAL SPACER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £2.25
from £2.25
# 005
MPN: 393350329
EXTERNAL SPACER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.63
from £1.63
# 006
MPN: 313327202
LEVERAGE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £295.00
from £295.00
# 007
MPN: 138410080
SPRING WASHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 008
MPN: 125300080
NUT
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 009
MPN: 313367118
ARM
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £27.30
from £27.30
# 010
MPN: 313367159
BLADE WITH SPOILER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £10.45
from £10.45
This part replaces part number 313370119
# 011
MPN: 125100080
NUT
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.86
from £0.86
# 012
MPN: 135300084
SPRING WASHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 013
MPN: 169020508
WASHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 014
MPN: 313320116
TGE TIMER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £26.04
from £26.04
# 015
MPN: 119148130
SCREW
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.84
from £0.84
# 016
MPN: 318151025
RESERVOIR
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
Supersession
Supersession
This part replaces part number 318120024
# 017
MPN: 373300183
WINDSHIELD WASHER PUMP
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £15.07
from £15.07
This part replaces part number 330907620
# 018
MPN: 30331302
GASKET
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.70
from £0.70
# 019
MPN: 318120328
SEAL
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £2.82
from £2.82
# 020
MPN: 318120329
GROOVED NUT
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.05
from £1.05
# 021
MPN: 30811327
CAP
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 022
MPN: 125100060
NUT
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 023
MPN: 135300064
SPRING WASHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 024
MPN: 169020100
WASHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 025
MPN: 318120130
BRACKET
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.55
from £1.55
# 026
MPN: 318120313
CONNECTOR-PUMP LINE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.78
from £0.78
# 027
MPN: 30811310
T -UN I ON
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.78
from £0.78
# 028
MPN: 318120312
NOZZLE -CONNECTOR LINE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.50
from £0.50
# 029
MPN: 53811109
NOZZLE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 030
MPN: 313320115
INTERMITTENCE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
Supersession
Supersession
# 031
MPN: 313627313
GUARD
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 032
MPN: 313627108
SUPPORT
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £24.02
from £24.02
# 033
MPN: 30151340
SCREW
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.47
from £0.47
# 034
MPN: 135000053
FLAT WASHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 035
MPN: 313367103
WINDSHIELD WIPER ASSY
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £234.87
from £234.87
