041 - Headlamps

Maserati 418 / 4.24v / 430 Headlamps Parts Diagram

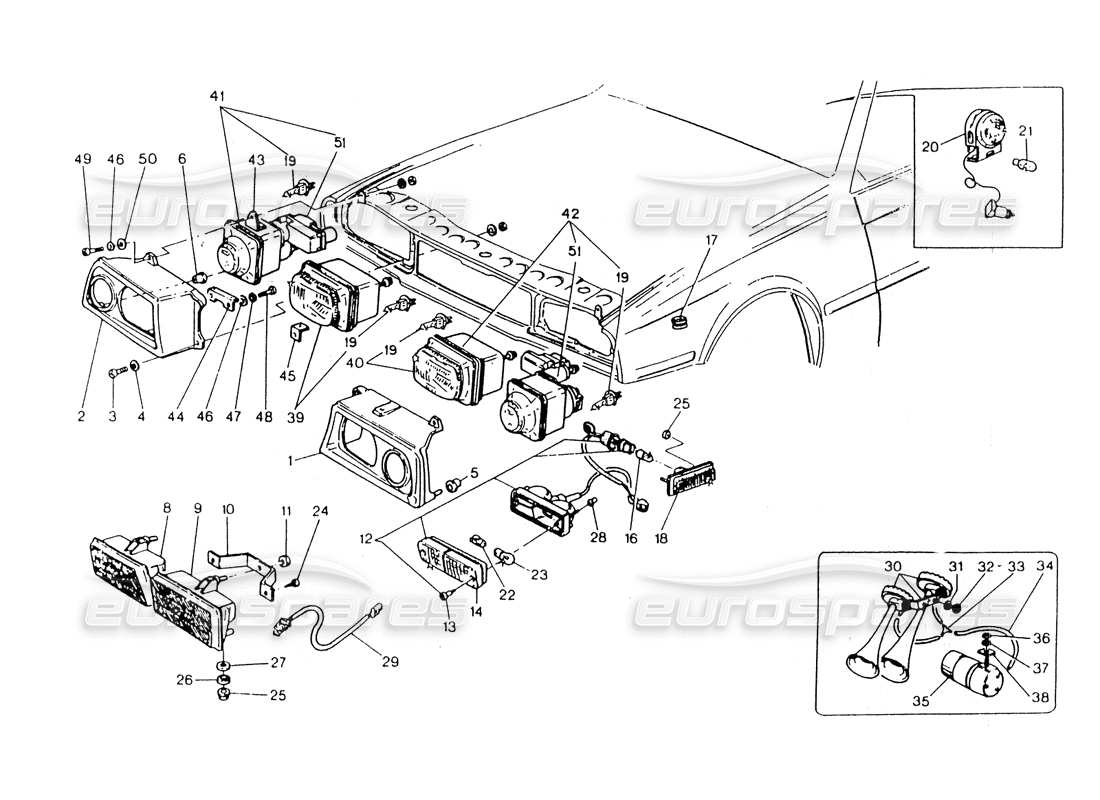

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Price
                                                                                      # 001
                                                                                      MPN: 318352207
                                                                                      LH HEADLAMP BEZEL
                                                                                      from £231.85
                                                                                      from £231.85
                                                                                      # 002
                                                                                      MPN: 318352208
                                                                                      RH HEADLAMP BEZEL
                                                                                      from £231.85
                                                                                      from £231.85
                                                                                      # 003
                                                                                      MPN: 167590414
                                                                                      SELF TAPPING SCREW
                                                                                      from £1.55
                                                                                      from £1.55
                                                                                      # 004
                                                                                      MPN: 135000043
                                                                                      WASHER
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      # 005
                                                                                      MPN: 53811303
                                                                                      BUSH
                                                                                      from £0.70
                                                                                      from £0.70
                                                                                      # 006
                                                                                      MPN: 313152343
                                                                                      BUSHING
                                                                                      from £0.93
                                                                                      from £0.93
                                                                                      # 008
                                                                                      MPN: 313153115
                                                                                      LH FOG LIGHT ASSY
                                                                                      from £81.83
                                                                                      from £81.83
                                                                                      # 008
                                                                                      MPN: 313153155
                                                                                      LH FOG LIGHT ASSY
                                                                                      VALID FOR 58 / 59 / 62
                                                                                      from £58.69
                                                                                      from £58.69
                                                                                      # 009
                                                                                      MPN: 313153114
                                                                                      RH FOG LIGHT ASSY
                                                                                      from £54.55
                                                                                      from £54.55
                                                                                      # 009
                                                                                      MPN: 313153156
                                                                                      RH FOG LIGHT ASSY
                                                                                      VALID FOR 58 / 59 / 62
                                                                                      from £58.69
                                                                                      from £58.69
                                                                                      # 010
                                                                                      MPN: 316353351
                                                                                      BRACKET TO FIX FOG LIGHT
                                                                                      from £1.55
                                                                                      from £1.55
                                                                                      # 012
                                                                                      MPN: 313153132
                                                                                      RH LIGHT WITH CABLE
                                                                                      use part number: 393150132
                                                                                      Supersession
                                                                                      Supersession
                                                                                      This part replaces part number 313120130 which we have in stock
                                                                                      # 012
                                                                                      MPN: 313153133
                                                                                      LH LIGHT WITH CABLE
                                                                                      use part number: 393150133
                                                                                      Supersession
                                                                                      Supersession
                                                                                      This part replaces part number 313120131 which we have in stock
                                                                                      # 013
                                                                                      MPN: 313120403
                                                                                      SCREW
                                                                                      from £2.49
                                                                                      from £2.49
                                                                                      # 014
                                                                                      MPN: 313120401
                                                                                      LH LENS
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 014
                                                                                      MPN: 313120402
                                                                                      RH LENS
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 016
                                                                                      MPN: 87720004
                                                                                      12V 4W BULB
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 017
                                                                                      MPN: 53241312
                                                                                      GROMMET
                                                                                      from £1.09
                                                                                      from £1.09
                                                                                      # 018
                                                                                      MPN: 373180127
                                                                                      SIDE LAMP
                                                                                      from £48.50
                                                                                      from £48.50
                                                                                      This part replaces part number 363100127
                                                                                      # 019
                                                                                      MPN: 87770055
                                                                                      12V 55W IODINE BULB
                                                                                      from £4.01
                                                                                      from £4.01
                                                                                      # 020
                                                                                      MPN: 313121112
                                                                                      UTILITY LAMP
                                                                                      from £23.01
                                                                                      from £23.01
                                                                                      # 021
                                                                                      -
                                                                                      BULB
                                                                                      # 022
                                                                                      MPN: 87540500
                                                                                      12V 5W BULB
                                                                                      from £0.52
                                                                                      from £0.52
                                                                                      # 023
                                                                                      MPN: 87720021
                                                                                      12V 21W BULB
                                                                                      from £1.00
                                                                                      from £1.00
                                                                                      # 024
                                                                                      MPN: 119142160
                                                                                      SCREW
                                                                                      from £0.86
                                                                                      from £0.86
                                                                                      # 027
                                                                                      MPN: 163030060
                                                                                      FLAT WASHER
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      # 028
                                                                                      MPN: 316353355
                                                                                      NUT
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      # 029
                                                                                      MPN: 313053132
                                                                                      FOG LIGHT CABLE EXTENSION
                                                                                      from £6.08
                                                                                      from £6.08
                                                                                      # 030
                                                                                      MPN: 313320006
                                                                                      HORN ASSY
                                                                                      from £19.10
                                                                                      from £19.10
                                                                                      # 033
                                                                                      MPN: 313320324
                                                                                      T-UNION
                                                                                      from £7.22
                                                                                      from £7.22
                                                                                      # 034
                                                                                      MPN: 314020316
                                                                                      PIPE
                                                                                      from £1.82
                                                                                      from £1.82
                                                                                      This part replaces part number 313320325
                                                                                      # 035
                                                                                      MPN: 313320146
                                                                                      COMPRESSOR
                                                                                      from £56.57
                                                                                      from £56.57
                                                                                      # 036
                                                                                      MPN: 125100080
                                                                                      NUT
                                                                                      from £0.86
                                                                                      from £0.86
                                                                                      # 039
                                                                                      MPN: 393150102
                                                                                      RH INT. HEADLAMP
                                                                                      VALID FOR 51 / 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                                                                                      from £80.96
                                                                                      from £80.96
                                                                                      This part replaces part number 393150148
                                                                                      # 039
                                                                                      MPN: 393150148
                                                                                      RH INT. HEADLAMP
                                                                                      VALID FOR 58 / 59 / 62 ONLY FRANCE
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 040
                                                                                      MPN: 393150103
                                                                                      LH INT. HEADLAMP
                                                                                      VALID FOR 51 / 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                                                                                      from £80.96
                                                                                      from £80.96
                                                                                      This part replaces part number 393150149
                                                                                      # 040
                                                                                      MPN: 393150149
                                                                                      LH INT. HEADLAMP
                                                                                      VALID FOR 58 / 59 / 62 ONLY FRANCE
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 041
                                                                                      MPN: 393150100
                                                                                      RH HEADLAMP
                                                                                      VALID FOR 51 / 53 / 58 / 59 / 62
                                                                                      from £159.37
                                                                                      from £159.37
                                                                                      This part replaces part number 393150146
                                                                                      # 041
                                                                                      MPN: 393150146
                                                                                      RH HEADLAMP
                                                                                      VALID FOR 58 / 59 / 62 ONLY FRANCE
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 041
                                                                                      MPN: 393170124
                                                                                      RH HEADLAMP
                                                                                      VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79 ONLY JAPAN AND RH STEERING
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 042
                                                                                      MPN: 393150101
                                                                                      LH HEADLAMP
                                                                                      VALID FOR 51 / 53 / 58 / 59 / 62
                                                                                      from £240.92
                                                                                      from £240.92
                                                                                      This part replaces part number 393150147
                                                                                      # 042
                                                                                      MPN: 393150147
                                                                                      LH HEADLAMP
                                                                                      VALID FOR 58 / 59 / 62 ONLY FRANCE
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 042
                                                                                      MPN: 393170125
                                                                                      LH .HEADLAMP
                                                                                      VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79 ONLY JAPAN AND RH STEERING
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 043
                                                                                      MPN: 313152340
                                                                                      BRACKET
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      # 044
                                                                                      MPN: 313152341
                                                                                      BRACKET
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      # 045
                                                                                      MPN: 313152342
                                                                                      BRACKET
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      # 046
                                                                                      MPN: 136110055
                                                                                      FLAT WASHER
                                                                                      from £0.78
                                                                                      from £0.78
                                                                                      # 050
                                                                                      MPN: 314722508
                                                                                      NYLON WASHER
                                                                                      from £0.78
                                                                                      from £0.78
                                                                                      # 051
                                                                                      MPN: 393150109
                                                                                      ACTUATOR
                                                                                      from £12.95
                                                                                      from £12.95
